The crystal structure of dichlorido-(tris(2-benzimidazolylmethyl)amine-κ4N,N′,N′′,N′′′)chromium(III) chloride — methanol (1/3), CrC27H33Cl3N7O3

  • Ji Li ORCID logo EMAIL logo and Siqi Wu
Published/Copyright: December 5, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 2

Abstract

CrC27H33Cl3N7O3, triclinic, P1̄ (no. 2), a = 9.7862(13) Å, b = 12.4690(17) Å, c = 12.8413(17), α = 84.163(2)°, β = 73.602(3)°, γ = 85.524(2)°, V = 1493.4(3) Å3, Z = 2, Rgt(F) = 0.0472, wRref(F2) = 0.1524, T = 100(2) K.

CCDC no.: 1947955

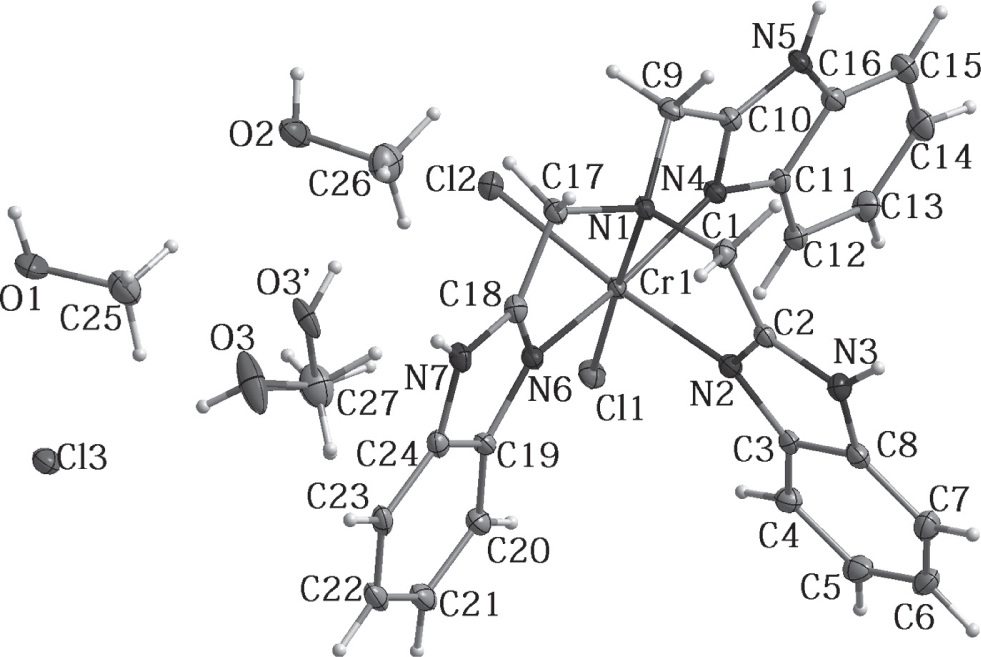

The asymmetric unit of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, green
Size:0.15 × 0.12 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.69 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:28.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:13443, 7221, 0.036
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5873
N(param)refined:391
Programs:Bruker programs [1], SHELX [2], [3], [4], DIAMOND [5], OLEX2 [6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cr10.87932(4)0.24696(3)0.35537(3)0.01037(12)
O10.5572(2)0.10643(17)1.08021(17)0.0294(5)
H10.597(4)0.0454(16)1.087(3)0.044*
O20.9564(2)0.19453(16)0.86432(15)0.0232(4)
H21.030(2)0.157(2)0.866(3)0.035*
O3a0.4809(3)0.1332(2)0.7181(2)0.0396(8)
H3Aa0.42510.14190.77990.059*
O3′b0.5987(13)0.1141(7)0.6653(9)0.0396(8)
H3′b0.68770.10250.64730.059*
Cl10.82188(6)0.39065(4)0.45741(4)0.01619(14)
Cl20.91378(6)0.13139(5)0.50164(4)0.01610(14)
Cl30.23008(6)0.09169(5)0.92587(5)0.01804(14)
N10.9336(2)0.11276(15)0.25366(15)0.0117(4)
N20.8550(2)0.32773(15)0.21376(16)0.0127(4)
N30.8637(2)0.31986(16)0.03942(16)0.0151(4)
H30.895(3)0.294(2)−0.0247(13)0.018*
N41.0931(2)0.26305(15)0.29001(16)0.0123(4)
N51.3009(2)0.19395(16)0.19269(16)0.0148(4)
H5A1.367(2)0.1476(19)0.161(2)0.018*
N60.6845(2)0.18585(15)0.38087(15)0.0129(4)
N70.5594(2)0.04882(16)0.36851(16)0.0145(4)
H7A0.534(3)−0.0141(13)0.358(2)0.017*
C10.9177(3)0.14815(18)0.14170(19)0.0152(5)
H1A1.00850.13230.08620.018*
H1B0.84280.10720.12780.018*
C20.8787(2)0.26562(19)0.13211(18)0.0127(4)
C30.8258(2)0.43219(18)0.17069(18)0.0126(4)
C40.7961(3)0.53062(19)0.2178(2)0.0159(5)
H40.79160.53530.29210.019*
C50.7736(3)0.6211(2)0.1513(2)0.0195(5)
H50.75410.68930.18070.023*
C60.7787(3)0.6146(2)0.0420(2)0.0207(5)
H60.76240.6786−0.00070.025*
C70.8067(3)0.5180(2)−0.0053(2)0.0199(5)
H70.80940.5135−0.07930.024*
C80.8309(3)0.4276(2)0.0608(2)0.0156(5)
C91.0847(2)0.07642(19)0.2481(2)0.0148(5)
H9A1.12760.03640.18290.018*
H9B1.08900.02870.31370.018*
C101.1626(2)0.17676(18)0.24190(18)0.0132(4)
C111.1930(2)0.34181(19)0.27076(19)0.0133(4)
C121.1792(3)0.44687(19)0.30174(19)0.0147(4)
H121.09050.47700.34280.018*
C131.3013(3)0.5055(2)0.2697(2)0.0185(5)
H131.29610.57700.29040.022*
C141.4323(3)0.4623(2)0.2076(2)0.0209(5)
H141.51260.50590.18590.025*
C151.4469(3)0.3571(2)0.1772(2)0.0197(5)
H151.53570.32700.13640.024*
C161.3246(3)0.29844(19)0.20976(19)0.0148(5)
C170.8306(2)0.02783(18)0.30757(19)0.0142(4)
H17A0.8242−0.02230.25430.017*
H17B0.8616−0.01420.36740.017*
C180.6898(3)0.08606(19)0.35124(18)0.0139(4)
C190.5399(2)0.21641(19)0.42022(18)0.0127(4)
C200.4731(3)0.3126(2)0.46055(19)0.0159(5)
H200.52630.37210.46390.019*
C210.3258(3)0.3171(2)0.4954(2)0.0189(5)
H210.27670.38100.52430.023*
C220.2464(3)0.2297(2)0.48932(19)0.0189(5)
H220.14530.23640.51380.023*
C230.3115(3)0.1343(2)0.44872(19)0.0162(5)
H230.25790.07530.44490.019*
C240.4607(3)0.12970(19)0.41353(18)0.0140(4)
C250.5900(3)0.1465(3)0.9689(2)0.0290(6)
H25A0.53020.21200.96110.043*
H25B0.57170.09170.92560.043*
H25C0.69070.16360.94310.043*
C260.9777(3)0.2404(2)0.7549(2)0.0297(6)
H26A0.93760.31490.75520.045*
H26B0.93010.19800.71650.045*
H26C1.08010.23980.71790.045*
C270.5644(3)0.2223(2)0.6994(2)0.0305(6)
H27Aa0.50390.28770.69300.046*
H27Ba0.64110.21660.63170.046*
H27Ca0.60380.22460.76120.046*
H27Db0.64960.26440.67230.046*
H27Eb0.48850.25630.66920.046*
H27Fb0.53350.21960.77910.046*

  1. Occupancies: a0.800(4), b0.200(4).

Source of materials

Tris(2-benzimidazolylmethyl)amine (NTB) was prepared according to an earlier reported method [7]. NTB (0.408 g, 1.0 mmol) was dissolved in hot methanol (50.0 mL) and then a solution of CrCl3 (0.158 g, 1.0 mmol) in 20.0 mL methanol was added drop by drop. The mixed solution was stirred for 30 min at 50 °C. Finally, the reaction mixture was filtered and the filtrate solution was evaporated at room temperature for ten days. Some green block crystals were obtained at the bottom of the vessel (0.50 g, yield: 75%).

Experimental details

Hydrogen atoms bonded to carbon atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms with C—H = 0.95 Å (aromatic), 0.99 Å (methylene), 0.98 Å (methyl) Uiso(H) = 1.2Ueq (aromatic and methylene) and 1.5Ueq(methyl). Hydrogen atoms bonded to nitrogen, O1 and O2 atoms were initially found from the difference maps and refined with the restraints of N—H = 0.88(1) Å, O—H = 0.84(1) Å. The positions of hydrogen atoms bonded to disordered O3 and O3′ were constrained to be at the ‘best’ positions, forming hydrogen bonds to neighboring chloride anions [3]. Commands DFIX and SADI were used in the refinement to restrain C—O, N—H and O—H distances, and EADP was used to restrain the thermal factor of O3′ being similar to O3. For the N and O atoms, Uiso(H) = 1.2Ueq(N) and 1.5Ueq(O).

Comment

The multi-benzimidazole ligand tris(2-benzimidazolylmethyl)amine (NTB) has been often used in the design and synthesis of metal-containing compounds due to their potential application in the fields of biological and bioinorganic chemistry [8], [9], [10]. NTB has been often seen to be a tetradentate ligand coordinating a late transition metal. Compared to these metal complexes, early transition metal complexes of NTB are rarely reported.

The asymmetric unit of the title structure is composed of each one [Cr(NTB)Cl2]+, one Cl− anion and three methanol solvent molecules. NTB acts as a tetradentate ligand, coordinating through the tertiary N atom and three benzimidazole (bzim) N atoms to metal ion. Two chlorido ligands are in a cis configuration. The N4Cl2 donor set constructs an octahedral polyhedron around the central Cr(III). The tertiary N1 atom presents a bond length about 0.10 Å longer than those for the three bzim N atoms. To retain the octahedral geometry, ligand NTB adopts a planar geometry with a dihedral angle of 11.9(1)° between the N4/N5 and N6/N7-containing bzim groups. However, the angles of these moieties with the third one are 79.9(1) and 88.3(1)°, respectively, which are very similar to its analogous structure with different solvent [11]. By considering some NTB-containing analogs as a whole, it can be found NTB can adopt many spatial arrangements to meet the coordination preference of a metal ion or solvent molecules [12], [13], [14]. On the other hand, the Cr(III) ion lies in the plane formed by N1, N4, N6 and CL1 atoms (maximal deviation: 0.025 Å for Cr1). As a result of these features, the deviations from an ideal octahedral geometry around Cr (III) ion are the following: trans angles range from 158.09(8) to 178.29(5)° and cis angles from 78.92(7) to 101.19(6)°.

A detailed geometrically analysis using the program PLATON [15] indicates that these adjacent [Cr(NTB)Cl2]+ ions are firstly linked into two-dimensional layers parallel to the (011) plane by three π⋯π interactions. These layers are further linked by three N—H⋯O and three O—H⋯Cl hydrogen bonds into the final three-dimensional network.

Acknowledgements

This work was financially supported by Discipline and Master’s Site Construction Project of Guiyang University by Guiyang City Financial Support Guiyang University (SH-2019).

References

1. Bruker. SMART and SAINT. Bruker AXS Inc., Madison, WI, USA (2003).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

3. Sheldrick, G. M.: SHELXTL Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

4. Sheldrick, G. M.: Crystal refinement with SHELX. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

5. Brandenburg, K.: DIAMOND. Crystal Impact GbR, Bonn Germany (2006).Search in Google Scholar

6. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

7. Szczepura, L. F.; Witham, L. M.; Takeuchi, K. J.: Tris(2-pyridyl) tripod ligands. Coord. Chem. Rev. 174 (1998) 5–32.10.1016/S0010-8545(98)00122-2Search in Google Scholar

8. Desbouis, D.; Troitsky, I. P.; Belousoff, M. J.; Spiccia, L.; Graham, B.: Copper(II), zinc(II) and nickel(II) complexes as nuclease mimetics. Coord. Chem. Rev. 256 (2012) 897–937.10.1016/j.ccr.2011.12.005Search in Google Scholar

9. Barone, G.; Terenzi, A.; Lauria, A.; Almerico, A. M.; Leal, J. M.; Busto, N.; García, B.: DNA-binding of nickel(II), copper(II) and zinc(II) complexes: structure–affinity relationships. Coord. Chem. Rev. 257 (2013) 2848–2862.10.1016/j.ccr.2013.02.023Search in Google Scholar

10. Tsou, C. C.; Yang, W. L.; Liaw, W. F.: Nitrite activation to nitric oxide via one-fold protonation of iron(II)-O,O-nitrito complex: relevance to the nitrite reductase activity of deoxyhemoglobin and deoxyhemerythrin. J. Am. Chem. Soc. 135 (2013) 18758–18761.10.1021/ja4105864Search in Google Scholar

11. Ceniceros-Gómez, A. E.; Barba-Behrens, N.; Quiroz-Castro, M. E.; Bernès, S.; Nöth, H.; Castillo-Blum, S. E.: Synthesis, X-ray and spectroscopic characterisation of chromium(III) coordination compounds with benzimidazolic ligands. Polyhedron 19 (2000) 1821–1827.10.1016/S0277-5387(00)00458-7Search in Google Scholar

12. Chen, J.; Zhang, H. D.: Crystal structure of dinitrato-κO-bis(tris((1H-benzo[d]imidazol-2-yl)methyl)amine-κ4N,N′,N′′,N′′′)-(μ2-cyclohexane-1,4-dicarboxylato-κ4O,O′:O′′,O′′′) dimanganese(II)-methanol-water (1/6/2), C62H80Mn2N16O18. Z. Kristallogr. NCS 232 (2017) 775–777.10.1515/ncrs-2017-0029Search in Google Scholar

13. Chen, J.; Zhang, L. C.; Chen, J. W.; Zhang, H. D.: Crystal structure of [tris(2-benzimidazolylmethyl)amine-κ4N,N′,N′′,N′′′]-[(pyridine-2,6-dicarboxylato-κ2O,N)]cadmium(II)–methanol (1:3) C34H36CdN8O7. Z. Kristallogr. NCS 233 (2018) 1047–1049.10.1515/ncrs-2018-0162Search in Google Scholar

14. Jang, J. J.; Li, L.; Yang, T.; Kuang, D. B.; Wang, W.; Su, C. Y.: Self-assembly of 2D Borromean networks through hydrogen-bonding recognition. Chem. Comm. (2009) 2387–2389.10.1039/b820831jSearch in Google Scholar PubMed

15. Spek, A. L.: Structure validation in chemical crystallography. Acta Crystallogr. D65 (2009) 148–155.10.1107/S090744490804362XSearch in Google Scholar PubMed PubMed Central
