The crystal structure of (E)-N′-(1-(3-chloro-4-fluorophenyl) ethylidene)-2-hydroxybenzohydrazide, C15H12ClFN2O2

  • Xifeng Yan , Shibin Zhong ORCID logo EMAIL logo and Hong Zhang
Published/Copyright: October 25, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 2

Abstract

C15H12ClFN2O2, monoclinic, P21/c (no. 14), a = 13.9210(13) Å, b = 13.2329(15) Å, c = 18.7191(19) Å, β = 126.250(2)°, V = 2780.9(5) Å3, Z = 8, Rgt(F) = 0.0499, wRref(F2) = 0.1420, T = 293(2) K.

CCDC no.: 1958013

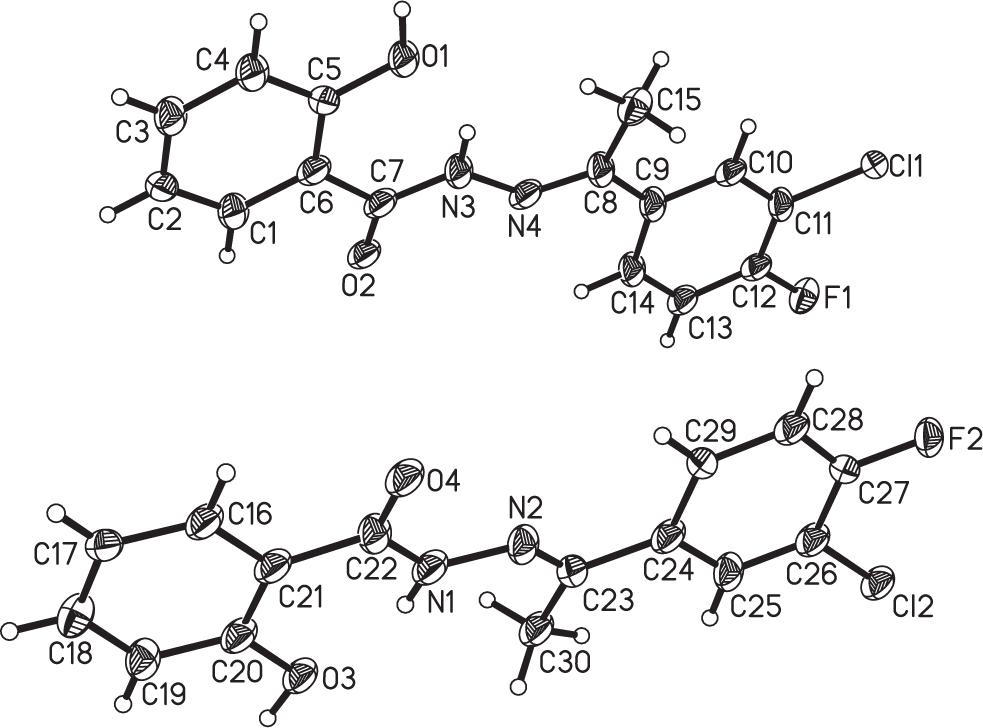

The asymmetric unit of the molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.20 × 0.15 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.29 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:19612, 6361, 0.084
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4081
N(param)refined:381
Programs:Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C11.0604(2)0.1301(2)0.87188(19)0.0507(7)
H11.05930.19980.86510.061*
C21.0925(2)0.0916(2)0.95159(19)0.0513(7)
H21.11380.13460.99820.062*
C31.0924(2)−0.0121(2)0.96110(19)0.0514(7)
H31.1128−0.03911.01430.062*
C41.0626(2)−0.0756(2)0.89280(18)0.0513(7)
H41.0640−0.14510.90040.062*
C51.0304(2)−0.0370(2)0.81273(18)0.0497(7)
C61.0294(2)0.06784(19)0.80076(18)0.0504(7)
C70.9952(2)0.1184(2)0.71837(18)0.0502(7)
C80.8638(2)0.0364(2)0.49458(19)0.0525(8)
C90.8362(2)0.0955(2)0.41578(18)0.0505(7)
C100.8011(2)0.0419(2)0.33914(18)0.0510(7)
H100.8037−0.02830.34090.061*
C110.7634(2)0.08997(19)0.26193(18)0.0494(7)
C120.7603(2)0.1938(2)0.25817(19)0.0514(7)
C130.7950(2)0.2521(2)0.33139(18)0.0533(7)
H130.79330.32230.32870.064*
C140.8322(2)0.20163(19)0.40882(19)0.0538(8)
H140.85570.23970.45850.065*
C150.8372(2)−0.07834(19)0.49145(18)0.0527(7)
H15A0.8685−0.10160.55000.079*
H15B0.8741−0.11500.46930.079*
H15C0.7527−0.08920.45310.079*
C160.5796(2)0.14467(19)0.87763(18)0.0494(7)
H160.57650.07480.87140.059*
C170.6282(2)0.18537(19)0.96035(19)0.0512(7)
H170.65810.14371.00930.061*
C180.6317(2)0.28978(19)0.96899(18)0.0487(7)
H180.66530.31841.02440.058*
C190.5861(2)0.3513(2)0.89660(18)0.0511(7)
H190.58710.42100.90320.061*
C200.5385(2)0.31049(19)0.81365(18)0.0483(7)
C210.5347(2)0.20525(19)0.80263(18)0.0489(7)
C220.4876(2)0.1529(2)0.71805(18)0.0496(7)
C230.3919(2)0.2306(2)0.50090(19)0.0532(8)
C240.3444(2)0.16985(19)0.41862(18)0.0500(7)
C250.2960(2)0.2210(2)0.33834(17)0.0510(7)
H250.28880.29090.33700.061*
C260.2592(2)0.17142(19)0.26227(18)0.0504(7)
C270.2680(2)0.06791(19)0.26216(18)0.0497(7)
C280.3124(2)0.0105(2)0.33861(18)0.0509(7)
H280.3163−0.05970.33820.061*
C290.3502(2)0.06377(19)0.41518(18)0.0510(7)
H290.38100.02740.46700.061*
C300.4129(2)0.34686(19)0.50572(18)0.0559(8)
H30A0.36330.38040.51830.084*
H30B0.39320.37030.45000.084*
H30C0.49500.36150.55180.084*
Cl10.71888(6)0.02090(5)0.16886(5)0.0551(2)
Cl20.20314(5)0.23827(5)0.16556(4)0.0528(2)
F10.72159(12)0.24023(11)0.18107(10)0.0539(4)
F20.23185(12)0.01976(11)0.18642(10)0.0520(4)
N10.45966(17)0.21313(16)0.64992(15)0.0488(6)
H1A0.46940.27720.65900.059*
N20.41626(17)0.17763(16)0.56630(15)0.0497(6)
N30.95095(17)0.05715(16)0.64765(15)0.0493(6)
H3A0.9464−0.00640.65470.059*
N40.91240(18)0.09048(16)0.56430(15)0.0519(6)
O11.00053(14)−0.09903(13)0.74459(12)0.0511(5)
H1E1.0059−0.16800.76250.077*
O21.00823(14)0.21007(13)0.71545(12)0.0520(5)
O30.49501(14)0.37106(12)0.74203(12)0.0500(5)
H3E0.50340.44050.75960.075*
O40.47437(15)0.06042(13)0.71121(12)0.0533(5)

Source of material

A mixture of 2-hydroxy-benzoic acid hydrazide (1 mmol, 152.2 mg) and 1-(3-chloro-4-fluoro-phenyl)-ethanone (1 mmol, 172.6 mg) in anhydrous ethanol (25 mL) was kept under reflux conditions (351 K) for 3 h. The solvent was removed under reduced pressure and the solid product was recrystallized from 15 mL of anhydrous ethanol. After 4 days, colourless block-shaped crystals were obtained.

Experimental details

Coordinates of hydrogen atoms were refined without any constraints or restraints. The Uiso values were set to be 1.5Ueq of the carrier atom for methyl H atoms and 1.2Ueq for the remaining H atoms.

Comment

In recent years, Schiff bases as one of the important synthetic intermediates have attracted more and more attention due to the wide applications in the fields of coordination chemistry, biochemistry, pharmacy, nanotechnology, and photochemistry [3], [4], [5], [6], [7], [8], [9], [10]. From the structural point of view, o-hydroxy Schiff bases are attractive because of their intramolecular H-bond, and thus have been extensively investigated and reported [11], [12], [13], [14], [15], [16], [17]. In addition, the heteroatoms (such as N, F, Cl, Br, S) can act as hydrogen bonding acceptors for bioactive molecules in order to exhibit higher biological activity [18], [19]. But, the unsymmetrical o-hydroxy Schiff bases containing heteroatoms especial of F and Cl in one molecule are less investigated. Herein, in order to search for new o-hydroxy Schiff bases containing F and Cl heteroatoms, we have undertaken the synthesis and single crystal structure determination of the title compound (cf. the figure).

In the title compound, there are two crystallographically independent molecules in the asymmetric unit, which have very similar conformations. Compared with those of closely related structure, such a structural feature is uncommon [15]. The bond lengths and angles are in the expected ranges which fit with those of related compounds in literature [11], [12], [13], [14], [15], [16], [17]. The C=N double bond lengths in the independent molecule are 1.277(3) Å (C8=N4) and 1.271(4) Å (C23=N2), respectively, exhibiting the double bond character. The aromatic rings form dihedral angles of 3.9° and 4.2° in the two independent molecules. In the crystal structure, the molecules are linked into double infinite chains by O—H⋯O hydrogen bonds. There also exist intramolecular N—H⋯O hydrogen bonds, which further consolidate the crystal packing.

Acknowledgements

This work was financially supported by East China University of Technology.

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2008).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Zhang, L. S.; Chen, Q.; Hou, G. G.; Zhao, W.; Hou, Y.: Hydroxyl-substituted double Schiff-base condensed 4-piperidone/cyclohexanones as potential anticancer agents with biological evaluation. J. Enzyme Inhib. Med. Chem. 34 (2019) 264–271.10.1080/14756366.2018.1501042Search in Google Scholar PubMed PubMed Central

4. Pu, X.: The crystal structure of (E)-4-chloro-2-(((5-methylpyridin-2-yl)imino)methyl)phenol, C13H11ClN2O. Z. Kristallogr. NCS 233 (2018) 253–254.10.1515/ncrs-2017-0254Search in Google Scholar

5. Chang, F. F.; Zhang, L.; Zhao, P. C.; Huang, W.: Transmetalation for flexible pendant-armed Schiff-base macrocyclic complexes influenced by halide effects. Inorg. Chem. 57 (2018) 1438–1448.10.1021/acs.inorgchem.7b02835Search in Google Scholar PubMed

6. Aboura, W.; Benabdallah, T.; Zhang, F.; Therrien, B.: Alkoxylation of the imine carbon atom of a Schiff-base ligand upon coordination to arene ruthenium. Inorg. Chim. Acta 483 (2018) 93–97.10.1016/j.ica.2018.07.025Search in Google Scholar

7. Kadwa, E.; Bala, M. D.; Friedrich, H. B.: Base metal Schiff base complexes applied as catalysts for the oxidation of n-octane. Inorg. Chim. Acta 463 (2017) 112–117.10.1016/j.ica.2017.04.032Search in Google Scholar

8. Shanty, A.; Philip, J.; Sneha, E.; Kurup, M.; Balachandran, S.; Mohanan, P.: Synthesis, characterization and biological studies of Schiff bases derived from heterocyclic moiety. Bioorg. Chem. 70 (2017) 67–73.10.1016/j.bioorg.2016.11.009Search in Google Scholar PubMed

9. Abu-Dief, A. M.; Mohamed, I. M. A.: A review on versatile applications of transition metal complexes incorporating Schiff bases. Beni-suef Univ. J. Basic Appl. Sci. 4 (2015) 119–133.10.1016/j.bjbas.2015.05.004Search in Google Scholar PubMed PubMed Central

10. Li, P.; Niu, M.-J.; Hong, M.; Cheng, S.; Dou, J.-M.: Effect of structure and composition of nickel(II) complexes with salicylidene Schiff base ligands on their DNA/protein interaction and cytotoxicity. J. Inorg. Biochem. 137 (2014) 101–108.10.1016/j.jinorgbio.2014.04.005Search in Google Scholar PubMed

11. Fan, C. G.; Song, M. Z.: (E)-N′-[1-(4-Bromophenyl)ethylidene]-2-hydroxybenzohydrazide. Acta Crystallogr. E65 (2009) o2792.10.1107/S1600536809042081Search in Google Scholar PubMed PubMed Central

12. Li, M. L.; Huang, X.; Feng, R. K.: (E)-N′-[1-(4-Chlorophenyl)ethylidene]-2-hydroxybenzohydrazide. Acta Crystallogr. E65 (2009) o369.10.1107/S1600536809002311Search in Google Scholar PubMed PubMed Central

13. Yue, S. Y.; Lu, J. F.: N′-[1-(2-Hydroxyphenyl)ethylidene]-2-methoxybenzohydrazide. Acta Crystallogr. E66 (2010) o1550.10.1107/S1600536810020477Search in Google Scholar PubMed PubMed Central

14. Qiu, X. Y.; Luo, Q. Y.; Yang, S. L.; Liu, W. S.: (E)-2-Hydroxy-N′-[1-(4-methoxyphenyl)-ethylidene]benzohydrazide. Acta Crystallogr. E62 (2006) o4291–o4292.10.1107/S1600536806029345Search in Google Scholar

15. Patra, D.; Biswas, N.; Kumari, B.; Das, P.; Sepay, N.; Chatterjee, S.; Drew, M. G. B.; Ghosh, T.: A family of mixed-ligand oxidovanadium(V) complexes with aroylhydrazone ligands: a combined experimental and computational study on the electronic effects of para substituents of hydrazone ligands on the electronic properties, DNA binding and nuclease activities. RSC Adv. 5 (2015) 92456–92472.10.1039/C5RA17844DSearch in Google Scholar

16. Shan, S.; Tian, Y. L.; Wang, S. H.; Wang, W. L.; Xu, Y. L.: (E)-N′-[1-(4-Aminophenyl)ethylidene]benzohydrazide. Acta Crystallogr. E64 (2008) o1363.10.1107/S1600536808019004Search in Google Scholar PubMed PubMed Central

17. Shi, X. F.; Xing, Z. F.: (E)-N′-[1-(4-Aminophenyl)ethylidene]-2-hydroxybenzohydrazide methanol solvate. Acta Crystallogr. E63 (2007) o4771.10.1107/S1600536807058552Search in Google Scholar

18. Yao, B. R.; Li, N.; Wang, C. H.; Hou, G. G.; Meng, Q. G.; Yan, K.: Novel asymmetric 3,5-bis(arylidene)piperidin-4-one derivatives: synthesis, crystal structures and cytotoxicity. Acta Crystallogr. C74 (2018) 659–665.10.1107/S2053229618006605Search in Google Scholar PubMed

19. Li, N.; Bai, X. Y.; Zhang, L. S.; Hou, Y.: Synthesis, crystal structures and anti-inflammatory activity of four 3,5-bis(arylidene)-N-benzenesulfonyl-4-piperidone derivatives. Acta Crystallogr. C74 (2018) 1171–1179.10.1107/S2053229618013232Search in Google Scholar PubMed
