Crystal structure of 1,2,3,4,5-pentamethyl-1,3-cyclopentadiene, C10H16

  • Christian Benda , Wilhelm Klein and Thomas F. Fässler EMAIL logo
Published/Copyright: April 7, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 3

Abstract

C10H16, orthorhombic, P212121 (no. 19), a = 4.4804(6) Å, b = 11.7784(12) Å, c = 16.761(2) Å, V = 884.5(2) Å3, Z = 4, Rgt(F) = 0.0360, wRref(F2) = 0.0596, T = 120 K.

CCDC no.:: 1541210

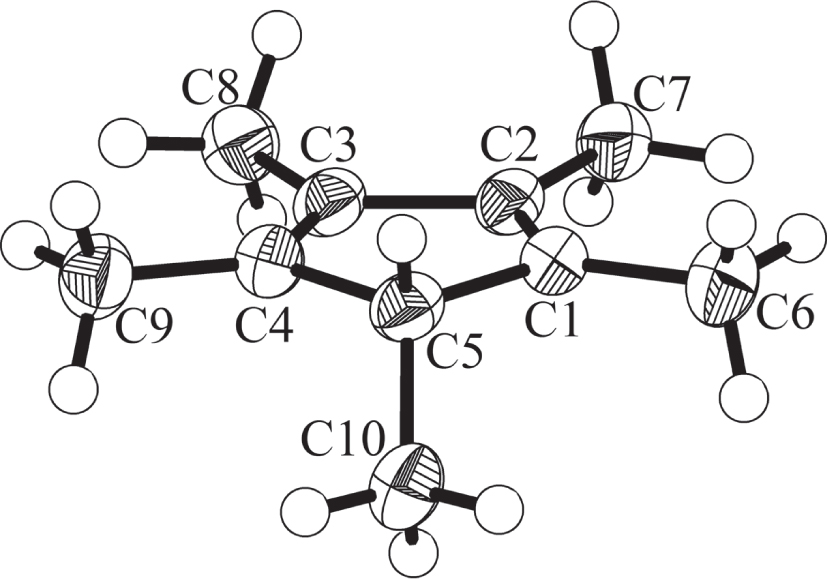

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.1 × 0.1 × 0.1 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.6 cm−1
Diffractometer, scan mode:Oxford Xcalibur 3, φ and ω
2θmax, completeness:51°, >99%
N(hkl)measured, N(hkl)unique, Rint:9511, 1635, 0.098
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 718
N(param)refined:97
Programs:Oxford programs [1], SHELX [2, 3] , DIAMOND [4]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.4136(7)0.4877(2)0.07087(17)0.0371(8)
C20.2391(7)0.5646(2)0.10732(17)0.0360(8)
C30.2210(7)0.5342(2)0.19327(19)0.0375(9)
C40.3799(7)0.4410(2)0.20678(18)0.0375(9)
C50.5181(7)0.4004(2)0.12958(15)0.0379(8)
H50.74060.40350.13390.045*
C60.5042(8)0.4825(2)−0.01537(15)0.0568(10)
H6A0.42700.5494−0.04340.085*
H6B0.42210.4136−0.03970.085*
H6C0.72240.4812−0.01920.085*
C70.0867(6)0.6654(2)0.07269(16)0.0475(9)
H7A0.11820.66680.01480.071*
H7B0.16910.73470.09640.071*
H7C−0.12760.66110.08400.071*
C80.0398(8)0.6027(2)0.25093(15)0.0433(9)
H8A0.07360.57470.30520.065*
H8B−0.17240.59570.23760.065*
H8C0.09970.68260.24770.065*
C90.4397(7)0.3827(2)0.28423(15)0.0484(9)
H9A0.32500.41970.32670.073*
H9B0.65310.38730.29660.073*
H9C0.38010.30280.28030.073*
C100.4211(7)0.2804(2)0.10680(14)0.0468(10)
H10A0.20340.27780.10160.070*
H10B0.48470.22700.14830.070*
H10C0.51310.25920.05590.070*

Source of materials

Zn2(Cp*)2 (Cp* = pentamethylcyclopentadienyl) was prepared as described in literature [5]. 40 mg Zn2(Cp*)2 were given into a dry Schlenk vessel and ca. 2 ml NH3 (Westfalen AG, 99.999%, stored over elemental Na) were condensed on this. The formerly colourless complex got spontaneously black. The vessel was stored at −70 °C for five months, after this time colourless crystals of the title compound in a yield of about 20 mol% with respect to Zn2(Cp*)2 were found. An appropriate crystal was selected under perfluoroalkylether in a stream of cold nitrogen gas.

Experimental details

All H atoms could be located from the difference Fourier map and have subsequently been refined using a riding model with Uiso set to 1.2 and 1.5 Ueq(C) for the methylene and methyl H atoms, respectively. Because C10H16 is a weak anomalous scatterer, the Flack parameter is meaningless and has been removed from the cif.

Comment

1,2,3,4,5-Pentamethyl-1,3-cyclopentadiene was synthesized for the first time in 1960 [6], and similar to cyclopentadiene, the pentamethyl derivative easily separates one proton to form a relatively stable anion due to a 6π electron system. The striking capability of the resulting anion, [C5(CH3)5]−, usually abbreviated as “Cp*”, to form stable metal complexes was early discovered [7, 8] , and today it is widely used as a ligand in organometallic chemistry [9]. Besides other advantageous features with respect to the non-methylated Cp ligand (i.e. [C5H5]−), the precursor, 1,2,3,4,5-pentamethyl-1,3-cyclopentadiene (Cp*H), does not tend to dimerize and can be stored as the monomer, and it is commercially accessible. Despite these facts, and by regarding that the crystal structure of cyclopentadiene (CpH) is known since more than 50 years [10], it is a bit surprising that the crystal structure of the title compound has not been published so far.

During our studies on the reactivity of Zn(I) complexes of the type Zn2L2 to the bismuth polyanion [Bi2]2− in liquid ammonia [11], amongst others Zn2Cp*2, the first discovered Zn(I) complex [12], was investigated. At the dissolution of Zn2Cp*2 in liquid ammonia, a black residue, composed from elemental Zn, was formed in a spontaneous reaction. Besides this, colourless crystals of Cp*H have been found after a few months.

According to the crystal structure, nine C atoms of the title molecule, C1 to C9, are in plane (cf. the figure). Within the C5 ring, the C1—C2 and C3—C4 double bonds are 1.343(3) Å and 1.328(4) Å, respectively, while the single bonds are in the range between 1.487(3) Å and 1.512(3) Å, the shortest one between C2 and C3 connects the double bonds. These values are very close to those in CpH [13]. The C—C bond lengths between the methyl groups and the formal butadiene moiety are in the same range with that to the exo-plane methyl group being the longest (1.487(3) Å to 1.503(3) Å, C5—C10 1.528(3) Å). The molecules form a distorted hexagonal rod packing parallel to the crystallographic a axis.

Acknowledgement

This work was supported by the Deutsche Forschungsgesellschaft (DFG) and the Technische Universität München within the funding programme Open Access Publishing.

References

1 Oxford Diffraction. CrysAlis CCD and CrysAlis RED Version 1.171.33.34d. Agilent Technologies UK Ltd., Yarnton, Oxfordshire, England, 2009.Search in Google Scholar

2 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3 Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4 Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.2i. Crystal Impact, Bonn, Germany, 2012.Search in Google Scholar

5 Li, T.; Schulz, S.; Roesky, P. W.: Synthesis, reactivity and applications of zinc-zinc bonded complexes. Chem. Soc. Rev. 41 (2012) 3759–3771.10.1039/c2cs15343bSearch in Google Scholar PubMed

6 De Vries, L.: Preparation of 1,2,3,4,5-pentamethylcyclopentadiene, 1,2,3,4,5,5-hexamethylcyclopentadiene, and 1,2,3,4,5-pentamethylcyclopentadienylcarbinol. J. Org. Chem. 25 (1960) 1838.10.1021/jo01080a623Search in Google Scholar

7 Röhl, H.; Lange, E.; Gössl, T.; Roth, G.: Pentamethylcyclopentadienyltitanium trichloride. Angew. Chem. 74 (1962) 155; Angew. Chem. Int. Ed. 1 (1962) 117.10.1002/anie.196201171Search in Google Scholar

8 King, R. B.; Fronzaglia, A.: New olefinic and acetylenic derivatives of tungsten. Inorg. Chem. 5 (1966) 1837–1846.10.1021/ic50045a001Search in Google Scholar

9 Elschenbroich, C.: Organometallchemie. B. G. Teubner Verlag/GWV Fachverlage GmbH, Wiesbaden, Germany, 2003.10.1007/978-3-322-99393-9Search in Google Scholar

10 Liebling, G.; Marsh, R. E.: The crystal and molecular structure of cyclopentadiene. Acta Crystallogr. 19 (1965) 202–205.10.1107/S0365110X65003109Search in Google Scholar

11 Benda, C. B.; Köchner, T.; Schäper, R.; Schulz, S.; Fässler, T. F.: Bi-Zn bond formation in liquid ammonia solution: [Bi-Zn-Bi]4− – a linear polyanion iso (valence) electronic to CO2. Angew. Chem. 126 (2014) 9090–9094; Angew. Chem. Int. Ed. 53 (2014) 8944–8948.10.1002/ange.201404343Search in Google Scholar

12 Resa, I.; Carmona, E.; Gutierrez-Puebla, E.; Monge, A.: Decamethyldizincocene, a stable compound of Zn(I) with a Zn-Zn Bond. Science 305 (2004) 1136–1138.10.1126/science.1101356Search in Google Scholar PubMed

13 Haumann, T.; Benet-Buchholz, J.; Boese, R.: Structural effects of spiroconjugation: crystal structures of spiro[4.4]nonatetraene and spiro[4.4]nona-1,3,7-triene. J. Mol. Struct. 374 (1996) 299–304.10.1016/0022-2860(95)08930-6Search in Google Scholar
