Synthesis and crystal structure of 2-((5-chlorobenzo[c][1,2,5]thiadiazol-4-yl)amino)-4,5-dihydro-1H-imidazol-3-ium tetraphenylborate, C33H29BClN5S

  • Hazem A. Ghabbour and Gamal A.E. Mostafa EMAIL logo
Published/Copyright: April 19, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 3

Abstract

C33H29BClN5S, monoclinic, P21/c, a = 11.2163(7) Å, b = 15.2998(10) Å, c = 19.5929(11) Å, β = 122.251(3)°, V = 2843.5(3) Å3, Z = 4, Rgt(F) = 0.0592, wRref(F2) = 0.1362, T = 293 K.

CCDC no.:: 1507076

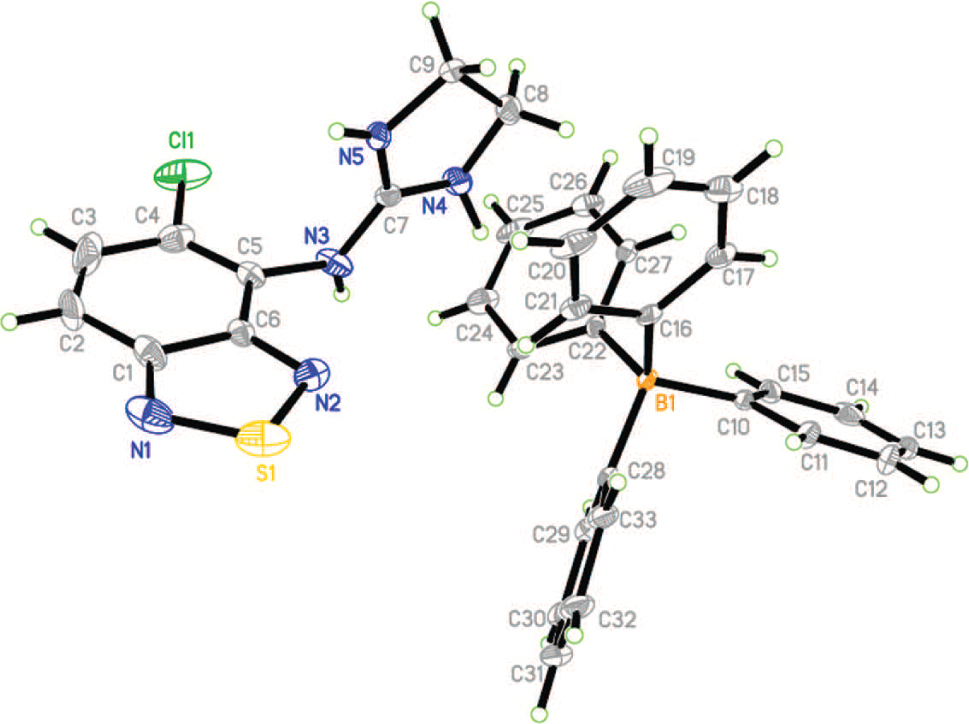

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow plate
Size:0.41 × 0.34 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.4 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
2θmax, completeness:53°, >99%
N(hkl)measured, N(hkl)unique, Rint:25521, 5864, 0.086
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3840
N(param)refined:382
Programs:Bruker programs [5], SHELX [6]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C1−0.8775(3)1.05025(17)−0.38432(18)0.0307(7)
C2−0.7381(3)1.0472(2)−0.3671(2)0.0462(9)
H2A−0.68311.0975−0.35210.055*
C3−0.6870(3)0.9705(3)−0.3729(2)0.0485(10)
H3A−0.59480.9679−0.36080.058*
C4−0.7693(3)0.8927(2)−0.39710(19)0.0320(7)
C5−0.9038(3)0.89156(16)−0.41476(17)0.0226(6)
C6−0.9595(3)0.97181(16)−0.40661(16)0.0204(6)
C7−0.9926(3)0.75697(16)−0.39250(16)0.0199(6)
C8−1.0564(3)0.63496(17)−0.35369(19)0.0305(7)
H8A−1.01910.5764−0.34830.037*
H8B−1.15000.6311−0.36260.037*
C9−0.9586(3)0.69055(18)−0.27911(18)0.0279(7)
H9A−1.00460.7077−0.25110.033*
H9B−0.87210.6596−0.24200.033*
C10−1.6551(2)0.65672(16)−0.61557(15)0.0170(6)
C11−1.7605(3)0.68728(19)−0.60349(18)0.0286(7)
H11A−1.74000.7346−0.56910.034*
C12−1.8927(3)0.6507(2)−0.6400(2)0.0423(9)
H12A−1.95960.6739−0.63090.051*
C13−1.9259(3)0.5793(2)−0.6904(2)0.0444(10)
H13A−2.01500.5542−0.71530.053*
C14−1.8252(3)0.54588(19)−0.70324(18)0.0355(8)
H14A−1.84620.4973−0.73630.043*
C15−1.6923(3)0.58440(17)−0.66707(16)0.0227(6)
H15A−1.62650.5615−0.67740.027*
C16−1.4378(2)0.72227(15)−0.47726(16)0.0165(6)
C17−1.4661(3)0.66420(17)−0.43231(16)0.0220(6)
H17A−1.53140.6198−0.45960.026*
C18−1.4017(3)0.66951(19)−0.34920(18)0.0301(7)
H18A−1.42230.6286−0.32180.036*
C19−1.3065(3)0.7360(2)−0.30728(19)0.0375(8)
H19A−1.26440.7412−0.25170.045*
C20−1.2749(3)0.79450(19)−0.34904(18)0.0332(8)
H20A−1.21060.8392−0.32130.040*
C21−1.3381(3)0.78739(17)−0.43182(17)0.0234(6)
H21A−1.31370.8271−0.45830.028*
C22−1.3875(2)0.65490(15)−0.58162(15)0.0152(5)
C23−1.3114(3)0.68563(18)−0.61409(17)0.0254(7)
H23A−1.33060.7414−0.63640.030*
C24−1.2073(3)0.6360(2)−0.61453(19)0.0383(8)
H24A−1.15970.6589−0.63740.046*
C25−1.1745(3)0.5537(2)−0.58147(18)0.0338(8)
H25A−1.10470.5209−0.58150.041*
C26−1.2467(3)0.52042(17)−0.54833(17)0.0249(7)
H26A−1.22590.4648−0.52570.030*
C27−1.3502(3)0.57008(16)−0.54880(16)0.0194(6)
H27A−1.39770.5462−0.52620.023*
C28−1.5516(2)0.80402(16)−0.62342(16)0.0182(6)
C29−1.5867(3)0.80992(17)−0.70365(17)0.0226(6)
H29A−1.57420.7609−0.72730.027*
C30−1.6397(3)0.88605(19)−0.74945(19)0.0300(7)
H30A−1.65980.8874−0.80200.036*
C31−1.6624(3)0.95977(19)−0.71657(19)0.0339(8)
H31A−1.69841.0106−0.74690.041*
C32−1.6307(3)0.95646(18)−0.6384(2)0.0315(8)
H32A−1.64561.0054−0.61570.038*
C33−1.5765(3)0.88021(16)−0.59299(18)0.0247(7)
H33A−1.55610.8798−0.54030.030*
H1N3−1.024(3)0.802(2)−0.493(2)0.045(10)*
H1N4−1.118(4)0.671(2)−0.470(2)0.061(12)*
H1N5−0.885(3)0.8023(18)−0.2903(18)0.022(9)*
B1−1.5055(3)0.71042(18)−0.57423(18)0.0147(6)
N1−0.9464(3)1.11992(15)−0.38099(16)0.0434(7)
N2−1.0879(2)0.98290(15)−0.41799(15)0.0295(6)
N3−0.9888(3)0.81570(14)−0.44240(16)0.0293(6)
N4−1.0586(3)0.68210(14)−0.41825(16)0.0282(6)
N5−0.9314(2)0.76634(16)−0.31471(15)0.0247(6)
S1−1.09741(10)1.08546(5)−0.40163(5)0.0437(3)
Cl1−0.69287(10)0.79884(6)−0.40589(6)0.0551(3)

Source of material

To a solution of 5-chloro-N-(4,5-dihydro-1H-imidazol-2-yl)benzo[c][1, 2, 5]thiadiazol-4-amine hydrochloride (Tizanidine hydrochloride) (0.290 g, 1 mmol) in deionized water (20 mL) a solution of sodium tetraphenylborate (0.342 g, 1 mmol) in deionized water (20 mL) was added. The formed white precipitate was filtered off, washed with cold deionized water.

Experimental details

Carbon-bound hydrogen atoms were placed in calculated positions and were included in the refinement in the riding model approximation, with Uiso(H) set to 1.2Ueq(C). The nitrogen-bound H atoms were located on a difference Fourier map and refined freely.

Discussion

Tizanidine hydrochloride is a short-acting muscle relaxer. It works by blocking nerve impulses that are sent to the brain. Tizanidine is used in the symptomatic treatment of painful muscle spasm associated with musculoskeletal conditions [1, 2] . Tizanidine reacts with sodium tetraphenylborate to form the corresponding salt, which has been used as sensing material to construct ion-selective electrode for tizanidine [3, 4] .

The title compound crystallizes with one 2-((5-chlorobenzo[c][1,2,5]thiadiazol-4-yl)amino)-4,5-dihydro-1H-imidazol-3-ium cation and one tetraphenylborate in the asymmetric unit. The 5-chlorobenzo[c][1,2,5]thiadiazol-4-yl moiety is almost flat. As typical for tetraphenylborate, the tetraphenylborate anion is in a tetrahedral geometry around the B atom. The molecules in the crystal structure are connected by one hydrogen bond (N3—H1N3⋯N1i, Symmetry code: (i) − x-2, − y + 2, − z-1).

Acknowledgement

The author extends their appreciation to the Research Center of the College of Pharmacy, King Saud University, and the Dean of Scientific Research at King Saud University for funding this work.

References

1 Budavari, S.: The Merck Index on CD-Room. By Merck & Co., Inc., White House Station, NJ; 12, 1996.Search in Google Scholar

2 Moffat, A. C.; Osselton, M. D.; Widdop, B.: Clarkes analysis of drugs and poisons. 3rd edition. Pharmaceutical Press, London; 2004, pp1641.Search in Google Scholar

3 Mostafa, G. A. E.; Hefnawy, M.; Abounassif, M.; Alanazi, A.; Al-Majed, A.; Homoda, A.: Ion selective electrodes for potentiometric determination of tizanidine in its pharmaceutical dosage form. Curr. Pharm. Anal. 12 (2016) 177–184.10.2174/1573412911666150901221816Search in Google Scholar

4 Bouklouze, A. A.; El-Jammal, A.; Vire, J. C.; Patriarche, G. J.: Comparative study of three polymeric membrane electrodes selective to tizanidine. Anal. Chim. Acta 257 (1992) 41–48.10.1016/0003-2670(92)80148-ZSearch in Google Scholar

5 Brucker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).10.1097/IAE.0b013e3181ad255fSearch in Google Scholar PubMed

6 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2016-10-4
Accepted: 2017-3-16
Published Online: 2017-4-19
Published in Print: 2017-5-24

©2017 Hazem A. Ghabbour et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
