Crystal structure of poly-[(μ2-((1,3-bis(benzimidazol-1-yl)propane-κ2N:N′)(μ2-4-tert-butyl-phthalato-κ2O:O′)cobalt(II)] monohydrate, C29H30CoN4O5

  • Min-Le Han EMAIL logo , San-Tai Wang and Zhe Zhou
Published/Copyright: March 17, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 3

Abstract

C6H25Br3N2O3P2, orthorhombic, Pbca (no. 61), a =11.6532(10) Å, b = 20.1493(18) Å, c = 22.609(2) Å, V = 5308.8(8) Å3, Z = 8, Rgt(F) = 0.0363, wRref(F2) = 0.0909, T = 296(2) K.

CCDC no.:: 1533014

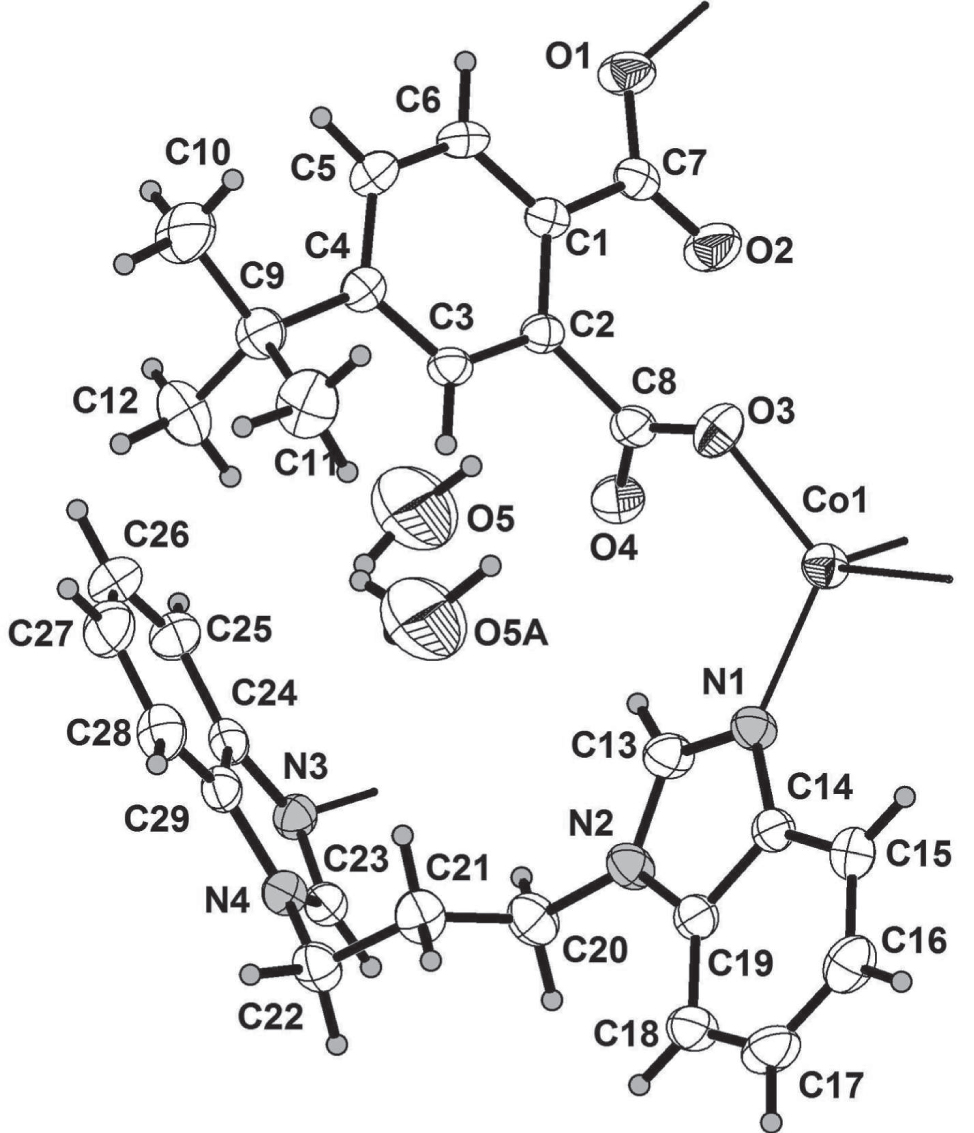

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Pink block
Size:0.25 × 0.18 × 0.17 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:6.9 cm−1
Diffractometer, scan mode:Bruker SMART, φ and ω
2θmax, completeness:51°, >99%
N(hkl)measured, N(hkl)unique, Rint:35939, 4947, 0.063
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3576
N(param)refined:359
Programs:Bruker programs [13], SHELX [14]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O5a0.4470(7)0.0077(2)0.3949(2)0.218(4)
H5Aa0.44640.04970.41710.327*
H5Ba0.50980.00840.36590.327*
O5Ab0.571(3)0.0500(11)0.3866(11)0.218(4)
H5AAb0.52860.08960.39990.327*
H5ABb0.52480.01570.36680.327*
Co10.23375(3)0.14131(2)0.54850(2)0.02773(11)
O10.60264(15)0.32468(9)0.40809(8)0.0410(5)
O20.53466(17)0.25432(10)0.47429(8)0.0493(5)
O30.28390(15)0.18921(9)0.47700(8)0.0398(5)
O40.41940(17)0.11380(9)0.46152(8)0.0439(5)
N10.20767(16)0.04182(10)0.54226(9)0.0305(5)
N20.24381(17)−0.06215(10)0.51510(9)0.0340(5)
N30.62835(17)−0.15062(10)0.39822(9)0.0303(5)
N40.44259(16)−0.16876(10)0.38112(9)0.0297(5)
C10.45826(19)0.25029(12)0.37726(11)0.0265(5)
C20.38634(19)0.19574(12)0.38715(10)0.0260(5)
C30.3260(2)0.16842(12)0.34020(11)0.0287(6)
H30.28120.13100.34710.034*
C40.3296(2)0.19461(12)0.28306(10)0.0292(6)
C50.3955(2)0.25124(13)0.27508(11)0.0346(6)
H50.39640.27190.23830.042*
C60.4600(2)0.27755(12)0.32085(11)0.0336(6)
H60.50570.31450.31360.040*
C70.5360(2)0.27765(12)0.42421(12)0.0287(6)
C80.3660(2)0.16417(13)0.44687(11)0.0306(6)
C90.2651(2)0.16011(13)0.23268(12)0.0373(6)
C100.2647(3)0.20145(17)0.17603(13)0.0597(9)
H10A0.23120.24410.18390.090*
H10B0.22070.17900.14620.090*
H10C0.34210.20730.16240.090*
C110.1401(2)0.14732(17)0.25102(14)0.0563(9)
H11A0.13860.11720.28390.085*
H11B0.09900.12840.21840.085*
H11C0.10480.18850.26230.085*
C120.3239(3)0.09367(15)0.21974(14)0.0556(8)
H12A0.40130.10150.20690.083*
H12B0.28260.07070.18930.083*
H12C0.32490.06710.25500.083*
C130.2810(2)0.00059(13)0.51701(11)0.0351(6)
H130.35170.01390.50200.042*
C140.1143(2)0.00231(12)0.55840(10)0.0287(6)
C150.0121(2)0.01827(14)0.58657(11)0.0355(6)
H15−0.00360.06140.59870.043*
C16−0.0651(2)−0.03245(16)0.59586(12)0.0442(7)
H16−0.1342−0.02310.61460.053*
C17−0.0426(2)−0.09739(15)0.57793(13)0.0461(7)
H17−0.0973−0.13010.58480.055*
C180.0585(2)−0.11428(14)0.55030(12)0.0397(7)
H180.0737−0.15750.53830.048*
C190.1364(2)−0.06311(13)0.54141(11)0.0311(6)
C200.3038(2)−0.11782(14)0.48707(12)0.0404(7)
H20A0.2938−0.15730.51100.048*
H20B0.3852−0.10810.48530.048*
C210.2595(2)−0.13113(14)0.42503(12)0.0385(6)
H21A0.2667−0.09100.40160.046*
H21B0.1787−0.14240.42710.046*
C220.3239(2)−0.18713(13)0.39434(12)0.0368(6)
H22A0.3234−0.22610.41950.044*
H22B0.2848−0.19840.35780.044*
C230.5333(2)−0.17984(12)0.41647(11)0.0303(6)
H230.5295−0.20560.45050.036*
C240.5975(2)−0.11724(12)0.34655(11)0.0301(6)
C250.6615(2)−0.07793(14)0.30883(12)0.0417(7)
H250.7390−0.07010.31570.050*
C260.6060(3)−0.05088(15)0.26073(13)0.0508(8)
H260.6471−0.02440.23450.061*
C270.4899(3)−0.06229(15)0.25041(13)0.0500(8)
H270.4554−0.04300.21750.060*
C280.4249(2)−0.10095(14)0.28717(12)0.0408(7)
H280.3474−0.10840.28010.049*
C290.4807(2)−0.12853(12)0.33554(11)0.0303(6)

  1. aOccupancy: 0.815(6); bOccupancy: 0.185(6).

Source of material

A mixture of 4-tert-butyl-phthalic anhydride (40.6 mg, 0.2 mmol), Co(OAc)2⋅2H2O (24 mg, 0.1 mmol), 1,3-bis(benzimidazol-1-yl)propane (27.6 mg, 0.1 mmol), and KOH (5.6 mg, 0.1 mmol) were added to water (10 mL) in a 25 mL Teflon-lined autoclave. The mixture was heated at 413 K for 3 days and then slowly cooled down to room temperature. Pink block-shaped crystals of the title compound were obtained.

Experimental details

Carbon-bound H atoms were placed in calculated positions and were included in the refinement in the riding model approximation, with Uiso(H) set to 1.2Ueq(C). The H atoms of the methyl group were allowed to rotate with a fixed angle around the C—C bond to best fit the experimental electron density, with Uiso(H) set to 1.5Ueq(C). The water molecule is splitted over two positions.

Discussion

In the last decades, the design and construction of Co(II)-based metal-organic frameworks is of interest in the field of molecular magnetism and materials chemistry due to their fascinating structural diversities and potential application as functional materials [1], [2], [3], [4], [5]. Phthalic acid (benzene-1,2-dicarboxylic acid) and its derivatives have been used to construct coordination polymers [6], [7]. We have explored the structural transformation mediated by 4-R-phthalic acid (R = −C(CH3)3 or −CH3) and N-donor ligands [8]. Among diimine-type N-donor co-ligands, 1,3-bis(benzimidazol-1-yl)propane (bbip) is a flexible ligand, with the potential to serve as bridging ligand, which are employed to construct new CPs [9], [10], [11]. It is also employed to assemble supramolecular architectures via π-π-aromatic interactions with other organic ligands [12].

There is one Co(II) ion, one tbph ligand, one bbip ligand, and one free water molecule in the asymmetric unit of the title complex. Co1 is four-coordinated with a distorted tetrahedral geometry by two O atoms from two tbph ligands and two N atoms from two bbip ligands. The Co—O bond lengths are 1.9423(19) and 1.973(2) Å, and the Co—N ones are 2.017(2) and 2.033(2) Å, respectively. The Co1 ions are linked by tbph to form an infinite chain. Such chains are further joined by bbip in double-bridge fashion to generate a two-dimensional (6,3) brick-wall layer. In this layer, π-π stacking interactions are evident between aryl rings of bbip with a co-facial distance of 3.74 Å. The water molecules are located in voids of the layer, fixed by hydrogen-bonding interactions between water and carboxylic oxygen atoms (O(5)⋯O(4) 2.634(5) Å, O(5)—H(1W)⋯O(4) 164.0°). An extended three-dimensional network of hydrogen bonds contributes to the stability of the structure.

References

1 Zhao, J.; Dong, W.-W.; Wu, Y.-P.; Wang, Y.-N.; Wang, C.; Li, D.-S.; Zhang, Q.-C.: Two (3,6)-connected porous metal-organic frameworks based on linear trinuclear [Co3(COO)6] and paddlewheel dinuclear [Cu2(COO)4] SBUs: gas adsorption, photocatalytic behaviour, and magnetic properties. J. Mater. Chem. A 3 (2015) 6962–6969.10.1039/C4TA06537ASearch in Google Scholar

2 Ma, L.-F.; Wang, L.-Y.; Lu, D.-H.; Batten, S. R.; Wang, J.-G.: Structural variation from 1D to 3D: effects of temperature and pH value on the construction of Co((II)-H2tbip/bpp mixed ligands system. Cryst. Growth Des. 9 (2009) 1741–1749.10.1021/cg800732eSearch in Google Scholar

3 Hawes, C. S.; Hamilton, S. E.; Hicks, J.; Knowles, G. P.; Chaffee, A. L.; Turner, D. R.; Batten, S. R.: Coordination chemistry and structural dynamics of a long and flexible piperazine-derived ligand. Inorg. Chem. 55 (2016) 6692–6702.10.1021/acs.inorgchem.6b00933Search in Google Scholar PubMed

4 Wu, Y.-L.; Guo, F.-S.; Yang, G.-P.; Wang, L.; Jin, J.-C.; Zhou, X.; Zhang, W.-Y.; Wang, Y.-Y.: Two isostructural metal-organic frameworks directed by the different center metal ions, exhibiting the ferrimagnetic behavior and slow magnetic relaxation. Inorg. Chem. 55 (2016) 6592–6596.10.1021/acs.inorgchem.6b00757Search in Google Scholar PubMed

5 Chang, X.-H.; Ma, L.-F.; Hui, G.; Wang, L.-Y.: Four low-dimensional cobalt(II) coordination polymers based on a new isophthalic acid derivative: syntheses, crystal structures, and properties. Cryst. Growth Des. 12 (2012) 3638–3646.10.1021/cg300461vSearch in Google Scholar

6 Wang, X. L.; Mu, B.; Lin, H. Y.; Yang, S.; Liu, G. C.; Tian, A. X.; Zhang, J. W.: Assembly and properties of transition-metal coordination polymers based on semi-rigid bis-pyridyl-bis-amide ligand: effect of polycarboxylates on the dimensionality. Dalton Trans. 41 (2012) 11074–11084.10.1039/c2dt30907fSearch in Google Scholar PubMed

7 Farnum, G. A.; Pochodylo, A. L.; LaDuca, R. L.: Tether length control of topology in cadmium 4-methyphthalate two-dimensional coordination polymers: an acentric buckled grid and a rare self-catenated layer. Cryst. Growth Des. 11 (2011) 678–683.10.1021/cg100972sSearch in Google Scholar

8 Han, M.-L.; Liu, J.; Wang, S.-C.; Liu, G.-Z.; Du, D.-G.: Two new Cu(II) coordination polymers based on 1,2-bi(4-pyridyl)ethene and 4-R-phthalic acid (R = −C(CH3)3 or −CH3): syntheses, structures, and characteristics. Synth. React. Inorg. Met. Org. Chem. 46 (2016) 338–342.10.1080/15533174.2014.988249Search in Google Scholar

9 Wang, X.; Li, L.; Hou, H.; Wu, J.; Wang, Y. Y.: Substitution, addition, and recombination reactions of precusor complexes with ferrocenyl carboxylate units. Eur. J. Inorg. Chem. 2007 (2007) 5234–5245.10.1002/ejic.200700542Search in Google Scholar

10 Li, L.-L.; Yuan, R.-X.; Liu, L.-L.; Ren, Z.-G.; Zheng, A.-X.; Cheng, H.-J.; Li, H.-X.; Lang, J.-P.: Formation of [CuSCN]n-based topological structures via a family of flexible benzimidazolyl-based linkers with different spacer lengths. Cryst. Growth Des. 10 (2010) 1929–1938.10.1021/cg100028ySearch in Google Scholar

11 Liu, Q.-X.; Wei, Q.; Zhao, X.-J.; Wang, H.; Li, S.-J.; Wang, X.-G.: Cobalt(II), copper(II), zinc(II) and cadmium(II) complexes based on dibenzimidazolyl bidentate ligands with alkanyl linkers: crystal structure, weak interactions and conformations. Dalton Trans. 42 (2013) 5902–5915.10.1039/c3dt33013cSearch in Google Scholar PubMed

12 Jin, S.; Dong, Q.; Wang, D.; Zhou, W.: Six hydrogen bond directed supramolecular adducts fromed between racemic-bis-β-naphthol and N-containing aromatic bases. J. Mol. Struct. 1013 (2012) 143–155.10.1016/j.molstruc.2011.12.038Search in Google Scholar

13 Bruker. SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, (2009).Search in Google Scholar

14 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2016-8-18
Accepted: 2017-2-16
Published Online: 2017-3-17
Published in Print: 2017-5-24

©2017 Min-Le Han et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
