Crystal structure of 2,3-diphenyl-1-(morpholin-4-ylacetyl)-1,3-diazaspiro[4.5]decan-4-one, C26H31N3O3

  • Rasha M. Hassan , Hazem A. Ghabbour , Mohamed N. Aboul-Enein EMAIL logo , Aida A. El-Azzouny , Ola A. Saleh and Mohamed I. Attia
Published/Copyright: March 23, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 3

Abstract

C26H31N3O3, monoclinic, P21/c (no. 14), a = 8.8698(5) Å, b = 24.4835(13) Å, c = 11.7890(6) Å, β = 113.024(3)°, V = 2356.2(2) Å3, Z = 4, Rgt(F) = 0.0606, wRref(F2) = 0.1597, T = 293(2) K.

CCDC no.:: 1507255

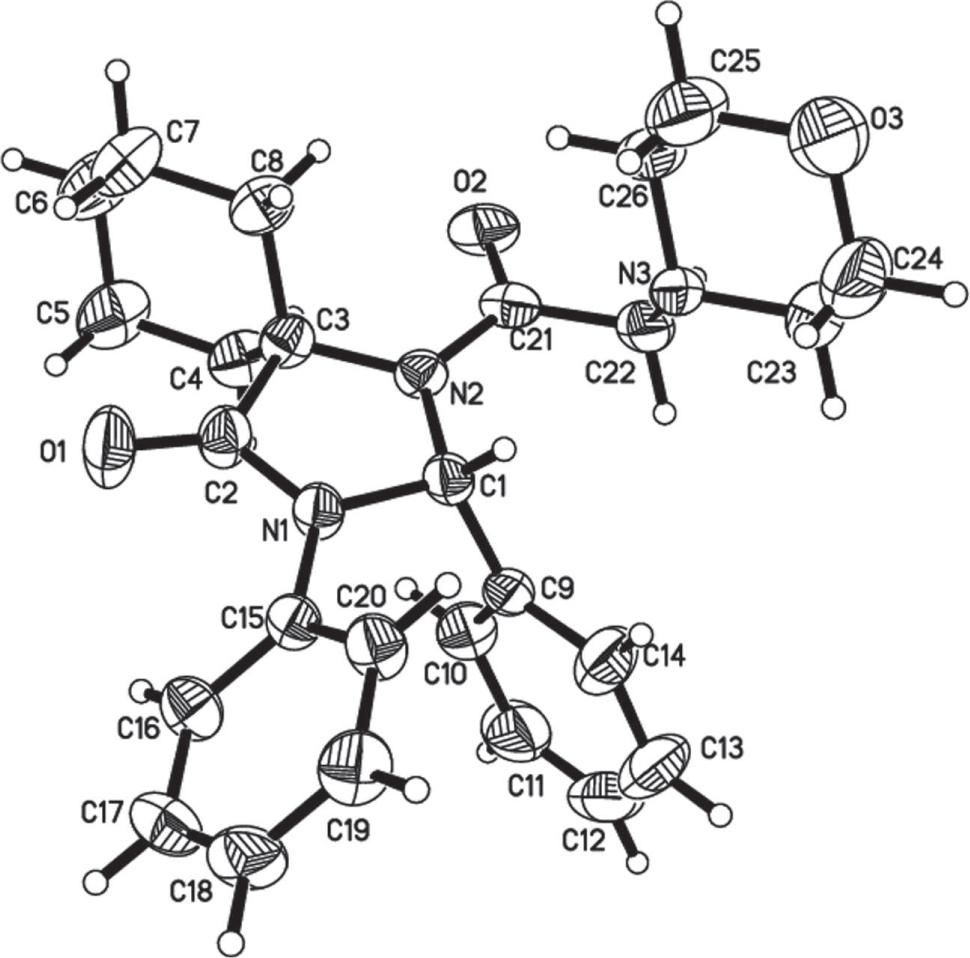

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.51 × 0.26 × 0.25 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.8 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
2θmax, completeness:55°, >99%
N(hkl)measured, N(hkl)unique, Rint:39742, 5415, 0.045
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3770
N(param)refined:289
Programs:SHELX [6], Bruker programs [7]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.11840(19)−0.63383(9)−0.51387(14)0.0801(6)
O2−0.43929(19)−0.59655(6)−0.46949(14)0.0576(4)
O3−0.6860(3)−0.45397(8)−0.89019(19)0.0998(7)
N1−0.12666(18)−0.64098(7)−0.67848(13)0.0406(4)
N2−0.30331(18)−0.62134(6)−0.58829(13)0.0388(4)
N3−0.58588(19)−0.55477(7)−0.76417(15)0.0449(4)
C1−0.3026(2)−0.63611(8)−0.70849(16)0.0395(4)
H1A−0.3483−0.6061−0.76710.047*
C2−0.0299(2)−0.63182(9)−0.55804(17)0.0486(5)
C3−0.1376(2)−0.61701(8)−0.48915(16)0.0421(4)
C4−0.1117(3)−0.65762(9)−0.38349(18)0.0559(6)
H4A−0.1998−0.6534−0.35500.067*
H4B−0.1165−0.6946−0.41450.067*
C50.0517(4)−0.64935(11)−0.2752(2)0.0741(8)
H5A0.0579−0.6738−0.20870.089*
H5B0.1402−0.6586−0.30060.089*
C60.0731(4)−0.59128(12)−0.2289(2)0.0813(8)
H6A0.1791−0.5874−0.16150.098*
H6B−0.0107−0.5827−0.19800.098*
C70.0608(3)−0.55177(11)−0.3311(2)0.0697(7)
H7A0.1501−0.5584−0.35740.084*
H7B0.0710−0.5146−0.30030.084*
C8−0.1023(3)−0.55824(9)−0.44095(19)0.0522(5)
H8A−0.1024−0.5347−0.50720.063*
H8B−0.1899−0.5462−0.41700.063*
C9−0.3901(2)−0.68905(9)−0.76281(18)0.0474(5)
C10−0.3726(3)−0.73522(10)−0.6923(3)0.0674(7)
H10A−0.3104−0.7339−0.60800.081*
C11−0.4468(4)−0.78369(11)−0.7459(4)0.0895(10)
H11A−0.4338−0.8145−0.69700.107*
C12−0.5376(4)−0.78689(16)−0.8679(4)0.0995(13)
H12A−0.5874−0.8196−0.90270.119*
C13−0.5560(3)−0.74140(19)−0.9405(3)0.0949(12)
H13A−0.6173−0.7435−1.02490.114*
C14−0.4833(3)−0.69205(13)−0.8882(2)0.0712(7)
H14A−0.4975−0.6612−0.93740.085*
C15−0.0661(2)−0.65720(8)−0.76912(16)0.0393(4)
C160.0560(3)−0.69593(9)−0.7414(2)0.0502(5)
H16A0.1008−0.7111−0.66280.060*
C170.1113(3)−0.71211(10)−0.8304(2)0.0593(6)
H17A0.1948−0.7378−0.81140.071*
C180.0436(3)−0.69038(11)−0.9468(2)0.0623(6)
H18A0.0801−0.7019−1.00690.075*
C19−0.0774(3)−0.65187(11)−0.9749(2)0.0604(6)
H19A−0.1228−0.6372−1.05390.072*
C20−0.1322(3)−0.63471(9)−0.88571(18)0.0491(5)
H20A−0.2133−0.6081−0.90430.059*
C21−0.4417(2)−0.60587(7)−0.57179(19)0.0426(4)
C22−0.5984(2)−0.59881(9)−0.6854(2)0.0514(5)
H22A−0.6232−0.6326−0.73190.062*
H22B−0.6880−0.5911−0.66010.062*
C23−0.7371(3)−0.54939(11)−0.8737(2)0.0728(7)
H23A−0.8275−0.5418−0.84930.087*
H23B−0.7601−0.5835−0.91940.087*
C24−0.7224(4)−0.50449(13)−0.9539(3)0.0936(10)
H24A−0.6364−0.5133−0.98230.112*
H24B−0.8244−0.5012−1.02560.112*
C25−0.5400(4)−0.45861(11)−0.7830(2)0.0808(8)
H25A−0.5182−0.4241−0.73900.097*
H25B−0.4492−0.4662−0.80690.097*
C26−0.5509(3)−0.50265(9)−0.6996(2)0.0604(6)
H26A−0.4482−0.5051−0.62820.073*
H26B−0.6369−0.4941−0.67100.073*

Source of material

To a solution of 1-(chloroacetyl)-2,3-diphenyl-1,3-diazaspiro[4.5]decan-4-one (1.8 g, 0.0047 mol) in toluene (40 mL) was added morpholine (2.0 g, 0.023 mol). The mixture was heated at 90 °C overnight, cooled to room temperature and solvent was evaporated under reduced pressure. The obtained buff solid was dissolved in methylene chloride (100 mL) and washed two times with water. The organic phase was separated, dried (Na2SO4) and evaporated under vacuum to furnish the title compound as a white solid. The crude product was re-crystallized from a mixture of petroleum ether (40–60) and ethyl acetate to afford white crystals (m.p. 441–443 K) in 60% yield [1]. Crystals were obtained by slow evaporation of its ethyl acetate solution.

Experimental details

H atoms were placed in calculated positions and were included in the refinement in the riding model approximation, with Uiso(H) set to 1.2Ueq(C).

Discussion

Epilepsy is a prevalent neurological disturbance recognized by persistent unprovoked seizures that affects about 50 million individual all over the world [2]. In the past few decades, a number of new antiepileptic drugs have been emerged to the market. Nevertheless, approximately 30% of the patients don’t repay to the available antiepileptic medications [3]. In addition, long term administration of the currently used antiepileptics is accompanied by unfavourable side effects like megaloblastic anaemia and hepatotoxicity [4, 5] . Accordingly, the search for new antiepileptic agents endowed with high potency and better safety profile has gained a considerable attention. The title molecule, displayed a good anticonvulsant activity (83% protection) against subcutaneous pentylenetetrazole induced convulsions at dose level 0.025 mmol/kg. Whereas, it exhibited mild anticonvulsant activity (66% protection) against maximal electric shock induced convulsions, at the same dose level [1].

The asymmetric unit of the title compound contains one molecule. The morpholine and cyclohexan moieties adopt the usual chair conformation. The imidazolidinyl (C1/N1/C2/C3/N2) unit makes dihedral angles of 85.43° and 43.42° with the planes of the phenyl rings (C9—C14) and (C15—C20), respectively.

Acknowledgement

The authors would like to extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for its funding of this research through the Research Group Project No. RGP-196.

References

1 Aboul-Enein, M. N.; El-Azzouny, A. A.; Saleh, O. A.; Amin, K. M.; Maklad, Y. A.; Hassan, R. M.: Synthesis and anticonvulsant activity of aubstituted-1,3-diazaspiro[4.5]decan-4-ones. Arch. Pharm. Chem. Life Sci. 348 (2015) 575–588.10.1002/ardp.201500092Search in Google Scholar

2 Epilepsy: epidemiology, aetiology and prognosis, in: WHO Factsheet, World Health Organization, (2015).Search in Google Scholar

3 Plech, T.; Luszczki, J. J.; Wujec, M.; Flieger, J.; Pizoń, M.: Synthesis, characterization and preliminary anticonvulsant evaluation of some 4-alkyl-1,2,4-triazoles. Eur. J. Med. Chem. 60 (2013) 208–215.10.1016/j.ejmech.2012.11.026Search in Google Scholar

4 Lin, Z.; Kadaba, P. K.: Molecular targets for the rational design of antiepileptic drugs and related neuroprotective agents. Med. Res. Rev. 17 (1997) 537–572.10.1002/(SICI)1098-1128(199711)17:6<537::AID-MED3>3.0.CO;2-2Search in Google Scholar

5 Zaccara, G.; Franciotta, D.; Perucca, E.: Idiosyncratic adverse reactions to antiepileptic drugs. Epilepsia 48 (2007) 1223–1244.10.1111/j.1528-1167.2007.01041.xSearch in Google Scholar

6 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

7 Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, (2009).Search in Google Scholar

Received: 2016-10-14
Accepted: 2017-3-5
Published Online: 2017-3-23
Published in Print: 2017-5-24

©2017 Rasha M. Hassan et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
