Crystal structure of (1,10-phenanthroline-κ2N,N′)-bis(1H-pyrazole-3-carboxylato-κ2N,O)manganese(II) trihydrate, C20H20N6O7Mn

  • Lü Lei and Huang Rudan EMAIL logo
Published/Copyright: April 7, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 3

Abstract

C20H20N6O7Mn, monoclinic, P21/c (no. 14), a = 10.3170(9) Å, b = 13.1061(12) Å, c = 17.6919(15) Å, β = 108.231(3)°, V = 2272.1(3) Å3, Z = 4, Rgt(F) = 0.0428, wRref(F2) = 0.1058, T = 298 K.

CCDC no.:: 1541178

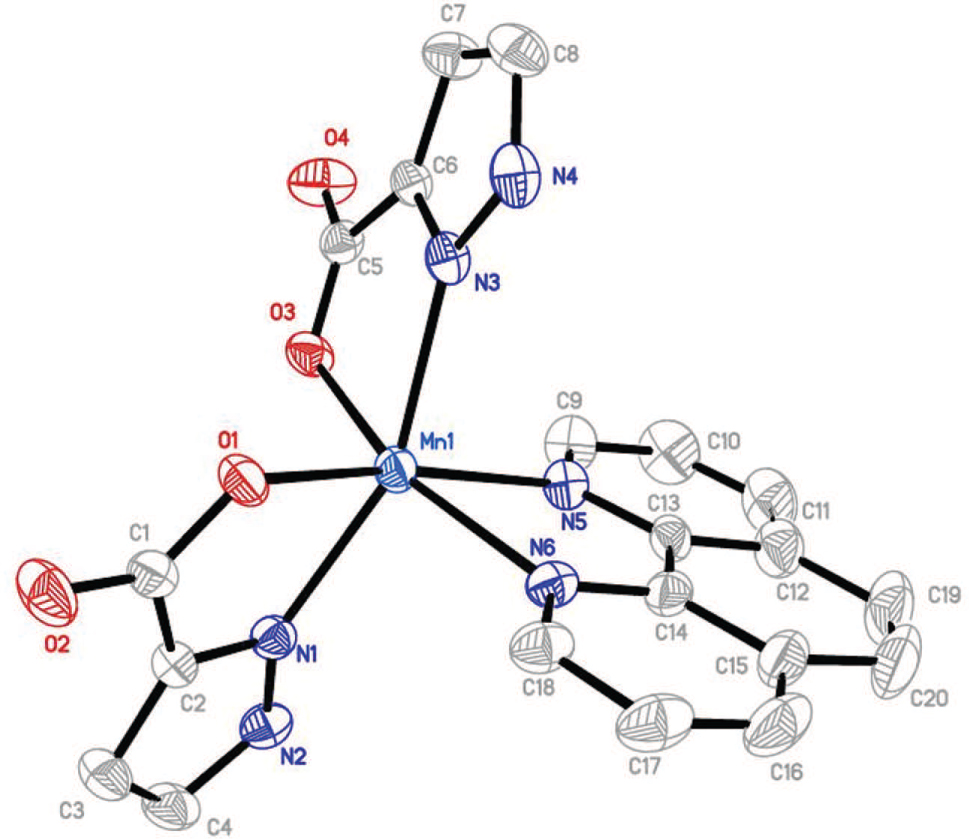

The crystal structure is shown in the figure. Hydrogen atoms are omitted for clarity. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow block
Size:0.40 × 0.37 × 0.25 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:6.4 cm−1
Diffractometer, scan mode:Bruker SMART, φ and ω
2θmax, completeness:50°, >99%
N(hkl)measured, N(hkl)unique, Rint:11134, 4006, 0.041
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2610
N(param)refined:307
Programs:Bruker programs [10], SHELX [11]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.31778(5)0.68397(4)0.67921(3)0.03861(17)
N10.1301(3)0.7795(2)0.65498(15)0.0386(7)
N20.0485(3)0.8405(2)0.59923(16)0.0460(7)
H20.06370.85750.55580.055*
N30.5249(3)0.61778(19)0.74858(15)0.0373(6)
N40.5917(3)0.5307(2)0.77598(16)0.0468(8)
H40.55300.47220.77380.056*
N50.3669(3)0.6767(2)0.56143(16)0.0439(7)
N60.2129(3)0.5450(2)0.61448(15)0.0403(7)
O10.2444(2)0.66173(18)0.78058(12)0.0465(6)
O20.0888(3)0.7065(2)0.83785(14)0.0655(8)
O30.4525(2)0.81328(16)0.71317(13)0.0442(6)
O40.6681(3)0.86149(19)0.74564(16)0.0630(7)
O50.3741(3)0.5032(2)0.87502(14)0.0620(7)
H5C0.33590.55610.85010.074*
H5D0.36520.45510.84150.074*
O60.1389(3)0.8895(2)0.47896(16)0.0852(10)
H6C0.12830.86200.43390.102*
H6D0.20530.93100.48860.102*
O70.3496(3)0.0282(3)0.52219(16)0.0881(10)
H7C0.42970.02130.55460.106*
H7D0.36480.02970.47760.106*
C10.1382(3)0.7094(3)0.7827(2)0.0436(9)
C20.0709(3)0.7730(3)0.71184(19)0.0399(8)
C3−0.0492(4)0.8299(3)0.6921(2)0.0527(10)
H3−0.10910.83770.72160.063*
C4−0.0592(4)0.8715(3)0.6197(2)0.0565(10)
H4A−0.12870.91400.58990.068*
C50.5800(4)0.7960(3)0.73953(18)0.0390(8)
C60.6216(3)0.6890(2)0.76317(18)0.0339(7)
C70.7498(4)0.6468(3)0.7995(2)0.0496(9)
H70.83350.68020.81520.060*
C80.7257(4)0.5463(3)0.8070(2)0.0572(10)
H80.79100.49690.82980.069*
C90.4390(4)0.7421(3)0.5345(2)0.0607(11)
H90.47090.80060.56430.073*
C100.4699(5)0.7285(4)0.4643(3)0.0762(13)
H100.52110.77660.44750.091*
C110.4236(5)0.6431(4)0.4207(3)0.0789(14)
H110.44330.63270.37350.095*
C120.3467(4)0.5707(3)0.4460(2)0.0625(11)
C130.3205(3)0.5917(3)0.51787(19)0.0426(9)
C140.2384(3)0.5217(3)0.54587(19)0.0431(9)
C150.1854(4)0.4344(3)0.5014(2)0.0601(11)
C160.1016(5)0.3719(3)0.5303(3)0.0735(13)
H160.06540.31260.50290.088*
C170.0725(4)0.3961(3)0.5974(3)0.0659(12)
H170.01490.35530.61570.079*
C180.1313(4)0.4838(3)0.6383(2)0.0514(10)
H180.11210.50030.68480.062*
C190.2930(6)0.4794(4)0.4038(3)0.0864(15)
H190.31150.46460.35680.104*
C200.2172(5)0.4150(4)0.4300(3)0.0842(15)
H200.18440.35600.40110.101*

Source of material

All reagents and solvents employed are commercially available and used as received. A mixture of pyrazolecarboxylic acid (H2pca) (0.0224 g, 0.2 mmol), Mn(OAc)2⋅4H2O (0.0245 g, 0.1 mmol), phenanthroline (phen) (0.0198 g, 0.1 mmol) and distilled water (10 mL) was sealed in a 23 mL Teflon-lined steel vessel (pH 4.4) and heated at 180 °C for 72 h, then cooled to room temperature at a rate of 0.1 °C min−1. The resulting yellow block crystals were washed with distilled water. The yield is ca. 35% based on Mn.

Experimental details

H atoms attached to C atoms were placed in geometrically idealized positions (C—H 0.93 Å) and treated as riding on their parent atoms, with Uiso(H) = 1.2Ueq(C). The water H-atoms were located in a difference Fourier map, and were defined with distance restraint of O—H = 0.82 Å and Uiso(H) = 1.5Ueq(O).

Discussion

The assembly of supramolecular architectures based on non-covalent interactions has been developed in the field of supramolecular chemistry and crystal engineering [1], [2], [3]. The hydrogen bond interactions as a kind of non-covalent interactions play an important role in forming various supramolecular frameworks. The hydrogen bond interactions not only expand the low structures through the effect of connection, but also generate the diverse water clusters, such as tetramers, pentamers, hexamers, octamers and decamers [4], [5], [6], [7]. On the other hand phenanthroline complexes are well known for decades [8] and are still of general interest [9].

As shown in the figure, the N-donor ligand phen is introduced into the Mn—Hpca system. There is one Mn2 + cation, one phen ligand, two Hpca− anions and three lattice water molecules in a asymmetric unit. The Mn2 + center shows a distorted {MnO2N4} octahedral coordination geometry with two nitrogen atoms (N1, N3) from two Hpca− anions, two chelate nitrogen atoms (N5, N6) from one phen ligand and two carboxylic oxygen atoms (O1, O3) from two Hpca− anions. The distances of the Mn—O and Mn—N are 2.154(2)–2.173(2) Å and 2.232(3)–2.295(3) Å, respectively. The bond angles around Mn2 + ion are in the range of 73.2(1)–167.5(1)°. Both Hpca− anion and phen ligand coordinate as chelate ligands to form three five-membered rings. The lattice water molecules are creating several hexanuclear chair-like water clusters by the hydrogen bonding interaction with the O6—H6D⋯O7, O7—H7C⋯O5 and O7—H7D⋯O5 distances of 2.752(4) Å, 2.880(2) Å and 2.724(5) Å, respectively. A final three-dimensional framework is formed by the oxygen atoms (O5, O6) of the hexanuclear water clusters and the carboxylic oxygen atoms (O1, O2, O4) and the pyrazole nitrogen atoms (N2) from Hpca− (O5—H5D⋯O4 = 2.759(0) Å, O5—H5C⋯O1 = 2.738(9) Å, O6—H6C⋯O2 = 2.697(2) Å, N2-H2⋯O6 = 2.654(9) Å).

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21271024

Award Identifier / Grant number: 20971014

Funding statement: This work was supported by the Program for National Natural Science Foundation of China (Nos. 21271024 and 20971014) and Beijing Natural Science (No. 2112037).

References

1 Whitesides, M. G.; Simanek, E. E.; Mathias, J. P.; Seto, C. T.; Chin, D. N.; Mammen, M.; Gerodon, D. M.: Noncovalent synthesis: using physical-organic chemistry to make aggregates. Acc. Chem. Res. 28 (1995) 37–44.10.1021/ar00049a006Search in Google Scholar

2 Ranganathan, A.; Pedireddi, V. R.; Rao, C. N. R.: Hydrothermal synthesis of organic channel structures: 1:1 hydrogen-bonded adducts of melamine with cyanuric and trithiocyanuric acids. J. Am. Chem. Soc. 121 (1999) 1752–1753.10.1021/ja983928oSearch in Google Scholar

3 Desiraju, G. R.: Crystal engineering: a holistic view. Angew. Chem. Int. Ed. 46 (2007) 8342–8356.10.1002/anie.200700534Search in Google Scholar PubMed

4 Supriya, S.; Manikumari, S.; Raghavaiah, P.: A cyclic supramolecular (H2O)4 cluster in an unusual Fe3 complex that aggregates to {Fe3}n with a zig-zag chainlike structure. New J. Chem. 27 (2003) 218–220.10.1039/b205695jSearch in Google Scholar

5 Kostakis, G. E.; Abbas, G.; Anson, C. E.: A new class of 3-D porous framework: [Ln(H2O)n]3+ ions act as pillars between π–stacked and H–bonded sheets of (m-BDTH)− organic anions in [Ln(H2O)n] (m-BDTH)3⋅9(H2O) (Ln = Pr, n = 9; Ln = Gd, n = 8). CrystEngComm. 10 (2008) 1117–1119.10.1039/b807028hSearch in Google Scholar

6 Ghosh, S. K.; Bharadwaj, P. K.: Octameric water clusters of staircase structure present in a metal-organic framework built from helical lanthanide coordination polymers. Eur. J. Inorg. Chem. 24 (2005) 4886–4889.10.1002/ejic.200500735Search in Google Scholar

7 Barbour, L. J.; Orr, G. W.; Atwood, J. L.: An intermolecular (H2O)10 cluster in a solid-state supramolecular complex. Nature 393 (1998) 671–673.10.1038/31441Search in Google Scholar

8 Brandt, W. W.; Dwyer, F. P.; Gyarfas, E. D.: Chelate complexes of 1,10-phenanthroline and related compounds. Chem. Rev. 54 (1954) 959–1017.10.1021/cr60172a003Search in Google Scholar

9 Accorsi, G.; Listorti, A.; Yoosaf, K.; Armaroli, N.: 1,10-Phenanthrolines: versatile building blocks for luminescent molecules, materials and metal complexes. Chem. Soc. Rev. 38 (2009) 1690–1700.10.1039/b806408nSearch in Google Scholar PubMed

10 Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, 2009.Search in Google Scholar

11 Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2016-10-18
Accepted: 2017-3-30
Published Online: 2017-4-7
Published in Print: 2017-5-24
