Crystal structure of 4,4′-((1Z,1′Z)-2,2′-(2,5-diethoxy-1,4-phenylene)bis(ethene-2,1-diyl))dipyridine, C24H24N2O2

  • Liang-Quan Sheng EMAIL logo , Yan-Nan Liang , Na-Na Du and Hua-Jie Xu
Published/Copyright: April 12, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 3

Abstract

C24H24N2O2, monoclinic, P21/c (no. 14), a = 11.7857(4) Å, b = 10.6233(4) Å, c = 8.0268(3) Å, β = 102.104(2)°, V = 982.64(6) Å3, Z = 2, Rgt(F) = 0.0320, wRref(F2) = 0.0827, T = 293(2) K.

CCDC no.:: 1540205

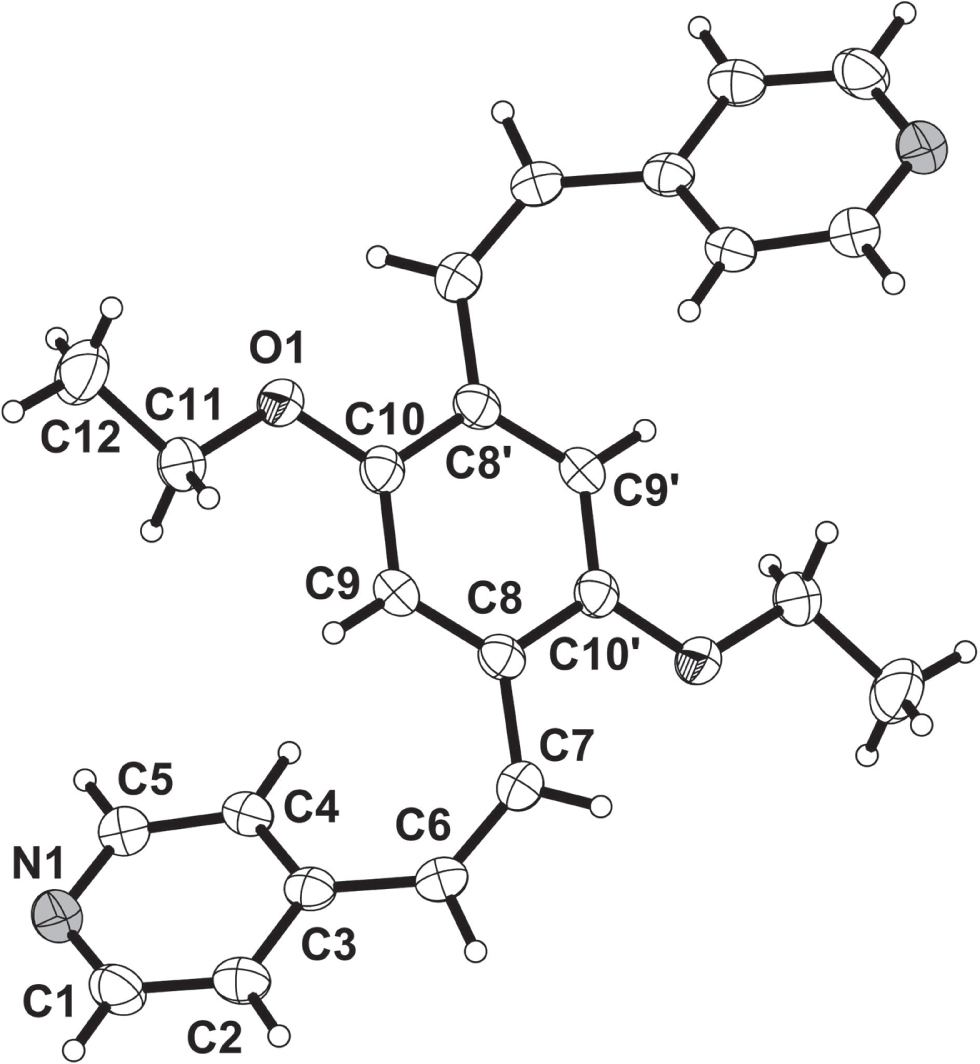

The crystal structure is shown in the figure (symmetry code: ′ = 2 − x, 2 − y, 1 − z). Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow block
Size:0.30 × 0.20 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.8 cm−1
Diffractometer, scan mode:Bruker APEXII, φ and ω
2θmax, completeness:50°, >99%
N(hkl)measured, N(hkl)unique, Rint:7182, 1727, 0.017
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1606
N(param)refined:128
Programs:Bruker programs [1, 2] , SHELX [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.64731(11)0.52901(11)0.49232(16)0.0354(3)
H10.60570.46650.53430.042*
C20.76491(10)0.53829(11)0.56002(14)0.0303(3)
H20.80050.48140.64270.036*
C30.83006(9)0.63264(10)0.50464(13)0.0243(2)
C40.77088(9)0.70972(10)0.37414(13)0.0252(2)
H40.81020.77260.32880.030*
C50.65361(10)0.69202(11)0.31293(15)0.0305(3)
H50.61640.74460.22580.037*
C60.95445(9)0.64232(10)0.58225(13)0.0262(3)
H60.98700.56830.63290.031*
C71.02940(9)0.73835(11)0.59319(14)0.0267(3)
H71.10590.71730.64060.032*
C81.01172(9)0.87096(10)0.54337(13)0.0235(2)
C90.91183(9)0.93729(10)0.55406(13)0.0239(2)
H90.85240.89590.59180.029*
C100.89827(9)1.06367(10)0.51004(13)0.0236(2)
C110.70792(10)1.06932(12)0.56948(17)0.0341(3)
H11A0.73361.03470.68300.041*
H11B0.67981.00090.49170.041*
C120.61340(11)1.16398(14)0.5682(2)0.0477(4)
H12A0.64161.23010.64770.072*
H12B0.54831.12360.60020.072*
H12C0.58981.19880.45590.072*
N10.58977(8)0.60466(10)0.36994(14)0.0355(3)
O10.80177(6)1.13274(7)0.51736(10)0.0292(2)

Source of material

The title compound was synthesized according to procedures described in the literature for an analogous compound [4]. 2,5-Diethoxy-1,4-bis(triphenylphosphonium)benzene dichloride (1.18 g, 1.5 mmol) and isonicotinaldehyde (0.43 g, 4 mmol), fresh t-BuOK (1.12 g, 10 mmol) were crashed together with pestle and mortar at room temperature for 0.5 h. Separation of cis- and trans-isomers was accomplished by radial chromatography technique using a Chromatotron apparatus and petroleum/ethyl acetate (20:1) as the eluting solvent. Single crystals of the cis-isomers were grown slowly by evaporating solutions in DMF solvents. m/z 373.21 [M + H]+.1H-NMR (CDCl3, 400 MHz, ppm): δ 8.48 (d, J = 4.8 Hz, 4 H), 7.63 (d, J = 12 Hz, 2H), 7.10 (d, J = 2.3 Hz, 4H), 7.05 (s, 2H), 6.92 (d, J = 12 Hz, 2H), 4.07 (q, J = 7.0 Hz, 4H), 1.39 (t, J = 7.0 Hz, 6H).

Experimental details

All H-atoms were placed in calculated positions and treated as riding on their parent atoms: C—H = 0.93–0.97 Å, with Uiso(H) = 1.2 or 1.5 Ueq(parent C-atom).

Discussion

The oligo(phenylene vinylene) derivatives (OPVs) are important materials in the fields of nonlinear optics [5, 6] , solid state opto-electronics [7] and molecular devices [8]. But in all kinds of OPVs, the presence of π-extended bridges are easy to form cis/trans-vinylene units and photochemical isomerized compounds. Thus, efforts have been made in the investigation of relationships that exist between the cis and trans configuration in one/two-photon luminescence properties.

The asymmetric unit contains one half of a title molecule, located around an inversion center. The crystal structure analysis reveals that the C = C double bonds adopt all cis configuration (cf. the figure). The bond length of C = C double bond is 1.3402(16) Å which is slightly longer than those in the related compound [4]. The torsion angles between the double bond and two adjacent phenyl rings are 131.72(10)° and 131.22(10)°. The dihedral angles between terminal pyridinyl moieties and the central aren unit are 42.3°. The configuration affords steric hindrance that prevents π-stacking in the solid state and thus promotes luminescence properties.

Acknowledgement

This project is supported by Educational Commission of Anhui Province of China (KJ2016A548, 2015KJ015), Sichuan key laboratory of harmful components and tar reduction in cigarette (hx2015005), Natural Science Foundation of Fuyang Normal College (2015FSKJ02ZD, FS201402001B, 2013FSKJ21) and the Innovation Training Program for the College students (201610371016).

References

1 Sheldrick, G. M.: SADABS. University of Göttingen, Germany, (1996).Search in Google Scholar

2 Bruker. SMART and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA, (2007).Search in Google Scholar

3 Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4 Liu, Z. D.; Sun, F.; Wang, F.; Xu, H. J.: Crystal structure of 2, 5-diethoxy-1, 4-bis [2-(quinoline) ethenyl] benzene, C32H28N2O2. Z. Kristallogr. - NCS. 231 (2016) 49–51.10.1515/ncrs-2014-9118Search in Google Scholar

5 Liu, Z. D.; Zhang, R. L.; Zhang, Q.; Ding, H. J.; Wang, C. K.; Li, S. L.; Zhou, H. P.; Zhang, S. Y.; Wu, J. Y.; Tian, Y. P.: Crystal structures, photophysical properties and significantly different two-photon excited fluorescence of the trans-and cis-oligo (phenylene vinylene). RSC Adv. 4 (2014) 2620–2623.10.1039/C3RA43126FSearch in Google Scholar

6 Price, R. S.; Dubinina, G.; Wicks, G.; Drobizhev, M.; Rebane, A.; Schanze, K. S.: Polymer monoliths containing two-photon absorbing phenylenevinylene platinum (II) acetylide chromophores for optical power limiting. ACS Appl. Mater. Inter. 7 (2015) 10795–10805.10.1021/acsami.5b01456Search in Google Scholar PubMed

7 Marrocchi, A.; Facchetti, A.; Lanari, D.; Santoro, S.; Vaccaro, L.: Click-chemistry approaches to π-conjugated polymers for organic electronics applications. Chem. Sci. 7 (2016) 6298–6308.10.1039/C6SC01832GSearch in Google Scholar PubMed PubMed Central

8 Kushmerick, J. G.; Holt, D. B.; Pollack, S. K.; Ratner, M. A.; Yang, J. C.; Schull, T. L.; Naciri, J.; Moore, M. H.; Shashidhar, R.: Effect of bond-length alternation in molecular wires. J. Am. Chem. Soc. 124 (2002) 10654–10655.10.1021/ja027090nSearch in Google Scholar PubMed
