Crystal structure of (4-(4-isopropylphenyl)-1H-pyrrol-3-yl)(ferrocenyl)methanone, C24H23FeNO

  • Hangzhou Tian , Geyu Chen , Jiejie Ma and Bin Liu ORCID logo EMAIL logo
Published/Copyright: April 10, 2025
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 240 Issue 3

Abstract

C24H23FeNO, monoclinic, P21/c (no. 14), a = 15.4240(10) Å, b = 10.2113(7) Å, c = 12.2776(7) Å, β = 105.808(2)°, V = 1860.6(2) Å3, Z = 4, Rgt(F) = 0.0564 wRref(F2) = 0.1804, T = 170 K.

CCDC no.: 2422374

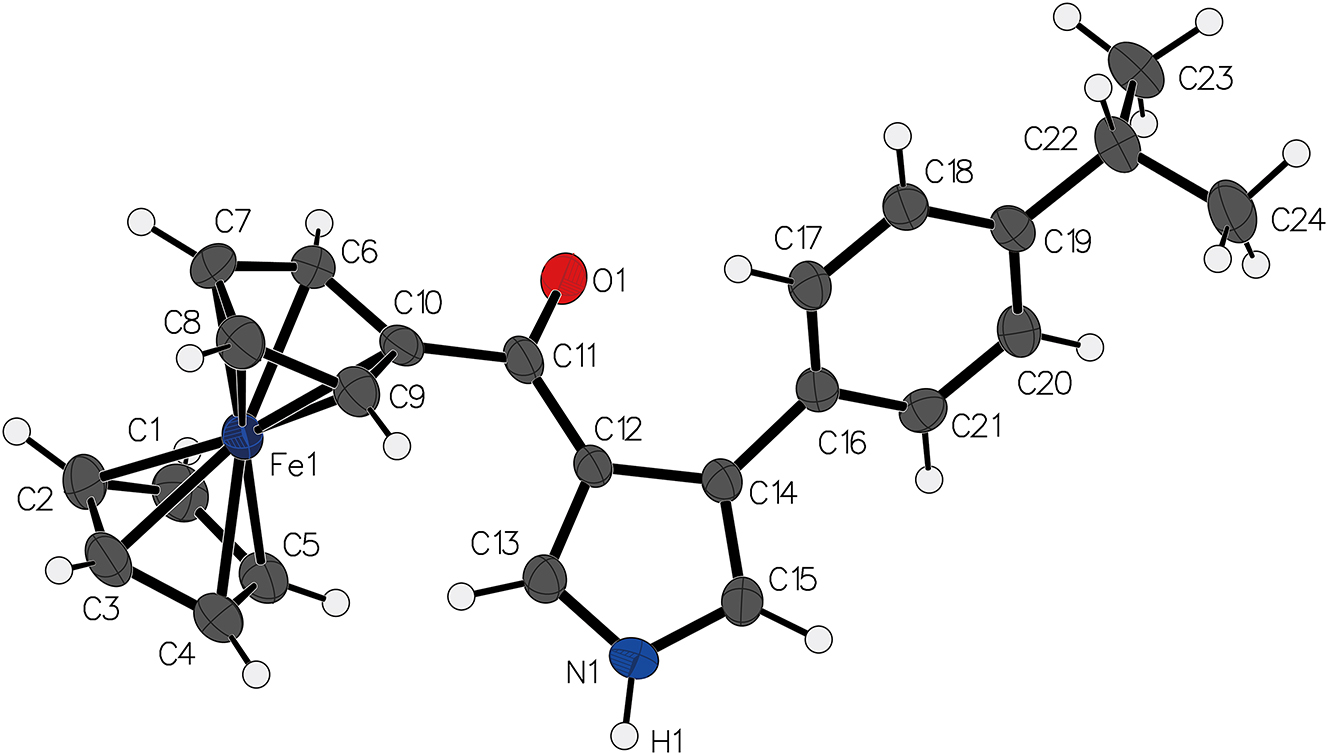

The molecular structure is shown in the figure. Table 1 contains the crystallographic data. The list of the atoms including atomic coordinates and displacement parameters can be found in the cif- file attached to this article.

1 Source of materials

To a solution of 1–ferrocenyl-3-(4-isopropylphenyl)-2-propen-1-one (3.58 g, 10 mmol) and tosylmethyl isocyanide (2.15 g, 11 mmol) in N,N-dimethylformamide (25 mL) was added potassium tert-butoxide (2.24 g, 20 mmol). The mixture was stirred at room temperature for 12 h, until the TLC indicated the reaction was completed. The mixture was diluted with brine, and then extracted with ethyl acetate (3 × 30 mL). The organic phase was washed with brine (30 mL), dried with anhydrous sodium sulphate, and then concentrated under pressure. The title compound was separated by silica-gel column chromatography with ethyl acetate-petroleum ether (25 %) gradient solvent system. The target product was obtained as a yellow solid. For crystal growth, the product was dissolved in a minimal amount of hot ethanol and slowly cooled to room temperature

.

Table 1:

Data collection and handling.

Crystal: Red block
Size: 0.09 × 0.05 × 0.04 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.82 mm−1
Diffractometer, scan mode: Bruker D8 VENTURE, φ and ω scans
θmax, completeness: 26.4°, 99 %
N(hkl)measured, N(hkl)unique, Rint: 13720, 3742, 0.093
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2,268
N(param)refined: 246
Programs: Bruker, 1 SHELX, 2 , 3 Olex2 4

2 Experimental details

The crystal structure was determined using Direct Methods with the SHELXT program. 2 The initial solution was refined using full-matrix least squares on F2 with the SHELXL program, 3 implemented within the Olex2 software. 4 The hydrogen atoms were placed at their idealized positions based on standard geometrical constraints.

3 Comment

Ferrocene, consisting of a central iron atom sandwiched between two cyclopentadienyl rings, exhibits remarkable stability and symmetry, making it a model compound for understanding metal-organic interactions and the behavior of metallocenes. 5 Over the years, various functionalized ferrocene derivatives have been synthesized to explore their potential in a wide range of applications, including catalysis, materials science, and organic electronics. 6 , 7 , 8 , 9 , 10 Crystallographic studies of these compounds are particularly valuable as they provide detailed insights into the molecular arrangement, intermolecular interactions, and packing behavior within the solid state, which are critical for tailoring their properties for specific applications.

The structure of the title compound is characterized by a ferrocenyl moiety conjugated with a pyrrole core via a ketone bridge. The ferrocene unit exhibits an almost ideal sandwich structure, with the iron center symmetrically coordinated between the two cyclopentadienyl rings. 11 , 12 , 13 , 14 , 15 , 16 , 17 The Fe–C bond lengths range from 2.04 to 2.07 Å, consistent with previously reported ferrocenyl derivatives. The ketone (C=O) bond length is approximately 1.24 Å, indicative of a typical carbonyl functional group, while the pyrrole ring remains nearly planar, suggesting strong conjugation within the system.

The pyrrole core is functionalized at the 3-position with the ferrocenyl ketone group and at the 4-position with a para-substituted isopropylphenyl unit. The torsion angle between the pyrrole and phenyl rings is 44.3°. The isopropyl group is positioned in a staggered conformation, with the adjacent phenyl hydrogen atoms. The C–N bond in the pyrrole ring remains within the expected range 1.34–1.37 Å.

Intermolecular interactions in the crystal lattice are primarily governed by weak N–H⃛O interaction (N1–H1⃛O1), which contribute to the overall packing stability. The bond length of H1⃛O1 is 2.08 Å, and the angle of N1–H1⃛O1 is 138.0°. The torsion angle between the pyrrole and phenyl rings is 44.3°, and the torsion angle between the pyrrole and cyclopentadienyl rings is 52.4°. This contrasts with the corresponding dihedral angle in a similar structure, (4-(2-chlorophenyl)-1H-pyrrol-3-yl)(ferrocenyl)methanone, 12 due to differences in the substituents and the intermolecular hydrogen bonding, which exert a significant influence on the molecular stereochemistry.

Corresponding author: Bin Liu, Xianyang Key Laboratory of Molecular Imaging and Drug Synthesis, School of Pharmacy, Shaanxi Institute of International Trade & Commerce, Xianyang, Shaanxi, China, E-mail:

Acknowledgments

This work was financially supported by the projects of Social Development in Shaanxi Province Science and Technology Department (2023–YBSF-036), the 2023 research and development project of the Xianyang Science and Technology Bureau (L2023–ZDYF–SF-030), Key Laboratory of Molecular Imaging and Drug Synthesis of Xianyang city (2021QXNL–PT-0008), School-level Scientific and Technological Innovation Team for Design, Synthesis and Structural Modification of Drug Molecules (2024KCTD04).

References

1. Bruker. Saint, Apex2 and Sadabs; Bruker AXS Inc.: Madison, WI, USA, 2012.Search in Google Scholar

2. Sheldrick, G. M. Shelxt – Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal Structure Refinement with Shelxl. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A.; Puschmann, H. Olex2: a Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

5. Štěpnička, P. Forever Young: the First Seventy Years of Ferrocene. Dalton Trans. 2022, 51, 8085–8102; https://doi.org/10.1039/d2dt00903j.Search in Google Scholar PubMed

6. Champaka, G.; Senthilkumar, K.; David, E.; Shanmugan, S.; Palanisami, N. Monomeric Zinc Ferrocene Carboxylate [Zn(FcCOO)(3,5-dmp)2Cl] Derived from 3, 5-dimethylpyrazole: Structural, Optical, Electrochemical and Antimicrobial Studies. J. Mol. Struct. 2021, 1228, 129749; https://doi.org/10.1016/j.molstruc.2020.129749.Search in Google Scholar

7. Kang, T.; Kim, N.; Cheng, P. T.; Zhang, H.; Foo, K.; Engle, K. M. Nickel–Catalyzed 1,2–Carboamination of Alkenyl Alcohols. J. Am. Chem. Soc. 2021, 143, 13962–13970; https://doi.org/10.1021/jacs.1c07112.Search in Google Scholar PubMed

8. Erb, W.; Wen, M.; Pierre Hurvois, J.; Mongin, F.; Halauko, Y. S.; Ivashkevich, O. A.; Matulis, V. E.; Roisnel, T. O–Isopropylferrocenesulfonate: Synthesis of Polysubstituted Derivatives and Electrochemical Study. Eur. J. Inorg. Chem. 2021, 2021, 3165–3176; https://doi.org/10.1002/ejic.202100448.Search in Google Scholar

9. Ramírez-Gómez, A.; Gutiérrez-Hernández, A. I.; Alvarado-Castillo, M. A.; Toscano, R. A.; Ortega-Alfaro, M. C.; López-Cortés, J. G. Selenoamides as Powerful Scaffold to Build Imidazo[1,5-a]pyridines Using a Grinding Protocol. J. Organomet. Chem. 2020, 919, 121315; https://doi.org/10.1016/j.jorganchem.2020.121315.Search in Google Scholar

10. Savani, C. J.; Roy, H.; Verma, S. K.; Vennapu, D. R.; Singh, V. K. Synthesis, Characterization and Evaluation of Novel Ferrocenylmethylamine Derivatives as Cytotoxic Agents. Appl. Organomet. Chem. 2021, 35, e6137; https://doi.org/10.1002/aoc.6137.Search in Google Scholar

11. Wang, X. –L.; Li, H. –M. Crystal Structure of 4-(1H-Imidazol-1-yl) -6-pyrimidinylferrocene. Z. Kristallogr. N. Cryst. Struct. 2016, 231, 141–143; https://doi.org/10.1515/ncrs-2015-0062.Search in Google Scholar

12. Zhang, C.; Zhu, Z.; Tang, W.; Xu, X.; Liu, B. Crystal Structure of (4- (2-Chlorophenyl)-1H-Pyrrol-3-yl)(ferrocenyl) Methanone. Z. Kristallogr. N. Cryst. Struct. 2024, 239, 375–377; https://doi.org/10.1515/ncrs-2024-0007.Search in Google Scholar

13. Du, M.; Xu, X.; Wang, Q.; Tang, W.; Liu, B. Crystal Structure of (E)-3- (4-butoxyphenyl)acryloylferrocenee. Z. Kristallogr. N. Cryst. Struct. 2025, 240 (2), 261–262; https://doi.org/10.1515/ncrs-2024-0457.Search in Google Scholar

14. Wang, Q.; Xu, X.; Du, M.; Tang, W.; Liu, B. Crystal Structure of Cinnamoyl Ferrocene. Z. Kristallogr. N. Cryst. Struct 2025, 240 (2), 257–259; https://doi.org/10.1515/ncrs-2024-0457.Search in Google Scholar

15. Tian, H.; Chen, G.; Chen, S.; Tang, W.; Liu, B. Crystal Structure of Methyl 1-Phenyl-9H-Pyrido[3,4-b]indole-3-Carboxylate. Z. Kristallogr. N. Cryst. Struct. 2024, 239, 1105–1107; https://doi.org/10.1515/ncrs-2024-0320.Search in Google Scholar

16. Chamkin, A. A.; Krivykh, V. V.; Nikitin, O. M.; Kreindlin, A. Z.; Shteltser, N. A.; Dolgushin, F. M.; Artyushin, O. I.; Ikonnikov, N. S.; Borisov, Y. A.; Belousov, Y. A.; Ustynyuk, N. A. Direct Phosphination of Ferrocenium Ion with Tertiary Phosphines by the Mechanism of Oxidative Nucleophilic Substitution. Eur. J. Inorg. Chem. 2018, 2018, 4494–4504; https://doi.org/10.1002/ejic.201800961.Search in Google Scholar

17. Shameem, M. A.; Esfandiarfard, K.; Öberg, E.; Ott, S.; Orthaber, A. Direct, Sequential, and Stereoselective Alkynylation of C,C–Dibromophosphaalkenes. Chem.–Eur. J. 2016, 22, 10614–10619; https://doi.org/10.1002/chem.201601955.Search in Google Scholar PubMed

Received: 2025-02-11
Accepted: 2025-03-31
Published Online: 2025-04-10
Published in Print: 2025-06-26

© 2025 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
