The crystal structure of (R)-2-aminobutanamide hydrochloride, C4H11ClN2O

  • Fengfeng Wang ORCID logo , Lin Luan , Youyou Wang , Xiaowen Hu ORCID logo , Caiyu Zhang ORCID logo and Yang Liu ORCID logo EMAIL logo
Published/Copyright: March 7, 2025
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 240 Issue 3

Abstract

C4H11ClN2O, orthorhombic, P212121 (no. 19), a = 4.9699(1) Å, b = 7.5867(2) Å, c = 17.3719(4) Å, V = 655.01(3) Å3, Z = 4, R gt (F) = 0.0286, wR ref (F2) = 0.0796, T = 200 K.

CCDC no.: 2411364

Table 1 contains the crystallographic data. The list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colourless block
Size: 0.20 × 0.15 × 0.12 mm
Wavelength: CuKα radiation (1.54178 Å)
μ: 4.43 mm−1
Diffractometer, scan mode: Rigaku Synergy, ω scans
θmax, completeness: 75.4°, 100 %
N (hkl)measured, N(hkl)unique, Rint: 2,585, 1,307, 0.022
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 1,289
N(param)refined: 89
Programs: CrysAlisPRO 1 Olex2, 2 SHELX 3 , 4

1 Source of materials

The compound was obtained commercially (Sigma–Aldrich). Crystals suitable for the diffraction test were taken directly from the provided product.

2 Experimental details

The positions of hydrogen atoms on carbon atoms were calculated geometrically and refined using the riding model. All the hydrogen atoms on nitrogen atoms were located from difference Fourier map and refined with Uiso(H) = 1.5Ueq(N). The distance between the hydrogen atoms and the nitrogen atoms were refined freely. A DFIX restrain was used to get a better model for the hydrogen atoms. The absolute structure was established by refinement of the Flack parameter (0.016(12) from 489 selected quotients) using Parsons’ method. 5

3 Comment

The title compound can be used for the synthesis of levetiracetam, 6 and brivaracetam. 7 Despite an extensive search through the Cambridge Structural Database, no reports on the single crystal structure of title compound were identified. The structural analogue, 2-aminobutanoic acid was reported as nitrate, 8 and dihydrogen phosphate. 9 , 10 , 11

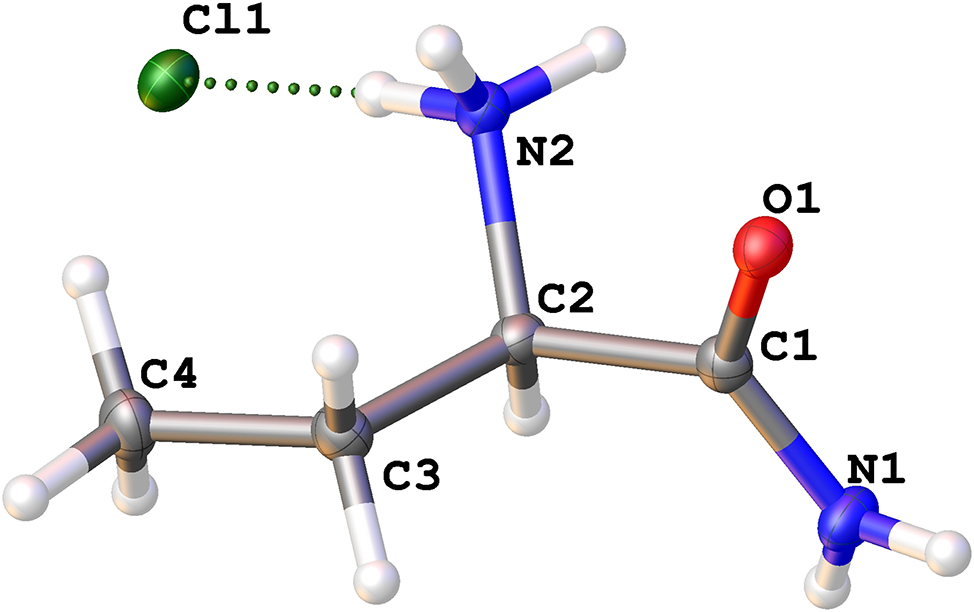

The title compound crystallized in P212121 space group with one 2-aminobutanamide cation and one chloride anion in its asymmetric unit, forming a 1:1 organic salt. All bond lengths fall in the normal range. The carbon chain exhibits a typical zig-zag-like conformation. The twist angle between C1–C2–C3–C4 is 178.04 (18)°, suggesting that above atoms are nearly coplanar. Protonated amino groups establish hydrogen bonds with two chloride ions and an amide group nearby. H1A atom on the terminal amide group also engages in hydrogen bonding with a chloride ion, characterized by a DA distance of 3.250 (2) Å.

Corresponding author: Yang Liu, Institute for Chemical Drug Control, National Institutes for Food and Drug Control, Beijing, 100050 P.R. China, E-mail:

  1. Conflict of interest: The authors declare no conflicts of interest regarding this article.

  2. Research funding: Institue Building Project Of NIFDC (No.2024HYZX39).

  3. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

References

1. Rigaku Oxford Diffraction. CrysAlisPRO Software System, Version 1.171.42.92a.; Rigaku Corporation: Oxford, UK, 2023.Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. OLEX2: a Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

3. Sheldrick, G. M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Sheldrick, G. M. SHELXT – Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

5. Parsons, S.; Flack, H. D.; Wagner, T. Use of Intensity Quotients and Differences in Absolute Structure Refinement. Acta Crystallogr. 2013, B69, 249–259; https://doi.org/10.1107/s2052519213010014.Search in Google Scholar PubMed PubMed Central

6. Domingo Sanchez, J.; Gómez-Carpintero, J.; González, J. F.; Menéndez, J. C. Twenty-first Century Antiepileptic Drugs. An Overview of Their Targets and Synthetic Approaches. Eur. J. Med. Chem. 2024, 272, 116476; https://doi.org/10.1016/j.ejmech.2024.116476.Search in Google Scholar PubMed

7. Manoj, G.; Hanuman, N.; Gyanchander, E.; Bhosale, R. S.; Yadav, J. S. Synthetic Approaches toward the Synthesis of Brivaracetam: An Antiepileptic Drug. ACS Omega 2022, 7, 2486–2503; https://doi.org/10.1021/acsomega.1c05378.Search in Google Scholar PubMed PubMed Central

8. Messai, A.; Benali-Cherif, R.; Jeanneau, E.; Benali-Cherif, N. Hydrogen Bonding in 1-carboxypropanaminium Nitrate. Acta Crystallogr. Sect. E 2012, 68, o1307–o1308; https://doi.org/10.1107/s1600536812013682.Search in Google Scholar PubMed PubMed Central

9. Benali-Cherif, N.; Bendheif, L.; Merazig, H.; Bouchouit, K.; Cherouana, A. Chemical Preparation, Spectroscopic Study and Crystal Structure of DL 2–Ammoniumbutyric Dihydrogenmonophosphate. Phosphorus, Sulfur Silicon Relat. Elem. 2002, 177, 411–421; https://doi.org/10.1080/10426500210242.Search in Google Scholar

10. Kolev, T.; Spiteller, M.; Sheldrick, W. S.; Mayer–Figge, H. Acta Crystallogr., Sect. C: Crys. Struct. Commun. 2006, 62, o299; https://doi.org/10.1107/S0108270106012108.Search in Google Scholar PubMed

11. In, Y.; Fujii, M.; Sasada, Y.; Ishida, T. Acta Crystallogr. 2001, 57, 72; https://doi.org/10.1107/S0108768100013975.Search in Google Scholar
Received: 2025-01-22
Accepted: 2025-02-17
Published Online: 2025-03-07
Published in Print: 2025-06-26

© 2025 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
