Crystal structure of 2-hydroxyethyl-triphenylphosphonium tetracyanidoborate, C24H20BN4OP

  • Anke Topp , Lukas Konstantin and Martin Köckerling ORCID logo EMAIL logo
Published/Copyright: April 15, 2025
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 240 Issue 3

Abstract

C24H20BN4OP, monoclinic, P21/n (no. 14), a = 14.1418(2) Å, b = 10.5821(1) Å, c = 15.4684(2) Å, β = 94.622(1)°, V = 2307.32(5) Å3, Z = 4, R gt (F) = 0.0203, wRref = 0.0408, T = 293(2) K.

CCDC no.: 2439249

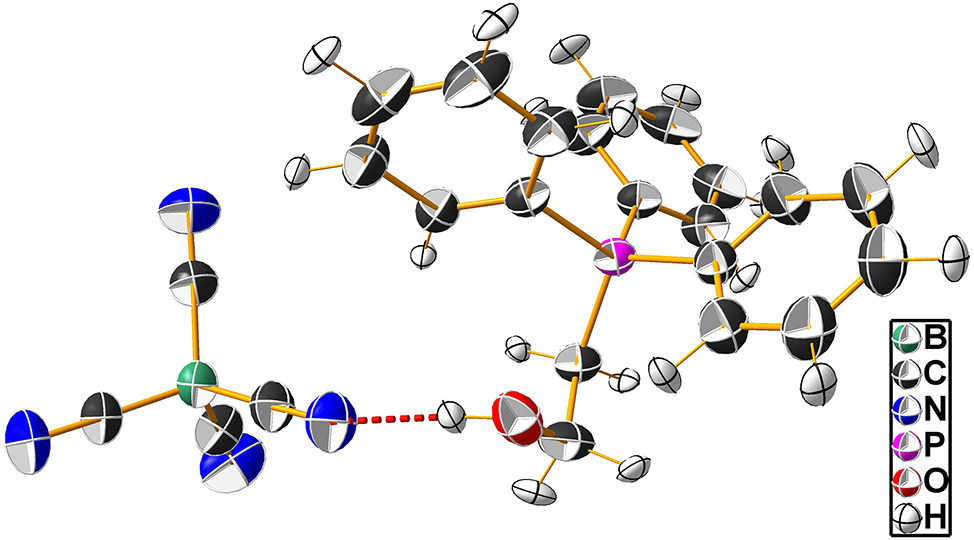

The molecular structure is shown in the figure 12 . Table 1 contains the crystallographic data. The list of the atoms including atomic coordinates and displacement parameters can be found in the cif-file attached to this article.

Table 1:

Data collection and handling.

Crystal: Colourless irregular block
Size: 0.42 × 0.37 × 0.31 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.14 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω scans
θmax, completeness: 27.0°, 99 %
N(hkl)measured, N(hkl)unique, Rint: 33743, 4994, 0.024
Criterion for Iobs, N(hkl)gt: Iobs > 2σ(Iobs), 4,120
N(param)refined: 460
Programs: Bruker, 1 SHELX, 2 Olex2 5

1 Source of materials

Equivalent amounts of K[B(CN)4] (250 mg, 1.624 mmol) and commercial [nPrPh3P]Br (626 mg), which was shown after the X-ray structure determination to contain a larger amount of 2-hydroxyethyl-triphenyl-phosphonium bromide as “impurity”, have been separately dissolved in acetonitrile (15 ml). Both colourless solutions were combined and stirred for approximately 5 min. The precipitated KBr was removed by centrifugation. The solvent of the decanted liquid was evaporated under reduced pressure by using a rotary evaporator. A colourless solid remained, which has been washed with diethylether (20 ml) and dried under reduced pressure. The recrystallization from CH3CN resulted in the growth of single crystals.

2 Experimental details

X-ray diffraction data were collected on a Bruker–Nonius Apex-II diffractometer. The Multi-scan method (SADABS) was used for absorption correction. 1 The structure solution and first structure refinements were carried out using the SHELX suite of programs (version 2014-2). 2 The final refinement of the structure were done applying the Hirshfeld atom refinement (HAR) method 3 via the NoSpherA2 procedure 4 within Olex2 (vers. 1.5). 5 The full asymmetric unit as obtained from the Shelx refinements was used as the initial fragment for HAR refinements. The ORCA quantum chemistry program package (vers. 6.0.1) 6 was used for wave function calculations. According to this procedure the hydrogen atoms were refined anisotropically.

3 Comment

Salts with the tetracyanidoborate anion, [B(CN)4]−, have attracted significant scientific and commercial interest due to their extraordinary properties. 7 , 8 These include high thermal and electrochemical stability as well as weak coordination abilities, making them useful e.g. in supercapacitors or dye-sensitive solar cells. 9 , 10 High temperature stability has been reported especially for tetracyanidoborates with phosphonium-based cations. 11

This contribution reports about the so far not published room-temperature structure of 2-hydroxyethyl-triphenyl-phosphonium tetracyanidoborate. The asymmetric unit of the title structure contains one 2-hydroxyethyl-triphenyl-phosphonium cation and one tetracyanidoborate anion, i.e. one molecular formula. The bond lengths and angles within the two ions are within the expected ranges. The arrangement of the C atoms around B1 deviates from ideal Td with C–B1–C angles ranging from 108.33(7)° to 111.20(7)°. The H atom attached to O1 is involved in a hydrogen bond to one of the N atoms of the anion shown as red dashed line in the figure. The O1⋯N1 distance is 2.9147(9) Å. The ions are arranged within the unit cell, such that chains of anions and cations exist, which are arranged in rows running along the crystallographic b direction.

Corresponding author: Martin Köckerling, Anorganische Festkörperchemie, Institut für Chemie, Universität Rostock, Albert-Einstein-Str. 3a, D-18059, Rostock, Germany, E-mail:

Acknowledgments

We thank Guido J. Reiss (Heinrich–Heine–Universität Düsseldorf/Germany for helpful information and discussions. We gratefully acknowledge financial support by the German Research Foundation (DFG).

References

1. Bruker AXS Inc. Apex-II; SMART, SAINT, SADABS and SHELXTL; Madison, Wisconsin, USA, 2012.Search in Google Scholar

2. Sheldrick, G. M. SHELXS/L (release 2014-2), Programs for Crystal Structure Determination; University of Göttingen: Göttingen, 2014.Search in Google Scholar

3. Capelli, S. C.; Bürgi, H.-B.; Dittrich, B.; Grabowsky, S.; Jayatilaka, D. Hirshfeld Atom Refinement. IUCrJ 2014, 1, 361–379; https://doi.org/10.1107/s2052252514014845.Search in Google Scholar

4. Kleemiss, F.; Dolomanov, O. V.; Bodensteiner, M.; Peyerimhoff, N.; Midgley, L.; Bourhis, L. J.; Genoni, A.; Malaspina, L. A.; Jayatilaka, D.; Spencer, J. L.; White, F.; Grundkoetter-Stock, B.; Steinhauer, S.; Lentz, D.; Puschmann, H.; Grabowsky, S. Accurate Crystal Structures and Chemical Properties from NoSpherA2. Chem. Sci. 2021, 12, 1675–1692; https://doi.org/10.1039/d0sc05526c.Search in Google Scholar

5. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Cryst. 2009, 42, 339–341; https://doi.org/10.1107/s0021889808042726.Search in Google Scholar

6. Neese, F. Software Update: The ORCA Program System, Version 5.0. WIREs Comput. Molec. Sci. 2022, 12, e1606; https://doi.org/10.1002/wcms.1606.Search in Google Scholar

7. Bernhardt, E.; Henkel, G.; Willner, H. Die Tetracyanoborate M[B(CN)4], M = [Bu4N]+, Ag+, K+. Z. Anorg. Allg. Chem. 2000, 626, 560–568; https://doi.org/10.1002/(sici)1521-3749(200002)626:2<560::aid-zaac560>3.0.co;2-e.10.1002/(SICI)1521-3749(200002)626:2<560::AID-ZAAC560>3.0.CO;2-ESearch in Google Scholar

8. Ignatév, N. V.; Finze, M. Cyanoborates. Eur. J. Inorg. Chem. 2019, 31, 3539–3560; https://doi.org/10.1002/ejic.201900403.Search in Google Scholar

9. Marszalek, M.; Fei, Z.; Zhu, D.-R.; Scopelliti, R.; Dyson, P. J.; Zakeeruddin, S. M.; Grätzel, M. Die Tetracyanoborate M[B(CN)4], M = [Bu4N]+, Ag+, K+. Inorg. Chem. 2011, 50, 11561–11567; https://doi.org/10.1021/ic201513m.Search in Google Scholar

10. Martins, V. L.; Rennie, A. J. R.; Sanchez–Ramirez, N.; Torresi, R. M.; Hall, P. J. Improved Performance of Ionic Liquid Supercapacitors by Using Tetracyanoborate Anions. ChemElectroChem 2018, 5, 598–604; https://doi.org/10.1002/celc.201701164.Search in Google Scholar

11. Flemming, A.; Hoffmann, M.; Köckerling, M. Tetracyanidoborates with Sterically Demanding Phosphonium Cations – Thermally Resistant Lonic Liquids. Z. Anorg. Allg. Chem. 2010, 636, 562–568; https://doi.org/10.1002/zaac.200900469.Search in Google Scholar

12. Brandenburg, K. DIAMOND. Visual Crystal Structure Information System. Ver. 4.6.8 Crystal Impact; Bonn, Germany, 2015.Search in Google Scholar
Received: 2025-01-06
Accepted: 2025-03-31
Published Online: 2025-04-15
Published in Print: 2025-06-26
