Crystal structure of 1-(4-chlorophenyl)-4-(2-furoyl)-3-phenyl-1H-pyrazol-5-ol, C20H13ClN2O3

  • Qiong Wu , Wei-Ya Zhang , Zi-Mo Zhang , Heng-Qiang Zhang ORCID logo and Tong-Yin Jin EMAIL logo
Published/Copyright: April 15, 2024
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 239 Issue 3

Abstract

C20H13ClN2O3, monoclinic, P21/n (no. 14), a = 6.2256(5) Å, b = 18.3976(15) Å, c = 14.5582(15) Å, β = 90.555(8)°, V = 1667.4(3) Å3, Z = 4, R gt(F) = 0.0443, wR ref(F 2) = 0.1003, T = 153(2) K.

CCDC no.: 2343323

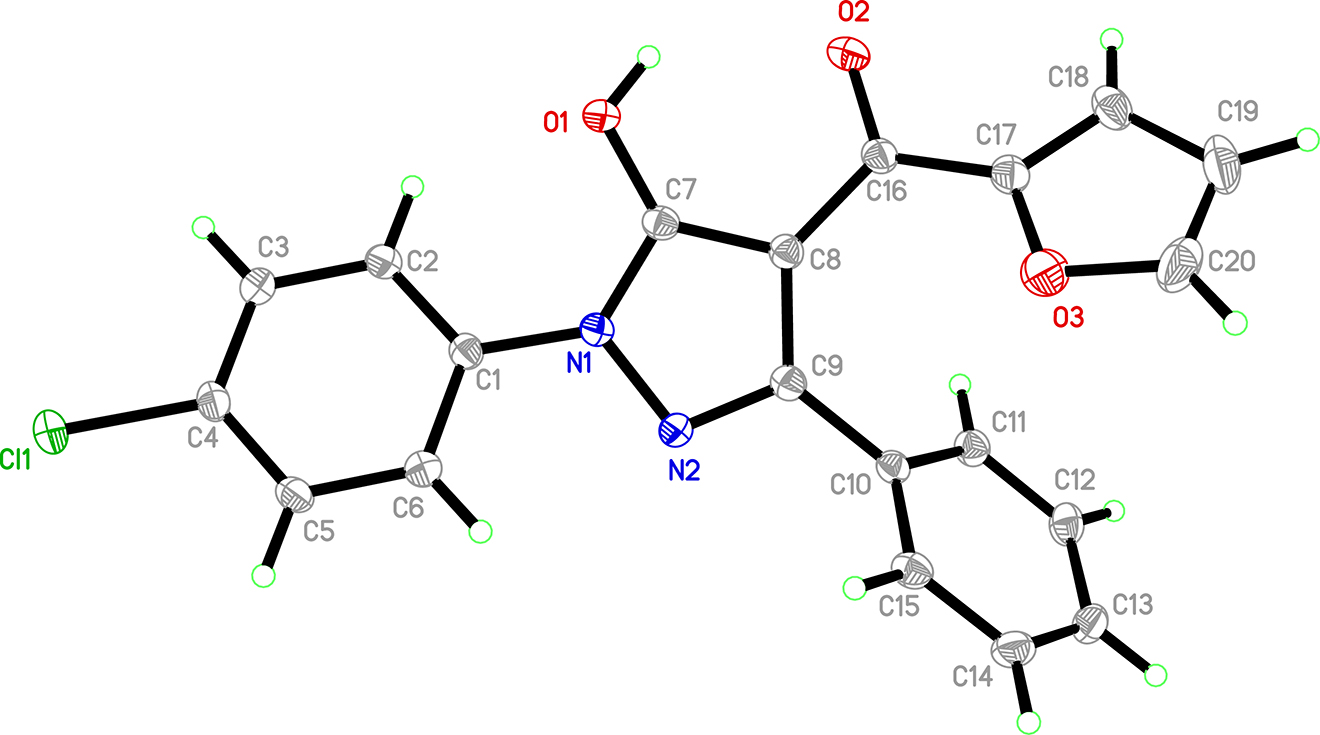

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.21 × 0.17 × 0.15 mm
Wavelength: MoKα radiation (0.71073 Å)
μ: 0.25 mm−1
Diffractometer, scan mode: Multiwire proportional, ω
θ max, completeness: 29.3°, >99 %
N(hkl)measured, N(hkl)unique, R int: 14,927, 4581, 0.039
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2825
N(param) refined: 239
Programs: CrysAlis PRO [1], Shelx [2, 3], WinGX/Ortep [4], Platon [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.7074 (3) 0.55607 (10) 0.31733 (13) 0.0245 (4)
C2 0.6373 (3) 0.49399 (10) 0.27208 (14) 0.0287 (4)
H2 0.499873 0.476022 0.282109 0.034*
C3 0.7733 (3) 0.45901 (10) 0.21193 (14) 0.0293 (4)
H3 0.728107 0.417203 0.181469 0.035*
C4 0.9762 (3) 0.48641 (10) 0.19734 (14) 0.0278 (4)
C5 1.0458 (3) 0.54871 (10) 0.24083 (14) 0.0281 (4)
H5 1.181974 0.567159 0.229372 0.034*
C6 0.9115 (3) 0.58352 (10) 0.30158 (13) 0.0275 (4)
H6 0.957584 0.625275 0.331890 0.033*
C7 0.3986 (3) 0.57140 (10) 0.42607 (13) 0.0251 (4)
C8 0.3274 (3) 0.62890 (9) 0.47995 (13) 0.0245 (4)
C9 0.4739 (3) 0.68624 (10) 0.46027 (13) 0.0252 (4)
C10 0.4766 (3) 0.76208 (10) 0.49347 (13) 0.0242 (4)
C11 0.2930 (3) 0.80490 (10) 0.49113 (14) 0.0292 (4)
H11 0.165223 0.786174 0.467433 0.035*
C12 0.3000 (3) 0.87551 (11) 0.52407 (15) 0.0337 (5)
H12 0.177208 0.904272 0.521605 0.040*
C13 0.4881 (3) 0.90343 (11) 0.56053 (14) 0.0348 (5)
H13 0.491639 0.950621 0.583388 0.042*
C14 0.6706 (3) 0.86108 (11) 0.56290 (15) 0.0349 (5)
H14 0.797626 0.879666 0.587492 0.042*
C15 0.6651 (3) 0.79121 (10) 0.52888 (14) 0.0300 (4)
H15 0.789518 0.763249 0.529704 0.036*
C16 0.1477 (3) 0.61992 (10) 0.54161 (14) 0.0270 (4)
C17 0.1211 (3) 0.66408 (10) 0.62329 (14) 0.0310 (4)
C18 −0.0551 (4) 0.67513 (11) 0.67463 (15) 0.0373 (5)
H18 −0.191160 0.655778 0.664241 0.045*
C19 0.0068 (5) 0.72165 (13) 0.74699 (17) 0.0561 (7)
H19 −0.081097 0.739646 0.793002 0.067*
C20 0.2162 (5) 0.73494 (13) 0.73680 (17) 0.0589 (8)
H20 0.298410 0.764030 0.775793 0.071*
Cl1 1.14839 (8) 0.44089 (3) 0.12320 (4) 0.03731 (15)
H1 0.214 (4) 0.4968 (14) 0.4427 (19) 0.069 (9)*
N1 0.5723 (2) 0.59412 (8) 0.37947 (11) 0.0255 (3)
N2 0.6192 (2) 0.66617 (8) 0.39968 (11) 0.0268 (4)
O1 0.3338 (2) 0.50323 (7) 0.41839 (10) 0.0290 (3)
O2 0.0142 (2) 0.57168 (8) 0.52497 (10) 0.0397 (4)
O3 0.2934 (3) 0.69965 (8) 0.66070 (11) 0.0459 (4)

1 Source of material

All reagents were obtained from commercial sources and used without further purification. 3-Methyl-1-p-chlorophenyl-5-pyrazolone was synthesized according to the method proposed by Jensen [6] (yield 85 %; m.p. 441–443 K). 3-Methyl-1-p-chlorophenyl-5-pyrazolone (5 g) was dissolved in dioxane (100 mL) by warming and Ca(OH)2 (3 g) was added. 2-Furoyl chloride (5 mL) was next added, drop by drop, with stirring within 4 min. After refluxing gently for 1.5 h, the orange mixture was cooled and poured with stirring into chilled 2 M HCI (500 mL). A handful of ice-salt mixture was added and vigorous stirring continued for another 30 min, after which, the reaction mixture was kept in a refrigerator until crystallisation occurred. Filtration of the product gave 67 % yield of yellow crystals at room temperature.

2 Experimental details

The hydroxyl H atom was located in a difference Fourier map and refined as riding, with O–H distance restraint of 0.84(3) Å and with U iso(H) = 1.5U eq(O). Other H atoms were placed in calculated positions, with C–H = 0.93 for phenyl and furan, and refined as riding, with U iso(H) = 1.2U eq(C) for phenyl H.

3 Comment

Acylpyrazolones are an interesting class of β-diketones possessing a prominent structural motif, which is found in numerous active compounds. Due to the easy preparation and its rich biological activity in broad-spectrum of applications they are of general interest [7], [8], [9]. Alkaline-earth metal β-diketonate complexes also have recently provoked a growing interest as suitable precursors in the synthesis of high Tc superconducting films [10, 11]. So far research has been restricted to those acylpyrazolones with aryl substituents at four-positions. So far, only a few studies have involved heterocyclic substituents at the four-position. In recent years, we have reported some 4-acylpyrazolones ligands and their complexes [12], [13], [14]. Knowledge of the crystal structure of such 4-heterocyclic acylpyrazolones ligands gives us not only sufficient information about nuclearity of the complex molecule, but is important in understanding the behaviour of this compounds in the vapour phase, and the mechanisms of sublimation and decomposition.

The structure of the title compound is shown in Figure. The bond lengths and angles are within normal ranges [15]. The p-chlorophenyl ring is slightly twisted by 20.06(5)° with respect to the pyrazolone ring, whereas the furyl rings make dihedral angles of 37.87(5)° with the pyrazolone ring. Atom O1 has a partial anionic character, as shown by the lengthening of the C7=O1 bond [1.322(2) Å] relative to that normally found for carbonyl groups and this atom acts as hydrogen-bond acceptor. The intermolecular O1–H1⋯O2 hydrogen bond results in the formation of a dimer with an R2 2(12) graph-set motif [16]. It is apparent that the C16=O2 and C8=C16 distances correspond to well defined double bonds. The conjugation effects also cause the pyrazolone and C1–C6 benzene ring to be nearly coplanar, with a mean deviation from the overall plane of 0.003 Å. The clear presence of the hydroxyl H atom in the difference Fourier synthesis and the absence of any residual electronic density in the vicinity of O1 confirm that title compound crystallize as a pure hydroxyl tautomer and that no desmotropism is present [17].

Corresponding author: Tong-Yin Jin, Department of Chemistry, Hebei Normal University for Nationalities, Chengde 067000, People’s Republic of China, E-mail:

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Science Foundation of Hebei Normal University for Nationalities (No. STZD2023001).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Rigaku, O. D. CrysAlisPRO; Rigaku Oxford Diffraction Ltd: Yarnton, Oxfordshire, England, 2015.Search in Google Scholar

2. Sheldrick, G. M. SHELXL2018. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

5. Spek, A. L. Structure validation in chemical crystallography. Acta Crystallogr. 2009, D65, 148–155; https://doi.org/10.1107/s090744490804362x.Search in Google Scholar

6. Jensen, B. S. The synthesis of 1-phenyl-3-methyhl-4-acyl-pyrazolones-5. Acta Chem. Scand. 1959, 13, 1668–1670; https://doi.org/10.3891/acta.chem.scand.13-1668.Search in Google Scholar

7. Marchetti, F., Pettinari, C., Di Nicola, C., Tombesi, A., Pettinari, R. Coordination chemistry of pyrazolone-based ligands and applications of their metal complexes. Coord. Chem. Rev. 2019, 401, 213069; https://doi.org/10.1016/j.ccr.2019.213069.Search in Google Scholar

8. Wang, X. H., Jia, D. Z., Liang, Y. J., Yan, S. L., Ding, Y., Chen, L. M., Shi, Z., Zeng, M. S., Liu, G. F., Fu, L. W. Lgf-YL-9 induces apoptosis in human epidermoid carcinoma KB cells and multidrug resistant KBv200 cells via reactive oxygen species-independent mitochondrial pathway. Cancer Lett. 2007, 249, 256–270; https://doi.org/10.1016/j.canlet.2006.09.008.Search in Google Scholar PubMed

9. Vyas, K. M., Jadeja, R. N., Patel, D., Devkar, R. V., Gupta, V. K. A new pyrazolone based ternary Cu(II) complex: synthesis, characterization, crystal structure, DNA binding, protein binding and anti-cancer activity towards A549 human lung carcinoma cells with a minimum cytotoxicity to non-cancerous cells. Polyhedron 2013, 65, 262–274; https://doi.org/10.1016/j.poly.2013.08.051.Search in Google Scholar

10. Rahman, M., Siddiqui, A. Pyrazoline derivatives: a worthy insight into the recent advances and potential pharmacological activities. Int. J. Pharm. Pharm. Sci. 2010, 2, 165–175.10.4172/2150-3494.1000021Search in Google Scholar

11. Mukherjee, R. Coordination chemistry with pyrazole-based chelating ligands: molecular structural aspects. Coord. Chem. Rev. 2000, 203, 151–158; https://doi.org/10.1016/s0010-8545(99)00144-7.Search in Google Scholar

12. Li, J.-Z., Zhang, H.-Q., Li, H.-X., Che, P.-Z., Wang, T.-C. 1-(4-Chlorophenyl)-4-(2-furoyl)-3-(2-furyl)-1H-pyrazol-5-ol. Acta Crystallogr. 2007, E63, o1289–o1290; https://doi.org/10.1107/s1600536807006538.Search in Google Scholar

13. Xu, L.-Y., Chen, C.-C., Chen, M.-Q., Chang, Y., Sang, R.-G., Zhang, H.-Q. Crystal structure of 1-(4-chlorophenyl)-4-benzoyl-3-methyl-1H-pyrazol-5-ol, C17H13ClN2O2. Z. Kristallogr. N. Cryst. Struct. 2023, 238, 959–961; https://doi.org/10.1515/ncrs-2023-0298.Search in Google Scholar

14. Wu, Q., Huang, Z.-Y., Liu, Y.-X., Zhang, H.-Q., Jin, T.-Y., Xue, Y.-N., Liu, C. Crystal structure of 1-(p-tolylphenyl)-4-(2-furoyl)-3-methyl-1H-pyrazol-5-ol, C16H14N2O3. Z. Kristallogr. N. Cryst. Struct. 2024, 239, 327–329; https://doi.org/10.1515/ncrs-2024-0001.Search in Google Scholar

15. Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G., Taylor, R. Tables of bond lengths determined by X-ray and neutron diffraction. Part 1. Bond lengths in organic compounds. J. Chem. Soc. Perk. Trans. 1987, 2, S1–S19; https://doi.org/10.1039/p298700000s1.Search in Google Scholar

16. Etter, M. C., MacDonald, J. C., Bernstein, J. Graph-set analysis of hydrogen-bond patterns in organic crystals. Acta Crystallogr. 1990, B46, 256–262; https://doi.org/10.1107/s0108768189012929.Search in Google Scholar PubMed

17. Foces-Foces, C., Fontenas, C., Elguero, J., Sobrados, I. An. Quim. Int. Ed. 1997, 93, 219–224.Search in Google Scholar
Received: 2024-02-29
Accepted: 2024-03-27
Published Online: 2024-04-15
Published in Print: 2024-06-25
