The crystal structure of catena-poly[(μ2-4,4′-dipyridine-κ2N,N′)-bis(3,5,6-trichloropyridine-2-oxyacetato-κO)-bis(ethanol-κO)nickel(II)], C28H26Cl6N4NiO8

  • Jun-Xia Li ORCID logo EMAIL logo and Zhong-Xiang Du
Published/Copyright: April 24, 2020
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 4

Abstract

C28H26Cl6N4NiO8, monoclinic, I2/a (no. 15), a = 15.7577(10) Å, b = 12.6174(7) Å, c = 16.7333(10) Å, β = 99.609(6)Å, V = 3280.3(3) Å3, Z = 4, Rgt(F) = 0.0674, wRref(F2) = 0.1665, T = 291.2(3) K.

CCDC no.: 1967383

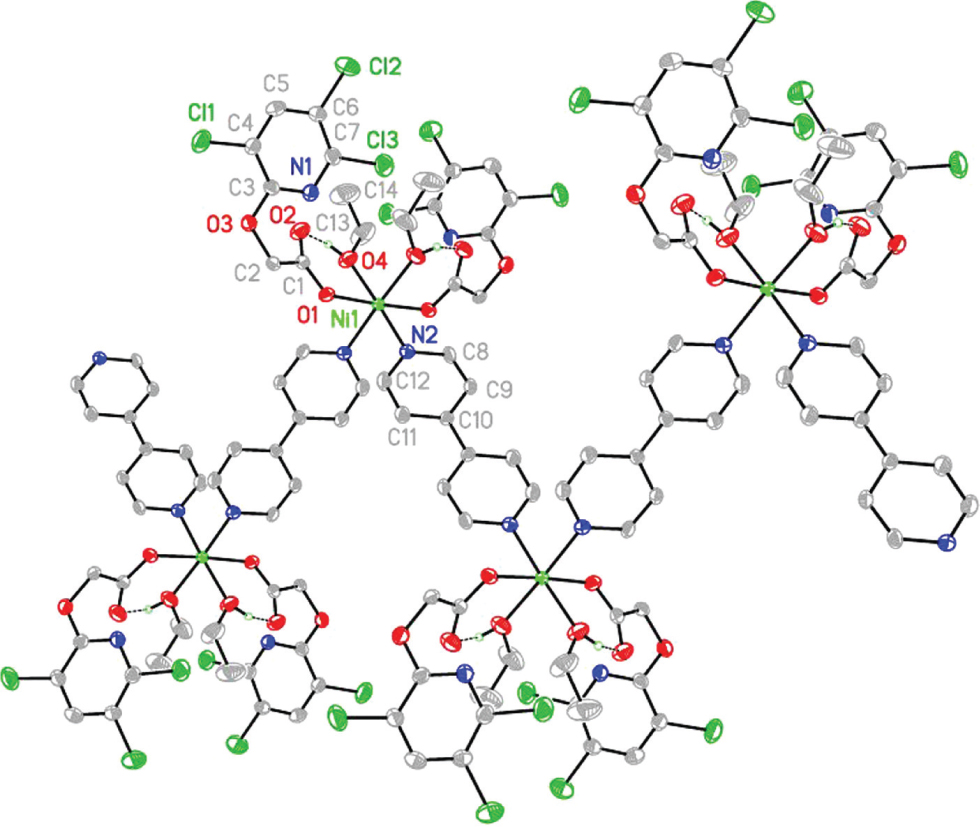

A part of the molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Green block
Size:0.29 × 0.25 × 0.22 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.14 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:28.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:7139, 3421, 0.051
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2154
N(param)refined:217
Programs:CrysAlisPRO [1], Olex2 [2], SHELX [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.7488(3)0.4078(4)0.3258(3)0.0379(12)
C20.7127(4)0.3887(4)0.2373(3)0.0414(13)
H2A0.74160.32820.21820.050*
H2B0.65200.37170.23210.050*
C30.6715(3)0.5633(4)0.1934(3)0.0408(13)
C40.6951(4)0.6599(4)0.1645(4)0.0517(15)
C50.6454(4)0.7480(5)0.1724(4)0.0599(17)
H50.66080.81440.15540.072*
C60.5715(4)0.7347(4)0.2068(4)0.0543(16)
C70.5525(3)0.6362(5)0.2317(3)0.0466(14)
C80.5976(3)0.2057(4)0.5490(3)0.0442(13)
H80.59990.26130.58580.053*
C90.5386(3)0.1276(4)0.5532(3)0.0435(13)
H90.50320.13070.59240.052*
C100.5312(3)0.0435(4)0.4989(3)0.0325(11)
C110.5867(4)0.0459(4)0.4435(3)0.0547(16)
H110.5848−0.00810.40550.066*
C120.6452(4)0.1277(5)0.4439(4)0.0557(16)
H120.68160.12660.40560.067*
C130.8826(5)0.5237(6)0.5548(4)0.097(3)
H13A0.93340.49300.58720.117*
H13B0.84150.53700.59080.117*
C140.9061(6)0.6224(6)0.5252(5)0.120(3)
H14A0.85730.65310.49100.181*
H14B0.95180.61210.49450.181*
H14C0.92530.66900.56990.181*
Cl10.78527(12)0.67082(15)0.11876(13)0.0864(7)
Cl20.50957(14)0.84462(14)0.21820(14)0.0975(7)
Cl30.46002(10)0.61493(14)0.27188(10)0.0668(5)
N10.6018(3)0.5516(3)0.2259(2)0.0412(11)
N20.6521(2)0.2079(3)0.4962(2)0.0343(9)
Ni10.75000.32936(6)0.50000.0262(2)
O10.7342(2)0.3337(2)0.3724(2)0.0397(8)
O20.7901(3)0.4905(3)0.3453(2)0.0568(11)
O30.7229(2)0.4792(3)0.1871(2)0.0499(10)
O40.8467(3)0.4474(3)0.4975(2)0.0553(11)
H40.846(3)0.477(3)0.4507(8)0.083*

Source of material

NiCl2 ⋅ 6H2O (0.3 mmol, 0.074 g). 4,4′-dipyridine (4,4′-dipy, 0.3 mmol, 0.047 g) and ligand 3,5,6-trichloropyridine-2-oxyacetic acid (3,5,6-Htcpa, 0.3 mmol, 0.078 g) were dissolved in a mixture of 20 mL of water/ ethanol (V:V = 1:1). Then the pH of the mixture was neutralized with KOH (0.1 mol⋅L−1) to pH = 6.5. After that, the mixed solution was sealed in a 25 mL Teflon reactor and kept under autogeneous pressure at 393 K for 3 days. After cooling to room temperature at a rate of 279 K⋅h−1, green block crystals of the title compound were obtained and collected. Yield: 20 mg (16%, based on ligand 3,5,6-Htcpa). Anal. Calcd for C28H26Cl6N4NiO8(%): C, 41.08; H, 3.20; N, 6.85. Found: C, 41.01; H, 3.29; N, 6.92.

Experimental details

CrysAlisPro 1.171.39.46 (Rigaku Oxford Diffraction, 2018) [1] was used for empirical absorption correction using spherical harmonics, implemented in SCALE3 ABSPACK scaling algorithm. Using Olex2 [2], the structure was solved with the ShelXT [3] structure solution program using Intrinsic Phasing and refined with the ShelXL [4] refinement package. The H atoms bonded to C atoms were fixed, with C—H distance of 0.93 Å; and/or positioned geometrically in the riding-model approximation, with C—H distance of 0.97 Å; Uiso(H) = 1.2Ueq(C).

Comment

At the beginning stage of the coordination chemistry, aromatic carboxylate ligands have been frequently selected to construct metal-organic frameworks due to their rich structural features and valuable potential applications [5], [6], [7], [8], [9]. Subsequently, modification of these carboxylate ligands by various electron donating and withdrawing substituents groups such as Me- [10], [11], tBu- [12], [13], MeO- [10], [14], [15], —OH and —SO3H [16], [17], [18], —SH [19], [20], —NH2 [21], [22], —NO2 [23], [24], —CF3 [25], —CN [26], —F [27], [28], [29], [30], —Cl [31], [32], [33], —Br [34], [35], [36], [37], —I [38], [39], [40], has been employed. Because of the steric and/or electronic effects of the substituent groups, these decorated ligands may afford new supramolecular assemblies owing to their special linking types and ligand-metal interactions. Among them, the halogen containing carboxylate ligands are attractive as they may form halogen bonds, which played an important role in the fields of molecular recognition and supramolecular assemblies.

Lately, a trichloro substituent aromatic carboxylate ligand, namely, 3,5,6-trichloropyridine-2-oxyacetic acid (3,5,6-Htcpa) has aroused our interests. A series of compounds, including co-crystal ZnII [41] and NiII complexes [42], binuclear CdII cluster [43], 1D NiII [44] , CoII [45] and MnII [46] polymers containing this ligand, have been reported by us recently.

Single-crystal X-ray diffraction analysis shows that the asymmetric unit of I includes one half of a NiII ion, one 3,5,6-tcpa ligands, one half of a 4,4′-dipy together with one ethanol molecule.

The six-coordinated NiII ion is bonded to two carboxy oxygen of two unidentate 3,5,6-tcpa anions [Ni1-O1 = 2.109(3) Å], two pyridyl nitrogen atoms of two 4,4′-dipy [Ni1-N2 = 2.168(4) Å] as well as two hydroxy oxygen atoms of two ethanol molecules [Ni1-O4 = 2.136(4) Å] (see the figure).

The trans O1-Ni1-O1A and O4-Ni1-N2 bond angles are 177.05(17)° and 177.13(14)° respectively, and the cis ones lie in the range of 85.75(13) to 92.19(13)°.

The μ2-4,4′-dipy molecules bridge the neighbouring NiII ions with their nitrogen atoms to form zigzag chain structure along the a axis. The Ni⋯Ni separation across 4,4′-dipy is 11.452 Å. The adjacent Ni⋯Ni distance parallel to the a axis is 15.758 Å. The 3D crystal packing is constructed by O—H⋯O hydrogen bonding and weak Cl⋯Cl halogen bonding.

The hydroxy atom (O4) of ethanol as donor involves in intra-molecular hydrogen bond with uncomplexed carboxy oxygen (O2) of 3,5,6-tcpa as acceptor.

The halogen⋯halogen interactions are seen between C6-Cl2 and C7G-Cl3G (symmetry code for G: x, 3/2 − y, 1/2 + z) of adjacent 1D chain with a Cl2⋯Cl3G separation of 3.444 Å. In I, the geometries of these halogen bonds is characterized by angles of C6-C12⋯Cl3G (119.20°) and Cl2⋯Cl3G-C7G (93.02°), nearly corresponding to halogen bond of Type II [47], [48].

Comparing I with [Ni(3,5,6-tcpa)2(4,4′-dipy) 1/2]n (II) [44], both of which prepared from the same starting reactants, some important similarities and differences can be found as follows: (i) The structure. They are both 1D polymer. The title structure is a zigzag chain, while II is a linear structure. (ii) The μ2-function of 4,4′-dipy. Both 4,4′-dipy join NiII centers to form the corresponding polymer. (iii) The composition. There are complexed ethonal molecules in I, but absence in II. This is because of the use of the mixed H2O-ethanol solvent for synthesis of I, while pure H2O solvent for that of II. (iv) The coordination mode of 3,5,6-tcpa. It is monodentate in I, but bidentate in II. (v) The coordination geometry of NiII ion. It is in octahedron for I, while in tetragonal pyramid for II.

From the above careful disscussion, it was confirmed again that the different synthesis conditions, such as by changing the solvent, greatly affected the composition and structure of complexes.

Now, many further attempts on developing new complexes with 3,5,6-Htcpa as the first ligand, for instance by the use of other solvents, introducing other N/O-donor bridging or chelate auxiliary ligands will be gradually implemented.

Acknowledgements

This work was supported by the Key scientific research projects in Colleges and Universities of Henan province (No. 17A150040).

References

1. Oxford Diffraction Ltd: CrysAlisPRO. Rigaku Oxford Diffraction, Version 1.171.39.6a, England (2018).Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2 : a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

5. Mehrotra, R. C.; Bohra, R.: Metal carboxylates. Academic Press, London (1983).Search in Google Scholar

6. Li, J.-X.; Du, Z.-X.: Crystal structure of catena-poly[(μ2-4,4′-bipyridine-κ2N:N′)-tetraquamanganese(II)]-(3-(carboxylatomethyl) benzoic acid)-water (1/2/2), C28H34MnN2O14. Z. Kristallogr. NCS 230 (2015) 339–340.10.1515/ncrs-2014-9130Search in Google Scholar

7. Du, Z.-X.; Li, J.-X.: Crystal structure of catena-poly[(μ2-4,4′-bipyridine-κ2N:N′)-tetraqua-cobalt(II)]-(3-(carboxylatomethyl) benzoic acid)-water (1/2/2), C28H34CoN2O14. Z. Kristallogr. NCS 230 (2015) 321–322.10.1515/ncrs-2014-9082Search in Google Scholar

8. Li, J.-X.; Du, Z.-X.: Syntheses, structures and magnetic properties of two mononuclear nickel(II) complexes based on bicarboxylate ligands. Z. Naturforsch. 70b (2015) 505–511.10.1515/znb-2015-0010Search in Google Scholar

9. Li, J.-X.; Du, Z.-X.: Zinc and cobalt complexes with (2-carboxyphenoxy) acetic acid ligand: syntheses, structures, fluorescent and magnetic properties. J. Coord. Chem. 69 (2016) 2563–2572.10.1080/00958972.2016.1216106Search in Google Scholar

10. Han, M.-L.; Wang, J.-G.; Ma, L.-F.; Guo, H.; Wang, L.-Y.: Construction of Cd(II) coordination polymers based on R-isophthalate (R = -CH3 or -OCH3) and flexible N-donor co-ligands: syntheses, structures and photoluminescence. CrystEngComm 14 (2012) 2691–2701.10.1039/c2ce06511hSearch in Google Scholar

11. Alturk, S.; Avci, D.; Basoglu, A.; Tamer, O.; Atalay, Y.; Dege, N.: Copper(II) complex with 6-methylpyridine-2-carboxyclic acid: experimental and computational study on the XRD, FT-IR and UV-Vis spectra, refractive index, band gap and NLO parameters. Spectrochim. Acta, Part A 190 (2018) 220–230.10.1016/j.saa.2017.09.041Search in Google Scholar PubMed

12. Wang, J.-G.; Chai, N.; Wang, S.-C.; Ma, L.-F.; Wang, L.-Y.: Two new 3-D coordination polymers with 5-tert-butyl isophthalic acid and flexible N-donor co-ligands bearing linear trinuclear secondary building blocks. Inorg. Chem. Commun. 30 (2013) 143–146.10.1016/j.inoche.2013.02.005Search in Google Scholar

13. Chang, X.-H.: Crystal structure of poly[(μ4-5-tertbutylisophthalato-κ4O:O′:O′′:O′′′)-(1,3-dimethyl-2- imidazolidinone-κO)zinc(II)] C17H22N2O5Zn. Z. Kristallogr. NCS 233 (2018) 1043–1045.10.1515/ncrs-2018-0161Search in Google Scholar

14. Qin, J.-H.; Ma, L.-F.; Hu, Y.; Wang, L.-Y.: Syntheses, structures and photoluminescence of five zinc(ii) coordination polymers based on 5-methoxyisophthalate and flexible N-donor ancillary ligands. CrystEngComm 14 (2012) 2891–2898.10.1039/c2ce06581aSearch in Google Scholar

15. Ma, L.-F.; Zhao, J.-W.; Han, M.-L.; Wang, L.-Y.; Du, M.: Two novel 3-D coordination polymers with 5-methoxyisophthalate and flexible N-donor co-ligands showing pentanuclear or alternate mono/binuclear Cu(II) units. Dalton Trans. 41 (2012) 2078–2083.10.1039/C1DT11206FSearch in Google Scholar

16. Du, Z.-X.; Li, J.-X.; Han, R.-Q.: Syntheses, characterizations and crystal structures of two copper coordination polymers both having Cu2Cl2 bridging subunit [CuI(bipy) 1/2Cl]n (1) and {[(CuII)4(phen)4(SSA)2Cl2](H2O)2(DMF)2}n (2). J. Chem. Crystallogr. 41 (2011) 34–38.10.1007/s10870-010-9831-6Search in Google Scholar

17. Li, J.-X.; Du, Z.-X.: Syntheses, structures and fluorescent properties of copper(II) and manganese(II) helical complexes bridged by 4,4′-dipyridylsulfide. Chin. J. Struct. Chem. 31 (2012) 877–883.Search in Google Scholar

18. Xu, T.-Y.; Wang, H.; Li, J.-M.; Zhao, Y.-L.; Han, Y.-H.; Wang, X.-L.; He, K.-H.; Wang, A.-R.; Shi, Z.-F.: A water-stable luminescent Zn(II) coordination polymer based on 5-sulfosalicylic acid and 1,4-bis(1H-imidazol-1-yl)benzene for highly sensitive and selective sensing of Fe3+ ion. Inorg. Chim. Acta 493 (2019) 72–80.10.1016/j.ica.2019.05.002Search in Google Scholar

19. Li, J.-X.; Du, Z.-X.: Crystal structure of catena-5-sulfosalicylato-κ2O,O′)-bis(μ2-4- thiolatopyridinium-κ2S:S) cadmium(II)] hydrate, Cd(C7H4O6S)(C5H5NS)2⋅2.5 H2O. Z. Kristallogr. NCS 226 (2011) 331–332.10.1524/ncrs.2011.0148Search in Google Scholar

20. Du, Z.-X.; Li, J.-X.: The synthesis, structure and magnetic properties of a mononuclear cobalt compound with dipyrimidine sulfane ligand derived from 2-thiobarbituric acid. Inorg. Chim. Acta 436 (2015) 159–162.10.1016/j.ica.2015.07.036Search in Google Scholar

21. Chang, X.-H.; Zhai, Z.-M.; Lu, X.-M.: Crystal structure of tetraaqua-bis (μ2-5-aminoisophthalato-κ3N:O,O′)-bis(4,4′- dipyridylsulfide-κ1N) dizinc(II), C36H34N6O12S2Ni2. Z. Kristallogr. NCS 235 (2020) 73–75.10.1515/ncrs-2019-0492Search in Google Scholar

22. Shao, Z.-C.; Meng, X.-R.; Hou, H.-W.: Two new Cd-II and Zn-II coordination polymers incorporating 1-aminobenzene-3,4,5-tricarboxylic acid: synthesis, crystal structure and characterization. Acta Crystallogr. C75 (2019) 1065–1072.10.1107/S2053229619009227Search in Google Scholar

23. Han, M.-L.; Ling, X.-L.: Crystal structure of diaqua-bis (5-nitrobenzene-3-carboxy-1,2-dicarboxylato)- bis(1-(3-(1H-benzimidazol-1-yl)propyl)-benzimidazole)manganese(II), [Mn(H2O)2(O2NC9H3O6)2(C17H17N4)2], C52H44MnN10O18. Z. Kristallogr. NCS 227 (2012) 574–576.10.1524/ncrs.2012.0255Search in Google Scholar

24. Li, G.-L.; Liu, G.-Z.; Ma, L.-F.; Xin, L.-Y.; Li, X.-L.; Wang, L.-Y.: Crystallographic determination of solid-state structural transformations in a dynamic metal-organic framework. Chem. Commun. 50 (2014) 2615–2617.10.1039/C3CC49106DSearch in Google Scholar PubMed

25. Chai, J.; Liu, Y.; Liu, B.; Yang, B.: Effect of substituent groups R = -CH3, -Br and -CF3) on the structure, stability and redox property of [Cr(R-pic)2(H2O)2]NO3⋅H2O complexes. J. Mol. Struct. 1150 (2017) 307–315.10.1016/j.molstruc.2017.08.099Search in Google Scholar

26. Li, J.-X.; Du, Z.-X.; Wang, J.-G.; Wang, T.; Lv, J.-N.: Zinc and manganese coordination polymers constructed by a new coordination mode of 4,5-dicyanoimidazolate ligand: syntheses, crystal structures, fluorescent and magnetic properties. Inorg. Chem. Commun. 15 (2012) 243–247.10.1016/j.inoche.2011.10.036Search in Google Scholar

27. Feng, X.; Sun, Y. L.; Li, R.-F.; Zhang, T.; Guo, N.; Wang, L. Y.: Two novel europium coordination polymers based on fluorine substituted and similar carboxylate ligands: syntheses, structures and luminescence. Inorg. Chem. Commun. 73 (2016) 190–195.10.1016/j.inoche.2016.10.003Search in Google Scholar

28. Zhang, J.; Liu, Y.-Y.; Ying, K.: Crystal structure of 2,2′-bipyridino-tetrafluorophthalato-copper(II) [Cu(C8HF4O4)(C10H8N2)2](C8H2F4O4)(C8HF4O4), C44H20CuF12N4O12. Z. Kristallogr. NCS 227 (2012) 410–412.10.1524/ncrs.2012.0172Search in Google Scholar

29. Zhang, J.; Liu, Y.-Y.; Ying, K.: Crystal structure of (1,10-phenanthroline)(tetrafluorophtahlato)copper(II), [Cu(C8F4O4)(C12H8N2)2](C8H2F4O4), C40H18CuF8N4O8. Z. Kristallogr. NCS 227 (2012) 568–570.10.1524/ncrs.2012.0249Search in Google Scholar

30. Li, J.-X.; Du, Z.-X.; Feng, X.: A new binuclear NiII complex with tetrafluorophthalate and 2,2′-bipyridine ligands: synthesis, crystal structure and magnetic properties. Z. Naturforsch. 74b (2019) 833–838.10.1515/znb-2019-0128Search in Google Scholar

31. Zhang, J.; Li, J.-X.: Synthesis, structure and magnetic properties of a binuclear copper(II) complex constructed by a new coordination mode of the tetrachlorophthalate ligand. Z. Naturforsch. 71b (2016) 45–49.10.1515/znb-2015-0135Search in Google Scholar

32. Sharma, R.-P.; Saini, A.; Kumar, J.; Kumar, S.; Venugopalan, P.; Ferretti, V.: Coordination complexes of copper(II) with herbicide-trichlorophenoxyacetate: syntheses, characterization, single crystal X-ray structure and packing analyses of monomeric [Cu(γ-pic)3(2,4,5-trichlorophenoxyacetate)]⋅H2O, [trans-Cu(en)2(2,4,5-trichlorophenoxyacetate)2]⋅2 H2O and dimeric [Cu2(H2tea)2(2,4,5-trichlorophenoxyacetate)2]⋅2 (H2O). Inorg. Chim. Acta 457 (2017) 59–68.10.1016/j.ica.2016.12.008Search in Google Scholar

33. Xu, X.; Hu, F.; Ma, Y.; Gao, J.; Shuai, Q.: Facile microwave synthesis, structural diversity and herbicidal activity of six novel alkaline-earth metal complexes (AECs) based on skeletal isomerization chlorophenoxyacetic acids. New J. Chem. 42 (2018) 4155–4166.10.1039/C8NJ00107CSearch in Google Scholar

34. Li, J.-X.; Du, Z.-X.; Bai, R.-F.: Crystal structure of aqua-bis(5-bromo-6-methylpicolinato-κ2N,O) zinc(II) dihydrate, C14H16Br2N2O7Zn. Z. Kristallogr. NCS 235 (2020) 63–65.10.1515/ncrs-2019-0486Search in Google Scholar

35. Li, S.-H.; Wang, J.-G.: Crystal structure of (μ2-5-bromoisophthalate-κ 2O:O′)bis(2-methyl-4H-imidazole-κN)cobalt(II), C16H15BrCoN4O4. Z. Kristallogr. NCS 229 (2014) 421–422.10.1515/ncrs-2014-9057Search in Google Scholar

36. Chang, X.-H.: The crystal structure of poly[(m4-4-bromoisophthalato -κ4O:O′:O′′:O′′′)zinc(II)], C8H3BrO4Zn. Z. Kristallogr. NCS 235 (2020) 3–4.10.1515/ncrs-2019-0397Search in Google Scholar

37. Miroslaw, B.; Mahmoudi, G.; Ferenc, W.; Cristovao, B.; Osypiuk, D.; Sarzynski, J.; Gluchowska, H.; Franconetti, A.; Frontera, A.: Halogen interactions in dinuclear copper(II) 2,4-dibromophenoxyacetate – crystal structure and quantum chemical calculations. J. Mol. Struct. 1202 (2020) 127227.10.1016/j.molstruc.2019.127227Search in Google Scholar

38. Ridenour, J. A.; Carter, K. P.; Cahill, C. L.: RE-p-halobenzoic acid–terpyridine complexes, part III: structural and supramolecular trends in a series of p-iodobenzoic acid rare-earth hybrid materials. CrystEngComm 19 (2017) 1190–1203.10.1039/C6CE02356HSearch in Google Scholar

39. Carter, K. P.; Kalaj, M.; Cahill, C. L.: Harnessing uranyl oxo atoms via halogen bonding interactions in molecular uranyl materials featuring 2,5-diiodobenzoic acid and N-donor capping ligands. Inorg. Chem. Front. 4 (2017) 65–78.10.1039/C6QI00352DSearch in Google Scholar

40. Li, B.; Dong, M.-M.; Fan, H.-T.; Feng, C.-Q.; Zang, S.-Q.; Wang, L.-Y.: Halogen⋯halogen interactions in the assembly of high-dimensional supramolecular coordination polymers based on 3,5-diiodobenzoic acid. Cryst. Growth Des. 14 (2014) 6325–6336.10.1021/cg501073eSearch in Google Scholar

41. Li, J.-X.; Du, Z.-X.; Wang, J.; Feng, X.: Two mononuclear zinc(II) complexes constructed by two types of phenoxyacetic acid ligands: syntheses, crystal structures and fluorescence properties. Z. Naturforsch. 74b (2019) 839–845.10.1515/znb-2019-0147Search in Google Scholar

42. Du, Z.-X.; Li, J.-X.: Crystal structure of tetraaqua-bis(2-((3,5,6-trichloropyridin-2-yl)oxy)acetato-κO)-nickel(II)—diaqua-bis(2-((3,5,6-trichloropyridin-2-yl)oxy)acetato-nickel(II), C28H24Cl12N4Ni2O18. Z. Kristallogr. NCS 235 (2020) 881–883.10.1515/ncrs-2020-0075Search in Google Scholar

43. Li, J.-X.; Du, Z.-X.: A binuclear cadmium(II) cluster based on π⋯π stacking and halogen⋯halogen interactions: synthesis, crystal analysis and fluorescent properties. J. Cluster Sci. 31 (2020) 507–511.10.1007/s10876-019-01666-wSearch in Google Scholar

44. Du, Z.-X.; Li, J.-X.; Bai, R.-F.: The crystal structure of catena-poly(μ2-4,4′-bipyridine-κ2N:N′)-tetrakis(μ2-2- ((3,5,6-trichloropyridin-2-yl)oxy)acetato-κ2O:O′) dinickel(II)], C19H10Cl6N3NiO6. Z. Kristallogr. NCS 235 (2020) 55–56.10.1515/ncrs-2020-0254Search in Google Scholar

45. Du, Z.-X.; Li, J.-X.; Bai, R.-F.: Crystal structure of catena-poly[μ2-4,4′-bipyridine-κ2N:N′)-tetrakis(μ2-2- ((3,5,6-trichloropyridin-2-yl)oxy)acetato-κ2O:O′) dicobalt(II)], C19H10Cl6CoN3O6. Z. Kristallogr. NCS 235 (2020) 15–17.10.1515/ncrs-2019-0434Search in Google Scholar

46. Li, J.-X.; Du, Z.-X.; Pan, Q.-Y.; Zhang, L.-L.; Liu, D.-L.: The first 3,5,6-trichloropyridine-2-oxyacetate bridged manganese coordination polymer with features of π⋯π stacking and halogen⋯halogen interactions: synthesis, crystal analysis and magnetic properties. (2020) https://doi.org/10.1016/j.ica.2020.119677.10.1016/j.ica.2020.119677Search in Google Scholar

47. Biju, S.; Gopakumar, N.; Bunzli, J.-C. G.; Scopelliti, R.; Kim, H. K.; Reddy, M. L. P.: Brilliant photoluminescence and triboluminescence from ternary complexes of DyIII and TbIII with 3-phenyl-4-propanoyl-5-isoxazolonate and a bidentate phosphine oxide coligand. Inorg. Chem. 52 (2013) 8750–8758.10.1021/ic400913fSearch in Google Scholar PubMed

48. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G.: The halogen bond. Chem. Rev. 116 (2016) 2478–2601.10.1021/acs.chemrev.5b00484Search in Google Scholar PubMed PubMed Central
