Crystal structure of ethyl 2-amino-4-(3-methoxyphenyl)-5-oxo-4H,5H-pyrano[3,2-c]chromene-3-carboxylate, C22H19NO6

  • Lei Shi , Dehui Zhang and Liangyu Zhang EMAIL logo
Published/Copyright: July 13, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 5

Abstract

C22H19NO6, monoclinic, P21/n (no. 14), a = 9.195(4) Å, b = 17.253(5) Å, c = 12.127(5) Å, β = 95.100(16)°, V = 1916.4(12) Å3, Z = 4, Rgt(F) = 0.0405, wRref(F2) = 0.1084, T = 296(2) K.

CCDC no.: 1851952

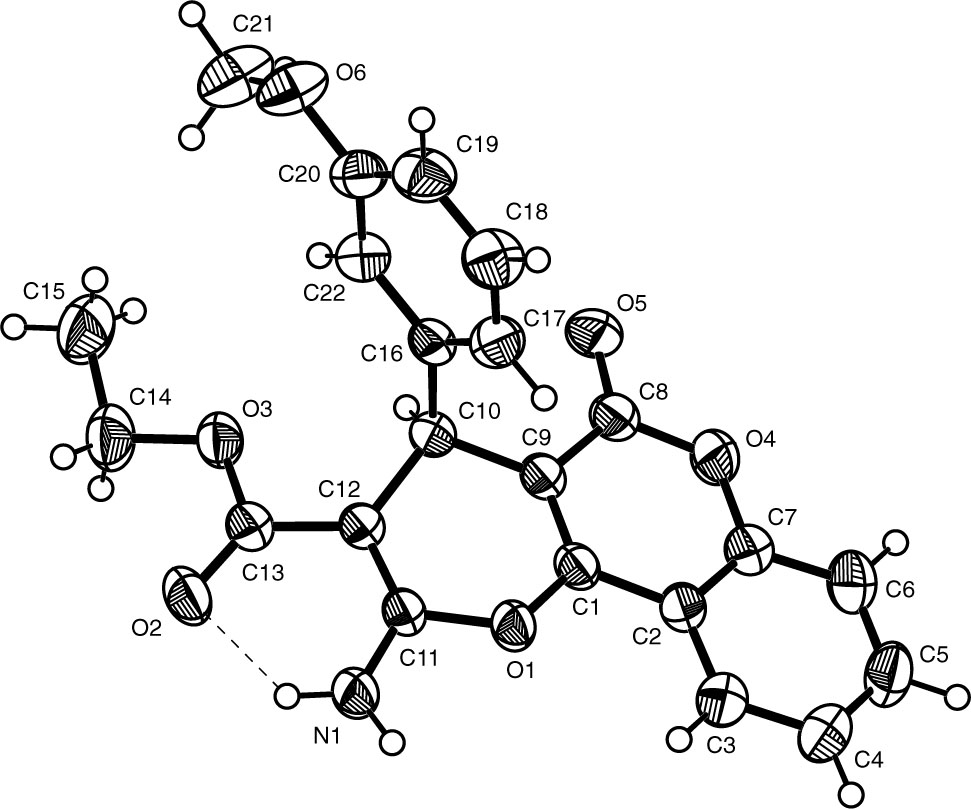

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.32 × 0.27 × 0.21 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.10 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:9483, 3365, 0.045
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2537
N(param)refined:263
Programs:Olex2 [9], SHELX [10], Bruker [11]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
N10.49560(16)0.37245(8)0.40727(11)0.0483(4)
H1A0.4835750.4180000.4337990.058*
H1B0.4546480.3603560.3430600.058*
O10.75159(14)0.40343(6)0.71414(9)0.0498(3)
O20.61551(16)0.46330(7)0.57665(10)0.0599(4)
O30.57946(12)0.25269(6)0.40508(9)0.0421(3)
O40.93243(14)0.13463(7)0.65864(9)0.0536(4)
O50.89809(14)0.09037(7)0.48794(9)0.0511(3)
O60.57235(15)0.23129(8)1.00681(10)0.0620(4)
C10.8455(3)0.46517(13)0.88042(17)0.0817(7)
H1C0.8674320.5142630.9152770.123*
H1D0.7758720.4379070.9203960.123*
H1E0.9333270.4350700.8804840.123*
C20.7839(3)0.47789(11)0.76527(16)0.0636(6)
H2A0.6954430.5085950.7645210.076*
H2B0.8534180.5057490.7244770.076*
C30.66726(19)0.40382(9)0.61672(13)0.0405(4)
C40.65122(18)0.32779(9)0.56748(12)0.0356(4)
C50.57731(18)0.32087(9)0.46539(13)0.0358(4)
C60.68582(17)0.19993(9)0.43730(13)0.0362(4)
C70.75556(17)0.19973(9)0.53939(12)0.0362(4)
C80.72126(18)0.25723(9)0.62582(12)0.0356(4)
H80.8134140.2736070.6658510.043*
C90.86593(19)0.14203(9)0.56841(13)0.0412(4)
C100.82475(19)0.09076(9)0.38317(13)0.0432(4)
C110.71586(18)0.14441(9)0.35368(13)0.0390(4)
C120.6459(2)0.14179(10)0.24681(14)0.0508(5)
H120.5721760.1770900.2256750.061*
C130.6859(2)0.08683(11)0.17235(15)0.0600(5)
H130.6394180.0850910.1010660.072*
C140.7948(2)0.03466(11)0.20428(16)0.0612(6)
H140.821873−0.0019720.1536750.073*
C150.8647(2)0.03555(11)0.30962(16)0.0566(5)
H150.937364−0.0003850.3305960.068*
C160.62571(18)0.22146(9)0.70925(12)0.0378(4)
C170.5164(2)0.16963(10)0.67677(14)0.0481(4)
H170.5013340.1547560.6029270.058*
C180.4288(2)0.13959(11)0.75320(16)0.0570(5)
H180.3551160.1046790.7304200.068*
C190.4498(2)0.16097(11)0.86284(15)0.0546(5)
H190.3905640.1405690.9139510.065*
C200.5589(2)0.21266(10)0.89649(14)0.0460(4)
C210.64754(19)0.24259(10)0.82025(13)0.0435(4)
H210.7219940.2769660.8433600.052*
C220.6966(3)0.27477(14)1.04759(16)0.0734(7)
H22A0.6930730.2839231.1253940.110*
H22B0.7835590.2463541.0356630.110*
H22C0.6971830.3234601.0093230.110*

Source of material

A mixture of 4-hydroxycoumarin (10 mmol), 3-methoxybenzaldehyde (10 mmol), ethyl cyanoacetate (10 mmol) and 4-(dimethylamino)pyridine (DMAP) (1 mmol) in ethanol (100 mL) was refluxed for 2–3 h and then cooled to room temperature. After filtering the precipitates, they were sequentially washed with ice-cooled water and ethanol and then dried under reduced pressure.

Experimental details

H atoms bonded to C and N atoms were positioned geometrically and refined using a riding model, with C—H = 0.96 Å and N—H = 0.86 Å with Uiso(H) = 1.2 times Ueq(C) and 1.2 times Ueq(N).

Comment

The progress achieved in the synthesis of heterocyclic compounds with biological potential is due to improvement of the methodological study of tested substances [1]. It is known that many coumarin derivatives have biological activity [2]. Ovarian cancer is a cancer that forms in or on an ovary. It results in abnormal cells that have the ability to invade or spread to other parts of the body. Symptoms become noticeable as the cancer progresses. These symptoms may include bloating, pelvic pain, abdominal swelling, and loss of appetite, among others. Common areas to which the cancer may spread include the lining of the abdomen, lymph nodes, lungs, and liver. Recent research indicated that the use of pyran-based heterocycles is an effective treatment to shrink ovarian cancer and control symptoms [3], [4], [5].

In the title crystal structure (Figure), the dihedral angle of the six-membered ring containing one O atom [C(4), C(5), O(3), C(6), C(7) and C(8)] and the adjacent six-membered carbon ring [C(16)—C(21)] is ∼83°. The bond distances of C—O, C—N and C—C are in their normal ranges and they can be compared with those in previously reported complexes. Comparable with the known similar structures in the reference [6], [7], [8], the most difference is that they own different functional groups. The one -OCH3 group or H atom in the title compound were replaced by other atoms or functional groups such as Cl atom and -CH3 group (Ref. 6), Cl atom (Ref. 7) and -NO2 group (Ref. 8).

References

Song, Y.; Li, N.; Gu, J.; Fu, S.; Peng, Z.; Zhao, C.; Zhang, Y.; Li, X.; Wang, Z.; Li, X.; Liu, G.: β-Hydroxybutyrate induces bovine hepatocyte apoptosis via an ROS-p38 signaling pathway. J. Dairy Sci. 99 (2016) 9184–9198.10.3168/jds.2016-11219Search in Google Scholar PubMed

Sun, X.; Yuan, X.; Chen, L.; Wang, T.; Wang, Z.; Sun, G.; Li, X.; Li, X.; Liu, G.: Histamine induces bovine rumen epithelial cell inflammatory response via NF-κB pathway. Cell. Physiol. Biochem. 42 (2017) 1109–1119.10.1159/000478765Search in Google Scholar PubMed

Li, J.; Meng, J.; Qu, D.; Zhang, Z.-D.; Li, F.; Yang, X.-H.; Li, J.-T.; Li, M.-K.: New biscoumarin and dihydropyran derivatives as antimicrobials. Res. Chem. Intermed. 41 (2015) 8257–8267.10.1007/s11164-014-1889-xSearch in Google Scholar

Wu, W.-X.; Zhang, Q.; Hu, X.: New 4-arylpolyhydroquinoline derivatives: inhibiting growth of oral tumor cells. Lat. Am. J. Pharm. 36 (2017) 816–819.Search in Google Scholar

Shi, D.-Q.; Zhang, S.; Wang, X.-S.; Zhuang, Q.-Y.: Ethyl 2-amino-4-(4-fluorophenyl)-7,7-dimethyl-5-oxo-5,6,7,8-tetrahydro-4H-benzo[b]pyran-3-carboxylate. Acta Crystallogr. E59 (2003) o1501–o1502.10.1107/S1600536803019834Search in Google Scholar

Srinivasan, L.; Anandalwar, S. M.; Prasad, J. S.; Manvar, D.; Parecha, A.; Shah, A.: Synthesis and crystal structure of 2-amino-4-(3′-chlorophenyl)-3-ethoxycarbonyl-4H-pyrano-[3,2-c]-chromene-5-one. Anal. Sci. 22 (2006) X97–X98.10.2116/analscix.22.x97Search in Google Scholar

Hu, X.; Song, L.: Ethyl 2-amino-4-(3-chlorophenyl)-5,10-dioxo-5,10-dihydro-4H-benzo[g]-chromene-3-carboxylate. Acta Crystallogr. E65 (2009) o1324–o1324.10.1107/S160053680901753XSearch in Google Scholar PubMed PubMed Central

Wang, X.-S.; Zeng, Z.-S.; Shi, D.-Q.; Chen, H.; Wei, X.-Y.; Zong, Z.-M.: Methyl 2-amino-4-(3-nitrophenyl)-5-oxo-5,6-dihydro-4H-pyrano[3,2-c]quinoline-3-carboxylate dimethylformamide solvate. Acta Crystallogr. E60 (2004) o1877–o1879.10.1107/S160053680402358XSearch in Google Scholar

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Bruker. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

Received: 2018-04-10
Accepted: 2018-06-27
Published Online: 2018-07-13
Published in Print: 2018-08-28
