Crystal structure of bis(N-(1-(pyrazin-2-yl)ethylidene)nicotinohydrazonato-κ3N,N′,O)cadmium(II) – methanol (1/1), C26H28N10O4Zn

  • Ning Zhang , Meijie Su , Gaoyuan Xu EMAIL logo und Huijun Li
Veröffentlicht/Copyright: 29. Juni 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 5

Abstract

C26H28N10O4Zn, monoclinic, C2/c (no. 15), a = 14.507(4) Å, b = 16.776(5) Å, c = 12.151(3) Å, β = 108.596(4)°, V = 2802.8(13) Å3, Z = 4, Rgt(F) = 0.0258, wRref(F2) = 0.0719, T = 293(2) K.

CCDC no.: 1847966

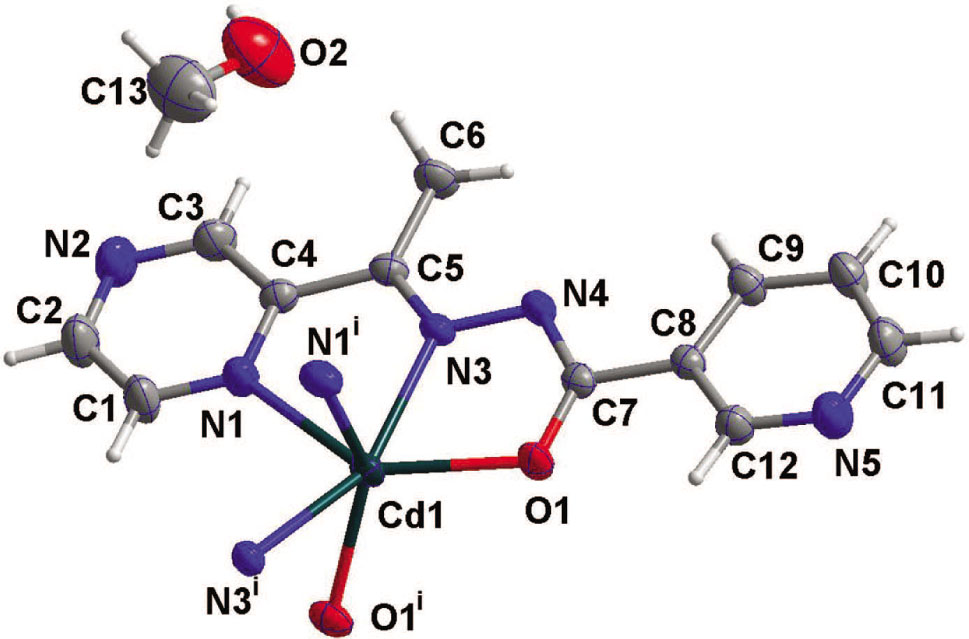

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.30 × 0.20 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.83 mm−1
Diffractometer, scan mode:Bruker SMART APEX CCD, ω
θmax, completeness:25.0°, 97%
N(hkl)measured, N(hkl)unique, Rint:7050, 2474, 0.017
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2307
N(param)refined:189
Programs:SHELX [2], Bruker [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cd10.50000.41214(2)0.25000.03854(11)
O10.38337(14)0.48816(11)0.13097(15)0.0493(5)
N10.61917(17)0.31227(14)0.23706(19)0.0483(5)
N20.7502(2)0.20581(18)0.1971(3)0.0715(8)
N30.48666(14)0.38403(12)0.06279(17)0.0353(4)
N40.41315(15)0.42105(12)−0.02201(18)0.0379(5)
N50.1476(2)0.60124(17)−0.0934(2)0.0632(7)
C10.6858(2)0.2756(2)0.3227(3)0.0645(9)
H10.68910.28640.39890.077*
C20.7499(3)0.2223(2)0.3024(3)0.0718(10)
H20.79460.19710.36510.086*
C30.6838(2)0.24277(19)0.1114(3)0.0576(7)
H30.68180.23210.03560.069*
C40.61728(18)0.29628(15)0.1287(2)0.0402(6)
C50.54229(17)0.33583(15)0.0320(2)0.0384(5)
C60.5351(2)0.3194(2)−0.0914(2)0.0549(7)
H6A0.48080.3479−0.14220.082*
H6B0.52620.2632−0.10640.082*
H6C0.59380.3364−0.10480.082*
C70.36656(17)0.47196(14)0.0246(2)0.0361(5)
C80.28466(17)0.51397(14)−0.0613(2)0.0369(5)
C90.2676(2)0.50925(18)−0.1795(2)0.0476(6)
H90.30700.4778−0.20910.057*
C100.1919(2)0.5515(2)−0.2525(3)0.0586(8)
H100.17960.5497−0.33240.070*
C110.1345(2)0.5965(2)−0.2065(3)0.0627(9)
H110.08370.6253−0.25700.075*
C120.2225(2)0.56106(18)−0.0233(3)0.0503(7)
H120.23390.56490.05630.060*
O20.4784(3)0.1325(3)−0.0114(4)0.1442(15)
H2A0.51230.1045−0.03840.216*
C130.4802(5)0.1030(4)0.0939(6)0.134(2)
H13A0.53330.12650.15380.201*
H13B0.48840.04620.09460.201*
H13C0.42010.11560.10730.201*

Source of material

All chemicals were commercially purchased except for (E)-N′-(1-(pyrazin-2-yl)ethylidene)nicotinohydrazide (HL) which was synthesized according to the literature [1]. A mixture of HL (0.05 mmol, 12.1 mg) and CdSO4⋅8/3 H2O (0.10 mmol, 25.6 mg) disolved in ethanol (3 mL) and H2O (3 mL) was placed in a glass bottle (10 mL) at room temperature. Yellow block crystals were obtained after 3 days.

Experimental details

The structure was solved by Direct Methods and refined with the SHELX crystallographic software package [2, 3] . The hydrogen atoms were placed at calculated positions and refined as riding atoms with isotropic displacement parameters.

Comment

Hydrazones are a class of compounds which are well known for their antimicrobial activity [4, 5] . But as hydrazones are prone to undergo degradation and bacteria can develop resistance to them, complexation of hydrazones with biocompatible metal ions is useful in this regard for long-term effectiveness [6]. In the course of our studies on the chemistry of lanthanide compounds, we have prepared and characterized a number of hydrazone ligands. Herein we report a new Cd(II) complex derived from (E)-N′-(1-(pyrazin-2-yl)ethylidene)nicotinohydrazide (HL).

The title complex is a mononuclear coordination compound in which the six-coordinated Cd2+ is surrounded by two acylhydrazones. Each ligand provides a ON2 donor set thus giving distorted octahedral geometry. The bond lengths of Zn—O and Zn—N (2.0670(19)–2.198(2) Å) in the title complex are comparable with those found in our previous work [7]. In the solid state, the lattice ethanol molecule is linked to the mononuclear coordinational compound by an intermolecular N—H⋯O hydrogen bond.

References

Das, L. K.; Diaz, C.; Ghosh. A.: Antiferromagnetic mixed-valence Cu two-dimensional coordination polymers constructed by double oximato bridged Cu dimers and CuISCN based one-dimensional anionic chains. Cryst. Growth Des. 15 (2017) 3939–3949.10.1021/acs.cgd.5b00560Suche in Google Scholar

Sheldrick, G. M.: Crystal refinement with SHELX. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

Bruker. SMART and SAINT. Bruker AXS Inc., Madison, WI, USA (2007).Suche in Google Scholar

Liu, Y.-F.; Liu, Y.-P.; Zhang, K.-K.; Ren, Q.-L.; Qin, J.: Mononuclear and three-dimensional metal complexes based on a multidentate hydrazone ligand. Acta Crystallogr. C71 (2015) 116–121.10.1107/S2053229615000698Suche in Google Scholar PubMed

Yan, L.-L.; Cai, H.-X.: Crystal structure of 3-benzyl-2,3-dihydro-2-thioxoquinazolin-4(1H)-one. Z. Kristallogr. NCS 232 (2017) 811–812.10.1515/ncrs-2017-0054Suche in Google Scholar

Bakale, R. P.; Pathan, A. H.; Naik, G. N.; Machakanur, S. S.; Mangannavar, C. V.; Muchchandi, I. S.; Gudasi, K. B.: Synthesis and characterization of transition metal complexes of hydrochloride salt of 3-chlorobenzaldehyde hydralazine hydrazone: a new class of possible anti-cariogenic agents. Appl. Organomet. Chem. 28 (2014) 720–724.10.1002/aoc.3190Suche in Google Scholar

Xu, Z.-Q.; Mao, X.-J.; Jia, L.; Xu, J.; Zhu, T.-F.; Cai, H.-X.; Bie, H.-Y.; Chen,R.-H.; Ma, T.-l.: Synthesis, characterization and anticancer activities of two lanthanide(III) complexes with a nicotinohydrazone ligand. J. Mol. Struct. 1102 (2015) 86–90.10.1016/j.molstruc.2015.07.047Suche in Google Scholar

Received: 2018-04-01
Accepted: 2018-06-07
Published Online: 2018-06-29
Published in Print: 2018-08-28

©2018 Ning Zhang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
