Crystal structure of (Z)-2-(4-chlorophenyl)-4-(furan-2-yl(phenylamino)methylene)-5-methyl-2,4-dihydro-3H-pyrazol-3-one, C21H16ClN3O2

  • Heng-Qiang Zhang , Qiong Wu , Tong-Yin Jin EMAIL logo , Ying-Ying Li und Hong-Li Chen
Veröffentlicht/Copyright: 30. Juni 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 5

Abstract

C21H16ClN3O2, monoclinic, C2/c (no. 15), a = 19.0523(19) Å, b = 9.3818(8) Å, c = 21.0602(17) Å, β = 107.303(10)°, V = 3594.0(6) Å3, Z = 8, Rgt(F) = 0.0644, wRref(F2) = 0.1655, T = 173(1) K.

CCDC no.: 1849978

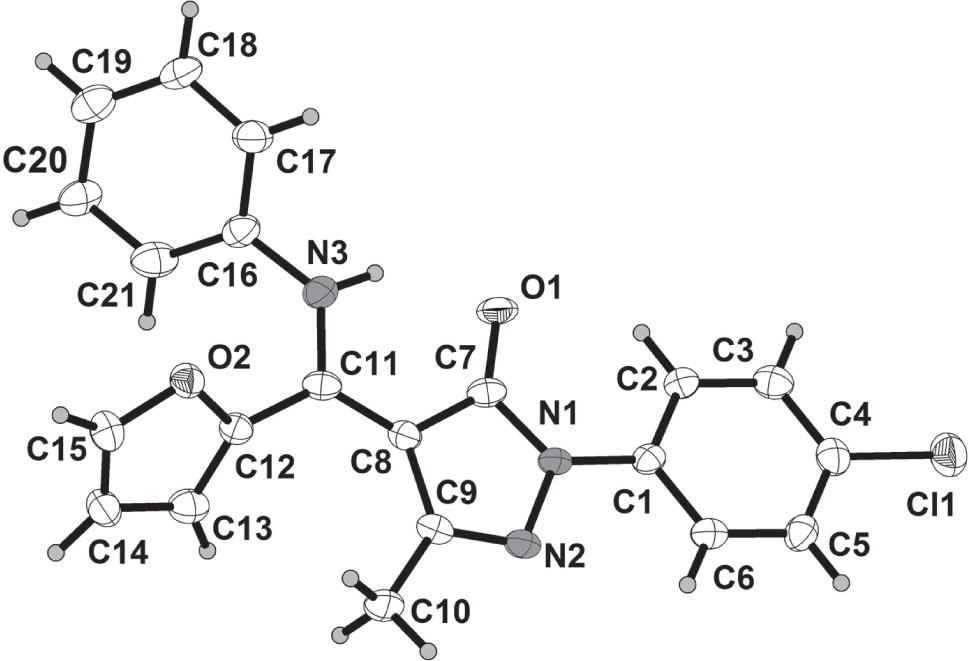

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.20 × 0.18 × 0.16 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.23 mm−1
Diffractometer, scan mode:Rigaku Oxford, φ and ω
θmax, completeness:26.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:6931, 3519, 0.071
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2016
N(param)refined:249
Programs:WinGX [4], SHELX [5], CrysAlisPRO [6]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.88256(17)1.1454(3)1.06969(14)0.0235(7)
C20.94649(17)1.1149(4)1.05304(15)0.0271(8)
H20.9446981.0532881.0180020.033*
C31.01238(18)1.1759(4)1.08835(16)0.0315(8)
H31.0549851.1549291.0772580.038*
C41.01520(18)1.2683(4)1.14024(16)0.0297(8)
C50.95207(18)1.2992(4)1.15736(16)0.0304(8)
H50.9539961.3611701.1923130.036*
C60.88633(18)1.2374(4)1.12217(15)0.0283(8)
H60.8439611.2576331.1337820.034*
C70.79680(18)1.0022(4)0.97735(15)0.0264(8)
C80.72020(16)0.9668(4)0.96525(15)0.0237(8)
C90.69876(17)1.0374(4)1.01752(16)0.0258(8)
C100.62545(17)1.0470(4)1.02971(17)0.0365(9)
H10A0.6261581.1230171.0604160.055*
H10B0.6149870.9586691.0480440.055*
H10C0.5881591.0655000.9884890.055*
C110.68157(17)0.8888(4)0.90977(15)0.0268(8)
C120.60639(17)0.8413(4)0.89913(15)0.0266(8)
C130.57339(19)0.7722(4)0.93781(16)0.0339(9)
H130.5942250.7488430.9823680.041*
C140.50046(19)0.7411(4)0.89818(17)0.0348(9)
H140.4645930.6923820.9113360.042*
C150.49401(18)0.7963(4)0.83786(17)0.0343(9)
H150.4515080.7927240.8019340.041*
C160.69194(17)0.7578(4)0.80940(16)0.0300(8)
C170.70977(18)0.7878(4)0.75142(16)0.0377(10)
H170.7340670.8723060.7484160.045*
C180.69241(18)0.6957(4)0.69871(16)0.0334(9)
H180.7057040.7158550.6606040.040*
C190.65424(18)0.5706(4)0.70327(17)0.0378(9)
H190.6409990.5083450.6673160.045*
C200.63578(19)0.5379(4)0.76074(16)0.0348(9)
H200.6099620.4550020.7632010.042*
C210.6563(2)0.6301(4)0.81384(17)0.0385(9)
H210.6462920.6069650.8531970.046*
Cl11.09890(5)1.34391(11)1.18441(4)0.0431(3)
H3A0.7601(19)0.888(4)0.8747(16)0.037(11)*
N10.81516(14)1.0824(3)1.03466(12)0.0249(7)
N20.75371(14)1.1057(3)1.05768(12)0.0275(7)
N30.71433(17)0.8573(3)0.86296(14)0.0340(8)
O10.83889(12)0.9723(3)0.94399(10)0.0341(6)
O20.55829(12)0.8584(2)0.83646(10)0.0295(6)

Source of material

The solution of phenylamine (2.0 mmol) and 1-(4-chlorophenyl)-3-methyl-4-(2-furoyl)-5-pyrazolone (2.0 mmol) in ethanol (15 mL) was refluxed for 7 h and the yellow precipitate was gradually formed. After cooled to the room temperature, the mixture was filtrated and the collected solid was washed with additional ethanol and dried in the air. Suitable crystals were obtained by evaporation of an ethanol/dichloromethane (1:1) mixed solution.

Experimental details

The H atom bonded to N3 was located in a difference map and refined freely. Other H atoms were placed in calculated positions, with C—H = 0.93 for phenyl and furyl, 0.96 for methyl H atoms, and refined as riding, with Uiso(H) = 1.2eq(C) for phenyl and furyl H, and 1.5eqU(C) for methyl H.

Comment

4-Acylpyrazolones are an interesting class of β-diketone ligands, containing a pyrazole-bearing chelating arm. Therefore, their metal complexes are widely used for the separation of transiton metal elements with similar properties [1]. In previous work, we have reported the Schiff bases derived from 4-acylpyrazolones and its complexes, which possess high antibacterial activation [2], [3]. In order to further investigate the coordination abilities and the behaviour of pyrazolone based ligands, we synthesized the title compound derived from 1-(4-chlorophenyl)-3-methyl-4-(2-furoyl)-5-pyrazolone (CMFP), and its structure is reported here.

In the title crystal structure, atoms O1, C7, C8 and C11 of the CMFP moiety and atom N3 of p-anisidine group are coplanar, the largest deviation being 0.001(2) Å for atom C11. The dihedral angle between this mean plane and pyrazole ring (N1/N2/C7/C9/C10) of CMFP is 3.45(3)°. The C1-C6 and C17-C21 phenyl rings are inclined at dihedral angles of 6.98(6)° and 48.87(6)°, respectively, with the pyrazole ring, indicating a high degree of conjugation and electron delocalization. The bond length of d(C8—C11) = 1.390(4) Å between the usual C—C and C=C bonds indicates the delocalization of the electrons because of the addition of a proton to N3 is more favorable than to O1. The atom O1 of CMFP and the N3 atom of the phenylamine group are on the same side of C8—C11 bond, which are available for complexation with metals. A strong intramolecular hydrogen bond N3—H1⋯O1 is also indicative of the enamine-keto form. There also exist two weak C—H⋯O (C3—H3⋯O1 and C2—H2⋯O1) hydrogen bonds, which contribute to the crystal packing consolidation.

Acknowledgements

The authors thank the projects of the program for the Outstanding Young aged Innovative Talents of Higher Learning Institutions of Hebei Province (No. BJ201404), Chengde Municipal Finance Bureau Foundation (No. CZ2013010), and Chengde Science and Technology Bureau Foundation (No. 201701A147) for financial support.

References

Nishihama, S.; Hirai, T.; Komasawa, I.: Review of advanced liquid-liquid extraction s for the separation of metal ions by a combination of conversion of the metal species with chemical reaction. Ind. Eng. Chem. Res. 40 (2001) 3085–3091.10.1021/ie010022+Suche in Google Scholar

Li, J.-Z.; Li, Y. G.; Yu, W.-J.: Synthesis, characterization and bioactivity of complexes of rare earth with bis-Schiff base from furoylpyrazolone. J. Rare Earth 18 (2000) 233–236.Suche in Google Scholar

Zhang, H.-Q.; Li, J.-Z.; Zhang, Y.; Zhang, D.: Synthesis, crystal structure and thermal stability of a one-dimensional chain acylpyrazolone complex Zn(C26H15N3O2Cl)2. Chin. J. Inorg. Chem. 24 (2008) 990–993.10.1021/ic701798vSuche in Google Scholar PubMed

Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Suche in Google Scholar

Sheldrick, G. M.: SHELXL. Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar

Rigaku OD. CrysAlisPRO. Rigaku Oxford Diffraction Ltd, Yarnton, Oxfordshire, England (2015).Suche in Google Scholar

Received: 2018-04-06
Accepted: 2018-06-18
Published Online: 2018-06-30
Published in Print: 2018-08-28

©2018 Heng-Qiang Zhang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
