Crystal structure of 1,4-bis(2-azidoethyl)piperazine-1,4-diium dichloride, C8H18N8Cl2

  • Fu Lei Gao EMAIL logo , Ying Lei Wang , Bing Chen , Wei Xiao Liu and Ya Jing Liu
Published/Copyright: June 18, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 5

Abstract

C8H18N8Cl2, monoclinic, P21/n (no. 14), a = 6.5246(3) Å, b = 7.7090(4) Å, c = 13.9243(6) Å, β = 101.240(3)°, V = 686.93(6) Å3, Z = 2, Rgt(F) = 0.0320, wRref(F2) = 0.0878, T = 302(2) K.

CCDC no.: 1822003

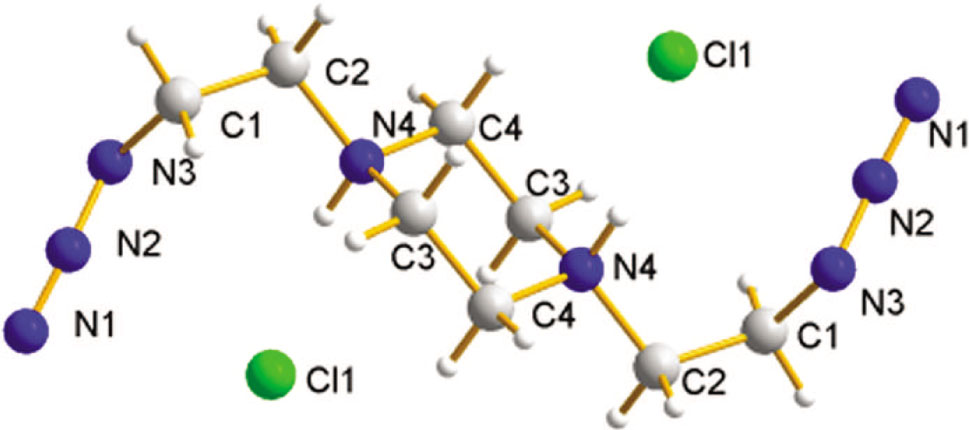

The crystal structure is shown in the figure. The non-hydrogen atoms of the asymmetric unit are labelled. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

1-Azido-5-chloro-3-azo-pentane (50 mmol) was dissolved in distilled water (50 mL) and heated to the temperature of 40 °C. Perchloric acid (15 mmol) was added to the aqueous solution dropwise slowly in 20 min, then the mixture was stirred for 5 h at 40 °C. After the removal of the solvent, the residue was poured into 10 mL cold water, the white solid was filter and washed with cold water. Crystals were obtained by slow evaporation from the aqueous solution at room temperature.

Table 1:

Crystal collection and handling.

Crystal:Block, colourless
Size:0.130 × 0.140 × 0.150 mm
Wavelength:Mo Kα radiation (λ =0.71073 Å)
μ:0.471 mm−1
Diffractometer, scan mode:Bruker APEX-II CCD, Φ and ω-scans
2θmax, completeness:28.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:7168, 1725, 0.0288
Criterion for Iobs, N(hkl)gt:Iobs > 2σ(Iobs), 1358
N(param)refined:87
Programs:Bruker programs [1], ShelX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.9038(2)0.20754(19)0.67112(11)0.0326(3)
H1A0.80310.22650.71290.039
H1B0.95860.09070.68230.039
C20.7997(2)0.22910(18)0.56512(11)0.0310(3)
H2A0.90520.22320.52490.037
H2B0.70320.13380.54640.037
C30.4870(2)0.40154(18)0.58663(10)0.0276(3)
H3A0.52270.38670.65710.033
H3B0.39690.30620.55970.033
C40.3724(2)0.57071(18)0.56301(9)0.0276(3)
H4A0.24550.56920.58950.033
H4B0.45920.66510.59400.033
Cl10.88140(5)0.74563(4)0.62576(2)0.03553(14)
N11.1073(3)0.4964(2)0.84005(12)0.0563(4)
N21.0842(2)0.41570(16)0.77156(10)0.0371(3)
N31.0760(2)0.33517(18)0.69452(10)0.0398(3)
N40.68245(17)0.39803(14)0.54507(8)0.0241(3)
H40.761(2)0.487(2)0.5706(11)0.031(4)

Experimental details

In the crystal structure, all hydrogen atoms were positioned geometrically and refined using a riding model.

Comment

Amine azides are low molecular weight organic amine compounds containing at least one tertiary nitrogen and one functional group that can be used as the fuel composition in hypergolic fuel propulsion systems or gelled propellants [4]. Such compounds are preferred to replace hydrazines due to the advantages of synthesized and evaluated as potentional hypergolic fuel compounds, such as dimethylaminoethylazide (DMAZ), pyrollidiylethylazide (PYAZ) and bis(ethylazide)methylamine (BAZ) [5], [6], [7], [8]. DMAZ appears to be one of the better candidates for hydrazine compounds. But DMAZ systems can not meet higher performance standards set by monomethylhydrazine systems. In order to obtain a higher energy density fuel, an amine azide containing piperazine ring was synthesized [9]. As shown in the figure, the title structure contains one piperazine and two 2-azidoethanamine groups and has a higher energy density. Bonds lengths and angles of all moieties are in their normal ranges and excellently fit with those of related compounds [10].

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21473130

Funding statement: We acknowledge the funding support received from the National Natural Science Foundation of China (No. 21473130).

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2014).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELX. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

McQuaid, M. J.; McNesby, K. L.; Rice, B. M.; Chabalowski, C. F.: Density functional theory characterization of the structure and gas-phase, mid-infrared absorption spectrum of 2-azido-N,N-dimethylethanamine (DMAZ). Theochem 587 (2002) 199–218.10.1016/S0166-1280(02)00115-XSearch in Google Scholar

Kokan, T. S.; Olds, J. R.; Seitzman, J. M.; Ludovice, P. J.: Characterizing high energy density propellants for space propulsion applications. Acta Astronaut. 65 (2009) 967–986.10.1016/j.actaastro.2009.01.064Search in Google Scholar

Ghanbari, S.; Vaferi, B.: Experimental and theoretical investigation of water removal from DMAZ liquid fuel by an adsorption process. Acta Astronautica. 112 (2015) 19–28.10.1016/j.actaastro.2015.03.011Search in Google Scholar

Reddy, G.; Song, J.; Mecchi, M. S.; Johnson, M. S.: Genotoxicity assessment of two hypergolic energetic propellant compounds. Mutat. Res-Gen. Tox. En. 700 (2010) 26–31.10.1016/j.mrgentox.2010.04.019Search in Google Scholar PubMed

Greene, B.; McClure, M. B.; Johnson, H. T.: Destruction or decomposition of hypergolic chemicals in a liquid propellant testing laboratory. Chem. Health Saf. 11 (2004) 6–13.10.1016/j.chs.2003.09.017Search in Google Scholar

Pundlik, S. M.; Purandare, G. N.; Mukundan, T.: Influence of 1,4-dinitriopiperazine(DNP) on the pressure index of RDX containing extruded based propellants. J. Energ. Mater. 18 (2000) 61–82.10.1080/07370650008216113Search in Google Scholar

Chen, H.; Jia, H.-X.; Xu, Q.-T.: Crystal structure of 1-(4-((benzo[d][1,3]dioxol-5-yloxy)methyl)phenethyl)-4-(3-chlorophenyl)piperazin-1-ium chloride, C26H28Cl2N2O3. Z. Kristallogr. NCS 233 (2018) 107–109.10.1515/ncrs-2017-0196Search in Google Scholar
