Crystal structure of catena-poly[(μ3-5-carboxy-2-(pyridin-4-yl)benzoato-κ5O,O′:O′′,O′′′:O′′′)(1,10-phenanthroline-κ2N,N′)cadmium(II)], C100H60N12O16Cd4

  • Wei Song EMAIL logo , Xue-Li Xu , Yan-Ju Yang und Shi-Hui Li
Veröffentlicht/Copyright: 20. Juni 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 5

Abstract

C100H60N12O16Cd4, monoclinic, I2/a (no. 15), a = 21.2654(5) Å, b = 11.1493(3) Å, c = 17.3039(4) Å, β = 97.774(2)°, V = 4064.96(18) Å3, Z = 2, Rgt(F) = 0.0213, wRref(F2) = 0.0559, T = 289.23(10) K.

CCDC no.: 1847595

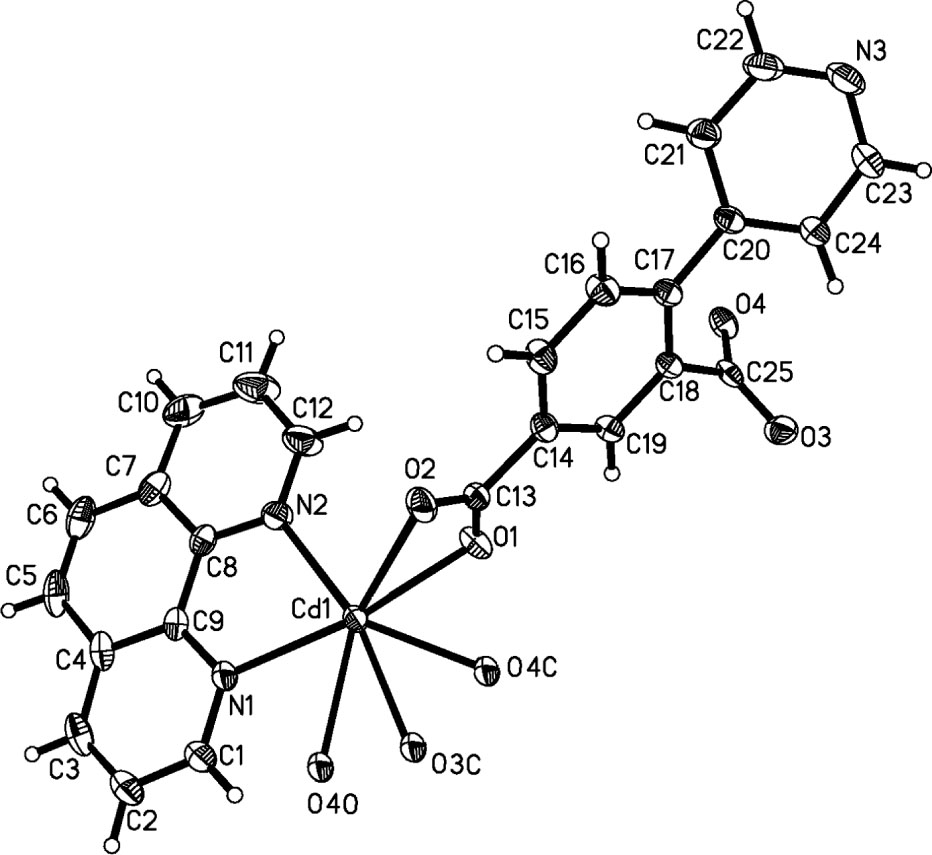

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.41 × 0.35 × 0.28 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.12 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
θmax, completeness:25.5°, >98%
N(hkl)measured, N(hkl)unique, Rint:36599, 3728, 0.037
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3465
N(param)refined:298
Programs:CrysAlisPRO [1], SHELX [2, 3] , OLEX2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cd10.727175(7)0.589761(13)0.724990(8)0.03225(7)
N10.79070(9)0.50560(16)0.83331(10)0.0382(4)
N20.77610(9)0.41304(16)0.68647(12)0.0426(5)
N30.49186(11)0.6093(2)0.09894(13)0.0628(6)
O10.71096(7)0.65130(15)0.59764(8)0.0442(4)
O20.63014(8)0.54919(15)0.63058(9)0.0475(4)
O30.65605(8)0.88459(15)0.32771(9)0.0474(4)
O40.68704(6)0.72789(14)0.26565(8)0.0382(3)
C10.79947(13)0.5536(2)0.90385(14)0.0517(6)
H10.77680.62230.91310.062*
C20.84132(13)0.5055(3)0.96477(14)0.0592(7)
H20.84690.54221.01350.071*
C30.87385(13)0.4047(3)0.95221(16)0.0587(7)
H30.90210.37190.99230.070*
C40.86497(11)0.3501(2)0.87901(14)0.0459(6)
C50.89659(12)0.2418(3)0.86081(18)0.0613(8)
H50.92370.20380.89990.074*
C60.88811(12)0.1945(2)0.78955(19)0.0585(7)
H60.90910.12400.78000.070*
C70.84752(10)0.2498(2)0.72794(15)0.0458(6)
C80.81482(9)0.35559(19)0.74290(13)0.0356(5)
C90.82286(10)0.40539(18)0.82013(13)0.0358(5)
C100.83889(13)0.2060(3)0.65117(18)0.0624(8)
H100.85900.13590.63880.075*
C110.80116(15)0.2665(3)0.59546(19)0.0780(10)
H110.79570.23910.54420.094*
C120.77045(14)0.3698(3)0.61505(16)0.0641(8)
H120.74470.41050.57590.077*
C130.65711(11)0.60341(18)0.58132(12)0.0339(5)
C140.62641(10)0.61100(19)0.49808(12)0.0323(4)
C150.57484(10)0.5399(2)0.47004(12)0.0406(5)
H150.55720.48910.50390.049*
C160.54958(10)0.5439(2)0.39250(13)0.0409(5)
H160.51480.49590.37510.049*
C170.57483(9)0.61805(19)0.33925(12)0.0317(4)
C180.62578(9)0.69246(18)0.36834(11)0.0287(4)
C190.65084(9)0.68735(19)0.44641(11)0.0320(4)
H190.68500.73650.46470.038*
C200.54757(9)0.6164(2)0.25572(12)0.0338(5)
C210.52478(10)0.5104(2)0.21994(13)0.0449(5)
H210.52800.43870.24770.054*
C220.49744(12)0.5121(3)0.14312(16)0.0571(7)
H220.48190.44030.12090.068*
C230.51508(12)0.7094(3)0.13273(14)0.0547(6)
H230.51300.77860.10250.066*
C240.54206(10)0.7183(2)0.20932(13)0.0407(5)
H240.55650.79200.22980.049*
C250.65791(9)0.7748(2)0.31735(11)0.0325(5)

Source of material

A mixture of Cd(NO3)2⋅2H2O (0.1 mmol, 0.0272 g), 4-(pyridin-4-yl)-isophthalic acid (0.1 mmol, 0.0243 g), 1,10-phenanthroline (0.1 mmol, 0.0180 g) and distilled water (12 mL) was heated in a 25 mL stainless steel reactor with a Teflon liner 423 K for 45 h, followed by slow cooling to room temperature until colourless crystals of the title compound formed.

Experimental details

All H atoms were positioned geometrically (N-H = 0.86 Å and C-H = 0.93 Å) and refined using a riding model, with Uiso(H) = 1.2Ueq(C, N).

Discussion

The design and construction of metal-organic frameworks (MOFs) with well regulated network structures has been provoked significant interest on these functional materials with properties, such as electrochemistry, photophysics, catalysis, adsorption and separation [5], [6], [7], [8]. The organic ligands, which have their differences in the size, the flexibility, the coordination ability, the number of the carboxylate groups, the positions of the carboxylate groups and so on, are important in the design of frameworks with [9], [10], [11]. In addition, N-containing auxiliary ligands [12], [13] are known to be connectors between metal atoms for the propagation of coordination networks.

In this paper we report the crystal structure of a coordination polymer. The asymmetric unit of the title structure contains one Cd(II) metal center, one 4-(4-pyridin-4-ylphenyl)pyridine and one 1,10-phenanthroline ligands to construct a new coordination polymer. The cadmium atom is seven-coordinated [CdN2O5] by five oxygen atoms from 5-carboxy-2-(pyridin-4-yl)benzoato ligands and by two nitrogen atoms from 1,10-phenanthroline. The Cd—O bond lengths range from 2.2891(14)−2.5013(16) Å. The Cd—N bond lengths range from 2.3524(17) Å, 2.3657(17) Å, respectively. The bond angles of O—Cd—O are in the range of 53.78(5)° to 136.20(5)°.

Funding source: Natural Science Foundation of Henan Province

Award Identifier / Grant number: 182102310909

Funding statement: This work was supported by the Institutions of higher learning key scientific research project of Henan Province (18B150015) and the Natural Science Foundation of Henan Province (182102310909).

References

Agilent Technologies: CrysAlis PRO Software system, version 1.171.38.41r, Agilent Technologies UK Ltd, Oxford, UK (2011).Suche in Google Scholar

Sheldrick, G. M.: SHELXT-integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

Sheldrick, G. M.: Crystal stucture refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

Li, S. H.; Zhao, Y.: Synthesis and crystal structure of a new three-dimensional Co(II) coordination polymer based on 3,3′,4,5′-biphenyl tetracarboxylic acid and 4,4′-bipyridine. Inorg. Nano-Met. Chem. 47 (2017) 256–259.10.1080/15533174.2016.1186044Suche in Google Scholar

Zhao, Y.; Li, S. H.: Synthesis and crystal structure of a new three-dimensional complex constructed from thiophene-2,5-dicarboxylic acid. Synth. React. Inorg. Met. Org. Chem. 45 (2015) 921–925.10.1080/15533174.2013.843565Suche in Google Scholar

Yoneda, K.; Adachi, K.; Nishio, K.; Yamasaki, M.; Fuyuhiro, A.; Katada, M.; Kaizaki, S.; Kawata, S.: Cover picture: organocatalytic highly enantioselective -arylation of -ketoesters/asymmetric organocatalytic -arylation of aldehydes. Angew. Chem. Int. Ed. 45 (2006) 5459–5461.10.1002/anie.200602067Suche in Google Scholar PubMed

Li, S. H.; Li, X. L.: A cadmium complex based on 5- methylisophthalic acid and 1,6-bis(imidazol-1-yl)hexane: Synthesis, crystal structure, and photoluminescence properties. Synth. React. Inorg. Met. Org. Chem. 43 (2013) 710–713.10.1080/15533174.2012.753630Suche in Google Scholar

Li, K.; Olson, D. H.; Seidel, J.; Emge, T. J.; Gong, H.; Zeng, H.; Li, J.: Zeolitic imidazolate frameworks for kinetic separation of propane and propene. J. Am. Chem. Soc. 131 (2009) 10368–10369.10.1021/ja9039983Suche in Google Scholar PubMed

Li, S. H.; Zang, J.; Guo, J. B.: Synthesis and crystal structure of a new three-dimensional Ho(II) coordination polymer based on 5′-(4-Carboxyphenyl)-[1,1′:3′,1′′-terphenyl] -4,4′′-dicarboxylic acid. Inorg. Nano-Met. Chem. 12 (2017) 1746–1749.10.1080/24701556.2017.1357627Suche in Google Scholar

Li, S. H.; Han, M. L.; Liu, G. Z.; Ma, L. F.; Wang, L. Y.: Guestinduced single-crystal-to-single-crystal transformations of a new 4-connected 3D cadmium(II) metal-organic framework. RSC Adv. 5 (2015) 17588–17591.10.1039/C5RA00621JSuche in Google Scholar

Pachfule, P.; Panda, T.; Dey, C.; Banerjee, R.: Structural diversity in a series ofmetal-organic frameworks (MOFs) composed of divalent transition metals, 4,4′-bipyridine and a flexible carboxylic acid. CrystEngComm 12 (2010) 2381–2389.10.1039/c000723dSuche in Google Scholar

Li, S. H.; Wu, H. X.; Chai, N.: A cobalt(II) complex based on 5-methoxyisophthalic acid and 1,6-bis(1,2,4-triazol-1-yl)hexane: Synthesis, crystal structure and magnetic properties. Synth. React. Inorg. Met. Org. Chem. 43 (2013) 1487–1491.10.1080/15533174.2012.757750Suche in Google Scholar

Received: 2018-03-04
Accepted: 2018-06-06
Published Online: 2018-06-20
Published in Print: 2018-08-28

©2018 Wei Song et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
