Crystal structure of poly[μ8-3-carboxyphthalat-κ8-O:O1,O1,O1:O2:O3,O3:O4)silver(I)], C9H4Ag2O6

  • Xue-Guo Liu EMAIL logo , Wei-Hong Yan , Xiao-Jing Xing , Hui-Tao Fan EMAIL logo und Zhen-Zhen Shi
Veröffentlicht/Copyright: 20. Juli 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 5

Abstract

C9H4Ag2O6, monoclinic, P21/c (no. 14), a = 13.8224(6) Å, b = 9.5222(4) Å, c = 7.2104(3) Å, β = 101.991(4)°, V = 928.32(7) Å3, Z = 4, Rgt(F) = 0.0239, wRref(F2) = 0.0411, T = 293(2) K.

CCDC no.: 1589208

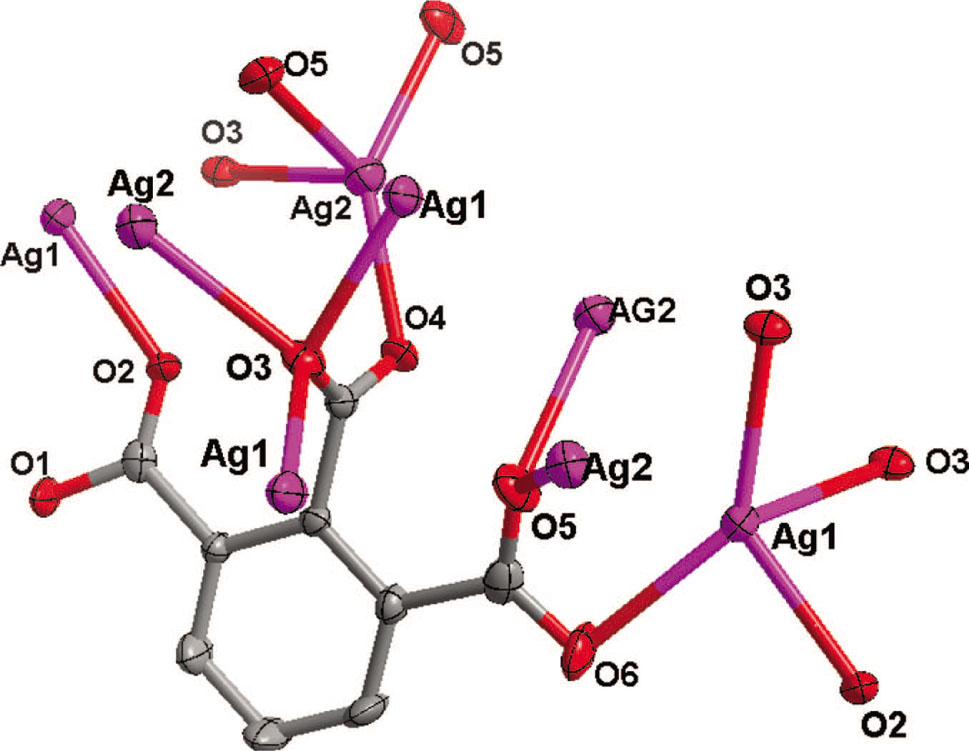

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.20 × 0.18 × 0.17 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:4.23 mm−1
Diffractometer, scan mode:Xcalibur, Eos, Gemini, ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:4331, 1626, 0.034
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1311
N(param)refined:155
Programs:CrysAlisPRO [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
AG10.40346(3)−0.47118(4)0.14994(5)0.02744(11)
AG20.50829(3)0.18578(4)−0.03486(5)0.03102(12)
O10.1804(2)0.3955(3)0.2451(5)0.0369(9)
H10.2046840.4723420.2313930.055*
O20.3174(2)0.3165(3)0.1614(4)0.0269(8)
O30.4317(2)0.0836(3)0.3533(4)0.0252(7)
O40.3885(2)0.0425(3)0.0425(4)0.0262(7)
O50.3817(2)−0.2122(3)0.2662(5)0.0360(9)
O60.2483(2)−0.3451(3)0.1882(5)0.0430(9)
C10.2005(3)0.1496(4)0.2228(6)0.0183(10)
C20.2636(3)0.0344(4)0.2210(6)0.0167(10)
C30.2248(3)−0.1013(4)0.2265(6)0.0215(10)
C40.1270(3)−0.1174(5)0.2384(7)0.0360(13)
H40.101438−0.2074800.2419730.043*
C50.0665(4)−0.0040(5)0.2452(8)0.0446(16)
H50.001017−0.0172390.2546010.054*
C60.1038(3)0.1292(5)0.2381(7)0.0332(13)
H60.0632490.2064410.2435360.040*
C70.2399(3)0.2950(4)0.2086(6)0.0212(10)
C80.3698(3)0.0560(4)0.2047(7)0.0205(10)
C90.2895(4)−0.2289(5)0.2285(6)0.0274(12)

Source of materials

An excess of aqueous NH3 solution was slowly added dropwise to a suspension of Ag2O (0.023 g, 0.1 mmol) in MeOH/H2O (6 mL, 5:1 v/v), and the mixture was stirred for 15 min. 1,2,3-H3btc (benzene-1,2,3-tricarboxylic acid, 0.021 g, 0.1 mmol) was then slowly added, and stirring was continued for another 30 min. The resultant colorless solution was allowed to stand in the dark at room temperature for a week to give colorless block crystals.

Experimental details

Absorption corrections were applied by using multi-scan program. Hydrogen atoms attached to C of the title complex located in difference electron density maps, and treated as riding atoms. The Uiso values of all other hydrogen atoms were set to 1.2Ueq(C).

Comment

The metallophilicity is widespread in all coinage metal (Cu(I), Ag(I), and Au(I)) complexes [3], [4], [5]. Among them, the argentophilic interaction, the aggregation between Ag centers, has been used to facilitate charming silver-organic architectures. Recently, a buckyball-like Ag180 nanocage, constructed by 360 Ag⋯Ag edges was reported [6]. The argentophilic interactions play important roles in fabricating not only silver clusters or cages but also new silver-organic frameworks [7], [8]. Aiming to generate new silver-organic frameworks based on diverse argentophilic interactions, we choose 1,2,3-benzenetricarboxylic acid (H3btc) as educt. This benzenepolycarboxylic acid ligands possess ortho carboxylic groups, which were facilitated to form a rich variety of coordination modes for completely or partially deprotonated and abundant Ag⋯Ag interactions.

Single-crystal X-ray diffraction analysis reveals that the title complex exhibits a two-dimensional coordination network. In each asymmetric unit, there are two Ag(I) ion and one partially deprotonated Hbtc2− anion. Taking weak Ag⋯O interactions into account (up to 2.7 Å), each Hbtc2− anion coordinates to eight Ag(I) ions with its three functional groups. The carboxylate group in the 2-position shows tetradentate bridging modes, while those in the 3-positions exhibit tridentate bridging modes. It is noteworthy that Ag⋯Ag interactions fall into the range of 3.159(5)–3.174(6) Å, which are not exceptional and agree with the previously reported values. The Ag(I) ions aggregate into a layer parallel to the bc plane with the phenyl groups protrude from both sides, which is comprised of tetranuclear and octanuclear rings. All these extensive Ag⋯O interactions reinforce the complicated 2D layer. Adjacent 2D layers are bridged through very weak hydrogen bonds (C—H⋯O, H5⋯O1 2.642(2) Å) to give rise to three-dimensional supramolecular network.

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21505080

Funding statement: We gratefully acknowledge the financial support by the Science and Technology Research Key Project Department of Education in Henan Province (16A150018), the National Natural Science Foundation of China (No. 21505080).

References

Agilent Technologies: CrysAlisPRO Software system, version 1.171.38.41r, Agilent Technologies UK Ltd, Oxford, UK (2011).Suche in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

Li, X. Y.; Su, H. F.; Zhou, R. Q.; Feng, S.; Tan, Y. Z.; Wang, X. P.; Jia, J.; Kurmoo, M.; Sun, D.; Zheng, L. S.: General assembly of twisted trigonal-prismatic nonanuclear silver(I) clusters. Chem. Eur. J. 22 (2016) 3019–3028.10.1002/chem.201504799Suche in Google Scholar PubMed

Sun, D.; Zhang, L. L.; Lu, H. F.; Feng, S. Y.; Sun, D. F: Bright-yellow to orange-red thermochromic luminescence of an AgI6CZnII2 heterometallic aggregate. Dalton Trans. 42 (2013) 3528–3532.10.1039/c2dt32375cSuche in Google Scholar PubMed

Li, B.; Huang, R. W.; Qin, J. H.; Zang, S. Q.; Gao, G. G.; Hou, H. W.; Mak, T. C. W.: Thermochromic luminescent nest-like silver thiolate cluster. Chem. Eur. J. 20 (2014) 12416–12420.10.1002/chem.201404049Suche in Google Scholar PubMed

Wang, Z.; Su, H. F.; Tan, Y. Z.; Schein, S.; Lin, S. C.; Liu, W.; Wang, S. A.; Wang, W. G.; Tung, C. H.; Sun, D.; Zheng, L. S.: Assembly of silver Trigons into a buckyball-like Ag180 nanocage. PNAS 114 (2017) 12132–12137.10.1073/pnas.1711972114Suche in Google Scholar PubMed PubMed Central

Xu, Q. Q.; Dong, X. Y.; Huang, R. W.; Li, B.; Zang, S. Q.; Mak, T. C. W.: A thermochromic silver nanocluster exhibiting dual emission character. Nanoscale 7 (2015) 1650–1654.10.1039/C4NR05122JSuche in Google Scholar

Zheng, S. L.; Zhang, J. P.; Wong, W. T.; Chen, X. M.: A novel, highly electrical conducting, single-component molecular material: [Ag2(ophen)2] (Hophen = 1H-[1,10]phenanthrolin-2-one). J. Am. Chem. Soc. 125 (2003) 6882–6883.10.1021/ja029097aSuche in Google Scholar PubMed
