Crystal structure of 2-(4-chloro-2,6-dinitrophenyl)-1-(4-chloro-3-nitrophenyl)diazene 1-oxide, C12H5Cl2N5O7

  • Cao Junyan , Wang Jianlong EMAIL logo , Chen Lizhen und Zhang Luyao
Veröffentlicht/Copyright: 7. Juli 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 5

Abstract

C12H5Cl2N5O7, triclinic, P1̄ (no. 2), a = 8.2425(8) Å, b = 8.2814(7) Å, c = 12.4713(12) Å, α = 93.370(4)°, β = 101.590(4)°, γ = 118.222(3)°, V = 723.03(12) Å3, Z = 2, Rgt(F) = 0.0516, wRref(F2) = 0.0858, T = 173(2) K.

CCDC no.: 1850275

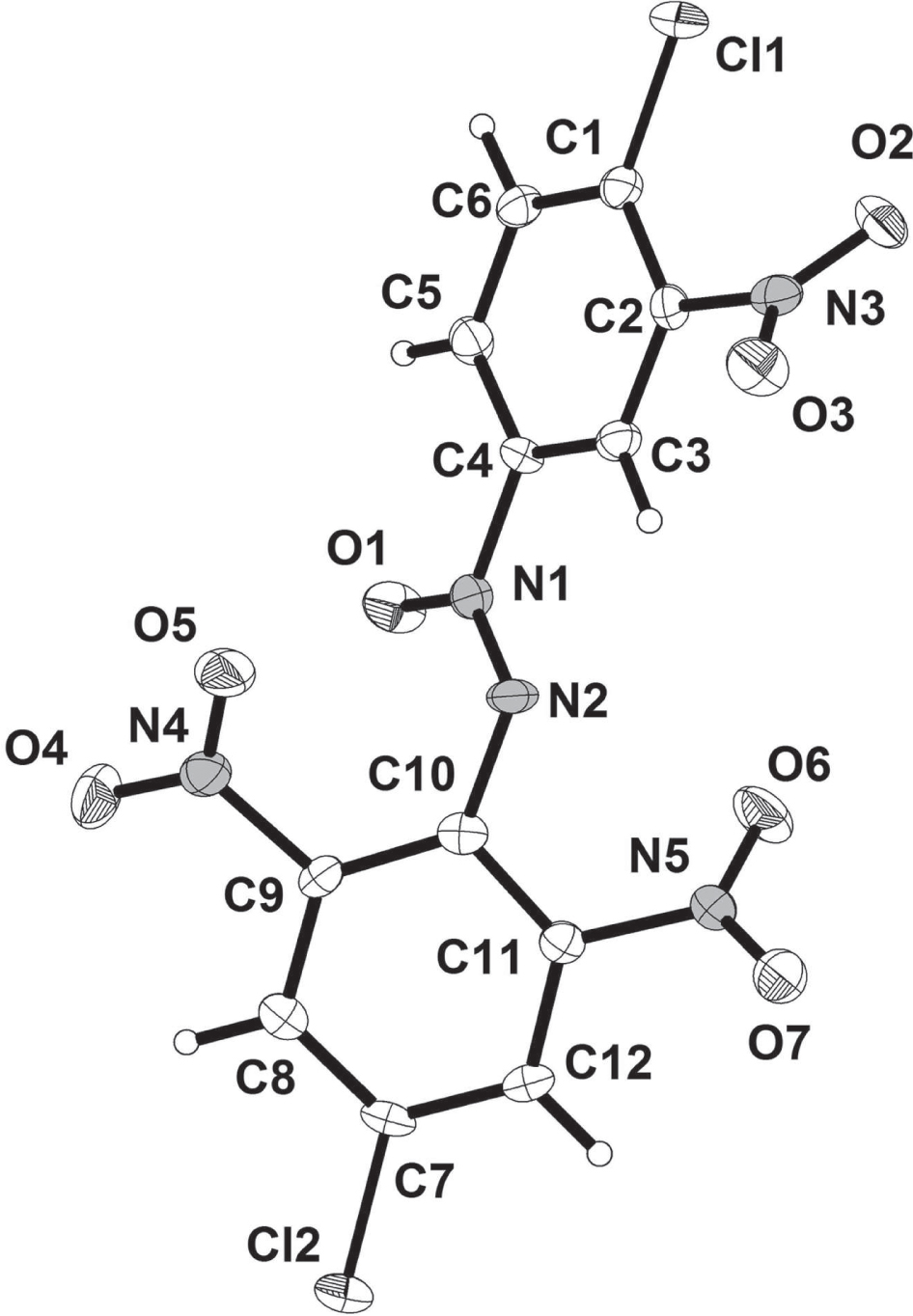

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless sheet
Size:0.19 × 0.17 × 0.05 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.50 mm−1
Diffractometer, scan mode:Photon 100, ω
θmax, completeness:25.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:7671, 2626, 0.089
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1683
N(param)refined:235
Programs:Bruker [6], SHELX [7], Olex2 [8]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.7600(5)0.7866(4)0.4462(3)0.0180(8)
C20.8634(5)0.7049(4)0.4969(3)0.0160(8)
C30.8398(5)0.6405(4)0.5953(3)0.0164(8)
H30.91390.58950.63060.020*
C40.7070(5)0.6520(4)0.6407(3)0.0158(8)
C50.6029(5)0.7315(4)0.5938(3)0.0184(8)
H50.51180.73810.62730.022*
C60.6325(5)0.8017(4)0.4974(3)0.0201(8)
H60.56460.86090.46600.024*
C70.7299(4)0.2928(4)1.0799(3)0.0165(8)
C80.7384(4)0.4634(4)1.0794(3)0.0167(8)
H80.73380.52701.14370.020*
C90.7536(4)0.5400(4)0.9837(3)0.0155(8)
C100.7560(4)0.4492(4)0.8861(3)0.0159(8)
C110.7494(4)0.2788(4)0.8933(3)0.0152(8)
C120.7385(4)0.2004(4)0.9877(3)0.0162(8)
H120.73700.08510.98920.019*
Cl10.79370(13)0.87469(11)0.32644(7)0.0256(3)
Cl20.70640(13)0.19242(12)1.19747(7)0.0248(2)
N10.6725(4)0.5764(3)0.7422(2)0.0168(7)
N20.7855(4)0.5200(4)0.7871(2)0.0186(7)
N31.0025(4)0.6857(4)0.4484(2)0.0212(7)
N40.7751(4)0.7269(4)0.9895(2)0.0219(7)
N50.7539(4)0.1743(4)0.7954(2)0.0202(7)
O10.5385(3)0.5729(3)0.77512(19)0.0250(6)
O20.9566(4)0.6263(3)0.34839(19)0.0299(6)
O31.1540(3)0.7212(3)0.51273(19)0.0287(6)
O40.6984(4)0.7694(3)1.0515(2)0.0314(7)
O50.8703(4)0.8288(3)0.93295(19)0.0327(7)
O60.6406(3)0.1458(3)0.70681(19)0.0301(7)
O70.8698(4)0.1203(3)0.8099(2)0.0307(7)

Source of material

The title compound was prepared by nitrifying 1,2-bis(4-chlorophenyl)-diazenze. The raw product was recrystallized from ether at room temperature to give colourless crystals.

Experimental details

All hydrogen atoms were positioned geometrically and treated as riding, with C—H bond lengths constrained to 0.95 Å. The Uiso values of the hydrogen atoms were set to 1.2 Ueq(C).

Comment

Polynitroazobenzene systems have been investigated extensively owing to their favorable thermally stable performance. [1], [2], [3]. Recently, these so called “high energy density materials” have attracted renewed attention in conjunction with their favorable detonation performance and thermally stable performance [4, 5] . In order to study the synthesis mechanism of these compounds, as a by product, 2-(4-chloro-2,6-dinitrophenyl)-1-(4-chloro-3-nitrophenyl)diazene 1-oxide was synthesized and separated.

As shown in the figure two substituated phenyl moieties exist in the molecular structure. The dihedral angle between these rings is 44.7° due a rotation about the the C—N bonds. Owing to steric effects, dihedral angle of the nitro groups and their parent rings are 44.6 (N3/O2,O3), 31.1° (N4/O4,O5) and 52.4° (N5/O6,O7), respectively.

Acknowledgements

We thank the Center of Testing and Analysis, Huaiyin Normal University for support.

References

Wheeler, O. H.; Gonzalez, D.: Oxidation of primary aromatic amines with manganese dioxide. Tetrahedron 20 (1964) 189–193.10.1016/S0040-4020(01)93207-7Suche in Google Scholar

O’Keefe, D. M.; Mansfield, T.: Hexanitrotetrachloroazobenzene and method of preparation. USP 4751289 (1988).Suche in Google Scholar

Agrawal, J. P.: Past, present & future of thermally stable explosives. Cent. Eur. J. Energ. Mater. 9 (2012) 273–290.Suche in Google Scholar

Sikder, M. N.; Sikder, A. K.; Agrawal, J. P.: N,N′-Bis(1,2,4-triazol-3-yl-)-4,4′-diamino-2,2′,3,3′,5,5′,6,6′-octanitroazobenzene (BTDAONAB): a new thermally stable insensitive high explosive. Indian J. Eng. Mater. Sci. 11 (2004) 516–520.Suche in Google Scholar

Mousavi, S.; Esmaeilpour, K.; Keshavarz, M. K.: A new thermally-stable insensitive high explosive: N,N′-bis(1,2,3,4-tetrazol-5-yl)-4,4′-diamino-2,2′,3,3′,5,5′,6,6′-octanitroazobenzene (BTeDAONAB). Cent. Eur. J. Energ. Mat. 10 (2013) 455–466.Suche in Google Scholar

Bruker. APEX3, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2016).Suche in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

Received: 2018-03-15
Accepted: 2018-06-26
Published Online: 2018-07-07
Published in Print: 2018-08-28
