The crystal structure of (4-nitrophenyl) (5-ferrocenyl-3-(trifluoromethyl)-1H-pyrazol-1-yl) methanone, C21H12F3FeN3O3

  • Ying Guo and Ban-Feng Ruan EMAIL logo
Published/Copyright: July 31, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 5

Abstract

C21H14F3FeN3O3, triclinic, P1̄ (no. 2), a = 7.961(3) Å, b = 11.136(4) Å, c = 11.588(4) Å, α = 76.357(10)°, β = 84.998(10)°, γ = 76.989(10)° V = 972.1(6) Å3, Z = 2, Rgt(F) = 0.0509, wRref(F2) = 0.1304, T = 273(2) K.

CCDC no.: 1856034

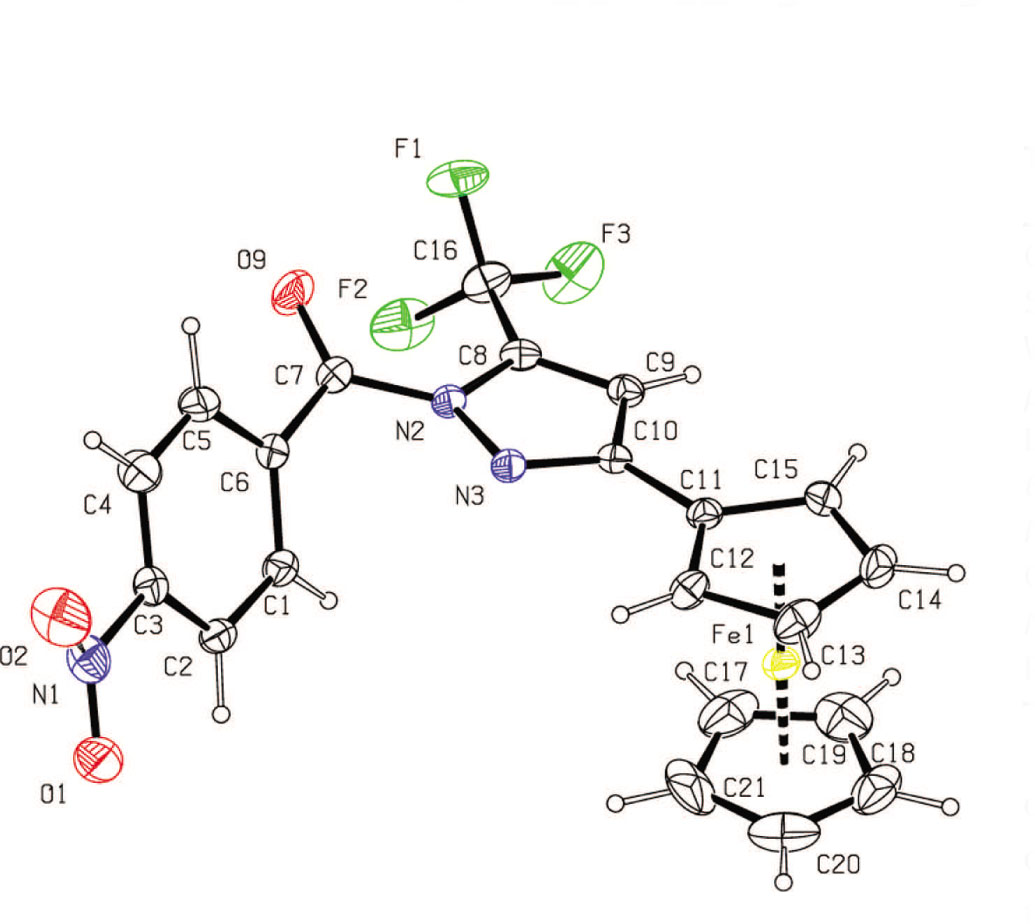

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Clear dark red block
Size:0.25 × 0.23 × 0.21 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.83 mm−1
Diffractometer, scan mode:SMART, φ and ω-scans
θmax, completeness:26°, >99%
N(hkl)measured, N(hkl)unique, Rint:9817, 3821, 0.039
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2643
N(param)refined:289
Programs:Bruker programs [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Fe10.75072(6)−0.22990(4)0.96441(4)0.04639(19)
F11.3456(3)0.1125(2)0.5665(2)0.0862(8)
F21.1666(4)0.0785(3)0.4588(2)0.1040(9)
F31.3307(4)−0.0758(3)0.5675(3)0.1087(10)
O10.1424(4)0.5165(3)0.6849(3)0.0876(10)
O2a0.264(2)0.6429(13)0.7359(11)0.108(4)
O2’b0.2614(19)0.6768(11)0.6659(9)0.092(3)
O91.0422(3)0.2998(3)0.5523(3)0.0827(9)
N10.2687(5)0.5589(3)0.6836(3)0.0686(9)
N20.9667(3)0.1290(2)0.6769(2)0.0399(6)
N30.8720(3)0.0912(2)0.7788(2)0.0411(6)
C10.6087(4)0.2869(3)0.6338(3)0.0483(8)
H10.6174510.2047330.6250710.058*
C20.4488(4)0.3621(3)0.6465(3)0.0477(8)
H20.3489080.3327500.6439110.057*
C30.4399(4)0.4808(3)0.6630(3)0.0477(8)
C40.5833(5)0.5294(4)0.6620(4)0.0661(11)
H40.5729440.6110670.6723860.079*
C50.7424(5)0.4560(3)0.6453(4)0.0634(10)
H50.8409150.4886630.6417440.076*
C60.7568(4)0.3324(3)0.6338(3)0.0448(8)
C70.9316(4)0.2570(3)0.6154(3)0.0507(9)
C81.1069(4)0.0343(3)0.6640(3)0.0425(8)
C91.1003(4)−0.0643(3)0.7564(3)0.0413(7)
H91.176687−0.1423650.7710580.050*
C100.9535(4)−0.0245(3)0.8261(3)0.0365(7)
C110.8928(4)−0.0946(3)0.9398(3)0.0415(7)
C120.7364(5)−0.0569(3)1.0010(3)0.0515(9)
H120.6526610.0157830.9758040.062*
C130.7288(6)−0.1493(4)1.1079(3)0.0656(11)
H130.639393−0.1474411.1651490.079*
C140.8781(6)−0.2431(4)1.1124(3)0.0658(11)
H140.904928−0.3150421.1730940.079*
C150.9823(5)−0.2109(3)1.0094(3)0.0544(9)
H151.089553−0.2572540.9905840.065*
C161.2368(5)0.0397(4)0.5640(4)0.0616(10)
C170.7348(9)−0.2717(6)0.8063(4)0.1003(16)
H170.794942−0.2408120.7372770.120*
C180.7882(7)−0.3812(5)0.8882(5)0.0932(15)
H180.891723−0.4390250.8840380.112*
C190.6655(8)−0.3918(5)0.9765(5)0.0942(15)
H190.671269−0.4586751.0426340.113*
C200.5345(7)−0.2909(7)0.9538(6)0.1121(18)
H200.435555−0.2745571.0014130.134*
C210.5745(9)−0.2155(6)0.8457(7)0.124(2)
H210.505339−0.1403210.8067010.149*

  1. Occupancies: a = 0.48, b = 0.52

Source of materials

A mixture of 5-ferrocenyl-3-(trifluoromethyl)-1H-pyrazole (0.32 g, 1 mmol, prepared by a literature method [4]), triethylamine (0.17 mL, 1.2 mmol), and 4-nitrobenzoyl chloride (0.22 g, 0.012 mol) in 5 mL of CH2Cl2 were refluxed overnight. After completion, the solvent was evaporated under reduced pressure. Water was added and the mixture was extracted with ethyl acetate twice. The combined organic layer was dried over Na2SO4, filtered and evaporated. The pure title compound was obtained by column chromatography on silica gel using petroleum ether/ethylacetate (2:1, v/v, Rf = 0.2) as eluent. Crystals of the title compound were obtained by slow evaporation of dichloromethane/methanol within 2 days.

Experimental details

Single crystal X-ray diffraction measurements for title compound were carried out on a Siemens Smart 1000 CCD diffractometer equipped with a graphite crystal monochromator situated in the incident beam for data collection at room temperature. The hydrogen atoms were added theoretically and riding on the concerned atoms.

Comment

Organometallic compounds, which are defined as metal complexes containing at least one direct metal-carbon bond, have been proven to be a promising metal-based chemotherapy alternative option to platinum-based anticancer drugs [5], [6]. Among them, the use of ferrocene-containing compounds for medicinal applications has long been considered as an attractive way to develop anticancer drugs [7], [8], due to its low toxicity, significant stability and lipophilicity, facile functionalization, and unique electrochemical behavior. In the past few years, we have reported several ferrocenes and found that some of them displayed impressive anticancer activities [9], [10]. Herein we report the synthesis and crystal structure of a ferrocene-based amide bearing a pyrazolyl moiety.

The title compound crystallizes in the triclinic space group P1̅, with two molecules in the unit cell. The average bond length of Fe1-C (Cp11-15) is 2.036 Å, which is comparable to that (2.02 Å) of the other Cp ring (Cp17-21). The longest bond length is Fe1⋯C13 (2.045 Å), and the shortest Fe—C (Cp) separation is 2.02 Å (Fe1⋯C21). The Cp-Fe-Cp angle (179.3°) deviates slightly from linearity. The pyrazole moiety is rotated out the plane of the adjacent Cp ring (C17—C18—C19—C20—C21) by approximately 8.9°.

Acknowledgements

This work was supported by the Key Scientific and Technological Project of Anhui Provincial Tobacoo Company (No. 20150551007).

References

Bruker: APEX3 , SAINT-Plus, XPREP. Bruker AXS Inc., Madison, WI, USA (2016).Search in Google Scholar

Sheldrick, G. M.: SHELXT − Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Huang, X.-F.; Tang, J.-F.; Ji, J.-L.; Wang, X.-L.; Ruan, B.-F.: Synthesis, characterization and antitumor activity of novel amide derivatives containing ferrocenyl pyrazol-moiety. J. Organomet. Chem. 706 (2012) 113–123.10.1016/j.jorganchem.2012.02.001Search in Google Scholar

Zhang, P.; Sadler, P. J.: Advances in the design of organometallic anticancer complexes. J. Organomet. Chem. 839 (2017) 5–14.10.1016/j.jorganchem.2017.03.038Search in Google Scholar

Nieto, D.; Bruña, S.; González-Vadillo, A. M.; Perles, J.; Carrillo-Hermosilla, F.; Antiñolo, A.; Padrón, J. M.; Plata, G. B.; Cuadrado, I.: Catalytically generated ferrocene-containing guanidines as efficient precursors for new redox-active heterometallic platinum(II) complexes with anticancer activity. Organometallics. 34 (2015) 5407–5417.10.1021/acs.organomet.5b00751Search in Google Scholar

Chopra, P.; de Kock, C.; Smith, P.; Chibale, K.; Singh, K.: Ferrocene-pyrimidine conjugates: synthesis, electrochemistry, physicochemical properties and antiplasmodial activities. Eur. J. Med. Chem. 100 (2015) 1–9.10.1016/j.ejmech.2015.05.043Search in Google Scholar PubMed

Braga, S. S.; Silver, A. M. S.: A new age for iron: antitumoral ferrocenes. 32 (2013) 5626–5639.10.1021/om400446ySearch in Google Scholar

Huang, X.-F.; Wang, L.-Z.; Tang, L.; Lu, Y.-X.; Wang, F.; Song, G.-Q.; Ruan, B.-F.: Synthesis, characterization and antitumor activity of novel ferrocene derivatives containing pyrazolyl-moiety. J. Organomet. Chem. 749 (2014) 157–162.10.1016/j.jorganchem.2013.08.043Search in Google Scholar

Ren, J.; Wang, S.-Q.; Ni, H.-J.; Yao, R.-S.; Liao, C.-Z.; Ruan, B.-F.: Synthesis, characterization and antitumor activity of novel ferrocene-based amides bearing pyrazolyl moiety. J. Inorg. Organomet. Polym. 25 (2015) 419–426.10.1007/s10904-014-0056-6Search in Google Scholar
