Crystal structure of 2-(4-bromophenyl)-2,3-dihydro-1H-perimidine, C17H13BrN2

  • Min Zhang , Zhong-Yan Li , Xian-You Yuan and Lin Yuan EMAIL logo
Published/Copyright: July 23, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 5

Abstract

C17H13BrN2, orthorhombic, Pbca (no. 61), a = 9.995(4) Å, b = 13.845(5) Å, c = 20.213(7) Å, V = 2797.2(18) Å3, Z = 8, Rgt(F) = 0.0304, wRref(F2) = 0.0784, T = 296(2) K.

CCDC no.: 1852427

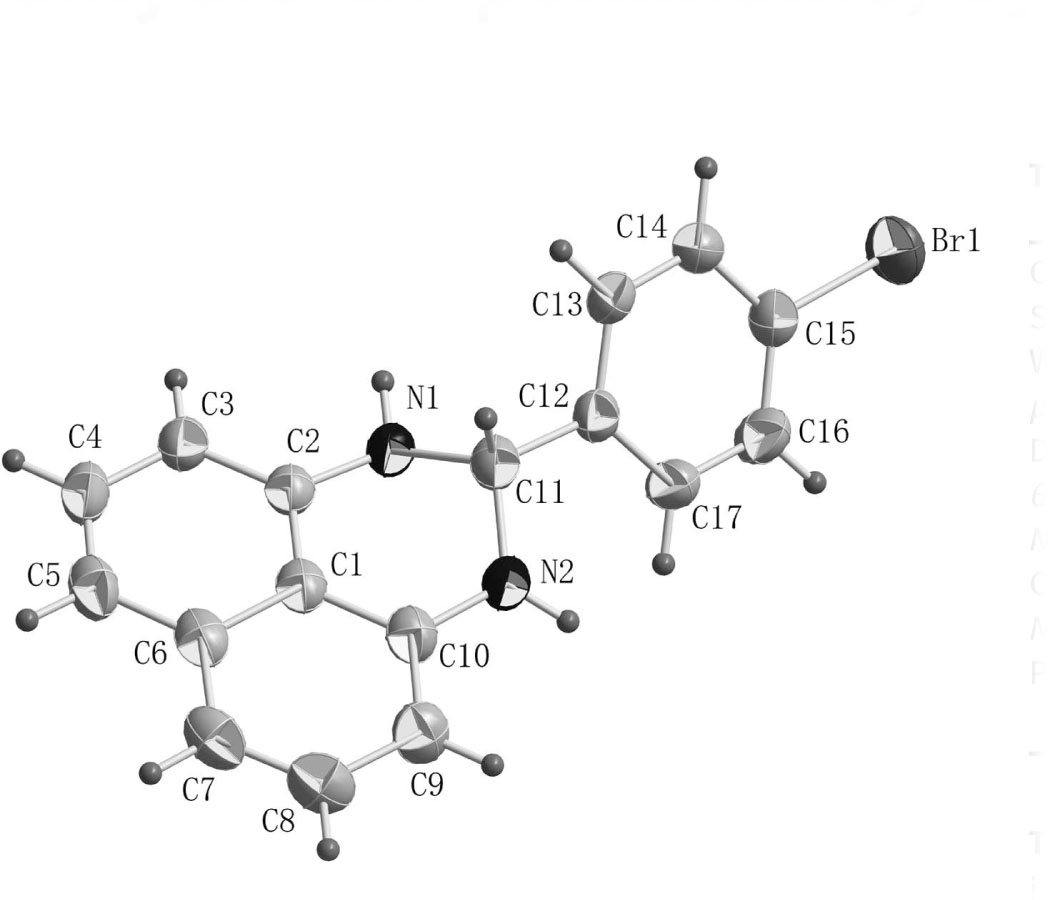

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

A mixture of naphthalene-1,8-diamine (1.58 g, 10 mmol) and 4-bromobenzaldehyde (1.85 g, 10 mmol), in anhydrous ethanol (50 mL) was refluxed at 353 K for about 2 h. Then the solvent was removed under reduced presure. The resulting residue was purified by recrystallization from ethanol to obtain a crystal (yield 2.86 g, 88%).

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.36 × 0.33 × 0.30 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.9 mm−1
Diffractometer, scan mode:Bruker APEXII, φ and ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:24886, 2461, 0.022
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2105
N(param)refined:181
Programs:Bruker programs [9], SHELX [10], [11]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.18042(3)0.35089(2)0.33392(2)0.06296(13)
N10.2936(2)0.68189(15)0.57191(10)0.0421(5)
H10.34100.63090.57830.051*
N20.09235(19)0.74946(14)0.53505(10)0.0437(5)
H20.05340.75720.49750.052*
C10.2059(2)0.82136(17)0.62753(11)0.0380(5)
C20.3044(2)0.74847(17)0.62398(11)0.0375(5)
C30.4092(3)0.74798(19)0.66788(12)0.0468(6)
H30.47370.69970.66580.056*
C40.4185(3)0.8209(2)0.71593(13)0.0521(7)
H40.48840.81930.74620.062*
C50.3274(3)0.8936(2)0.71913(12)0.0500(7)
H50.33710.94190.75080.060*
C60.2183(3)0.89664(18)0.67493(11)0.0427(6)
C70.1232(3)0.97190(19)0.67458(13)0.0510(7)
H70.12981.02190.70510.061*
C80.0222(3)0.9715(2)0.62974(14)0.0541(7)
H8−0.03931.02200.63000.065*
C90.0075(3)0.89749(19)0.58307(14)0.0503(6)
H9−0.06310.89890.55310.060*
C100.0979(2)0.82290(17)0.58178(12)0.0408(5)
C110.1555(2)0.65951(17)0.55290(12)0.0408(5)
H110.10870.63180.59110.049*
C120.1564(2)0.58674(17)0.49761(12)0.0380(5)
C130.1791(2)0.49116(18)0.51340(12)0.0447(6)
H130.18860.47370.55760.054*
C140.1880(3)0.42121(18)0.46551(13)0.0458(6)
H140.20540.35730.47680.055*
C150.1706(2)0.44749(18)0.40048(12)0.0423(6)
C160.1458(3)0.54151(19)0.38309(12)0.0492(6)
H160.13260.55810.33900.059*
C170.1405(3)0.61125(19)0.43183(12)0.0458(6)
H170.12600.67540.42030.055*

Experimental details

All hydrogen atoms were identified in difference Fourier syntheses. The Uiso values of the hydrogen atoms were set to 1.2 Ueq(C).

Comment

Perimidines have drawn extensive examinations of many researchers for a long time, because they exhibit a diverse range of biological activities [1], [2], [3]. There are several preparative methods for the synthesis of perimidine derivatives [4], [5], [6], [7]. Herein, we report on a novel perimidine compound which was synthesized and characterized by single-crystal X-ray diffraction.

In the structure, the bond angles of N(1)—C(11)—N(2), N(1)—C(11)—C(12) and N(2)—C(11)—C(12) are 107.17(19), 109.31(19) and 113.3(2) in turn, which indicates the sp3 hybridization state of C(11) atom and the new-formed three-membered heterocyclic ring is nonplanar. All bond lengths and angles are in the expected ranges [8].

Acknowledgements

This work was financially supported by the Natural Science Foundation of Hunan Province of China (2017JJ3093).

References

Bu, X.; Deady, L. W.; Finlay, G. J.; Baguley, B. C.; Denny, W. A.: Synthesis and cytotoxic activity of 7-oxo-7H-dibenz [f,ij]isoquinoline and 7-oxo-7H-benzo[e]perimidine derivatives. J. Med. Chem. 44 (2001) 2004–2014.10.1021/jm010041lSearch in Google Scholar

Ye, J.; Sun, X. X.; Qiu, S. Y.; Hu, A. X.: Synthesis, crystal structure and fungicidal activity of N-(4-tert-buty)-5-(1,2,4-triazol-1- yl)thiazol-2-yl) propionamide. Chin. J. Struct. Chem. 3 (2014) C429–C433.Search in Google Scholar

Fu, C. R.; Pei, J.; Ning, Y.; Liu, M.; Shan, P. C.; Liu, J.; Li, Y. Q.; Hu, F. Z.; Zhu, Y. Q.; Yang, H. Z.; Zou, X. M.: Synthesis and insecticidal activities of novel pyrazole oxime ether derivatives with different substituted pyridyl rings. Pest Manag. Sci. 70 (2013) C1207–C1214.10.1002/ps.3672Search in Google Scholar

Hendrickson, J. B.; Hussoin, M. S.: Seeking the ideal dehydrating reagent. J. Org. Chem. 52 (1987) 4137–4139.10.1021/jo00227a041Search in Google Scholar

Li, Z. Y.; Yuan, L.; Yuan, X. Y.; Zhang, M.: Crystal structure of 2-(4-fluorophenyl)-1,3-dimethyl-1H-perimidin-3-ium iodide, C19H16ClIN2. Z. Kristallogr. NCS. 232 (2017) 821–822.10.1515/ncrs-2017-0062Search in Google Scholar

Vanden, E. J. J.; Delfosse, F.; Mayence, A.; Haverbeke, Y. V.: Old reagents, new results-aromatization of Hantzsch 1,4-dihydropyridines with manganese-dioxide and 2,3-dichloro-5,6-dicyano-1,4-benzoquinone. Tetrahedron 51 (1995) 5813–5818.10.1016/0040-4020(95)00318-3Search in Google Scholar

Deady, L. W.; Rodemann, T. J.: Synthesis of perimidine and fused perimidine derivatives from reaction of 1,8-naphthalenediamine with an iminoisocoumarin. J. Heterocycl. Chem. 35 (1998) 1417–1419.10.1002/jhet.5570350633Search in Google Scholar

Li, Z.-Y.; Zhang, M.; Yuan, X.-Y.; Yuan, L.: Crystal structure of 2-(4-chlorophenyl)-2,3-dihydro-1H-perimidine, C17H13ClN2. Z. Kristallogr. NCS 232 (2018) 263–264.10.1515/ncrs-2017-0261Search in Google Scholar

Bruker. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA (2009).Search in Google Scholar

Sheldrick, G. M.: SHELXS-97: program for the solution of crystal structures. University of Göttingen, Germany (1997).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2018-03-20
Accepted: 2018-06-29
Published Online: 2018-07-23
Published in Print: 2018-08-28

©2018 Min Zhang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
