Hydrothemal synthesis and crystal structure of triaqua-bis(5-carboxy-1-methyl-1H-imidazole-4-carboxylato-κ2N,O;κ1O)manganese(II), C12H16N4O11Mn

  • Liu Guang-Zhen and Yan Meng-Zhen EMAIL logo
Published/Copyright: June 29, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 5

Abstract

C12H16N4O11Mn, triclinic, P1̄ (no. 2), a = 7.7186(3) Å, b = 9.8439(3) Å, c = 11.6084(3) Å, α = 104.288(3)°, β = 94.024(3)°, γ = 97.365(3)°, V = 842.93(5) Å3, Z = 2, Rgt(F) = 0.0322, T = 291 K.

CCDC no.: 844889

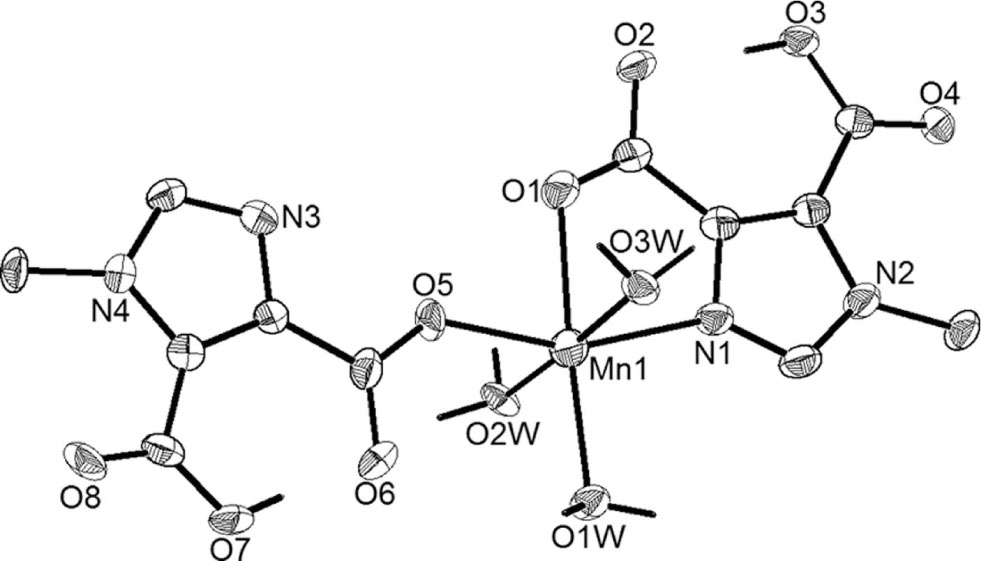

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.35 × 0.29 × 0.27 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.86 mm−1
Diffractometer, scan mode:Supernova, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:14394, 2880, 0.031
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2709
N(param)refined:260
Programs:CrysAlisPRO [1], SHELX [2], OLEX2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.77286(4)0.58068(3)0.66268(3)0.02699(13)
O10.48902(19)0.56463(16)0.69480(13)0.0313(4)
O1W1.0479(2)0.58940(18)0.64937(15)0.0400(4)
H1WA1.06900.58860.57790.060
H1WB1.08120.51350.66020.060
O20.27823(19)0.47657(17)0.78836(14)0.0361(4)
O2W0.8310(2)0.76948(17)0.81111(15)0.0442(4)
H2WA0.73940.78230.84690.066
H2WB0.85300.84250.78440.066
O30.2524(2)0.32374(18)0.92858(15)0.0367(4)
H30.26410.37260.88100.055
O3W0.6959(2)0.38549(16)0.51154(13)0.0323(4)
H3WA0.62040.39950.45580.048
H3WB0.63510.31710.53570.048
O40.4184(2)0.21081(18)1.02283(15)0.0412(4)
O50.7062(3)0.69583(19)0.53944(16)0.0488(5)
O60.9500(2)0.7691(2)0.46879(18)0.0502(5)
O71.0381(2)0.9113(2)0.33200(19)0.0545(5)
H71.00390.85960.37400.082
O80.9176(3)1.0317(2)0.21897(17)0.0541(5)
N10.7366(2)0.44486(18)0.79222(15)0.0254(4)
N20.7219(2)0.30659(19)0.91609(15)0.0277(4)
N30.5053(2)0.83313(18)0.41636(15)0.0273(4)
N40.5862(2)0.97669(17)0.30359(15)0.0260(4)
C00I0.5676(3)0.4253(2)0.82085(17)0.0217(4)
C10.4356(3)0.4940(2)0.76408(18)0.0248(5)
C20.8237(3)0.3718(2)0.8507(2)0.0302(5)
H20.94260.36590.84710.036
C30.5547(3)0.3395(2)0.89804(17)0.0230(4)
C40.7874(3)0.2182(3)0.9899(2)0.0456(6)
H4A0.90890.21220.97990.068
H4B0.72030.12490.96550.068
H4C0.77580.26001.07240.068
C50.4030(3)0.2856(2)0.95499(18)0.0274(5)
C60.7866(3)0.7626(2)0.4770(2)0.0330(5)
C70.6822(3)0.8401(2)0.40923(18)0.0233(4)
C80.4534(3)0.9170(2)0.35272(19)0.0283(5)
H80.33790.93320.34280.034
C90.7360(3)0.9280(2)0.33806(17)0.0243(4)
C100.9066(3)0.9620(2)0.2921(2)0.0357(5)
C110.5663(4)1.0811(3)0.2346(2)0.0472(7)
H11A0.58501.04140.15300.071
H11B0.65091.16450.26800.071
H11C0.44991.10560.23770.071

Source of material

All chemicals were used as obtained without further purification. The mixture of 4,5-dicarboxyimidazole (H2mdci; 0.1 mmol, 17.1 mg), triazole (trz) (0.1 mmol, 7.0 mg) Mn(OAc)2⋅4H2O (0.2 mmol, 49.1 mg), and H2O (6.0 mL) was placed in 23 mL Teflon-lined autoclave, heated to 120 °C for 3 days, and then slowly cooled down. Colourless block-shaped crystals were obtained.

Comment

Design and construction of supramolecular chemistry have stimulated the interests of chemists over the past few decades, owing to their intriguing variety of architectures and their potential applications [4], [5], [6]. Polydentate organic ligands are good candidates for the construction of supramolecular complexes for their diversity in the coordination modes. The imidazole-(bi)carboxylic ligands with the manifold N– and O-donors are good candidates, which finally aggregate to various supramolecular architectures. Very interesting and promising results have been obtained by using imidazole dicarboxylic ligands as efficient linkers [7], [8]. To the best of our knowledge, plenty of transition metal-H2dci (4,5-dicarboxyimidazole) complexes have been documented so far [9], [10], [11]. In comparison with H2dci (4,5-dicarboxyimidazole), 4,5-dicarboxyl-1-methyl-1H-imidazole (H2mdci), as a derivative of H2dci, can probably provide the potential to enrich the unpredictable and interesting structural and functional diversities of network structures [10], [12]. In this paper, we have chosen the 4,5-dicarboxyl-1-methyl-1H-imidazole (H2mdci) as a bridging ligand, whereas 1,2,4-triazole (trz) as auxiliary ligand, successfully constructing new coordination complexes.

The asymmetric unit contains a crystallographically distinct Mn(II) cation, two uncompletely deprotonated Hmdci anions and three water molecules. The Mn1 is octahedrally coordinated by one N atom and two oxygen atoms from two Hmdci ligands, respectively, and three oxygen atoms from three water molecules. Two carboxylate groups from two different Hmdci ligands, the imidazolyl from Hmdci ligand and one water molecule comprise the equatorial basal plane. The other two water ligands occupy the apical sites. All the Mn—O bond lengths are in the range of 2.1078(16)–2.2406(15) Å, and the Mn—N bond distance is 2.2545(17) Å. One Hmdci ligand adopts a-k2N,O coordination mode. The other Hmdci ligand adopts monodentate coordination. The 4-position carboxylate O atom from each Hmdci ligand remains uncoordinated.

The H-bonding interactions play an important role in forming the resultant three-dimensional framework. There exist two hydrogen bonds in the complex O7⋯O6: 2.439(3) Å; O3⋯O2: 2.476(2) Å. There are many intermolecular hydrogen bonds that link the adjacent mononuclear units to a three-dimensional supramolecular network.

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21571093

Funding statement: This work was supported by the National Natural Science Foundation of China (No. 21571093).

References

Oxford Diffraction Ltd, CrysAlisPRO, Abingdon, Oxfordshire, England (2006).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Gale, P. A.; Sessler, J. L.; Steed, J. W.: Supramolecular chemistry–introducing the latest web themed issue. Chem. Commun. 47 (2011) 5931–5932.10.1039/c1cc90048jSearch in Google Scholar

Harmon, K. M.; Gill, S. H.; Rasmussen, P. G.; Hardgrove Junior, G. L.: Inter- and intramolecular hydrogen bonding effects on the structure, solubility, and reactivity of 4,5-dicarboxyimidazoles. J. Mol. Struct. 478 (1999) 145–154.10.1016/S0022-2860(98)00669-3Search in Google Scholar

Janczak, J.; Kubiak, R.: Pyrazine control of the supramolecular chemistry of iron(II) and cobalt(II) phthalocyanines. CrystEngComm 12 (2010) 3599–3606.10.1039/c003440aSearch in Google Scholar

Das, S.; Karmakar, S.; Saha, D.; Baitalik, S.: A combined experimental and DFT/TD-DFT investigation of structural, electronic, and cation-induced switching of photophysical properties of bimetallic Ru(II) and Os(II) complexes derived from imidazole-4,5-dicarboxylic acid and 2,2′-bipyridine. Inorg. Chem. 52 (2013) 6860–6879.10.1021/ic302566pSearch in Google Scholar PubMed

Gu, Z. G.; Liu, Y. T.; Hong, X. J.; Zhan, Q. G.; Zheng, Z. P.; Zheng, S. R.; Li, W. S.; Hu, S. J.; Cai, Y. P.: Construction of metal-imidazole-based dicarboxylate networks with topological diversity: thermal stability, gas adsorption, and fluorescent emission properties. Cryst. Growth Des. 12 (2012) 2178–2186.10.1021/cg2002095Search in Google Scholar

Fang, R. Q.; Zhang, X. M.: Diversity of coordination architecture of metal 4,5-dicarboxyimidazole. Inorg. Chem. 45 (2006) 4801–4810.10.1021/ic052099mSearch in Google Scholar PubMed

Plieger, P. G.; Ehler, D. S.; Duran, B. L.; Taylor, T. P.; John, K. D.; Keizer, T. S.; Mark McCleskey, T.; Burrell, A. K.; Kampf, J. W.; Haase, T.; Rasmussen, P. G.; Karr, J.: Novel binding of beryllium to dicarboxyimidazole-based model compounds and polymers. Inorg. Chem. 44 (2005) 5761–5769.10.1021/ic050680cSearch in Google Scholar PubMed

Fang, R. Q.; Zhang, X. H.; Zhang, X. M.: A NaCl-like metal-organic framework constructed by unprecedented tetrahedral Cd4O6 and Cd5O6 units. Cryst. Growth Des. 6 (2006) 2637–2639.10.1021/cg060408tSearch in Google Scholar

Smith, T. S.; Root, C. A.; Kampf, J. W.; Rasmussen, P. G.; Pecoraro, V. L.: Reevaluation of the additivity relationship for vanadyl-imidazole complexes: correlation of the EPR hyperfine constant with ring orientation. J. Am. Chem. Soc. 122 (2000) 767–775.10.1021/ja991552oSearch in Google Scholar

Received: 2018-03-06
Accepted: 2018-05-23
Published Online: 2018-06-29
Published in Print: 2018-08-28
