Crystal structure of 2-amino-4-(3,4,5-trimethoxy-phenyl)-7-methyl-5-oxo-4H,5H-pyrano[4,3-b]pyran-3-carbonitrile, C19H18N2O6

  • Jing He EMAIL logo
Published/Copyright: July 13, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 5

Abstract

C19H18N2O6, monoclinic, P21/c (no. 14), a = 13.052(8) Å, b = 10.091(6) Å, c = 14.454(9) Å, β = 114.446(11)°, V = 1733.0(19) Å3, Z = 4, Rgt(F) = 0.0490, wRref(F2) = 0.1518, T = 296(2) K.

CCDC no.: 1852005

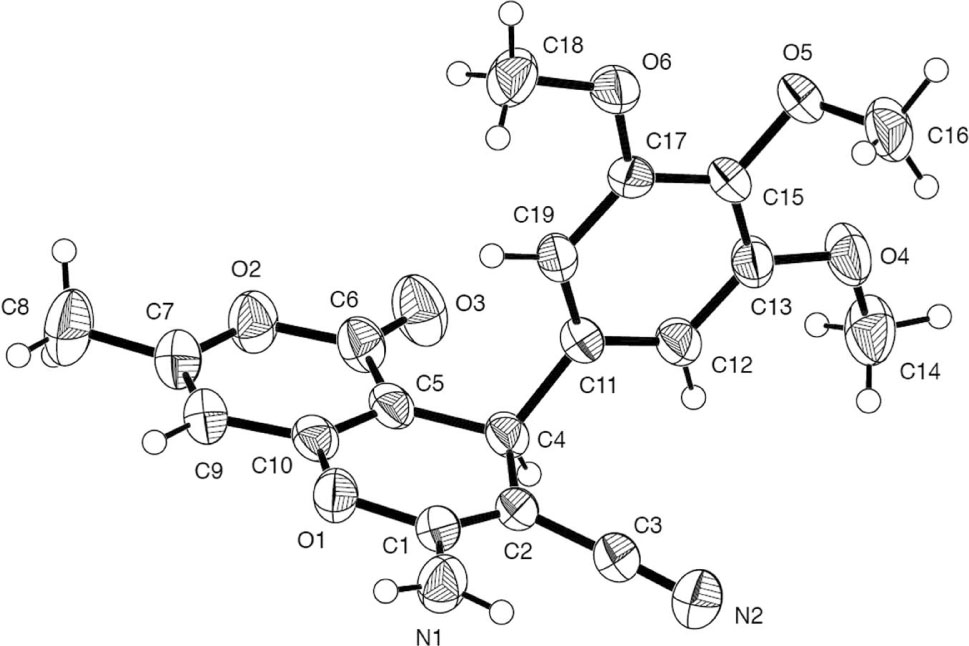

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.26 × 0.21 × 0.15 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.11 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:8487, 3041, 0.046
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2083
N(param)refined:245
Programs:Bruker programs [1], SHELX [2, 3] , OLEX2 [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.07794(13)0.62356(15)0.66102(12)0.0482(5)
O20.07846(13)0.74641(16)0.50112(11)0.0511(5)
O30.20953(14)0.95803(17)0.51976(12)0.0549(5)
O40.29142(12)0.91682(15)1.07149(11)0.0426(4)
O50.54182(13)0.70363(17)1.04858(13)0.0536(5)
O60.51258(15)0.7891(2)0.89905(14)0.0647(6)
N10.1548(2)1.2354(2)0.80994(18)0.0689(7)
N20.15421(17)1.0640(2)1.02712(15)0.0528(6)
H2A0.1117851.1265520.9908640.063*
H2B0.1471081.0367961.0805540.063*
C10.0811(2)0.5490(3)0.74526(19)0.0581(7)
H1A0.0324700.4734980.7214290.087*
H1B0.1567520.5196460.7848350.087*
H1C0.0563750.6033440.7865710.087*
C20.14261(18)0.7354(2)0.68065(17)0.0371(6)
C30.14185(18)0.7982(2)0.59557(16)0.0389(6)
C4−0.0175(2)0.8244(3)0.4445(2)0.0626(8)
H4A−0.0586730.7840110.3794070.094*
H4B−0.0647010.8302600.4805780.094*
H4C0.0060050.9116250.4351800.094*
C50.20973(18)0.9080(2)0.60686(16)0.0403(6)
C60.2868(2)1.0616(3)0.5288(2)0.0636(8)
H6A0.2784901.0883050.4622990.095*
H6B0.2718731.1357210.5629680.095*
H6C0.3621801.0306830.5671400.095*
C70.27312(17)0.9567(2)0.70329(16)0.0395(6)
H70.3181321.0310060.7113750.047*
C80.27008(17)0.8959(2)0.78732(16)0.0358(5)
C90.20601(18)0.7840(2)0.77693(17)0.0389(6)
H90.2053810.7417610.8338600.047*
C100.48324(19)0.7879(2)0.96785(19)0.0454(6)
C110.39532(17)0.8643(2)0.97471(16)0.0370(6)
C120.25409(18)1.0380(2)0.92081(17)0.0374(6)
C130.1978(2)1.1457(2)0.85876(18)0.0460(6)
C140.23108(18)1.0091(2)1.00046(17)0.0393(6)
C150.37471(17)0.8509(2)1.05793(16)0.0367(6)
C160.43902(18)0.7670(2)1.13985(18)0.0432(6)
H160.4242580.7620001.1974260.052*
C170.5198(2)0.6965(2)1.13289(19)0.0481(6)
C180.5964(2)0.6030(3)1.2090(2)0.0699(9)
H18A0.6474050.5651111.1838920.105*
H18B0.6383120.6494451.2712750.105*
H18C0.5530890.5337401.2212610.105*
C190.33355(17)0.9592(2)0.89078(16)0.0370(6)
H190.3887311.0208860.8851870.044*

Source of material

The title compound was synthesized according to a reported procedure. A mixture of 4-hydroxy-6-methylpyran-2-one (10 mmol), 3,4,5-trimethoxybenzaldehyde (10 mmol), malononitrile (10 mmol) and 4-(dimethylamino)pyridine (DMAP) (1 mmol) in ethanol (100 mL) was refluxed for 2−3 h and then cooled to room temperature. After filtering the precipitates, they were sequentially washed with ice-cooled water and ethanol and then dried under reduced pressure.

Experimental details

H atoms bonded to C and N atoms were positioned geometrically and refined using a riding model, with C—H = 0.96 Å with Uiso(H) = 1.2 times Ueq(C).

Discussion

Pyran derivatives may possess several types of pharmacological properties such as anticancer, anti-HIV, anticoagulant, spasmolytic, and antibacterial activity [5]. A large number of structurally novel pyran derivatives have been reported to show substantial cytotoxic activity in vitro and in vivo [6]. Research focused on the synthesis of the dihydropyran derivatives [7]. Herein, we reported the structure of a new pyran derivative.

In the crystal structure of the title compound (cf. the figure), one methoxy group is connected to 4H,5H-pyrano[4,3-b]pyran-5-one unit at the 7-position. One cyano group and one amino group are linked to the 2 and 4-position of this system, respectively. Three methoxy groups are connected to C13, C15 and C17 atoms respectively. Above mentioned bond lengths fall in their normal ranges compared with those in previously studies [8], [9].

Acknowledgements

This work was supported by the Scientific Research Program Funded by Shaanxi Provincial Education Department (Program No. 16JK1187) and Shaanxi Xueqian Normal University (Program No. 2014YBKJ030).

References

Bruker: APEX3, SAINT-Plus, XPREP. Bruker AXS Inc., Madison, Wisconsin, USA (2016).Search in Google Scholar

Sheldrick, G. M.: SHELXT − Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Li, J.; Sui, Y.; Xin, J.; Du, X. L.; Li, J. T.; Huo, H. R.; Ma, H.; Wang, W. H.; Zhou, H. Y.; Zhan, H. D.; Wang, Z. J.; Li, C.; Sui, F; Li, X.: Synthesis of biscoumarin and dihydropyran derivatives with promising antitumor and antibacterial activities. Bioorg. Med. Chem. Lett. 25 (2015) 5520–5523.10.1016/j.bmcl.2015.10.063Search in Google Scholar PubMed

Khan, K. M.; Iqbal, S.; Lodhi, M. A; Maharvi, G. M.; Ullah, Z.; Choudhary, M. I.; Rahman, A. U.; Perveen, S.: Biscoumarin: New class of urease inhibitors; economical synthesis and activity. Bioorg. Med. Chem. 12 (2004) 1963–1968.10.1016/j.bmc.2004.01.010Search in Google Scholar PubMed

Khan, A. T.; Lal, M.; Ali, S.; Musawwer, K.: One-pot three-component reaction for the synthesis of pyran annulated heterocyclic compounds using DMAP as a catalyst. Tetrahedron Lett. 52 (2011) 5327–5332.10.1016/j.tetlet.2011.08.019Search in Google Scholar

Li, J.; Lv, C.-W.; Li, X.-J.; Qu, D.; Hou, Z.; Jia, M.; Luo, X. X.; Li, X.; Li, M. K.: Synthesis of biscoumarin and dihydropyran derivatives and evaluation of their antibacterial activity. Molecules. 20 (2015) 17469–17482.10.3390/molecules200917469Search in Google Scholar PubMed PubMed Central

Song, J.: Crystal structure of 2-amino-7-methyl-5-oxo-4-phenyl-4H,5H-pyrano[4,3-b]pyran-3-carbonitrile, C16H12N2O3. Z. Kristallogr. NCS 231 (2016) 747–748.10.1515/ncrs-2015-0255Search in Google Scholar

Received: 2018-03-11
Accepted: 2018-06-27
Published Online: 2018-07-13
Published in Print: 2018-08-28
