The crystal structure of tris(μ2-1,3-bis(4,4,4-trifluoro-3-oxido-1-(oxo)but-2-en-1-yl)phenyl-κ4O,O′:O′′,O′′′)-bis(1,2-dimethoxyethane-κ2O,O′)dilutetium(III), C50H38F18Lu2O16

  • WeiCan Zhao , Jing Shi und YanJun Hou EMAIL logo
Veröffentlicht/Copyright: 16. Oktober 2017
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 232 Heft 6

Abstract

C50H38F18Lu2O16, monoclinic, C2/c (no. 15), a = 15.7024(12) Å, b = 12.6169(10) Å, c = 29.715(2) Å, β = 91.919(10)°, V = 5883.7(8) Å3, Z = 4, Rgt(F) = 0.0273, wRref(F2) = 0.066, T = 273 K.

CCDC no.:: 886433

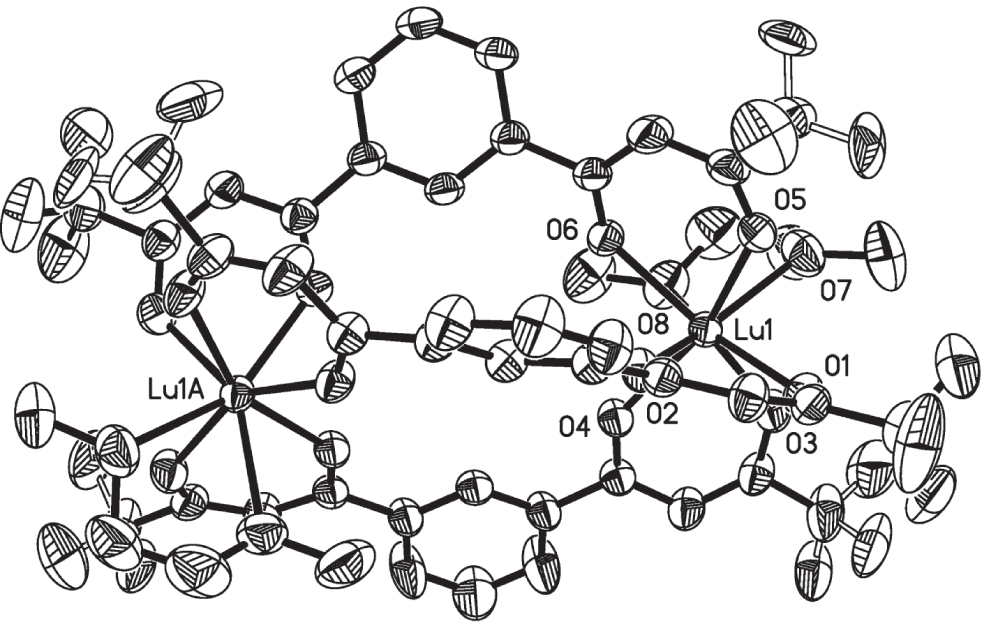

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Block, colorless
Size:0.32 × 0.32 × 0.30 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.46 mm−1
Diffractometer, scan mode:Bruker APEX2, φ and ω-scans
2θmax, completeness:28.3°, 97.1%
N(hkl)measured, N(hkl)unique, Rint:23077, 7247, 0.016
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 6388
N(param)refined:445
Programs:Bruker programs [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Lu10.08988(2)0.22420(2)0.37582(2)0.03603(5)
O10.23313(15)0.20960(19)0.38860(8)0.0475(6)
O20.14349(14)0.16603(18)0.31086(7)0.0422(5)
O30.13601(17)0.37220(19)0.41200(8)0.0513(6)
O40.06174(15)0.35881(16)0.32652(7)0.0411(5)
O50.11593(15)0.05166(19)0.39545(9)0.0497(6)
O6−0.01857(14)0.12852(17)0.34312(8)0.0429(5)
O70.0638(2)0.2006(2)0.45440(9)0.0645(7)
O8−0.04543(16)0.3006(2)0.39911(10)0.0627(7)
F10.42648(19)0.0788(4)0.38025(12)0.1242(14)
F20.40274(19)0.2310(3)0.40830(13)0.1016(11)
F30.3543(2)0.0952(3)0.43786(11)0.1065(11)
F4Aa0.2372(7)0.6149(6)0.4150(4)0.126(4)
F5Aa0.1420(5)0.5741(8)0.4619(3)0.166(4)
F6Aa0.2512(6)0.4819(6)0.4586(3)0.125(3)
F5Bb0.1850(8)0.5127(9)0.4741(3)0.106(3)
F4Bb0.2094(8)0.6302(7)0.4255(4)0.083(3)
F6Bb0.2869(5)0.4924(8)0.4308(3)0.097(3)
F7Ac0.0901(7)−0.2211(6)0.3951(4)0.134(5)
F8Ac0.2026(4)−0.1277(7)0.4064(4)0.122(3)
F9Ac0.1109(7)−0.1266(8)0.4526(3)0.156(3)
F7Bd0.1719(5)−0.1777(6)0.3695(2)0.096(2)
F8Bd0.1862(6)−0.1127(6)0.4338(3)0.089(3)
F9Bd0.0786(5)−0.2047(7)0.4190(3)0.078(3)
C10.3688(2)0.1382(4)0.39841(14)0.0607(10)
C20.2862(2)0.1503(3)0.37035(12)0.0447(7)
C30.2786(2)0.0970(3)0.33010(12)0.0476(8)
H30.32330.05450.32110.057*
C40.2044(2)0.1056(2)0.30213(11)0.0394(6)
C50.19455(19)0.0414(3)0.26000(11)0.0397(7)
C60.2453(2)−0.0468(3)0.25176(13)0.0513(8)
H60.2898−0.06430.27190.062*
C70.2299(2)−0.1083(3)0.21387(14)0.0583(10)
H70.2641−0.16680.20850.070*
C80.1640(2)−0.0831(3)0.18399(13)0.0511(8)
H80.1538−0.12500.15860.061*
C90.11228(19)0.0048(3)0.19141(11)0.0405(7)
C100.12899(19)0.0671(3)0.22923(11)0.0401(7)
H100.09590.12690.23410.048*
C110.2006(3)0.5310(3)0.43326(17)0.0874(18)
C120.1489(2)0.4647(3)0.39897(12)0.0471(8)
C130.1231(2)0.5116(3)0.35913(13)0.0527(9)
H130.13790.58200.35420.063*
C140.0751(2)0.4577(2)0.32538(10)0.0391(6)
C150.0372(2)0.5177(3)0.28643(11)0.0449(7)
C160.00000.4641(3)0.25000.0394(9)
H160.00000.39040.25000.047*
C170.0371(4)0.6280(3)0.28584(14)0.0843(17)
H170.06220.66510.30980.101*
C180.00000.6831(6)0.25000.0842(19)
H180.00000.75680.25000.101*
C190.1251(3)−0.1312(4)0.40545(19)0.0801(16)
C200.0797(2)−0.0335(3)0.38638(12)0.0466(8)
C210.0070(2)−0.0508(3)0.36027(15)0.0570(10)
H21−0.0128−0.11980.35640.068*
C22−0.03807(19)0.0325(3)0.33928(11)0.0396(7)
C230.1333(4)0.1736(6)0.48481(16)0.1012(19)
H23A0.16600.23600.49190.152*
H23B0.16900.12220.47090.152*
H23C0.11140.14450.51190.152*
C240.0054(4)0.2744(5)0.47369(17)0.0876(16)
H24A0.03100.34430.47590.105*
H24B−0.00920.25160.50360.105*
C25−0.0715(3)0.2772(5)0.4437(2)0.0909(17)
H25A−0.10040.20930.44420.109*
H25B−0.11050.33120.45380.109*
C26−0.1165(3)0.3157(5)0.3684(2)0.0860(15)
H26A−0.15030.25230.36710.129*
H26B−0.09620.33120.33900.129*
H26C−0.15060.37360.37850.129*

  1. Occupancies: a = 0.59; b = 0.41; c = 0.55, d = 0.45

Source of material

The title compound is easily synthesized by means of reported procedures [3]. To a methanol solution of 1,3-bis(4,4,4-trifluoro-1,3-dioxobutyl)phenyl (1 g, 2.8 mmol), NaOH (0.2 g, 5.6 mmol) was added, and the mixture was allowed to stir for 5 min. To this methanol solution, LuCl3⋅6H2O (1.86 mmol) was added, and the mixture was allowed to stir for 24 h at ambient temperature. Water was then added to this mixture, and the precipitate thus formed was filtered, washed with water, and dried in air to give the title compound in a yield of 62.1%. Crystals were obtained in about two weeks by recrystallization from DME/hexane.

Experimental details

All H atoms on C atoms were placed in idealized positions [C—H = 0.96 (methyl), 0.97 (methylene) and 0.93 Å (aromatic)] and included in the refinement in the riding-model approximation, with Uiso(H) = 1.5Ueq(methyl C) and 1.2Ueq(methylene and aromatic C). The F4, F5 and F6 atoms are disordered (cf. table 2). The non-hydrogen atoms in the structure of the title complex were refined with anisotropic displacement parameters.

Discussion

Lutetium(III) complexes have wide range applications in catalysis in the past few years [4], [5], [6]. Some directly related structures of the title structure have been reported [3, 7–8]. In the title crystal structure, the bond distances and bond angles are all in normal range [9]. The crystal structure features weak intermolecular C—H⋯F and C—H⋯O hydrogen bonds.

Acknowledgement

We are grateful for financial support by the Education Department of Hei longjiang Province of China (no. 12521413).

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Shi, J.; Hou, Y. J.; Chu, W. Y.; Shi, X. H.; Gu, H. Q.; Wang, B. L.; Sun, Z. Z.: Crystal structure and highly luminescent properties studies of bis-β-diketonate lanthanide complexes. Inorg. Chem. 52 (2013) 5013–C502210.1021/ic302726zSuche in Google Scholar PubMed

Luconi, L.; Lyubov, D. M.; Rossin, A.; Glukhova, T. A.; Cherkasov, A. V.; Tuci, G.; Fukin, G. K.; Trifonov, A. A.; Giambastiani, G.: Organolanthanide complexes supported by Thiazole-containing amidopyridinate ligands: synthesis, characterization, and catalytic activity in isoprene polymerization. Organometallics 33 (2014) 7125–7134.10.1021/om500918ySuche in Google Scholar

Fukuzumi, S.; Yasui, K.; Suenobu, T.; Ohkubo, K.; Fujitsuka, M.; Ito, O.: Efficient catalysis of rare-earth metal ions in photoinduced electron-transfer oxidation of benzyl alcohols by a flavin analogue. J. Phys. Chem. A 105 (2001) 10501–10510.10.1021/jp012709dSuche in Google Scholar

Castro, G.; Bastida, R.; MacÍas, A.; Pérez-Lourido-Lourido, P.; Platas-Iglesias, C.; EValencia, L.: Lanthanide(III) complexation with an amide derived pyridinophane. Inorg. Chem. 4 (2015) 1671–1683.10.1021/ic502653rSuche in Google Scholar PubMed

Hou, Y. J.; Shi, J.; Chu, W. Y.; Sun, Z. Z.: Synthesis, Crystal structure, and near-IR luminescent properties of lanthanide bis(β-diketonate) complexes. Eur. J. Inorg. Chem. 17 (2013) 3063–3069.10.1002/ejic.201300013Suche in Google Scholar

Wang, B. L.; Shi, J.; Hou, Y. J.; Chu, W. Y.; Sun, Z. Z.: The crystal structure of tris(μ2-1,3-bis(4,4,4-Trifluoro-3-oxido-1-(oxo)but-2-en-1-yl)phenyl-O,O′:O′′,O′′′)-bis(1,2-dimethoxyethane-O,O′)-diterbium(III). Z. Kristallogr. NCS 230 (2015) 371–373.10.1515/ncrs-2015-0035Suche in Google Scholar

Liu, Y.; Shi, J.; Hou, Y. J.; Chu, W. Y.; Sun, Z. Z.: The crystal structure of tris(μ2-1,3-bis(4,4,4-trifluoro-3-oxido-1-(oxo)but-2-en-1-yl)phenyl-κ4O,O′:O′′,O′′′)-bis(1,2-dimethoxyethane-κ2O,O′)dicerium(III), C50H38F18O16Ce2. Z. Kristallogr. NCS 231 (2016) 1229–1231.10.1515/ncrs-2016-0143Suche in Google Scholar

Received: 2017-6-19
Accepted: 2017-10-3
Published Online: 2017-10-16
Published in Print: 2017-11-27

©2017 WeiCan Zhao et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
