Synthesis and crystal structure tetrakis(μ2-methanolato)-dimethanol-bis(μ2-2-acetyl-1,3-bis(3,5-dichloro-2-oxidophenyl)propane-1,3-bis(olato)-κ5O1,O2,O3:O3,O4,O5), tetramanganese(III), C40H40Cl8Mn4O16

  • Ji-Xing Zhao , Li Zhao EMAIL logo , Peng-Peng Li , Zhao-Bin Zhu , Fei Wang and Qin-Qin An
Published/Copyright: September 16, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 6

Abstract

C40H40Cl8Mn4O16, triclinic, P1̅, a = 9.2586(5) Å, b = 11.6798(10) Å, c = 12.3267(8) Å, α = 70.237(7)°, β = 75.557(5)°, γ = 81.358(6)°, V = 1211.65(16) Å3, Z = 1, Rgt(F) = 0.0333, wRref(F2) = 0.0906, T = 294 K.

CCDC no.:: 1514251

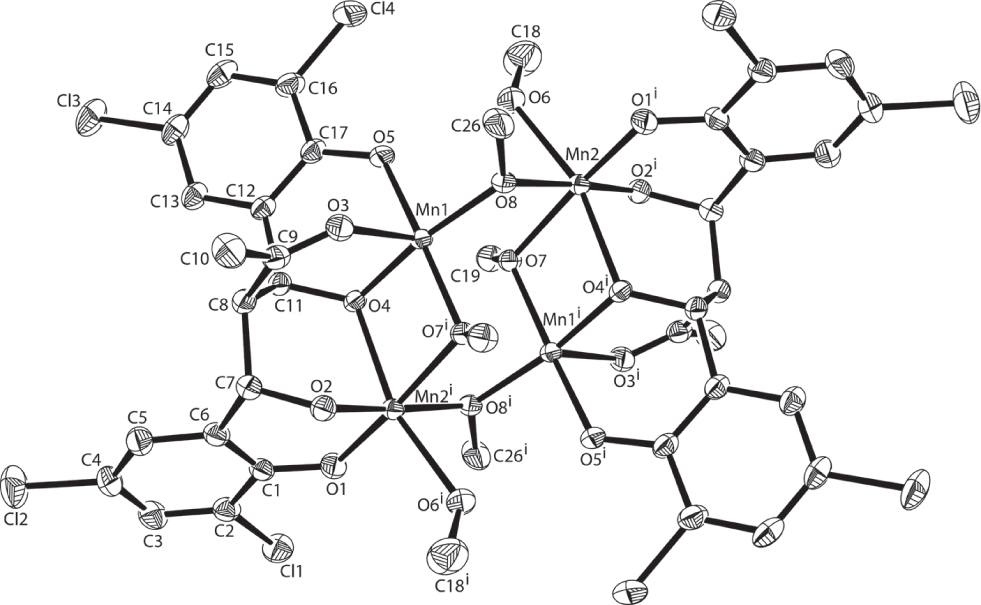

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Clear dark brown block
Size:0.16 × 0.13 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:12.94 mm−1
Diffractometer, scan mode:SuperNova, diffractometer, ω
θmax, completeness:69.8°, 99.75%
N(hkl)measured, N(hkl)unique, Rint:7765, 4474, 0.020
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3912
N(param)refined:314
Programs:CrysAlisPRO [20], SHELX [21]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.36606(4)0.48082(4)0.94574(4)0.03059(11)
Mn20.35414(4)0.70558(4)1.03418(4)0.03199(12)
Cl11.06407(8)0.21488(8)0.68449(8)0.0559(2)
Cl20.73700(12)−0.05362(11)0.56923(10)0.0789(3)
Cl30.22791(12)0.47114(10)0.40178(7)0.0716(3)
Cl40.06451(11)0.74558(9)0.69039(9)0.0701(3)
O10.7950(2)0.24301(19)0.85533(19)0.0435(5)
O20.5355(2)0.16468(17)0.99672(16)0.0371(4)
O30.2260(2)0.32958(19)0.98456(18)0.0416(5)
O40.50529(19)0.41261(16)0.84309(15)0.0321(4)
O50.2682(2)0.57860(18)0.82508(17)0.0418(5)
O60.2506(3)0.79227(19)0.8775(2)0.0527(6)
H60.241(4)0.7438(15)0.841(2)0.079*
O70.51667(19)0.62132(16)0.93474(15)0.0313(4)
O80.25043(19)0.56266(17)1.05403(16)0.0339(4)
C10.7765(3)0.1743(2)0.7944(2)0.0370(6)
C20.8970(3)0.1499(3)0.7086(3)0.0423(7)
C30.8875(4)0.0807(3)0.6392(3)0.0509(8)
H30.96950.06690.58260.061*
C40.7542(4)0.0332(3)0.6559(3)0.0514(8)
C50.6321(4)0.0520(3)0.7410(3)0.0469(7)
H50.54340.01710.75230.056*
C60.6413(3)0.1228(3)0.8096(2)0.0380(6)
C70.5032(3)0.1408(3)0.9013(2)0.0368(6)
H70.45530.06350.93410.044*
C80.3863(3)0.2398(2)0.8439(2)0.0354(6)
H80.35320.20950.78970.043*
C90.2526(3)0.2455(3)0.9427(3)0.0380(6)
C100.1517(4)0.1431(3)0.9931(3)0.0582(9)
H10A0.09110.14850.93850.087*
H10B0.08840.14841.06620.087*
H10C0.21080.06671.00710.087*
C110.4529(3)0.3624(2)0.7713(2)0.0342(6)
H110.54110.34470.71470.041*
C120.3480(3)0.4498(3)0.6991(2)0.0349(6)
C130.3365(3)0.4284(3)0.5970(2)0.0426(7)
H130.39410.36400.57540.051*
C140.2412(4)0.5014(3)0.5279(3)0.0481(7)
C150.1576(4)0.5990(3)0.5554(3)0.0541(8)
H150.09370.64850.50820.065*
C160.1708(3)0.6218(3)0.6551(3)0.0467(7)
C170.2645(3)0.5493(3)0.7295(2)0.0385(6)
C180.2421(6)0.9118(4)0.8019(4)0.0868(14)
H18A0.30770.91700.72680.130*
H18B0.27160.96560.83540.130*
H18C0.14130.93510.79150.130*
C190.5957(3)0.6897(3)0.8195(2)0.0443(7)
H19A0.68610.64350.79640.066*
H19B0.62000.76570.82200.066*
H19C0.53380.70530.76340.066*
C260.0946(3)0.5519(3)1.1016(4)0.0578(9)
H26A0.04010.59431.04090.087*
H26B0.06410.58681.16470.087*
H26C0.07440.46731.13120.087*

Source of material

Synthesis of the ligand HL: 1-{4-[(3,5-Dichloro-2-hydroxy benzylidene)amino]phenyl}ethanone O-methyl oxime: All chemicals were used without further purification. 4-Amino acetophenone methoxy oxime was prepared by an similar method reported earlier [1], [2], [3]. 3,5-Dibromosalicylaldehyde (279.91 mg, 1 mmol) in EtOH (5 mL) was added slowly to a solution of 4-amino acetophenone methoxy oxime (164.09 mg, 1 mmol) in EtOH (5 mL) at 338 K. The precipitate was heated, stirred and kept refluxing for 12 h at the same temperature. Then the mixture was cooled down to room temperature and the yellow precipitates were filtered and washed successively. The isolated raw product was dried under reduced pressure and purified (yield 71.3%, m.p.: 410–411 K). Elemental analysis – Anal. calcd for C16H14Cl2N2O2: C, 56.99%; H, 4.18%; N, 8.31%; Found: C, 57.02%; H, 4.20%; N, 8.25%.

Synthesis of the Mn(III) complex: A solution of Mn(CH3COO)2⋅4H2O (2.45 mg, 0.01 mol) in EtOH (3 mL) was added slowly to a solution of HL (6.72 mg, 0.02 mmol) in acetone (3 mL) at room temperature. The color of the mixture turned to brown immediately. The mixture was filtered after being stirred for 2 h at room temperature and the filtrate was allowed to stand for 10 days at room temperature, the solvent was partially evaporated and we obtained several clear dark brown crystals suitable for X-ray crystallographic analysis. Anal. calcd. for C40H40Cl8Mn4O16: C, 37.53%; H, 3.15%; Mn, 17.17%. Found: C, 37.49%; H, 3.12%; Mn, 17.26%.

Experimental details

Molecular structure was refined using the SHELX-14/7 package. Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

Oxime-type compounds with a general formula of R1R2C = N-OR3 are synthesized by condensation reaction of aldehydes or ketones with hydroxylamine. These compounds can be used as potential chelating agents and excellent coordination abilities with many metals [4], [5], [6], [7], [8], [9]. Oxime-type compounds and their complexes could be applied in many fields, such as magnetic materials [10], [11], [12], optical materials [13], [14], [15] etc. Herein we report on a new Mn(III) complexes, which may be related to literature known manganese complexes [16], [17], [18], [19].

The title complex consists of four Mn(III) atoms, two 4-(3,5-dichloro-2-hydroxy-phenyl)-3-[(3,5-dichloro-2-hydroxy-phenyl)-hydroxy-methyl]-4-hydroxy-butan-2-one ligands as well as methanolato and methanol ligands (cf. the figure). Mn1 and Mn1i atoms are five-coordinated, but Mn2 and Mn2i atoms are six-coordinated. Mn1/Mn1i has a distorted square-pyramidal coordination environment with three oxygen atoms from (L)4− and two oxygen atoms provided by two methanolato ligands. Mn2/Mn2i has a distorted octahedral coordination environment with three oxygen atoms from (L)4− and three oxygen atoms provided by two methanolato ligands and one oxygen atom of a coordinated methanol molecule. Bond lengths and angles are all in the expected ranges.

References

Zhao, L.; Zhao, J. X.; An, Q. Q.; Wang, F.: Crystal structure of (E)-1-(4-(((E)-3,5-dibromo-2-hydroxybenzylidene)amino)phenyl)ethan-1-one O-methyl oxime C17H16Br2N2O2. Z. Kristallogr. NCS 231 (2016) 1053–1054.10.1515/ncrs-2016-0047Search in Google Scholar

Zhao, L.; Dong, X. T.; Xing, S. J.; Cheng, Q.; Zhao, J. X.: 1-(4-{[(E)-3-ethoxy-2-hydroxybenzylidene]amino} phenyl)ethanone oxime. Acta Crystallogr. E68 (2012) o429.10.1107/S1600536812001213Search in Google Scholar PubMed PubMed Central

Sun, Y. X.; Lan, Q. Y.; Meng, W. S.; He, X. N.: Synthesis and crystal structure of 2,2′-[ethylenedioxybis(nitrilomethylidyne)]dinaphthalene. Asian J. Chem. 25 (2013) 3358–3360.10.14233/ajchem.2013.13721Search in Google Scholar

Escuer, A.; Cordero, B.; Font-Bardia, M.; Teat, S. J.; Roubeau, O.: Manganese-salicyloximate clusters starting from [MnII(hfacac)2]: from Mn4 to Mn12. Eur. J. Inorg. Chem. 2016 (2016) 1232–1241.10.1002/ejic.201501372Search in Google Scholar

Li, Y. G.; Guo, Y. W.; Tian, H. X.; Hu, P.; Sun, Z.; Ma, Y.; Li, L. C.; Liao, D. Z.: A unique tetranuclear Mn(II) cluster bridged by carboxyl substituted nitronyl nitroxide radical: Crystal structure and magnetic properties. Inorg. Chem. Commun. 43 (2014) 135–137.10.1016/j.inoche.2014.02.029Search in Google Scholar

Wang, L.; Ma, J. C.; Dong, W. K.; Zhu, L. C.; Zhang, Y.: A novel self-assembled nickel(II)-cerium(III) heterotetranuclear dimer constructed from N2O2-type bisoxime and terephthalic acid: synthesis, structure, and photophysical properties. Z. Anorg. Allg. Chem. 642 (2016) 834–839.10.1002/zaac.201600125Search in Google Scholar

Liu, J.; Liu, Z.; Yuan, S.; Liu, J.: Synthesis, crystal structures, and spectral characterization of tetranuclear Mn(II) complex with a new Schiff base ligand and molecular dynamics studies on inhibition properties of such Schiff base. J. Mol. Struct. 1037 (2013) 191–199.10.1016/j.molstruc.2012.12.026Search in Google Scholar

Dong, W. K.; Lan, P. F.; Zhou, W. M.; Zhang, Y.: Salamo-type trinuclear and tetranuclear cobalt(II) complexes based on a new asymmetry Salamo-type ligand: syntheses, crystal structures, and fluorescence properties. J. Coord. Chem. 69 (2016) 1272–1283.10.1080/00958972.2016.1168520Search in Google Scholar

McLellan, R.; Palacios, M. A.; Brechin, E. K.; Dalgarno, S. J.: Influencing the orientation of Jahn-Teller axes in butterfly-like MnIII4 clusters. ChemPlusChem 79 (2014) 667–670.10.1002/cplu.201400031Search in Google Scholar

Jones, L. F.; Inglis, R.; Mason, K.; Cochrane, M. E.; Collins, A.; Parsons, S.; Perlepesb, S. P.; Brechin, E. K.: New structural types and different oxidation levels in the family of Mn6-oxime single-molecule magnets. Dalton Trans. 44 (2008) 6205–6210.10.1039/b811143jSearch in Google Scholar PubMed

Dong, W. K.; Ma, J. C.; Dong, Y. J.; Zhu, L. C.; Zhang, Y.: Di- and tetranuclear heterometallic 3d-4f cobalt(II)-lanthanide(III) complexes derived from a hexadentate bisoxime: Syntheses, structures and magnetic properties. Polyhedron 115 (2016) 228–235.10.1016/j.poly.2016.05.017Search in Google Scholar

Abedi, M.; Yesilel, O. Z.; Mahmoudi, G.; Bauza, A.; Lofland, S. E.; Yerli, Y.; Kaminsky, W.; Garczarek, P.; Zareba, J. K.; Ienco, A.; Frontera, A.; Gargari, M. S.: Tetranuclear manganese(II) complexes of hydrazone and carbohydrazone ligands: synthesis, crystal structures, magnetic properties, hirshfeld surface analysis and DFT calculations. Inorg. Chim. Acta 443 (2016) 101–109.10.1016/j.ica.2015.12.012Search in Google Scholar

Dong, W. K.; Zhang, J.; Zhang, Y.; Li, N.: Novel multinuclear transition metal(II) complexes based on an asymmetric Salamo-type ligand: syntheses, structure characterizations and fluorescent properties. Inorg. Chim. Acta 444 (2016) 95–102.10.1016/j.ica.2016.01.034Search in Google Scholar

Dong, W. K.; Sunday, F. A.; Zhang, Y.; Sun, Y. X.; Dong, X. Y.: A reversible “turn-on” fluorescent sensor for selective detection of Zn2+. Sens. actuators B 238 (2017) 723–734.10.1016/j.snb.2016.07.047Search in Google Scholar

Dong, W. K.; Zhang, X. Y.; Zhao, M. M.; Li, G.; Dong, X. Y.: Syntheses and crystal structures of 5-methoxy-6′-hydroxy-2,2′-[ethylenedioxybis(nitrilomethylidyne)] diphenol and its tetranuclear zinc(II) complex. Chinese J. Inorg. Chem. 30 (2014) 710–716.Search in Google Scholar

Wu, H. L.; Shi, F. R.; Wang, X. L.; Zhang, Y. H.; Bai, Y. C.; Kong, J.; Wang, C. P.: Synthesis, crystal structures, antioxidant activities and DNA-binding studies of two manganese(II) complexes with 1,3-bis(1-ethylbenzimidazol-2-yl)-2-oxopropane ligands. Transition Met. Chem. 39 (2014) 261–270.10.1007/s11243-014-9799-8Search in Google Scholar

Wu, H. L.; Zhang, Y. H.; Wang, H.; Bai, Y. C.; Shi, F. R.; Wang, X. L.; Yang, Z. H.: Manganese(II) and silver(I) complexes based on the V-shaped ligand, bis(2-benzimidazolylmethyl)amine: synthesis, crystal structures, DNA binding properties, and antioxidant activities. J. Coord. Chem. 67 (2014) 1771–1781.10.1080/00958972.2014.917632Search in Google Scholar

Dong, W. K.; Sun, Y. X.; Zhao, C. Y.; Dong, X. Y.; Xu, L.: Synthesis, structure and properties of supramolecular MnII, CoII, NiII and ZnII complexes containing Salen-type bisoxime ligands. Polyhedron 29 (2010) 2087–2097.10.1016/j.poly.2010.04.006Search in Google Scholar

Dong, W. K.; Zhao, C. Y.; Sun, Y. X.; Tang, X. L.; He, X. N.: Synthesis and structure of an unprecedented supramolecular bridged-hydroxyl manganese(III)-lithium(I) coordination polymer [MnIIIL(OH)2LiI]n through both intermolecular hydrogen bonds and π-π stacking interactions. Inorg. Chem. Commun. 12 (2009) 234–236.10.1016/j.inoche.2008.12.019Search in Google Scholar

Agilent. CrysAlis PRO. Agilent Technologies Ltd, Yarnton, Oxfordshire, England (2014).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2017-4-3
Accepted: 2017-8-12
Published Online: 2017-9-16
Published in Print: 2017-11-27
