Crystal structure of 2,8-diphenyl-3,7,9-trioxa-1-azaspiro[4.5]dec-1-ene, C18H17N1O3

  • Min Zhang , Zhong-Yan Li , Xian-You Yuan and Lin Yuan EMAIL logo
Published/Copyright: October 16, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 6

Abstract

C18H17N1O3, monoclinic, P21/c (no. 14), a = 14.9752(8) Å, b = 9.0793(5) Å, c = 11.1030(6) Å, β = 106.431(1)°, V = 1447.96(14) Å3, Z = 4, Rgt(F) = 0.0342, wRref(F2) = 0.0903, T = 296(2) K.

CCDC no.:: 1577299

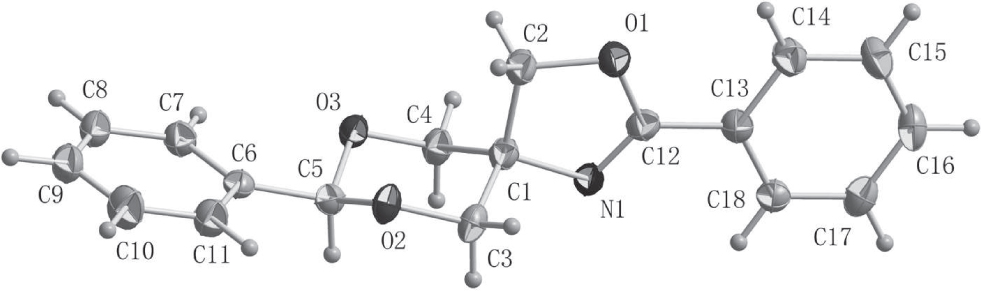

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Block, colorless
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.09 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
2θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:26710, 2541, 0.018
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2384
N(param)refined:199
Programs:Bruker programs [1], SHELX [2, 3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O30.06061(6)0.17715(10)0.24804(7)0.0270(2)
O20.07766(6)0.35823(9)0.10810(7)0.0275(2)
O1−0.21461(6)0.32501(10)0.03002(9)0.0349(2)
N1−0.13695(7)0.14691(11)−0.04115(9)0.0265(2)
C1−0.06661(8)0.21939(13)0.06214(11)0.0256(3)
C50.12246(8)0.24476(13)0.19006(11)0.0233(3)
H50.14560.17060.14210.028*
C13−0.30284(8)0.18096(13)−0.14404(11)0.0261(3)
C12−0.21330(9)0.21354(14)−0.05101(11)0.0276(3)
C4−0.01397(8)0.10583(14)0.15649(11)0.0278(3)
H4A−0.05590.05970.19760.033*
H4B0.01090.02990.11360.033*
C70.23114(9)0.24366(15)0.40891(12)0.0295(3)
H70.19740.16530.42770.035*
C60.20345(8)0.30765(13)0.29031(11)0.0247(3)
C18−0.30567(9)0.07887(14)−0.23862(11)0.0282(3)
H18−0.25100.0349−0.24450.034*
C14−0.38491(9)0.24658(15)−0.13635(13)0.0337(3)
H14−0.38350.3151−0.07360.040*
C30.00384(9)0.29752(14)0.00848(11)0.0273(3)
H3A0.02930.2282−0.03950.033*
H3B−0.02690.3757−0.04760.033*
C80.30866(9)0.29594(16)0.49914(12)0.0338(3)
H80.32650.25260.57820.041*
C110.25427(9)0.42562(15)0.26460(12)0.0340(3)
H110.23630.47020.18600.041*
C15−0.46869(9)0.20986(16)−0.22206(14)0.0404(3)
H15−0.52360.2539−0.21690.049*
C2−0.12262(9)0.32762(17)0.11823(13)0.0373(3)
H2A−0.12450.29570.20080.045*
H2B−0.09600.42570.12480.045*
C17−0.38951(9)0.04279(16)−0.32366(13)0.0353(3)
H17−0.3912−0.0255−0.38670.042*
C100.33164(10)0.47703(17)0.35560(14)0.0412(3)
H100.36510.55630.33780.049*
C90.35948(9)0.41159(16)0.47264(13)0.0374(3)
H90.41210.44540.53300.045*
C16−0.47099(9)0.10798(17)−0.31533(14)0.0410(4)
H16−0.52740.0832−0.37260.049*

Source of material

Tris(hydroxymethyl)aminomethane (TRIS) (2.00 g, 16.5 mmol) and benzaldehyde (5.31 g, 50 mmol) were stirred at 338 K in anhydrous toluene (50 mL) until the reaction mixture becomes clear. The solvent was evaporated to dryness and the residue dissolved in diethylether (50 mL). The etheral solution was washed with a saturated Na2CO3 solution (10 mL). The aqueous phase was extracted with diethylether and the combined organic phase was dried over anhydrous Na2SO4, then evaporated to a white powder. The latter was recrystallized from ethanol to afford colorless crystals (2.73 g, 56%).

Experimental details

All hydrogen atoms were identified in difference Fourier syntheses.

Discussion

Synthetic routes employing oxazolidines as cyclic protection of aminoalcohols have been widely used for the asymmetric synthesis of chiral amines, aminoalcohols and/or aminoacids [4]. Moreover, such derivatives were assumed to have potential as prodrug forms, as they undergo conversion to the parent compound [5]. Indeed, oxazolidine derived from ephedrine has been proved to have sympathomimetic activity in several animal models [6, 7] . In both cases, the success of the approach relies on the cleavage of the 1,3-N,O ring.

Herein, we report on a new oxazolidine derivative, which was synthesized and characterized by single-crystal X-ray diffraction [2, 3] . In the structure, there are two new formed rings, C(1)—C(3)—O(2)—C(5)—O(3)—C(4) and C(1)—N(1)—C(12)—O(1)—C(2). The bond lengths of N(1)—C(1), N(1)—C(12) are 1.4746(15) Å and 1.2706(16) Å respectively. All geometric parameters are in the expected ranges [8, 9] .

Acknowledgement

This work was financially supported by the Scientific Research Fund of Hunan Provincial Education Department (No. 16B104), the Opening Project of Key Laboratory of Comprehensive Utilization of Advantage Plants Resources in Hunan South (No. XNZW16C01) and the Scientific Research Fund of Hunan University of Science and Engineering (No. 16XKY063), Natural Science Foundation of Hunan Province of China (2017JJ3093).

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, (2009).Search in Google Scholar

Sheldrick, G. M.: SHELXS-97: Program for the Solution of Crystal Structures. University of Göttingen, Germany, (1997).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

Wagner, B.; Gonzalez, G. I.; Tran Hun Dau, M. E.; Zhu, J.: Total synthesis and conformational studies of hapalosin, N-desmethylhapalosin and 8-deoxyhapalosin. Bioorg. Med. Chem. 7 (1999) 737–C747.10.1016/S0968-0896(98)00208-9Search in Google Scholar

Berrien, J. F.; Royer, J.; Husson, H. P.: A new access to enantiomerically pure (S)-(-)-pipecolic acid and 2-alkylated or 6-alkylated derivatives. J. Org. Chem. 59 (1994) 3769–C3774.10.1021/jo00093a007Search in Google Scholar

Johansen, M.; Bundgaard, H.: Hydrolysis of oxazolidines – a potential new prodrug type. J. Pharm. Sci. 72 (1983) 1294–C1298.10.1002/jps.2600721115Search in Google Scholar

Walker, R. B.; Huang, M. J.; Leszczynski, J.: An investigation of isomeric differences in hydrolytic rates of oxazolidines using computational methods. J. Mol. Struct. 549 (2001) 137–C146.10.1016/S0166-1280(01)00489-4Search in Google Scholar

Jia, G.-K.; Yuan, L.; Yuan, X.-Y.; Li, Z.-Y.: Crystal structure of 5-ethyl-2-(p-tolyl)-1,3-dioxane-5-carboxylic acid, C14H18O4. Z. Kristallogr. NCS 232 (2017) 819–820.10.1515/ncrs-2017-0061Search in Google Scholar

Jia, G.-K.; Yuan, L.; Zhang, M., Yuan, X.-Y.; Liu, F.: Crystal structure of 2-(2-bromophenyl)-5-methyl-1,3-dioxane-5-carboxylic acid, C12H13BrO4. Z. Kristallogr. NCS 231 (2016) 1207–1208.10.1515/ncrs-2016-0135Search in Google Scholar

Received: 2017-6-22
Accepted: 2017-9-29
Published Online: 2017-10-16
Published in Print: 2017-11-27

©2017 Min Zhang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
