Crystal structure of tetrakis(methanol-κO)-bis{μ2-3-((4-methoxy-2-oxidobenzylidene)amino)-2-oxo-2H-chromen-4-olate-κ4O,N;O′:O′}dizinc(II), C38H38Zn2N2O14

  • Jing Li , Hao-Ran Jia and Yin-Xia Sun EMAIL logo
Published/Copyright: September 29, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 6

Abstract

C38H38Zn2N2O14, monoclinic, P21/n (no. 14), a = 9.6906(6) Å, b = 7.9055(5) Å, c = 24.0501(18) Å, β = 99.878(7)°, Z = 2, V = 1815.1(2) Å3, Rgt(F) = 0.0474, wRref(F2) = 0.1143, T = 293 K.

CCDC no.:: 1543586

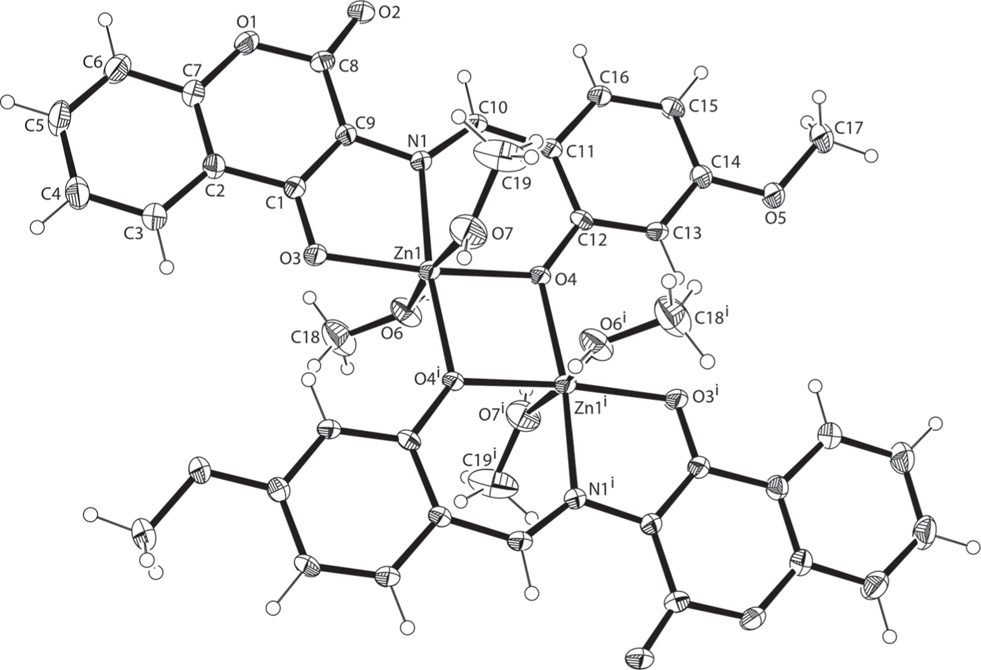

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Clear light Yellow, block
Size:0.33 × 0.21 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:9.5 cm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
2θmax, completeness:26°, >99%
N(hkl)measured, N(hkl)unique, Rint:7013, 3565, 0.038
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2853
N(param)refined:262
Programs:Bruker programs [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.39341(4)0.10872(6)0.525675(17)0.04040(17)
O1−0.0488(2)0.4116(3)0.57414(10)0.0378(6)
O2−0.1022(2)0.2989(3)0.49031(10)0.0405(6)
O30.3550(2)0.2433(3)0.59301(10)0.0421(6)
O40.4016(2)−0.0388(3)0.45665(9)0.0302(5)
O50.2802(3)−0.2579(3)0.27440(10)0.0464(7)
O60.3326(3)−0.1402(4)0.56647(11)0.0509(7)
H60.271(3)−0.209(3)0.5491(8)0.076*
O70.4601(3)0.3285(4)0.47869(13)0.0607(8)
H70.538(2)0.382(4)0.4863(15)0.091*
N10.1833(3)0.1571(3)0.49796(11)0.0272(6)
C10.2271(3)0.2917(4)0.58657(13)0.0295(7)
C20.1795(4)0.3873(4)0.63125(13)0.0309(7)
C30.2653(4)0.4235(4)0.68308(14)0.0391(9)
H30.35760.38580.68980.047*
C40.2142(5)0.5141(5)0.72391(16)0.0492(10)
H40.27160.53660.75820.059*
C50.0773(5)0.5718(5)0.71400(17)0.0514(11)
H50.04330.63390.74160.062*
C6−0.0084(4)0.5381(5)0.66372(17)0.0480(10)
H6A−0.10030.57720.65700.058*
C70.0430(4)0.4453(4)0.62303(14)0.0334(8)
C8−0.0102(3)0.3162(4)0.53107(14)0.0290(7)
C90.1292(3)0.2544(4)0.53833(13)0.0275(7)
C100.1128(3)0.1064(4)0.45094(14)0.0312(7)
H100.01850.13570.44340.037*
C110.1655(3)0.0081(4)0.40855(13)0.0275(7)
C120.3024(3)−0.0600(4)0.41142(12)0.0250(7)
C130.3320(3)−0.1492(4)0.36523(13)0.0284(7)
H130.4211−0.19450.36680.034*
C140.2340(4)−0.1729(4)0.31713(13)0.0316(7)
C150.0992(4)−0.1103(4)0.31372(14)0.0373(8)
H150.0319−0.12730.28170.045*
C160.0688(4)−0.0227(5)0.35922(14)0.0364(8)
H16−0.02160.01900.35730.044*
C170.1883(4)−0.2626(5)0.22137(15)0.0507(11)
H17A0.2359−0.31250.19360.076*
H17B0.1600−0.14960.21010.076*
H17C0.1072−0.32890.22480.076*
C180.3295(6)−0.1604(7)0.62426(18)0.0738(15)
H18A0.2415−0.12060.63230.111*
H18B0.4044−0.09650.64590.111*
H18C0.3407−0.27790.63410.111*
C190.3768(6)0.4115(6)0.4331(2)0.0863(18)
H19A0.32440.32940.40870.129*
H19B0.43590.47440.41230.129*
H19C0.31340.48740.44710.129*

Source of materials

The ligand was synthesized according to a method reported previously [3], [4], [5]. To an ethanol solution (5 mL) of 2-hydroxy-4-methoxybenzaldehyde (152.2 mg, 1 mmol) was added an ethanol solution (5 mL) of 3-amino-4-hydroxy-2H-chromen-2-one (177.2 mg, 1 mmol). The solution was stirred under reflux conditions at 434 K for 6 h. After cooling to room temperature, the precipitate was filtered and washed with ethanol and hexane. The product was dried under vacuum (yield 71.8%, m.p. 460–461 K). Anal. Calcd. for C17H13NO5 (%): C, 65.59; H, 4.21; N, 4.50. Found (%): C, 66.47; H, 4.13; N, 4.85.

A solution of zinc(II) acetate dihydrate (3.00 mg, 0.014 mmol) in methanol (5 mL) was added dropwise to a mixed solution composed by triethylamine (0.5 mL) and dichloromethane (5 mL) of 4-hydroxy-3-[(2-hydroxy-4-methoxy-benzylidene)-amino]-benzopyran-2-one (4.40 mg, 0.014 mmol) at room temperature. The color of the mixing solution turns to yellow immediately, and the mixture was filtered and the filtrate was allowed to stand at room temperature for about 2 weeks and we obtained yellow block crystals. Elemental analysis-Anal. calcd. for C38H38Zn2N2O14 (%): C, 52.01; H, 4.36; N, 3.19. Found (%): C, 52.53; H, 4.22; N, 3.46.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Coumarin derivatives have been found to exhibit antibiotic, antibacterial, antifungal, anticoagulating and plant regulating activities. Schiff base (contain –C = N– group) as a class of ligands are known to coordinate with metal ions through the azomethine nitrogen atom [6, 7] . And they can form all kinds of stable metal complexes [8, 9] , which have interesting structures and wide use in biochemistry [10, 11] . Furthermore, they may have magnetic properties [12, 13] , photophysical properties [14, 15] , and used in the fields of molecular recognition [16, 17] , and supramolecular architectures [18].

The X-ray structural study reveals that the title complex is dinuclear (cf. the figure). Thus the title complex Zn(II) consists of two tridentate deprotonated ligands, and four coordinated methanol molecules. Each Zn(II) is hexa-coordinated by one nitrogen atoms and three oxygen atoms of deprotonated ligands defining the N2O2 basal plane, plus two oxygen atoms from the methanol molecules occupying the apical positions. Thus, the coordination geometry of the Zn(II) center can be described as a slightly distorted octahedron.

In the crystal structure there are two intermolecular (O6—H6⋯O2 and O7—H7⋯O7) hydrogen bonds, which link the title complex molecules into an infinite chain-like supramolecular structure. This linkage is further stabilized by two C—H⋯π and π⋯π stacking interactions with the centroid-centroid distances of 3.916(2)–4.003(2) Å to form a 3D network.

Acknowledgement

The supports by the Graduate Student Experimental Innovation and Technology Project of Lanzhou Jiaotong University are gratefully acknowledged.

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA (2009).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Xu, L.; Li, N.; Zhao, L.: Crystal structure of 4-chloro-4′,6′-dichloro-2,2′-[propane-1,3-diyldioxybis(nitrilomethylidyne)]diphenol, C17H14Cl3N2O4. Z. Kristallogr. NCS 231 (2016) 967–968.10.1515/ncrs-2016-0025Search in Google Scholar

Zhao, L.; Wang, F.; An, Q. Q.; Zhao, J. X.: Crystal structure of (E)-1-(4-(((E)-3,5-dichloro-2-hydroxybenzylidene)amino)phenyl)ethan-1-one O-ethyl oxime, C17H16Cl2N2O2. Z. Kristallogr. NCS 231 (2016) 1045–1046.10.1515/ncrs-2016-0044Search in Google Scholar

Sun, Y. X.; Liu, G. H.; Wang, J.; Liu, S. H.; Wang, H.: Crystal structure of bis(3-ethoxy-4-hydroxybenzaldehyde)O,O′-(butane-1,4-diyl)dioxime, C22H28N2O6. Z. Kristallogr. NCS 227 (2012) 123–124.10.1524/ncrs.2012.0056Search in Google Scholar

Dong, W. K.; Zhu, L. C.; Dong, Y. J.; Ma, J. C.; Zhang, Y.: Mono, di and heptanuclear metal(II) complexes based on symmetric and asymmetric tetradentate Salamo-type ligands: syntheses, structures and spectroscopic properties. Polyhedron 117 (2016) 148–154.10.1016/j.poly.2016.05.055Search in Google Scholar

Sun, Y. X.; Zhao, Y. Y.; Li, C. Y.; Yu, B.; Guo, J. Q.; Li, J.: Supramolecular cobalt(II) and copper(II) complexes with Schiff base ligand: syntheses, characterizations and crystal structures. Chin. J. Inorg. Chem. 32 (2016) 913–920.Search in Google Scholar

Wang, P.; Zhao, L.: Synthesis, structure and spectroscopic properties of the trinuclear cobalt(II) and nickel(II) complexes based on 2-hydroxynaphthaldehyde and bis(aminooxy)alkane. Spectrochim. Acta A 135 (2015) 342–350.10.1016/j.saa.2014.06.129Search in Google Scholar PubMed

Dong, W. K.; Duan, J. G.; Guan, Y. H.; Shi, J. Y.; Zhao, C. Y.: Synthesis, crystal structure and spectroscopic behaviors of Co(II) and Cu(II) complexes with Salen-type bisoxime ligands. Inorg. Chim. Acta 362 (2009) 1129–1134.10.1016/j.ica.2008.05.028Search in Google Scholar

Wu, H. L.; Yuan, J. K.; Bai, Y.; Jia, F.; Liu, B.; Kou, F.; Kong, J.: Synthesis, structure, DNA-binding properties, and antioxidant activity of copper(II) and cobalt(II) complexes with bis(N-allylbenzimidazol-2-ylmethyl)benzylamine. Trans. Met. Chem. 36 (2011) 819–827.10.1007/s11243-011-9536-5Search in Google Scholar

Wu, H. L.; Bai, Y. C.; Zhang, Y. H.; Li, Z.; Wu, M. C.; Chen, C. Y.; Zhang, J. W.: Synthesis, crystal structure, antioxidation and DNA-binding properties of a dinuclear copper(II) complex with bis(N-salicylidene)-3-oxapentane-1,5-diamine. J. Coord. Chem. 67 (2014) 3054–3066.10.1080/00958972.2014.959507Search in Google Scholar

Song, X. Q.; Liu, P. P.; Liu, Y. A.; Zhou, J. J.; Wang, X. L.: Two dodecanuclear heterometallic [Zn6Ln6] clusters constructed by a multidentate salicylamide salen-like ligand: Synthesis, structure, luminescence and magnetic properties. Dalton Trans. 45 (2016) 8154–8163.10.1039/C6DT00212ASearch in Google Scholar

Dong, W. K.; Ma, J. C.; Dong, Y. J.; Zhu, L. C.; Zhang, Y.: Di- and tetranuclear heterometallic 3d-4f cobalt(II)-lanthanide(III) complexes derived from a hexadentate bisoxime: syntheses, structures and magnetic properties. Polyhedron 115 (2016) 228–235.10.1016/j.poly.2016.05.017Search in Google Scholar

Wang, L.; Ma, J. C.; Dong, W. K.; Zhu, L. C.; Zhang, Y.: A novel self-assembled nickel(II)-cerium(III) heterotetranuclear dimer constructed from N2O2-type bisoxime and terephthalic acid: synthesis, structure, and photophysical properties. Z. Anorg. Allg. Chem. 642 (2016) 834–839.10.1002/zaac.201600125Search in Google Scholar

Dong, W. K.; Ma, J. C.; Zhu, L. C.; Sun, Y. X.; Sunday, F. A.; Zhang, Y.: A series of heteromultinuclear zinc(II)-lanthanide(III) complexes based on 3-MeOsalamo:syntheses, structural characterizations, and luminescent properties. Cryst. Growth Des. 14 (2016) 6903–6914.10.1021/acs.cgd.6b01067Search in Google Scholar

Dong, W. K.; Li, X. L.; Wang, L.; Zhang, Y.; Ding, Y. J.: A new application of Salamo-type bisoximes: As a relay-sensor for Zn2+/Cu2+ and its novel complexes for successive sensing of H+/OH−. Sens. Actuators B 229 (2016) 370–378.10.1016/j.snb.2016.01.139Search in Google Scholar

Dong, W. K.; Sunday, F. A.; Zhang, Y.; Sun, Y. X.; Dong, X. Y.: A reversible “turn-on” fluorescent sensor for selective detection of Zn2+. Sens. Actuators B 238 (2017) 723–734.10.1016/j.snb.2016.07.047Search in Google Scholar

Dong, W. K.; Sun, Y. X.; Zhao, C. Y.; Dong, X. Y.; Xu, L.: Synthesis, structure and properties of supramolecular Mn(II), Co(II), Ni(II) and Zn(II) complexes containing Salen-type bisoxime ligands. Polyhedron 29 (2010) 2087–2097.10.1016/j.poly.2010.04.006Search in Google Scholar
