Crystal structure of 11-oxo-2,3,6,7-tetrahydro-1H,5H,11H-pyrano[2,3-f]pyrido[3,2,1-ij]quinoline-10-carbaldehyde - a julolidine derivative, C16H15NO3

  • Yingfan Liu , Kaiming Mao , Xiaochuan Li EMAIL logo and Young-A Son EMAIL logo
Published/Copyright: September 25, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 6

Abstract

C16H15NO3, monoclinic, P21/c (no. 14), a = 9.802(1) Å, b = 14.492(1) Å, c = 9.667(1) Å, β = 112.027(1)°, V = 1272.9 Å3, Z = 4, Rgt(F) = 0.0422, wRref(F2) = 0.1249, T = 296 K.

CCDC no.: 1543757

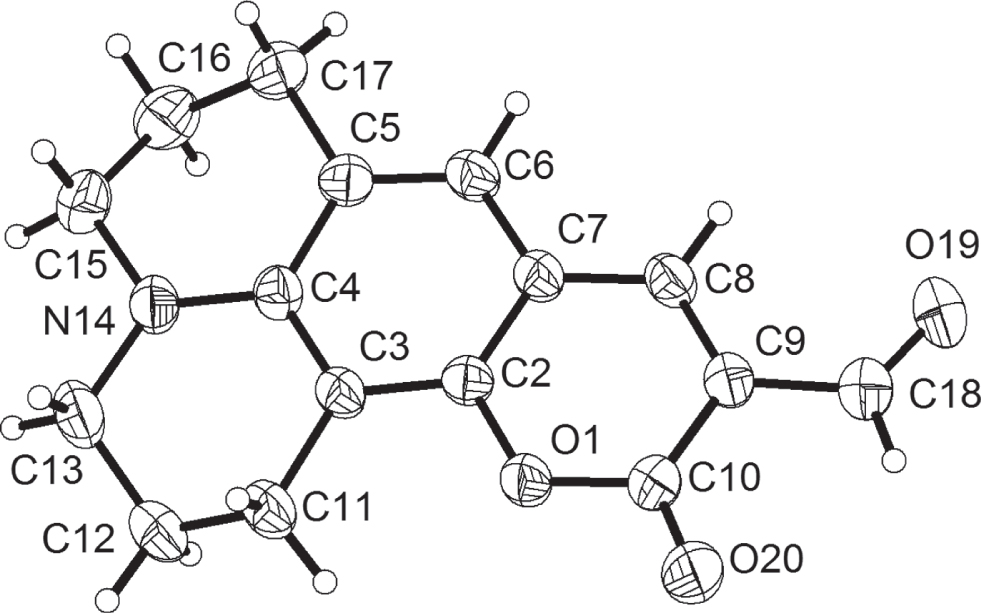

The crystal structure is shown in the figure. Displacement ellipsoids are drawn at the 50% probability level and H atoms are shown as small spheres of arbitrary radii. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:purple block
Size:0.22 × 0.19 × 0.18 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.10 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
2θmax, completeness:28.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:34108, 3173, 0.062
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2240
N(param)refined:186
Programs:Bruker [1], SHELX [2], Diamond [3], ORTEP, WinGX [4]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.47668(10)0.11771(5)0.18064(10)0.0376(2)
C20.55368(13)0.18839(8)0.14740(13)0.0311(3)
C30.66213(13)0.16271(8)0.09744(13)0.0325(3)
C40.74475(13)0.23394(8)0.06400(12)0.0320(3)
C50.70775(14)0.32889(9)0.07403(13)0.0351(3)
C60.60049(14)0.34942(8)0.12724(13)0.0359(3)
H60.57890.41100.13670.043*
C70.52149(13)0.28073(8)0.16821(13)0.0326(3)
C80.41771(13)0.29746(8)0.23347(14)0.0348(3)
H80.39850.35800.25250.042*
C90.34402(13)0.22727(9)0.26989(13)0.0346(3)
C100.36769(14)0.13314(9)0.23612(14)0.0383(3)
C110.69726(15)0.06282(9)0.08249(17)0.0450(3)
H11A0.63680.0407−0.01620.054*
H11B0.67490.02610.15520.054*
C120.85793(16)0.05188(10)0.10690(17)0.0496(4)
H12A0.91810.06500.21030.060*
H12B0.8768−0.01130.08590.060*
C130.89856(17)0.11638(9)0.00698(17)0.0484(4)
H13A1.00340.11190.02910.058*
H13B0.84710.0982−0.09620.058*
N140.86116(12)0.21214(7)0.02647(12)0.0389(3)
C150.94382(16)0.28225(10)−0.01761(16)0.0454(3)
H15A0.90080.2901−0.12500.054*
H15B1.04440.26130.00850.054*
C160.94457(15)0.37357(10)0.05624(17)0.0506(4)
H16A0.99250.41950.01700.061*
H16B0.99990.36820.16270.061*
C170.78955(15)0.40408(9)0.02897(17)0.0455(3)
H17A0.73860.4184−0.07590.055*
H17B0.79200.45950.08610.055*
C180.24370(16)0.24397(11)0.34589(15)0.0435(3)
H180.2000(19)0.1914(12)0.3647(18)0.069(5)*
O190.21677(11)0.31875(7)0.38520(11)0.0536(3)
O200.30346(12)0.06559(7)0.25281(13)0.0588(3)

Source of material

The title compound was synthesized according to standard Vilsmeier-Haack conditions, under which formylation at 3-position of julolidine [2,3]quinolone occurred efficiently [5, 6] . All chemicals used were commercially available of AR grade, and were used as received without further purification. The purple crystals of the title compound were obtained by slow evaporation of an ethanol solution at room temperature.

Experimental details

The hydrogen atoms were placed geometrically and refined using a riding model with d(C—H) = 0.93 Å (aromatic), 0.97 Å (-CH2-), 0.925 Å (-COH). Uiso(H) = 1.2 Ueq(C) for COH and CH2 groups.

Discussion

Fluorescent molecules fascinate the physicists and chemists owing to the application of fluorescence signal in smart material artificial intelligence. Intensive effort and development have been made and engineered according to requirement of device fabrication and material research [7], [8], [9], [10].

The coumarin moiety (O1/C2/C3/C4/C5/C6/C7/C8/C9/C10) is planar with the mean deviation 0.043 Å. However, the adjacent aliphatic moiety is twisted out of the molecular plane due to the envelope conformation. Two carbonyl oxygen atoms are present in molecule, which are polarized and are gathered by more electron density. Chances are that oxygen atoms may involve H⋯O interactions. Actually, C—H⋯O, C–H⋯π, and π⋯π interactions are predominant weak forces that joint the molecule into a crystal. All the oxygen atoms including O1, O19, and O20 are involved in C—H⋯O interactions: C11–H11A⋯O1i1 (i1: x, y, 1 + z), C12—H12B⋯O19i2 (i2: x, 1/2 − y, 1/2 + z), C15–H15B⋯O19i2, C16—H16B⋯O19i2, C6–H6⋯O20i3 (i3: x, y, 1 + z), and C17—H17B⋯O20i3. The distance of C⋯O varied from 3.53 to 3.75 Å, which falls inside the normal C⋯O interval of C–H⋯O interactions [11]. The H⋯O distances range from 2.50 to 2.78 Å and the C—H⋯O angles vary from 138° to 153°, indicating very weak H⋯O interactions. It is worthy to note that the H⋯O interactions with O19 and O20 involve in the crystal are more complicated than the interaction with O1, in which one oxygen atom involve two or more hydrogen bonds. The carbonyl C18 = O19, hovering above the carbon ring (O1/C2/C7/C8/C9C10), configure the π⋯π interactions.

Apart from the interactions mentioned above, more weaker interactions that cannot be neglected are C—H⋯π interactions, to which hydrogen atoms of methylene contribute and interact with the coumarin ring.

Acknowledgement

This work was supported by the National Natural Science Foundation of China (21272060). This work was supported by the industrial Fundamental Technology Development Program (10076350) funded by the Ministry of Trade, Industry and Energy (MOTIE) of Korea.

References

Bruker. APEX2 (Version 2.1.4), SAINT (Version 7.34A) and SADABS (Version 2004/1). Bruker AXS Inc., Madison, Wisconsin, USA (2005).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Brandenburg, K.; Putz, H.: Diamond-crystal and molecular structure visualization. Crystal impact GbR, Rathausgasse 30, D-53111 Bonn, Germany (2005).Search in Google Scholar

Farrugia, L. J.: WinGX and ORTEP for windows: an update. Appl. Cryst. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

Lee, B.; Chen, S.; Heinis, C.; Scopelliti, R.; Severin, K.: Pattern-based sensing of peptides and aminoglycosides with a single molecular probe. Org. Lett. 15 (2013) 3456–3459.10.1021/ol401495cSearch in Google Scholar PubMed

Yuan, L.; Lin, W.; Song, J.; Yang, Y.: Development of an ICT-based ratiometric fluorescent hypochlorite probe suitable for living cell imaging. Chemm. Commun. 47 (2011) 12691–12693.10.1039/c1cc15762kSearch in Google Scholar PubMed

Li, X.; Ji, G., Son, Y.-A.: Tunable emission of hydrazine-containing bipyrrole fluorine-boron complexes by linear extension. Dye Pigments 124 (2016) 232–240.10.1016/j.dyepig.2015.09.022Search in Google Scholar

Qu, D.-H.; Wang, Q.-C.; Zhang, Q.-W.; Ma, X.; Tian, H.: Photoresponsive host-guest functional systems. Chem. Rev. 115 (2015) 7543–7588.10.1021/cr5006342Search in Google Scholar PubMed

Li, H.; Qu, D.-H.: Recent advances in new-type molecular switches. Sci. China Chem. 58 (2015) 916–921.10.1007/s11426-015-5417-7Search in Google Scholar

Li, X.; Son, Y.-A.: Efficient luminescence from easily prepared fluorine-boron core complexes based on benzothiazole and benzoxazole. Dye Pigments 107 (2014) 182–187.10.1016/j.dyepig.2014.04.001Search in Google Scholar

Desiraju, G. R.: The C–H⋯O hydrogen bond in crystals: What is it? Acc. Chem. Res. 24 (1991) 290–296.10.1021/ar00010a002Search in Google Scholar

Received: 2017-4-16
Accepted: 2017-8-29
Published Online: 2017-9-25
Published in Print: 2017-11-27

©2017 Yingfan Liu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
