Crystal structure of 1-(carboxymethyl)-1H-benzo[d][1,2,3]triazole 3-oxide, C8H7N3O3

  • Minxia Yu EMAIL logo
Published/Copyright: October 12, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 6

Abstract

C8H7N3O3, monoclinic, P21/c (no. 14), a = 7.2526(12) Å, b = 10.0770(18) Å, c = 11.906(2) Å, β = 104.393(3)°, V = 842.8(2) Å3, Z = 4, Rgt(F) = 0.0375, wRref(F2) = 0.0766, T = 293 K.

CCDC no.:: 1577308

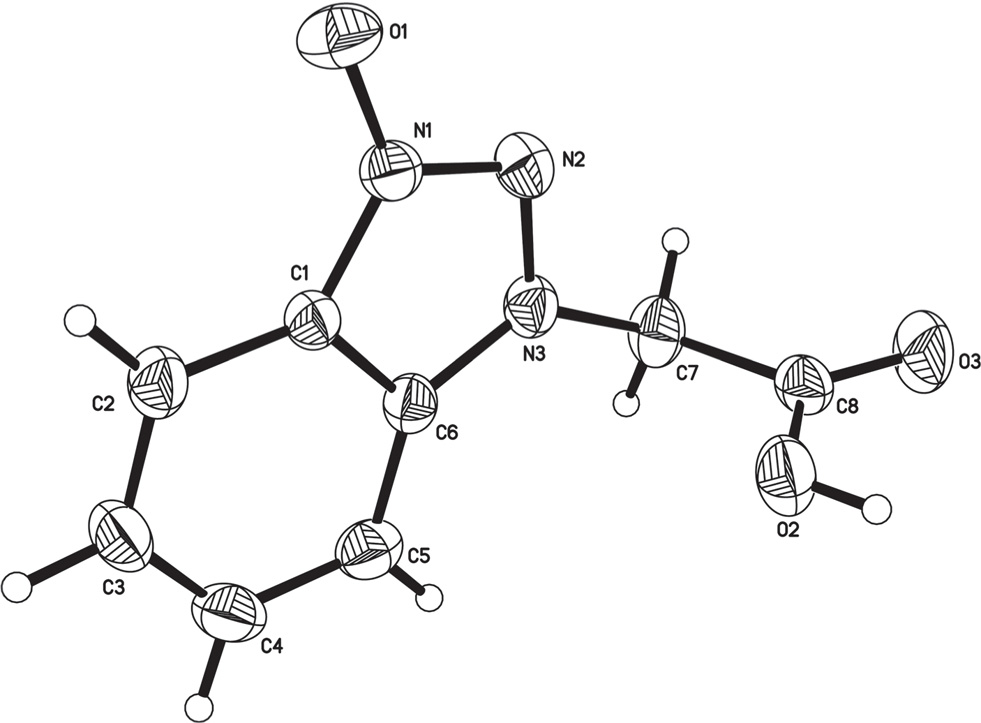

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Block, colorless
Size:0.25 × 0.20 × 0.15 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.12 mm−1
Diffractometer, scan mode:Bruker APEX2, φ and ω-scans
2θmax, completeness:25.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:4506, 1486, 0.027
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1244
N(param)refined:128
Programs:Bruker programs [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.7606(2)0.00246(17)0.86168(14)0.0311(4)
C20.7214(3)−0.12802(19)0.88667(17)0.0399(5)
H20.7050−0.19530.83160.048*
C30.7088(3)−0.1504(2)0.99762(18)0.0468(5)
H30.6822−0.23571.01890.056*
C40.7348(3)−0.0484(2)1.08055(18)0.0485(5)
H40.7245−0.06871.15500.058*
C50.7745(3)0.0796(2)1.05629(16)0.0418(5)
H50.79130.14661.11170.050*
C60.7883(2)0.10338(17)0.94307(15)0.0318(4)
C70.8661(3)0.34894(18)0.92805(18)0.0417(5)
H7A0.96410.38680.89530.050*
H7B0.91380.34861.01170.050*
C80.6915(3)0.43563(18)0.89612(15)0.0372(4)
N10.7873(2)0.06056(15)0.76254(12)0.0334(4)
N20.8291(2)0.18682(15)0.77669(13)0.0371(4)
N30.8311(2)0.21316(14)0.88787(13)0.0350(4)
O10.77648(19)0.00258(14)0.66317(11)0.0459(4)
O20.53514(19)0.37066(13)0.89260(13)0.0493(4)
H2A0.44470.42210.87770.074*
O30.7021(2)0.55186(14)0.87779(14)0.0595(4)

Source of material

A mixture of 1H-benzo[d][1,2,3]triazol-1-ol (1 mmol, 135 mg), 2-chloroacetic acid (1 mmol, 94 mg) and sodium hydroxide (1 mmol, 40 mg) in ethanol (30 mL) under reflux conditions (351 K) for 2 h. The compound formed was filtered off, and dried. The solid product was recrystallized from dichloromethane. After three days colourless, block-shaped crystals were obtained.

Experimental details

All H atoms were placed in idealized positions (C—H = 0.93 Å (aromatic), C—H = 0.97 Å (methylene), O—H = 0.82 Å) and refined using a riding model. The Uiso values were constrained to be 1.2Ueq of the carrier atom for aromatic H atoms and methylene H atoms, 1.5Ueq for the carboxyl H atom.

Discussion

Benzotriazole and its derivatives have attracted a great interest because of their biological activities such as anti-inflammatory, anti-viral, diuretic and anti-hypertensive [3], [4], [5], [6]. In order to search for new benzotriazoles with higher bioactivity, the title compound was synthesized and its crystal structure is reported here.

The asymmetric unit of the title compound contains one molecule of the title compound Bond lengths and angles are in the expected ranges [7], [8], [9], [10]. The benzotriazole ring is essentially planar with the maximum deviation from planarity being 0.024(15) Å for atom C1. In the crystal structure, the intermolecular O—H…O hydrogen bonds link the molecules into zigzag chains along the b axis. The adjacent infinite chains are further connected by π⋯π interactions between the benzene rings with the centroid-centroid distance of 3.578(13) Å [symmetry code: 2-x, − y, 2 − z] into a two dimensional network.

Acknowledgement

This work was financial supported by Changsha Enviromental Protection College.

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA (2009).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Wang, W.; Mei, Z.-H.: 2-(1H)-Benzotriazol-1-yl)-1-(3-methoxybenzoyl)ethyl isonicotinate. Acta Crystallogr. E65 (2009) o357.10.1107/S1600536809001196Search in Google Scholar PubMed PubMed Central

Chen, Z.-Y.; Wu, M.-T.: Reaction of (Z)-1-aryl-3-hexen-1,5-diynes with sodium azide: synthesis of 1-aryl-1H-benzotriazoles. Org. Lett. 7 (2005) 475–477.10.1021/ol047563qSearch in Google Scholar PubMed

Hu, K.-C.; Li, G.-J.: 2-(1H-Benzotriazol-1-yl)-1-(4-bromobenzoyl)ethyl 2-chlorobenzoate. Acta Crystallogr. E65 (2009) o443.10.1107/S1600536809002712Search in Google Scholar PubMed PubMed Central

Brink, B. D.; DeFrancisco, J. R.; Hillner, J. A.; Linton, B. R.: Curtin-Hammett and steric effects in HOBt acylation regiochemistry. J. Org. Chem. 76 (2011) 5258–5263.10.1021/jo200346rSearch in Google Scholar PubMed

Nayagam, B. R. D.; Jebas, S. R.; Shakina, L.; Murugesan, P.; Schollmeyer, D.: 1-Mesitylmethyl-1Hbenzotriazole 3-oxide. Acta Crystallogr. E66 (2010) o637.10.1107/S1600536810004824Search in Google Scholar PubMed PubMed Central

Grace, P. S.; Jebas, S. R.; Nayagam, B. R. D.; Schollmeyer, D.: 1-Benzyl-1H-benzotriazole 3-oxide monohydrate. Acta Crystallogr. E68 (2012) o3297.10.1107/S1600536812044868Search in Google Scholar PubMed PubMed Central

Tan, X.; Hong, W.; Wang, M.; Wang, H.: Crystal structure of methyl 3-((1-(2-(methoxy-carbonyl)benzyl)-1H-1,2,3-triazol-4-yl)methoxy)-2-naphthoate, C24H21N3O5. Z. Kristallogr. NCS 232 (2017) 273–274.10.1515/ncrs-2016-0236Search in Google Scholar

Brito, I.; Kesternich, V.; Pérez-Fehrmann, M.; Bugueño, A.; Araneda, C.; Cárdenas, A.: Crystal structure of ethyl 1-(4-chlorophenyl)-5-methyl-1H-1,2,3-triazole-4 carboxylate, C12H12ClN3O2. Z. Kristallogr. NCS 232 (2017) 479–480.10.1515/ncrs-2016-0328Search in Google Scholar
