Synthesis and crystal structure of bis{1-(((4-(1-(hydroxyimino)ethyl)phenyl)imino)methyl)naphthalen-2-olato-κ2O,N}copper(II), C38H30CuN4O4

  • Peng-Peng Li , Li Zhao EMAIL logo , Ji-Xing Zhao , Zhao-Bin Zhu , Fei Wang and Qin-Qin An
Published/Copyright: October 16, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 6

Abstract

C38H30CuN4O4, triclinic, P1̅ (no. 2), a = 8.3882(7) Å, b = 8.5024(9) Å, c = 11.3649(15) Å, α = 89.960(10)°, β = 69.689(10)°, γ = 80.269(8)°, Z = 1, V = 747.73(15) Å3, Rgt(F) = 0.0701, wRref(F2) = 0.1308, T = 294.68(10) K.

CCDC no.:: 1577232

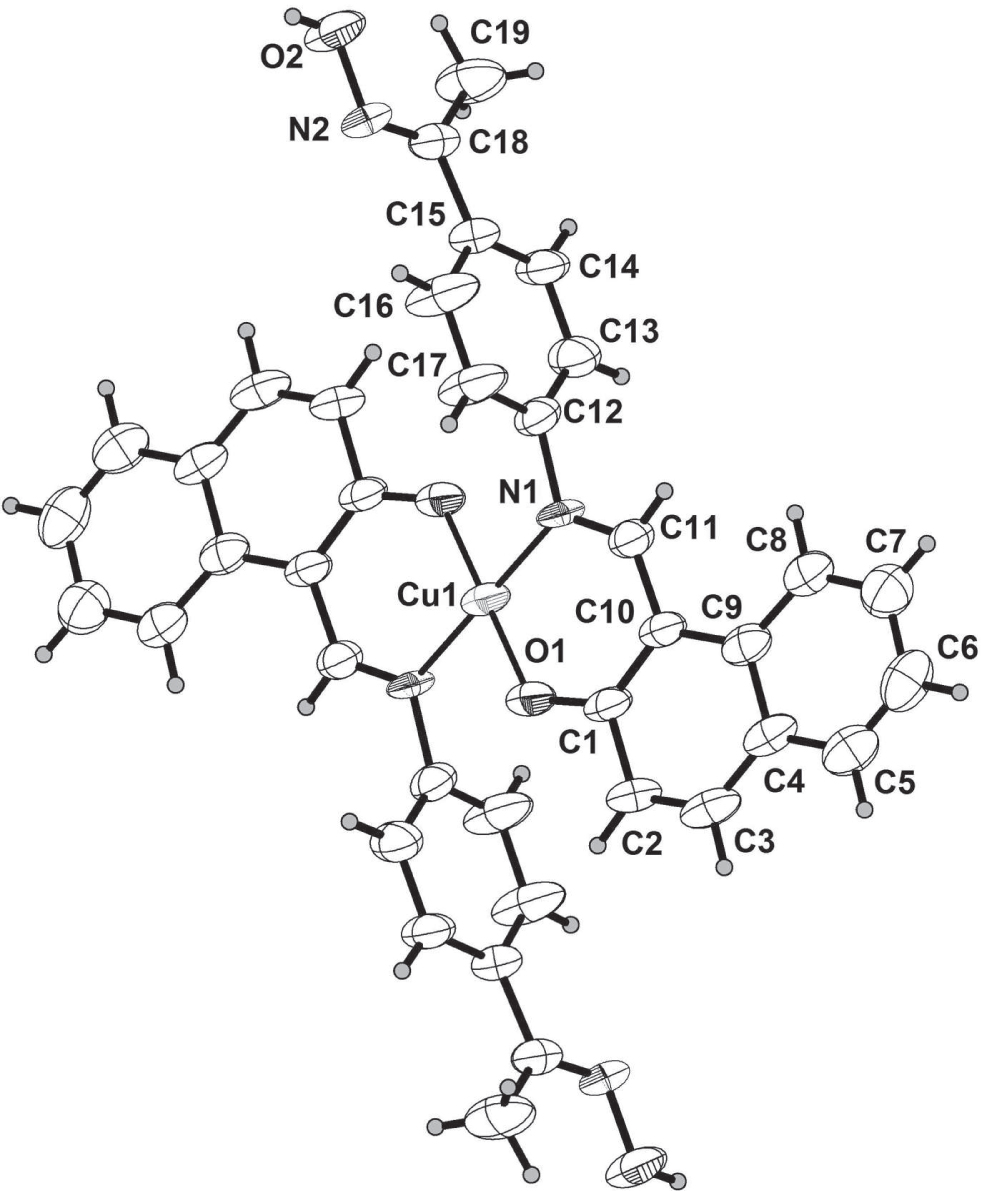

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Plate, clear dark brown
Size:0.33 × 0.06 × 0.05 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.78 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
2θmax, completeness:52°, >99%
N(hkl)measured, N(hkl)unique, Rint:4922, 2937, 0.064
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1377
N(param)refined:216
Programs:CrysAlisPRO [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cu10.00000.50000.50000.0555(4)
O1−0.1112(4)0.4015(4)0.6475(3)0.0566(10)
O20.4070(5)1.3655(4)0.2875(4)0.0761(13)
H20.34421.45360.30600.114*
N10.1372(5)0.5887(5)0.5868(4)0.0483(12)
N20.3262(5)1.2525(5)0.3677(4)0.0580(13)
C1−0.0549(6)0.3592(6)0.7385(5)0.0477(14)
C2−0.1496(6)0.2541(6)0.8236(5)0.0559(16)
H2A−0.24020.21760.80930.067*
C3−0.1066(7)0.2086(7)0.9242(5)0.0629(17)
H3−0.17210.14360.97950.076*
C40.0340(7)0.2552(6)0.9496(5)0.0542(16)
C50.0784(8)0.2034(7)1.0528(6)0.0670(18)
H50.01300.13821.10810.080*
C60.2135(9)0.2460(8)1.0734(6)0.0731(19)
H60.24100.20941.14230.088*
C70.3136(8)0.3444(7)0.9928(6)0.0721(18)
H70.40830.37181.00730.086*
C80.2719(7)0.4001(6)0.8932(6)0.0586(16)
H80.33750.46790.84120.070*
C90.1304(7)0.3574(6)0.8659(5)0.0500(14)
C100.0811(6)0.4123(6)0.7608(5)0.0459(14)
C110.1602(6)0.5334(6)0.6875(5)0.0493(15)
H110.23650.57750.71480.059*
C120.2192(7)0.7244(6)0.5376(5)0.0494(14)
C130.3821(6)0.7020(7)0.4519(6)0.0665(18)
H130.44830.59980.43310.080*
C140.4505(6)0.8302(7)0.3920(5)0.0587(17)
H140.56230.81240.33330.070*
C150.3580(6)0.9815(6)0.4170(5)0.0476(14)
C160.1977(7)1.0046(7)0.5116(5)0.085(2)
H160.13581.10790.53650.102*
C170.1276(8)0.8761(8)0.5700(6)0.084(2)
H170.01780.89350.63140.101*
C180.4272(7)1.1166(7)0.3418(5)0.0513(15)
C190.5998(7)1.0847(7)0.2414(5)0.088(2)
H19A0.59981.00940.17850.132*
H19B0.68521.04130.27690.132*
H19C0.62641.18260.20390.132*

Source of material

Preparation of the ligand: 4-Amino acetophenone oxime was prepared by a similar method reported earlier [3], [4], [5]. 4-amino acetophenone oxime (148.2 mg, 1 mmol) in EtOH (5 mL) was added into 2-hydroxy-1-naphthaldehyde (175.2 mg, 1 mmol) in EtOH (5 mL). The reaction mixture was stirred under reflux at 328 K for 8 h. Then the mixture was filtered and washed, successively, after removing the solvent. The raw product was recrystallized with EtOH to get a yellow solid (yield 86.5%). Elemental analysis – Anal. calcd. for C19H16N2O2: C, 74.98%; H, 5.30%; N, 9.20%; Found: C, 75.02%; H, 5.28%; N, 9.16%.

Preparation of the copper(II) complex: A solution of copper(II) acetate monohydrate (2.1 mg, 0.01 mmol) in EtOH (2 mL) was added dropwise to a solution of 1-(4-(((2-hydroxynaphthalen-1-yl)methylene)amino)phenyl)ethan-1-one oxime (6.0 mg, 0.02 mmol) in EtOH (3 mL) at room temperature. The colour of the solution turned to brown immediately. After stirring for 1 h at room temperature, the mixture was filtered and the filtrate was allowed to stand at room temperature for two weeks. We obtained several clear dark brown block crystals. Elemental analysis – Anal. calcd. for C38H30CuN4O4: C, 68.10%; H, 4.51%; N, 8.36%; Found: C, 68.12%; H, 4.49%; N, 8.32%.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

Transition metal complexes with oxime-type (-C = N—OR) ligands are an important research field at present [6], [7], [8]. And they have coordination abilities, which leads to potential application on photophysical properties materials [9, 10] and supramolecular architectures [11, 12] and so on.

We have designed and synthesized a new copper(II) complex. The complex is located at an inversion center. In the title complex, all bond lengths are in normal ranges. Cu1 atom is four-coordinated by two O atoms and two N atoms from two ligands. In the crystal structure, each molecule links two other adjacent ones into a 1D supramolecular structure through intermolecular O2–H2⋯O1′ hydrogen bonds.

Acknowledgement

This work was supported by the Science Foundation of Gansu Education Department of China (2017A-023).

References

Agilent Technologies: CrysAlisPRO Software system, version 1.171.36.32, Agilent Technologies UK Ltd, Oxford, UK, (2013).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Zhao, L.; Zhao, J. X.; An, Q. Q.; Wang, F.: Crystal structure of (E)-1-(4-(((E)-3,5-dibromo-2-hydroxybenzylidene)amino)phenyl)ethan-1-one O-methyl oxime C17H16Br2N2O2. Z. Kristallogr. NCS 231 (2016) 1053–1054.10.1515/ncrs-2016-0047Search in Google Scholar

Zhao, L.; Dong, X. T.; Zhang, S. T.; Chen, Q.: Crystal structure of 1-(4-{[(E)-5-bromo-2-hydroxybenzylidene]amino}phenyl)ethanone oxime, C15H13BrN2O2. Z. Kristallogr. NCS 227 (2012) 101–102.10.1524/ncrs.2012.0046Search in Google Scholar

Yang, Y. H.; Wu, J. C.; Gong, S. S.; Wang, J. S.: 4-bromo-2-({4-[(hydroxyimino)methyl]phenyl}imino-methyl)phenol. Acta Crystallogr. E66 (2010) o2014.10.1107/S160053681002698XSearch in Google Scholar PubMed PubMed Central

Cinčić, D.; Friščić, T.: Synthesis of an extended halogen-bonded metal-organic structure in a one-pot mechanochemical reaction that combines covalent bonding, coordination chemistry and supramolecular synthesis. CrystEngComm 16 (2014) 10169–10172.10.1039/C4CE01815JSearch in Google Scholar

Zhu, P. H.; Wang, H. Y.; Wang, Y.; Chen, Y. L.; Wei, Q.: Bis{1-[(4-methylphenyl)iminomethyl]-2-naphtholato-κ2 N,O}copper(II). Acta Crystallogr. E66 (2010) m1076.10.1107/S1600536810030667Search in Google Scholar PubMed PubMed Central

Li, X. B.; Li, X. J.; Meng, W. S.; Zhang, Y. J.; Li, G.: Bis[2,4-dibromo-6-(N-{4-[(E)-1-(benzyloxyimino)eth-yl]phenyl} carboximidoyl)phenolato]copper(II). Acta. Crystallogr. E69 (2013) m267.10.1107/S1600536813009847Search in Google Scholar PubMed PubMed Central

Sun, Y. X.; Li, C. Y.; Yang, C. J.; Zhao, Y. Y.; Guo, J. Q.; Yu, B.: Two Cu(II) complexes with schiff base ligands: synthesis, crystal structure, spectroscopic properties, and substituent effect. Chinese J. Inorg. Chem. 32 (2016) 327–335.Search in Google Scholar

Dong, W. K.; Gong, S. S.; Tong, J. F.; Sun, Y. X.; Wu, J. C.: Syntheses and structure of two copper(II) complexes with salicyl mono-oxime ligands. Chinese J. Inorg. Chem. 26 (2010) 1868–1874.Search in Google Scholar

Zhao, L.; Dong, X. T.; Sun, Y. X.; Cheng, Q.; Dong, X. Y.; Wang, L.: Synthesis, crystal structure and thermal property of a 1D chain-like copper(II) complex. Chinese J. Inorg. Chem. 28 (2012) 2413–2418.Search in Google Scholar

Sun, Y. X.; Lu, R. E.; Li, X. R.; Zhao, Y. Y.; Li, C. Y.: A Schiff base ligand containing oxime group and its Cu(II) complex: syntheses and supramolecular structures. Chinese J. Inorg. Chem. 31 (2015) 1055–1062.Search in Google Scholar

Received: 2017-6-8
Accepted: 2017-9-29
Published Online: 2017-10-16
Published in Print: 2017-11-27

©2017 Peng-Peng Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
