Ground-motion prediction equation and site effect characterization for the central area of the Main Syncline, Upper Silesia Coal Basin, Poland

1 Introduction

Underground mining of coal, in aseismic areas like the Upper Silesia Coal Basin (USCB) (Figure 1), leads to a disturbance of the rock mass equilibrium. Furthermore, it triggers or induces the accumulated elastic energy release as an earthquake that may result in perceptible shaking on the surface which can even damage the infrastructure. For hazard assessment purpose, it is necessary to predict scale of the ground motion based on the Ground-Motion Prediction Equation, GMPE [1,2,3,4]. The GMPE, in addition to the parameter representing the source (energy) and path (distance), takes into account also the influence of the surface layer at the measurement site (amplification) [1, 2]. The highest attenuation takes place in a medium with inelastic properties, i.e. loose rocks [5,6,7,8]. However, for specific geological conditions of near surface layers, the amplitude amplification may occur for the corresponding resonance frequency of loose layers which is related to the velocity of seismic waves and the thickness of these layers [9].

Figure 1

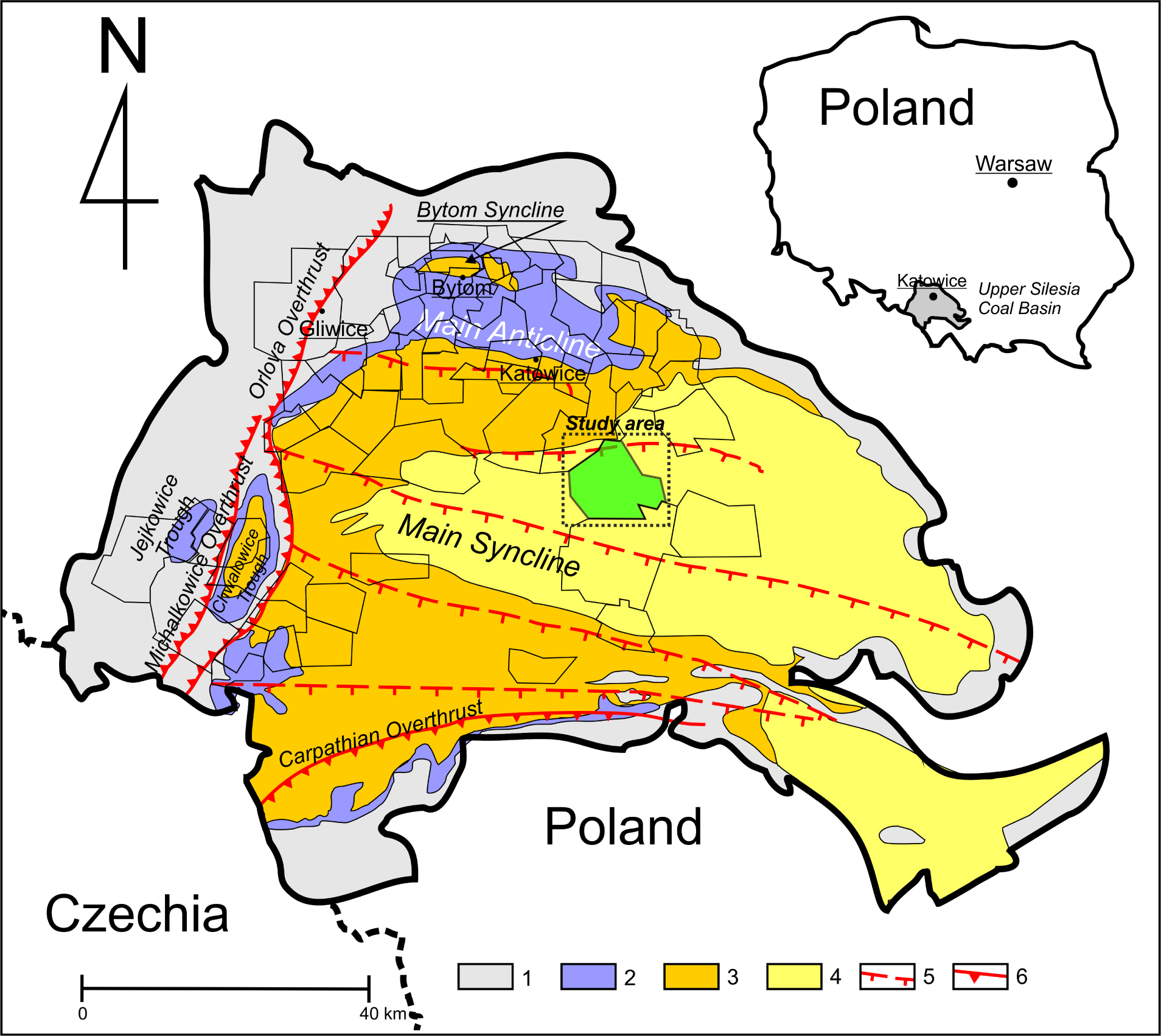

Lithostratigraphy and tectonics of the USCB: 1 – Paralic Series (upper Mississippian-lower Pennsylvanian), 2 – Upper Silesian Sandstone Series (lower Pennsylvanian), 3 – Mudstone Series (lower-middle Pennsylvanian), 4 – Krakow Sandstone Series (middle Pennsylvanian), 5 – important faults, 6 – overthrusts (Modified after Kędzior [11])

Therefore, the main aim of the research was to find the best model of GMPE relation in the mining area of “Ziemowit” Coal Mine, located in the Upper Silesian Coal Basin in the central area of the Main Syncline (Figure 1) representing one of the most active mining areas [10]. A model of a forecasting equation was proposed which provides for local effects (amplification coefficient) at the location of seismometer stations. In addition, the parameter h, being the estimated depth of exploitation, was also taken into account in the calculation of the model [3,5].

2 Site characterization

The “Ziemowit” Coal Mine is located in Bieruń and Lędziny commune, and it belongs to the Polish Mining Group. The mine includes two mining areas: “Lędziny I” and “Imielin I” and their mining areas cover the entire city of Lędziny and partially: Imielin, Chełm Śąlski, Bieruń, Tychy, Katowice and Mysłowice. The “Lędziny I” area is located in the central part of the Main Syncline in USCB where the hanging wall block of “Książęcy” normal fault is present. The layers are inclined in the South-East direction at an angle of 2°-8°. Here, the coal seams are cut by a large number of faults that divide them into technical blocks [12]. Moreover, the major tectonic disturbances in this area are represented by: the Lędziński fault zone, the Imieliński-Wanda fault zone, the fault zone at the contact of Lędziński and Smardzowicki faults. The minor tectonic zones are represented by Chełmski fault, Eastern fault, Western fault, Piastowski fault and Ławecki fault (Figure 2). The “Imielin I” mining area is located on the border of the central and eastern part of the Main Syncline (the hanging wall block). Layers extend in the directions from S-N to NWW-SEE. The dip varies from 3° -10° and its azimuth changes from the north to the south Main Syncline. In the northern part, it is rather S, E and SE, but in the southern part it is SW [12]. The coal seams in this mining area are cut by many faults with throw reaching values of 160 m. The largest dislocations have the NW-SE course and NS directions creating the Imieliński fault zone [12].

Figure 2

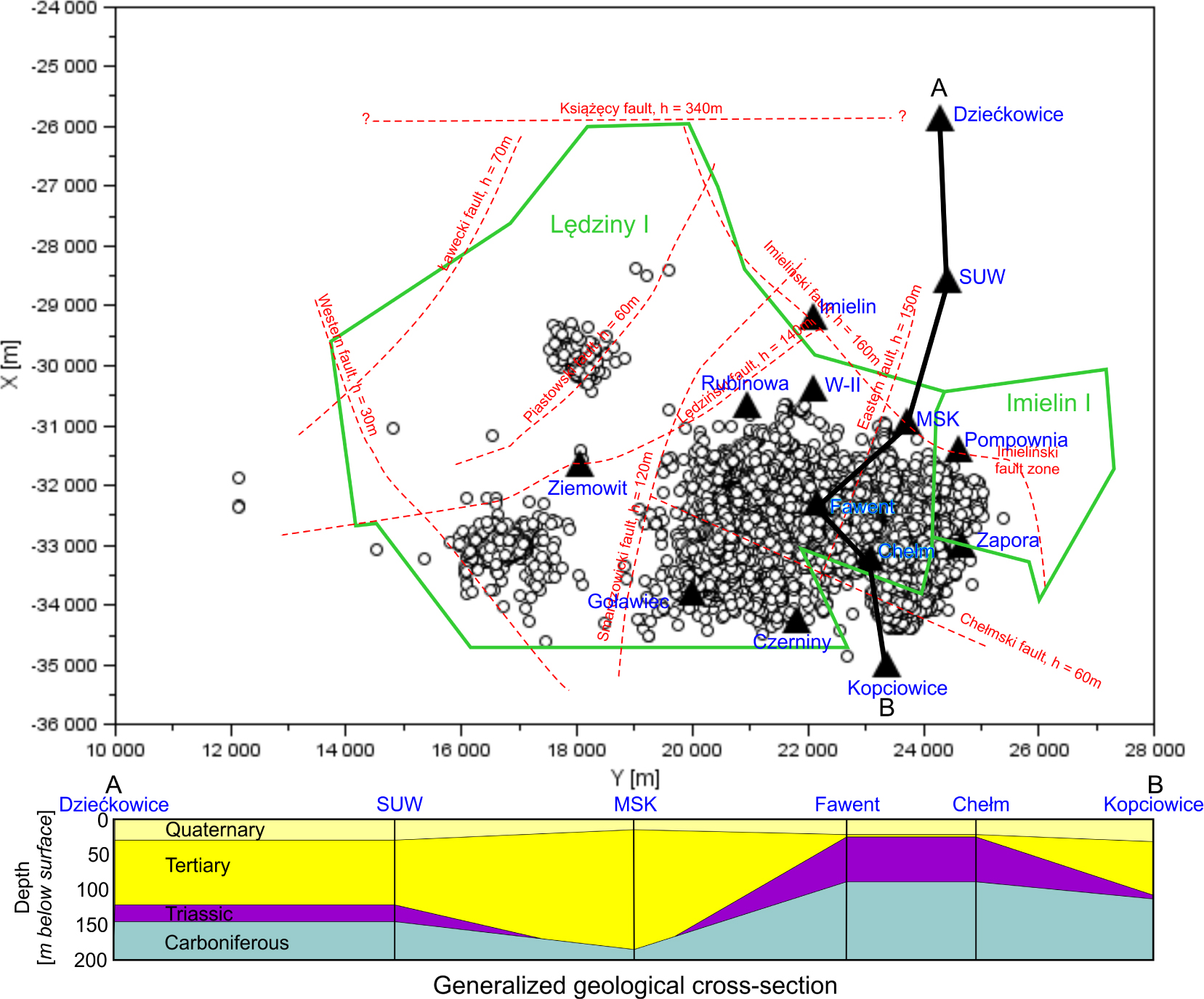

Map of seismometer station locations on July 25, 2016 (black triangles), epicenters of mining tremors (dots) recorded during the period from 2010 – 2016, mining area (green lines) and main faults (red dashed lines) – all data are in the Sucha Góra geodetic system. Below the map: generalized geological cross-section AB with main geological formations.

The overburden consists of the formations of the Quaternary and Tertiary (Table 1) [12]. Quaternary deposits are present in entire study area and cover Tertiary and Triassic layers which form the irregular arranged blocks. Below those rock, the Carboniferous creates a rigid basement. However, in some cases the Tertiary or Triassic formations are the rigid basement (Table 1).

The seismic stations located (Figure 2) in the northern part of the study area (Dziećkowice, SUW, Imielin, W-II) are installed in similar geological conditions, represented by approximately 30 m thick formation of the Quaternary sandy deposit (Table 2). Below the Quaternary complex, there are Tertiary sediments composed mainly of clays and silts, their thickness reaches 90m and they cover Triassic marls formation. The central part of study area, where Rubinowa, Ziemowit, Goławice, Pompownia stations are located, is characterized by ca. 15 m sandy Quaternary deposit covering very thick formation of Tertiary formations (thickness reaches 170 m) (Table 2). In the vicinity of Fawent and Chełm stations, the Triassic marls are very shallow – ca. 25 m below the surface(Table 2), and they are covered by a 20-meters layer of sands (Quaternary) and a thin 5-meter layer of silts (Teriary) (Table 2). The southern part of the study area (Czerniny and Kopciowice stations) is located in the area where the Quaternary deposit is about 15m thick and covers a 35-meters formation of Tertiary sediments and Triassic marls (Table 2). Specific geology can be found below the Zapora station, there are 9-meter thick Quaternary sediments (sands and clays) covering a 9-meter thick Tertiary silt and this last layer is situated on Triassic dolomites (Table 2) [12].

3 Data and methods

4 Results and discussion

The best model of GMPE was searched iteratively with respect to the h parameter representing depth. The h-value was changed from 200m to 1200m below surface with the step of 50m (Figure 3). The assessment of the best model was based on the values of R² and SEE (Figure 3) and it indicated that the satisfactory results were obtained for h = 900m because SEE = 0.232, where it actually assumes the lowest value and it corresponds to the highest value of R² = 0.74 (Table 3). Moreover, this depth below surface corresponds to the average depth of exploitations in the mine.

Figure 3

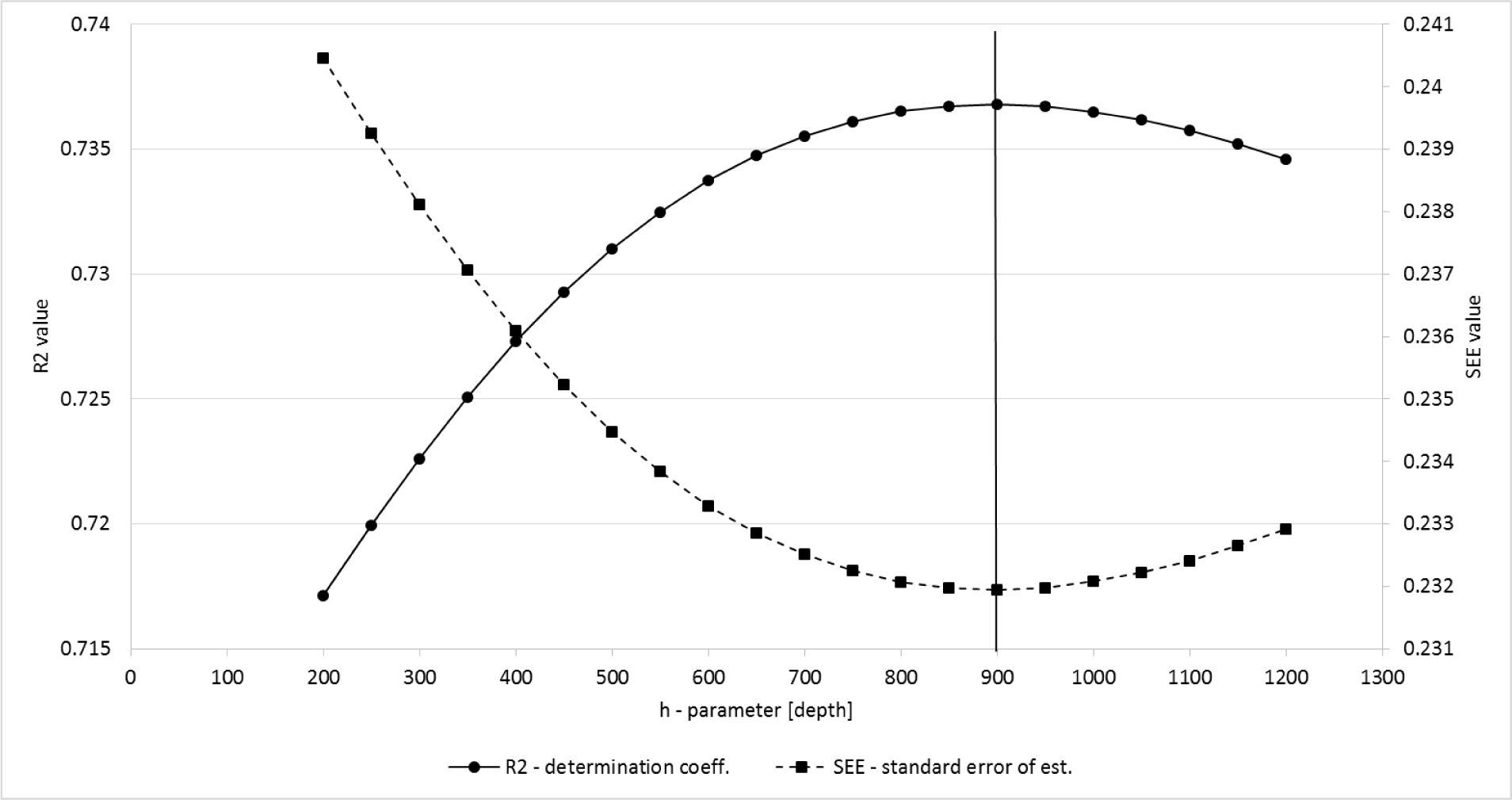

Changes of R² and SEE values with increasing h-parameter. Best solution for h = 900m.

The calculated regression model parameters and descriptive statistics were compared in Table 3. A similar study was carried out for the “Ziemowit” mine in 2012 [2]. Comparing the regression parameter values with those calculated in the paper by Golik and Mendecki [2] with those obtained here, only γ remains the same. It can be also treated as another qualitative confirmation of correctness of the model as it indicates that the coefficient of geometric scattering (associated with geology) has been preserved. The β value in this study is higher than the previous one [2]. This parameter is related to the b-value of Gutenberg-Richter [13], thus the increase of the data set can change or refine the b-value. This can explain changes in β parameter. The data set presented here is larger than the one used in [2]. The same reason might apply to the differences in the relative amplification coefficients. In this study, the number of seismic data and number of sites increase as well.

Next, the map of spatial distribution of the relative amplification coefficients A_GMPE was prepared (Figure 4A) using the block kriging as the gridding method with a linear drift function [14,15]. The map was prepared in the Surfer 10 software. The semi-variogram model applied to the data was a power function. The grid was the size of 100 rows and 73 columns. The descriptive statistics for the analyzed data set of 14 relative amplification coefficients are characterized by the mean value of 2.1, standard deviation of 0.4, maximum value of 3.6 and minimum value of 1.0.

Figure 4

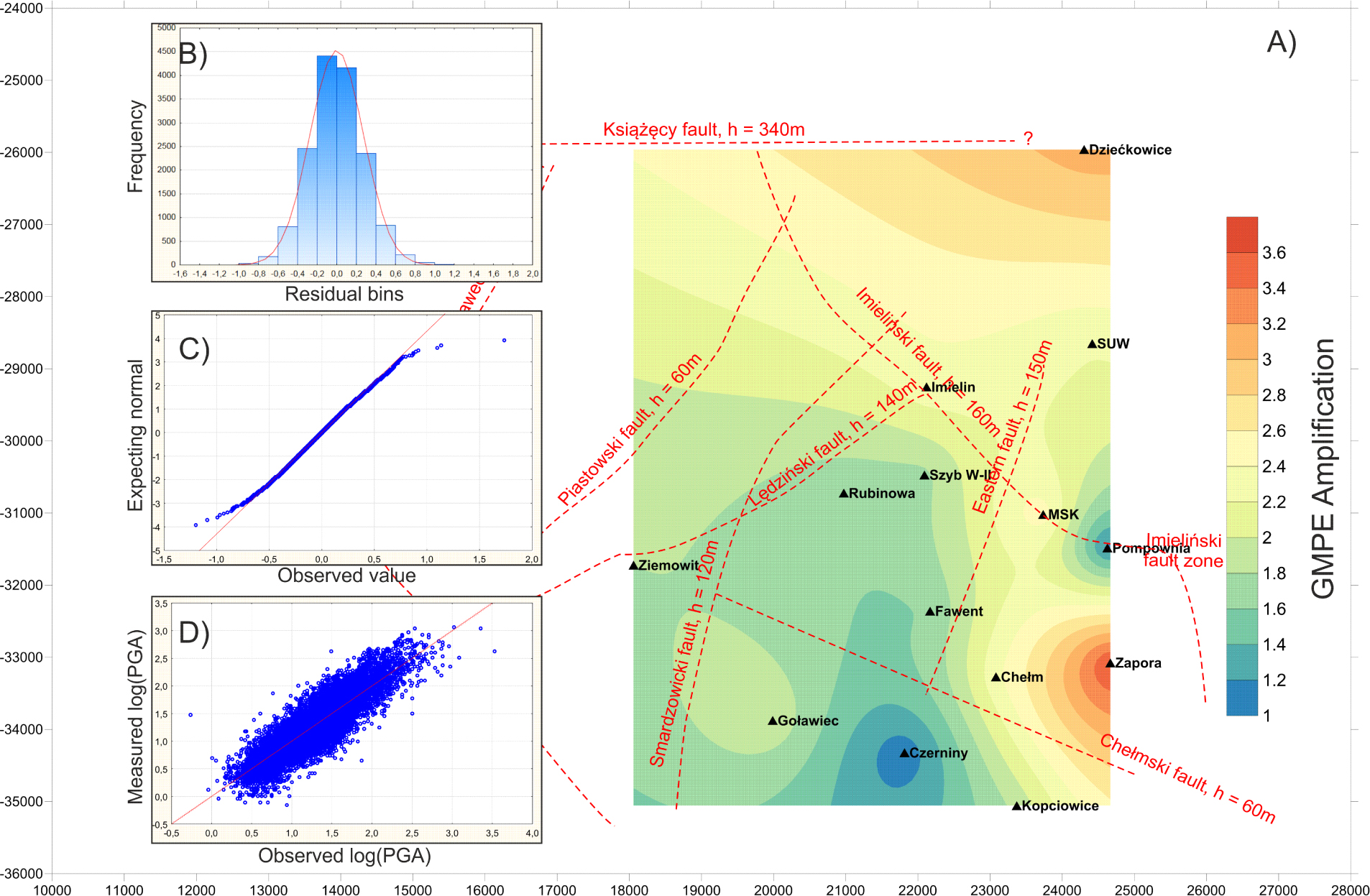

Spatial distribution of A_GMPE (A) with the statistical assessment plots: histogram of residuals (B), normality plot (C) and dispersion plot (D)

The calculated GMPE amplification values range from 1 to 3.7. The strongest site effects (A_GMPE > 2) can be reported for the station areas in: Dzieckowice, Imielin, Chełm, MSK SUW and Zapora. At the last station (Zapora), A_GMPE was the highest and reached 3.7 (Table 3). The GMPE model was also assessed by means of further statistical techniques which confirmed correctness and good fit of the model. The analysis of residuals indicated that residuals are focused around zero (Figure 4B) and the residual histogram has the Gaussian-shape distribution [2, 5]. The reliability of the model is also confirmed by the normality plot (Figure 4C) which is almost a straight line with minor discrepancies at the ends. In Figure 4D, the dispersion plot was placed. It represents the relation of the predicted PGA versus observed PGA. Its cigar-shape is also the confirmation that the model reproduces estimated (predicted) data well. According to Lasocki [3], the visual inspection of residuals characteristics (Figure 5) also allows to assume that the residuals do not depend on the station location (Figure 5A), because the mean residuals have very small values (near zero) and 95% confidence intervals associated with the station locations indicated the value zero falls well within the respective confidence intervals. Moreover, there is no distinct dependence of residuals on the epicentral distance (Figure 5B).

Figure 5

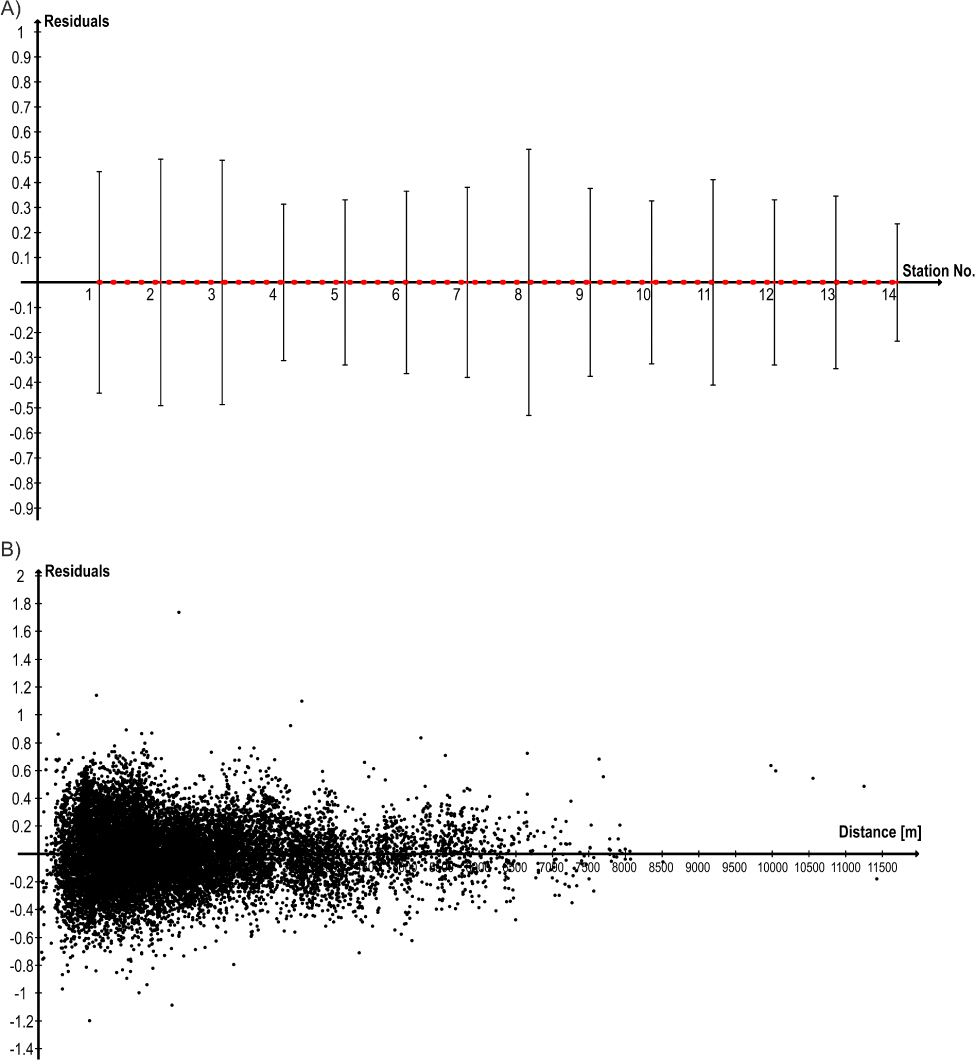

Residual characteristics: a) mean residuals (red dashed line) and 95% confidence intervals with respect to the station location; b) residuals vs. epicentral distance

The statistical analysis of the proposed model (Figure 4) and inspection of the residuals (Figure 5) convince that the calculations made are appropriate and the GMPE relation can be used for seismic hazard study. Figure 6 shows the last comparisons between the observed amplitudes, predicted values that are the medians [1, 3] as well as 95% confidence intervals for prediction that were calculated according to the formula presented in [1, 3]. The values were sorted in a descending order of estimates and the amplitude values were unlogarithmized. Most of the observed amplitudes fall within the confidence intervals, and only 2.7% of cases exceed the upper limit (417 cases) as well as 2.2% of cases are below the lower limit (345 cases).

Figure 6

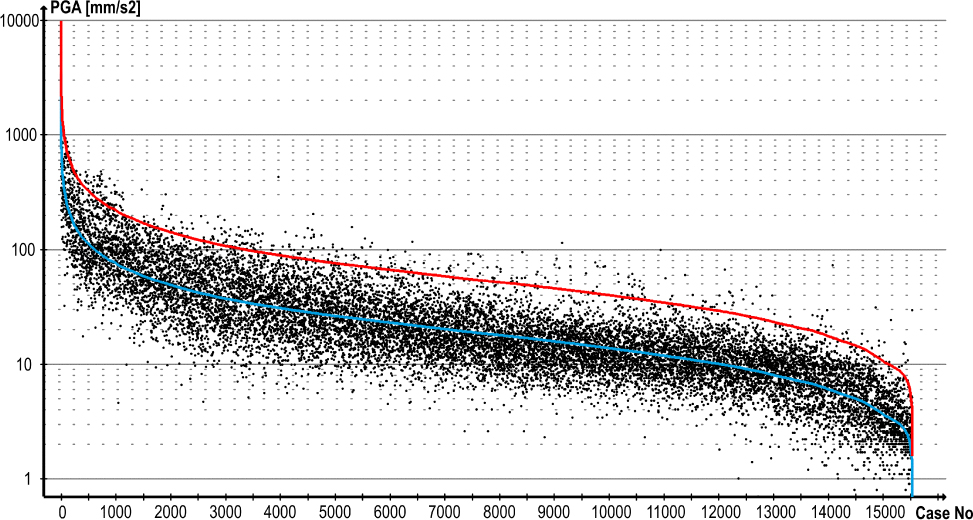

Observed amplitudes (black dots) and estimated median values (blue line), the red line represents the upper limits of 95% confidence intervals for the prediction

Thicknesses of the loose layers, in which the amplification may occurred, vary on the entire study area. Comparison of the calculated values of A_GMPE with the thicknesses of Quaternary deposit or combination of Quaternary and Tertiary loose sediments (Table 4) indicated that there is no visible correlation. The correlation coefficient for Quaternary thickness and A_GMPE reached value of 0.026. Here, the thickness varies in small range from 9 to 31 m and this layer is mainly composed of sand with tilt inserts, thus it can be assumed that there are similar geological conditions.

Due to the lack of correlation for Quaternary deposits we assumed cumulative thickness of all loose sediments (Quaternary and Tertiary) and the correlation coefficient was still low (r = 0.153), what also indicated that there is a lack of visible relation between amplification coefficient and thickness. Therefore, it seems that this relation might be more complex and considers other petrophysical parameters such as wave velocities, densities or water content that should be taken into account. However, this parameters remain still unknown and require next tests. More common approach is to compare resonance frequency of loose layer with thickness and some authors [16,17,18] reported that there is a clear power-law relation between these two parameters, but in this case the GMPE relation did not provide such data. The best solution will be to carry out HVSR measurements introduced by Nakamura [19].

Additional problem is the boundary between amplifying layer and rigid substratum. The geology is complex thus there is difficulty to find the appropriate thickness of the loose layer that can be excited by seismic waves. This aspect could also have an influence on the lack of correlation.

5 Conclusion

The statistical evaluation of the proposed GMPE model allows to state that this model can be used in the future PGA prediction in the central part of the Main Syncline of the USCB. The reliability of the model was confirmed by:

• analysis of residuals that allows to check the quality of models;

• coefficient of determination that informs what percentage of the original variability of the dependent variable was explained by the model;

• standard error of estimation;

• visual inspection of residual characteristics that showed that the mean residuals possess very small values (near zero) and 95% confidence intervals associated with the station locations indicated the value of zero and the residuals did not depend on epicentral distances;

• and, finally, less than 5% of data exceeded the 95% confidence intervals.

Comparing the obtained relative amplification coefficients with the geological settings, it can be concluded that the highest amplification values and, thus, the seismic hazard occur in the outskirts of the Syncline (N, NE and SE), i.e. on the opposite sides of the basin. The lowest amplification values, therefor the lowest seismic hazard areas, are located in the central part of the studied area, in the zone of a block formed by faults: Lędziński, Imlieliski, Eastern and Chełmski which are in the main axis of the Syncline in the W-E direction.
