Preparation of PAA/WO₃ composite films with enhanced electrochromism via layer-by-layer method

1 Introduction

Tungsten oxide (WO₃) has been extensively investigated for a series of applications [1, 2], such as smart window [3], alphanumeric display [4], variable-reflectance mirrors [5], camouflage materials [6], energy storage [7, 8], etc. W ions of WO₃ exhibit different oxidation states, and the intervalence electron transfer from W (V) to W (VI) states produces a broad absorption. Thus, WO₃ particles display a color change from transparency to blue when they were affected by a number of small cations: H⁺, Li⁺, K⁺ inserting into the oxide matrix [9]. Owing to the intense and stable electrochromic property, the WO₃ films have been produced by a number of different deposition techniques including thermal evaporation in vacuum [10], electrochemical oxidation of tungsten metal [11], chemical vapor depositions (CVD) [12], sol-gel methods [13], and RF sputtering [14].

However, the electrochromic performance of WO₃ is still not good enough for practical applications because of bad adhesion, short cycle life, and degradation. Various methods have been employed to improve the electrochromic properties of oxide-based materials by controlling the composition or the microstructure of the films. For example, Pang et al. [15] prepared Ag/WO₃ composite films by cathodic electrodeposition of WO₃ onto the surface of Ag films, which have a substantial enhancement in the electroactive and electrochromic performance. Lin et al. [16] made TiO₂/WO₃ thin films with good reversible electrochromic behavior and improved electrochromic properties by a spin-coating method. Polymers, such as poly (3,4-ethylenedioxythiophene) and poly(styrenesulfonate) [17] were also used to prepare WO₃/polymer hybrid films. The enhanced coloring efficiency and larger electrochemical activity of the hybrid films were concerned with the porous surface morphology of the composite films.

In order to control the microstructure of the films, several structure-guide reagents were used during the preparation of WO₃ films. Badilescu successfully prepared porous nano-structured WO₃ thin films with the aid of polystyrene microspheres [18]. Yuan et al. reported that mesoporous tungsten oxide films were prepared with a new nonionic gemini surfactant structure-directing agent [19]. The mesostructured WO₃ films have large specific surface area and exhibit high electrochromic performance.

Though these attempts have been made to improve the electrochromic properties of WO₃, some problems remain to be resolved. The techniques for preparation of composite films are comparatively complicated, and the materials are expensive, which is a real hindrance for large-scale production and application. Therefore, it is necessary to find a simple process to prepare porous composite films.

Polyacrylic acid (PAA) is a normal polyelectrolyte, which is easy to make porous film with good elasticity and flexibility [20]. In this paper, it is demonstrated how the PAA/WO₃ composite film is formed with a homogeneous hybrid structure in which the PAA provides a porous matrix for the electrochromic tungsten oxide films. The tungsten oxide films are prepared as normal sol-gel method, and the PAA/WO₃ composite films are made by a layer-by-layer method. The morphology and the spectra of the PAA/WO₃ composite films are characterized, and the influence of PAA on the optical and the electrochromic behavior of the composite films are detailedly investigated. Our research provides a cost-effective approach for the preparation of PAA/WO₃ composite films with controllable microstructure and good electrochromic property.

2 Materials and methods

The PAA (Aldrich, Mv≈450,000) was dissolved in absolute ethanol with concentrations of 2.0 wt % by stirring for 10 h at room temperature to obtain a homogeneous PAA solution. The WO₃ solution was prepared by adding 4 g of tungsten powder in 30 ml of H₂O₂ (30%) solution, stirred continuously for 4 h, and filtered. The absolute ethanol and glacial acetic acid were added to get a WO₃ precursor solution.

The PAA layers were coated on the clean tin-doped indium oxide (ITO) glass using the PAA solution by the dip-coating technique at dipping rates of 5~10 mm/s employing a motor-driven dip-coating equipment. Then, the film was held at 80°C for 30 min to allow the residual organics and moisture to volatilize. Then, the PAA layers were dip coated again with WO₃ precursor solution with the same withdrawal speed and dried at 100°C for 10 min. After the above layer by layer, films were rinsed with absolute ethanol and dried; the PAA/WO₃ composite films were obtained.

The morphology and the microstructure of the samples were characterized by a field emission scanning electron microscope (FESEM, HITACHI, S-4800), a transmission electron microscope (TEM, JEM-2010), cyclic voltammograms (CV, and chronoamperometry (CA) was carried out in a three-electrode system containing 0.1 m LiClO₄-PC as the electrolyte, the ITO glass covered with films as working electrode, Pt sheets as counter electrode, and an Ag/AgCl electrode as reference electrode on the CHI660B Electrochemical Workstation (Chenhua, Shanghai). The electrochemical reaction of the films was carried out in the potential range of −1.5~1.5 V with the scanning rate of 50 mV/s at room temperature. The changes in UV/Vis absorption spectra for the coloring and bleaching states were measured ex situ with a UV/Vis spectrophotometer (UV 2102pc, UNICO).

3 Results and discussion

3.1 Characterization and morphology of the PAA/WO₃ films

The Raman spectra of the PAA/WO₃ and WO₃ films are shown in Figure 1. From the spectra of the WO₃ film, a small area of broad peak emerged at 680~730 cm⁻¹, which should be attributed to stretching O-W-O modes of the bridging oxygens. The band at around 934 cm⁻¹ was assigned to the stretching mode of the terminal W=O bond, while in the spectra of the PAA/WO₃ composite film, the strong band at around 967 cm⁻¹ again can be assigned to the terminal W=O stretching mode, possibly on the surface of the cluster and in microvoid structures in the film [21]. The band at 815 cm⁻¹ was attributed to the O-W-O stretching vibration, which had a blue shift and became weaker with the existence of PAA. The small peaks at around 1100 cm⁻¹ and 1350 cm⁻¹ in the attached spectra were corresponding to the characteristic band of the PAA [22].

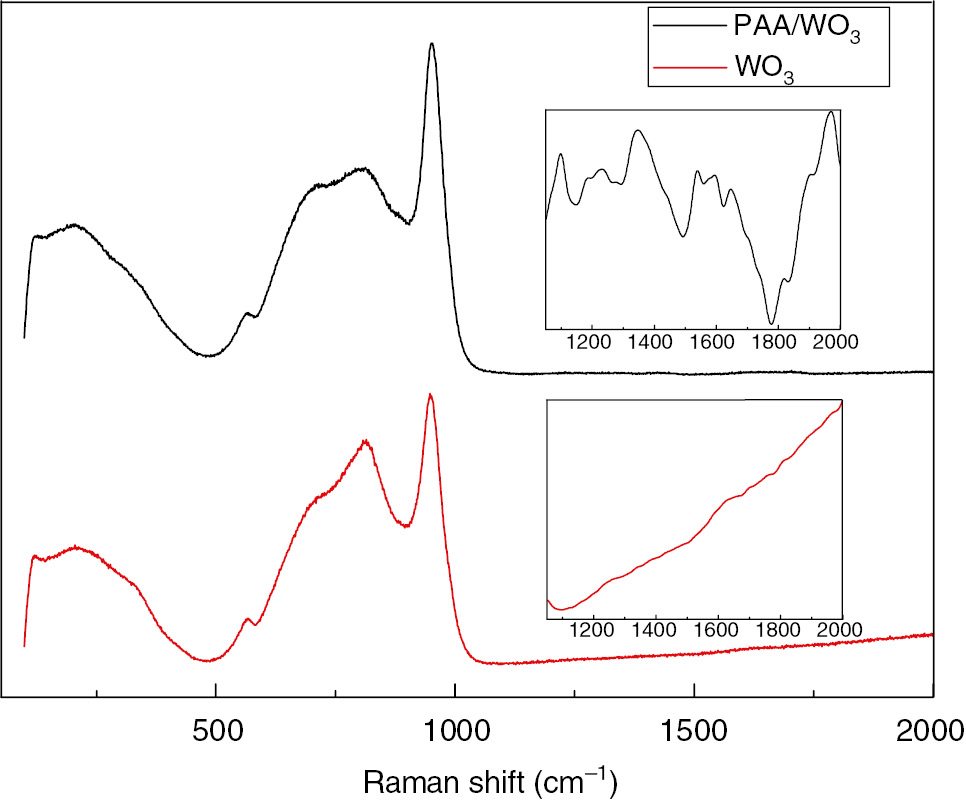

Figure 1:

Raman spectra of the WO₃ and PAA/WO₃ films.

The surface morphological features of the PAA/WO₃ film and the WO₃ film are presented in Figure 2. The image of the WO₃ film revealed a uniform amorphous surface mature, and the nanometer amorphous WO₃ (Figure s) grains looked like they were well dispersed on the film. While in the image of PAA/WO₃ composite film, the whole film presented a uniform, porous network structure with the PAA layer bringing the porous template. Such specific network structure had much bigger electrochemical activity and possessed electrochemical active point of ion absorption [23].

Figure 2:

FE-SEM images of WO₃ and PAA/WO₃ films.

The crystal structure and the morphology of the PAA/WO₃ hybrid film were studied by TEM. Figure 3 presented the TEM images of the PAA/WO₃ films, which showed that tungsten oxide particles were embedded in PAA media with an average diameter of 5~10 nm. From the images, the catenulate grain clusters and the framework of PAA sol could be observed clearly. Small clusters collided and infiltrated each other by Brown movement, growing up to a bigger anomalous network. As the PAA showed a porous and amorphous matrix for WO₃ crystallite, a homogeneous composite structure of PAA/WO₃ could be obtained.

Figure 3:

TEM images of PAA/WO₃ films with different magnifications.

On the basis of the characterization and morphology results, the synthesis process of the PAA/WO₃ films was illustrated by a schematic model in Figure 4. The PAA layer behaved as a porous matrix for WO₃ crystallites, and the uniform network structure of the PAA/WO₃ could be achieved. PAA has good electrochemical stability [24], and neither affects the electrical contacts between the WO₃ component and the ITO stuff. Thus, the porous and amorphous layered structure of the PAA/WO₃ films was favorable for the injection (extraction) of Li⁺ into (from) the films. Finally, the marvelous electrochromic property of the PAA/WO₃ composite films had been obtained.

Figure 4:

Synthesis scheme of the PAA/WO₃ composite films.

3.2 Electrochromic and electrochemical properties

The optical transmittance spectra of the colored and bleached WO₃ and PAA/WO₃ composite films are shown in Figure 5. It was obvious that the maximum transmittance for the bleached PAA/WO₃ films was about 83%, with a variation of 73~83% in the visible region. For the pure WO₃ films, the bleached film also had a good transmittance property in the whole visible region, which was up to 80%. While in the colored state, the PAA/WO₃ composite films showed a higher absorption property than the WO₃ films, owning to the preferred colored effect on the films. The transmission modulation of the PAA/WO₃ and WO₃ films was 60% and 34%, respectively. Apparently the addition of the PAA improved the optical transmittance property of the WO₃ films. The intense redox reaction could occur in the WO₃/PAA composite films, which could bring on the increase in transmittance change.

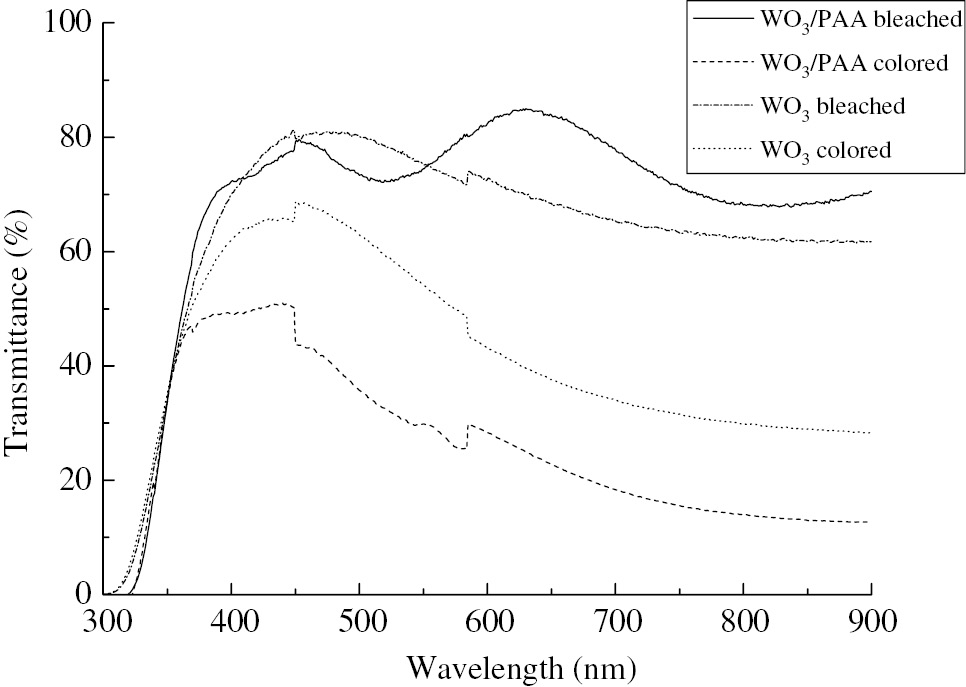

Figure 5:

Optical transmittance spectra of WO₃ and PAA/WO₃ composite films.

Typical cyclic voltammograms were recorded at a scan rate of 50 mV/s for the PAA/WO₃ and WO₃ films, and the investigation is shown in Figure 6. During the cyclic voltammetry at the potential range of −1.5~1.5V, the films exhibited the well-known redox behavior of W^VI→V, which accompanied a reversible color change between the transparent and the dark blue. In the PAA/WO₃ curve, the open-circuit potentials of the pure WO₃ films were 0.212 V and 0.253 V. The lower opening current revealed that the composite films had better electrical properties and brought electrochemical reactions easily. The reversibility during the electrochemical reactions could be estimated by the ratio of the charge densities (Qa/Qc): 66% and 78% for the WO₃ and PAA/WO₃ films, respectively. The negative movement of the oxidation peak indicated that the color bleaching of the PAA/WO₃ composite films was faster than that of pure WO₃ films, which was also confirmed in the response time. In this report, the coloration time and the bleaching time were defined as the time required for the cathodic/anodic current of the films to attain a steady state in the coloration/bleaching cycle. It had been found that bleaching kinetics was faster than coloration kinetics for both films, which was 5.2 s, 20 s, and 7.3 s, 26 s for PAA/WO₃ films and WO₃ films, respectively. It was evident that the microstructure of the PAA/WO₃ films was more favorable for a rapid ion intercalation and deintercalation process as the films exhibited faster coloring-bleaching kinetics than pure WO₃ films.

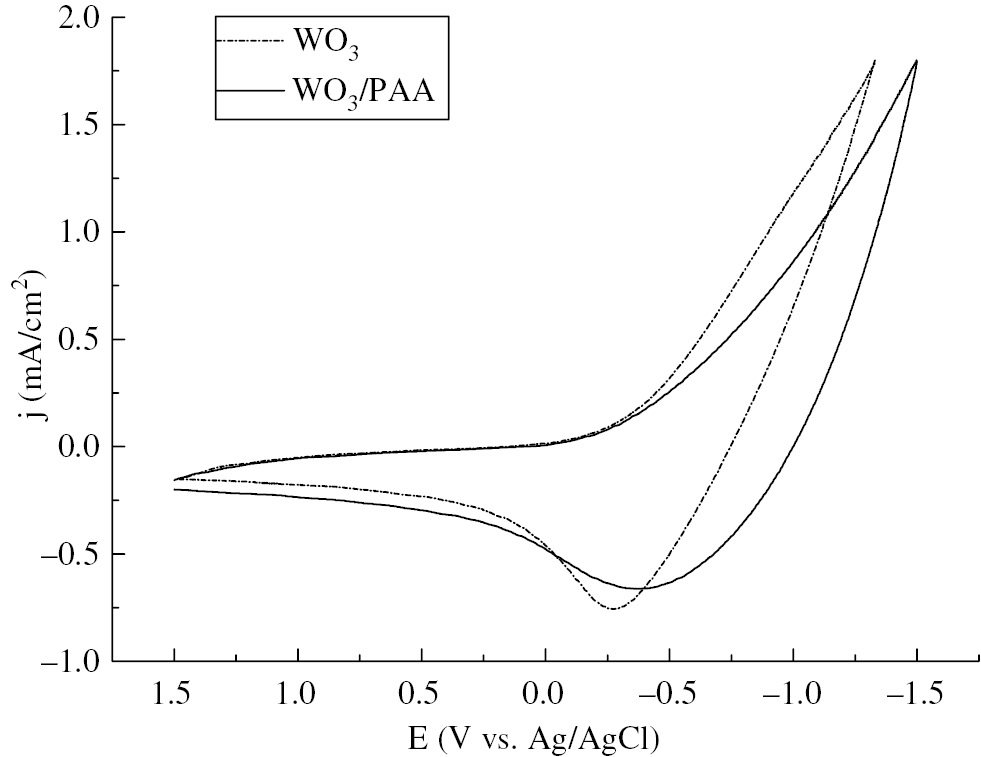

Figure 6:

CV curves of PAA/WO₃ films in a PC solution containing 0.1 m LiClO₄.

4 Conclusion

The PAA/WO₃ composite films were successfully prepared by the layer-by-layer method. The PAA layer acted as the template for the deposition of the WO₃ films, and the composite films showed a porous network structure. The as-prepared PAA/WO₃ composite films exhibited marvelous electrochromic properties. It was shown that the reversible color changed from transparent colorless to dark blue. The PAA/WO₃ composite film presented a good color contrast with a transmittance variation up to 60% at 650 nm. Also, the composite films had good electrochemical reversibility with the ratio of charge densities of 77%. The results indicated that the attempt to get a cheaper and good for large-scale production of the PAA/WO₃ composite films by the normal sol-gel method at room temperature was feasible. Furthermore, such kind of mechanism of preparation of the PAA/WO₃ composite film could be a reference for other nanocrystalline electrochromic materials.
