Home Synthesis and crystal structure of ethyl 4-((4-trifluoromethylbenzyl)amino)benzo, C17H16F3NO2
Article Open Access

Synthesis and crystal structure of ethyl 4-((4-trifluoromethylbenzyl)amino)benzo, C17H16F3NO2

  • Chun–Jie Lv ORCID logo EMAIL logo , Xin Xiong and Pei–Pei Zhi
Published/Copyright: March 14, 2025
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 240 Issue 3

Abstract

C17H16F3NO2, monoclinic, P21/n, a = 5.7291(4) Å, b = 37.994(3) Å, c = 6.9806(5) Å, β = 100.575(7)°, V = 1493.7(2) Å3, Z = 4, R gt (F) = 0.0598, wR ref (F2) = 0.1310, T = 100 K.

CCDC no.: 2424348

1 Source of materials

The title compound was prepared according to the following synthetic protocol. A p-aminobenzoate (165 mg, 1.0 mmol), p-toluenesulfonic acid monohydrate 100 mg and 4-(trifluoromethyl)benzaldehyde (226 mg, 1.3 mmol) in dry toluene (20 mL) were heated at reflux temperature under nitrogen atmosphere for 48 h. The mixture was cooled to room temperature and filtered. The filtrate was washed with 5 % aqueous sodium hydroxide and water, and dried over anhydrous magnesium sulfate. The crude product was purifed on a silica-gel column using a mixture of petroleum ether and ethyl acetate, yielding light yellow solid (yield: 50 %). The yellow crystals of the title compound were obtained by slow evaporation of dichloromethane/hexane at room temperature and the suitable single crystal was studied by X-ray diffraction method (Table 1).

Table 1:

Data collection and handling.

Crystal: colourless block
Size: 0.15 × 0.12 × 0.11 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.12 mm−1
Diffractometer, scan mode: Rigaku SuperNova, ω scans
θmax, completeness: 29.7°, 100 %
N(hkl)measured, N(hkl)unique, Rint: 7665, 3549, 0.041
Criterion for Iobs, N(hkl)gt: Iobs > 2 σ(Iobs), 2,374
N(param)refined: 213
Programs: Rigaku, 1 SHELX 2 , 3

2 Experimental details

The hydrogen atoms were refined with constraints or restraints.

3 Comment

Diarylamines are important building blocks in organic synthesis and are present as privileged structures in numerous pharmaceuticals and biologically active compounds. Due to the importance to medicinal chemistry, many methods exist for diarylamine synthesis, with transition metal-catalyzed C–N bond formation being especially prominent in recent years. 4 , 5 , 6 , 7 Up to date, there are only a few reports on diarylamine compounds especially their crystal structures. 8 , 9 , 10

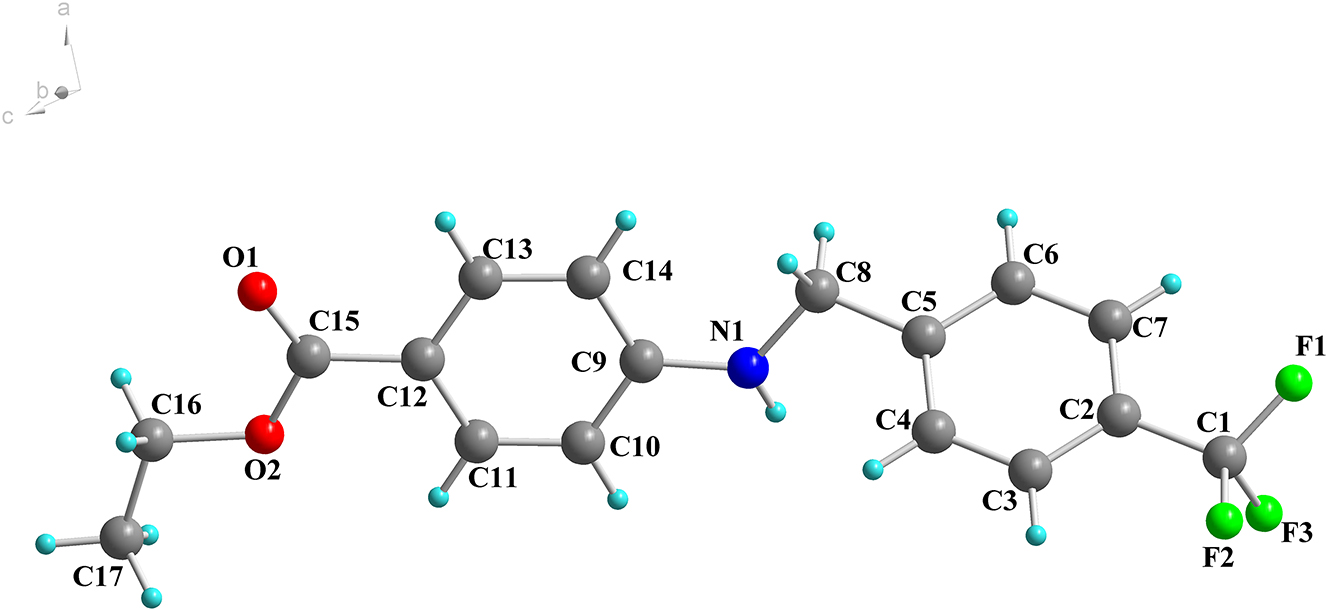

There is one molecule in the asymmetric unit of the title structure which is shown in the figure. The p-methyltrifluorophenyl group is attached to the 4-position of the ethyl benzoate. The CCN bond distance is 1.442(3) Å for C8⋯N1, which is normal for arylamine. The three bond angles around the amino group are 124.44(18)∘ for C8–N1–C9, 111.07(17)∘ and 123.0(2)∘ for N1–C9–C14, respectively. The dihedral angel between the benzene rings is 57.56∘. Molecules are linked by NH⋯O hydrogen bonds to form one-dimensional supramolecular structure. These chains are linked by CHC interactions with 2.967 Å for nitrogen (N3) atom to the nearest oxygen (O1) atom.

Corresponding author: Chun–Jie Lv, XuChang University, XuChang 461002, Henan Province, People’s Republic of China, E-mail:

Acknowledgements

We gratefully acknowledge support the Fundamental Research Funds for Henan Provincial Department of Science and Technology(No: 242102320275).

References

1. Oxford Diffraction Ltd CrysAlisPRO: Abingdon, Oxfordshire, England, 2006.Search in Google Scholar

2. Sheldrick, G. M. SHELXT – Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. 2015, A71, 3–8; https://doi.org/10.1107/s2053273314026370.Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal Structure Refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar PubMed PubMed Central

4. Ruiz–Castillo, P.; Buchwald, S. L. Applications of Palladium-Catalyzed C–N Cross-Coupling Reactions. Chem. Rev. 2016, 116, 12564–12649; https://doi.org/10.1021/acs.chemrev.6b00512.Search in Google Scholar PubMed PubMed Central

5. Chen, J. Q.; Li, J. H.; Dong, Z. B. A Review on the Latest Progress of Chan-Lam Coupling Reaction. Adv. Synth. Catal. 2020, 362, 3311–3331; https://doi.org/10.1002/adsc.202000495.Search in Google Scholar

6. Sambiagio, C.; Marsden, S. P.; Blacker, A. J.; McGowan, P. C. Copper Catalysed Ullmann Type Chemistry: from Mechanistic Aspects to Modern Development. Chem. Soc. Rev. 2014, 43, 3525–3550; https://doi.org/10.1039/c3cs60289c.Search in Google Scholar PubMed

7. Thomas, S.; Jonathan, M. L.; Sam, B.; Michael, F. G. Diarylamine Synthesis via Desulfifinylative Smiles Rearrangement. Org. Lett. 2022, 24, 1132–1135; https://doi.org/10.1021/acs.orglett.1c04122.Search in Google Scholar PubMed PubMed Central

8. Wang, Z. S.; Chen, Y. B.; Zhang, H. W.; Sun, Z.; Zhu, C.; Ye, L. W. Ynamide Smiles Rearrangement Triggered by Visible-Light-Mediated Regioselective Ketyl-Ynamide Coupling: Rapid Access to Functionalized Indoles and Isoquinolines. J. Am. Chem. Soc. 2020, 142, 3636–3644; https://doi.org/10.1021/jacs.9b13975.Search in Google Scholar PubMed

9. Yan, J.; Cheo, H. W.; Teo, W. K.; Shi, X.; Wu, H.; Idres, S. B.; Deng, L. W. J.; Wu, J. A Radical Smiles Rearrangement Promoted by Neutral Eosin Y as a Direct Hydrog Transfer Photocatalyst. J. Am. Chem. Soc. 2020, 142, 11357–11362; https://doi.org/10.1021/jacs.0c02052.Search in Google Scholar PubMed

10. Alpers, D.; Cole, K. P.; Stephenson, C. R. J. Visible Light Mediated Aryl Migration by Homolytic C–N Cleavage of Aryl Amines. Angew. Chem. Int. Ed. 2018, 57, 12167–12170; https://doi.org/10.1002/anie.201806659.Search in Google Scholar PubMed

Received: 2025-01-20
Accepted: 2025-02-17
Published Online: 2025-03-14
Published in Print: 2025-06-26

© 2025 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
