Crystal structure of pyrene-2-carbaldehyde, C17H10O

  • Miao Bao-Xi , Tang Xin-Xue and Zhang Li-Fang EMAIL logo
Published/Copyright: April 18, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C17H10O, monoclinic, P21/c (no. 14), a = 8.1312(16) Å, b = 7.8252(16) Å, c = 17.231(3) Å, β = 92.47(3)°, V = 1095.3(4) Å3, Z = 4, Rgt(F) = 0.0517, wRref(F2) = 0.1281, T = 293(2) K.

CCDC no.: 1834752

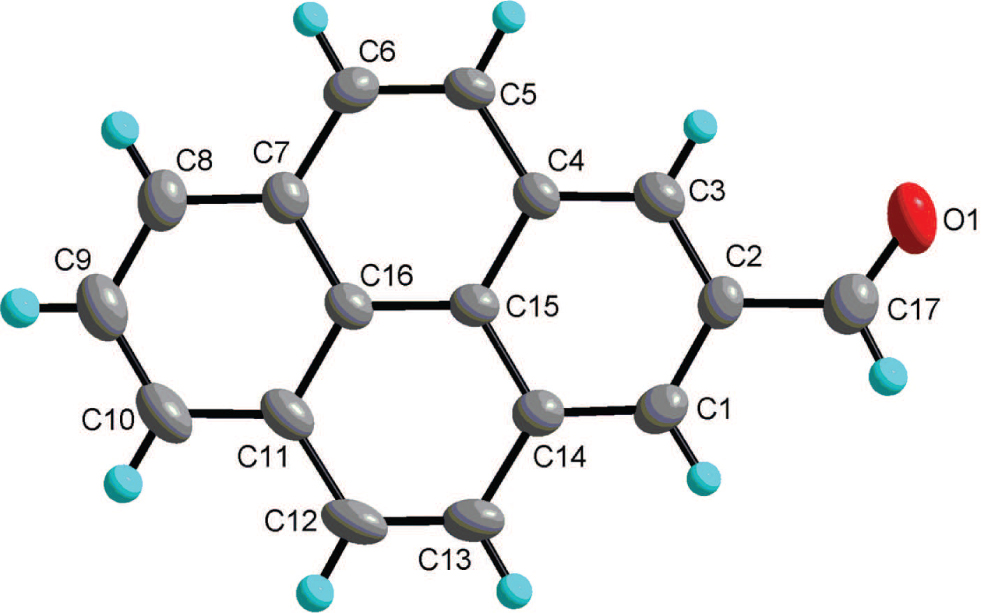

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.15 × 0.14 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.09 mm−1
Diffractometer, scan mode:Bruker APEX-II, ω-scans
θmax, completeness:26°, >98%
N(hkl)measured, N(hkl)unique, Rint:7793, 2121, 0.056
Criterion for Iobs, N(hkl)gt:Iobs >2 σ (Iobs), 1133
N(param)refined:162
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.9439(2)0.2050(2)−0.10678(9)0.0507(5)
C10.5362(3)0.2907(2)−0.04617(12)0.0326(6)
H10.50260.3529−0.09000.039*
C20.6942(3)0.2235(2)−0.04090(12)0.0292(5)
C30.7474(3)0.1309(2)0.02406(12)0.0315(6)
H30.85370.08690.02690.038*
C40.6443(3)0.1027(2)0.08490(11)0.0268(5)
C50.6931(3)0.0038(2)0.15243(12)0.0288(5)
H50.7988−0.04180.15660.035*
C60.5892(3)−0.0239(3)0.20932(12)0.0326(6)
H60.6252−0.08800.25220.039*
C70.4241(3)0.0420(2)0.20639(11)0.0300(5)
C80.3144(3)0.0129(3)0.26496(13)0.0384(6)
H80.3470−0.05370.30760.046*
C90.1562(3)0.0824(3)0.26035(14)0.0438(6)
H90.08480.06380.30020.053*
C100.1054(3)0.1797(3)0.19605(13)0.0406(6)
H10−0.00020.22570.19360.049*
C110.2095(3)0.2094(2)0.13542(13)0.0325(6)
C120.1593(3)0.3056(3)0.06735(14)0.0388(6)
H120.05330.35030.06310.047*
C130.2631(3)0.3320(3)0.00954(13)0.0345(6)
H130.22680.3947−0.03380.041*
C140.4269(3)0.2667(2)0.01291(12)0.0286(5)
C150.4810(3)0.1715(2)0.07997(12)0.0257(5)
C160.3715(3)0.1419(2)0.14055(11)0.0263(5)
C170.8042(3)0.2533(3)−0.10544(14)0.0403(6)
H170.76200.3140−0.14820.048*

Source of material

All chemicals were purchased from commercial sources and used as received without further purification. The title complex was prepared by two steps. The intermediate 2-formyl-4,5,9,10-tetrahydropyrene was prepared by the following procedure: To a stirred solution of 4,5,9,10-tetrahydropyrene (2.060 g, 10 mmol) and dichloromethyl methyl ether (1.495 g, 13 mmol) in CH2Cl2 (80 mL) was added at 0 °C a solution of titanium tetrachloride (10.95 mL, 100 mmol) in CH2Cl2 (20 mL). The mixture was stirred for 3 h at room temperature. The mixture was poured into ice-water and extracted with CH2Cl2 two times. The organic layer was washed with water, dried over MgSO4 and concentrated in vacuo. The residue was purified by silica gel chromatography using hexane/ CH2Cl2 as an eluent to afford 2.0358 g 2-formyl-4,5,9,10-tetrahydropyrene in 87% yield. 1H NMR (400 MHz, CDCl3) δ 9.98 (s, 1H), 7.62 (s, 2H), 7.23 (d, J = 6.8 Hz, 1H), 7.14 (d, J = 7.6 Hz, 2H), 2.97 (dd, J = 9.4, 3.6 Hz, 8H). GC/MS MS: (C17H14O) m/z 234(M+, 78), 216(18), 205(100), 189(38), 101(20).

The title compound was synthesized by dehydrogenation of the intermediate 2-formyl-4,5,9,10-tetrahydropyrene a solution of 2-formyl-4,5,9,10-tetrahydropyrene (1.170 g, 5 mmol) and 2,3-dichloro-5,6-dicyano-1,4-benzoquinone (2.951 g, 13 mmol) in 100 mL of freshly-dried benzene was refluxed for two days. After removing the solvent by rotary evaporation, the residue was purified by silica gel chromatography using hexane/CH2Cl2 as an eluent to afford 1.081 g 2-pyrenyl aldehyde in 94% yield. 1H NMR (400 MHz, CDCl3) δ 10.47 (s, 1H), 8.68 (s, 2H), 8.27 (d, J = 7.6 Hz, 2H), 8.23–8.16 (m, 4H), 8.15–8.11 (m, 1H). GC—MS MS: (C17H10O) m/z 230(M+, 100), 201(95), 100(35). The yellow block crystals of the title compound were obtained by slow evaporation of hexane/CH2Cl2 solution (v:v = 1/1) and the selected crystal was structurally characterized by X-ray diffraction analysis.

Experimental details

All H atoms bond to C atoms were introduced using the HFIX commond in the SHELXL program [2], with the value of 0.93 Å or 0.96 Å for C—H bonds distances. All H atoms were allowed for as riding atoms with Uiso(H) = 1.2Ueq(C) for hydrogen atoms. The structure was checked using PLATON [3].

Discussion

In the last several decades, the research on organic fluorescent materials has gained important momentum due to their wide range of applications in organic light-emitting diodes (OLED), organic field effect transistor (OFET), organic lasers, fluorescent sensors and solar cells, etc. [4], [5], [6], [7], [8]. As a well known fluorophore, pyrene and its derivatives have been paid much attentions due to their pure blue fluorescence with high quantum yield, exceptionally long fluorescence lifetime, excellent thermal stability, and high charge carrier mobility [9], [10], [11]. Generally, the derivatization of pyrene is the key step for interesting pyrene-based functional materials. However, the active position of direct electrophilic mono substitution reaction on pyrene is almost exclusively at the electron-rich 1-position of pyrene [12], [13], [14], [15]. Compared to the derivatives with the substitutents at the 1-position of pyrene, the compounds with the substituents at 2-position are relatively limited, and only a few 2-substituted pyrenes (2-bromopyrene, 2-amionpyrrene, 2-acetylpyrene, and so on) have been obtained up to date [16], [17], [18], [19]. Recently, we synthesized one important pyrene-based derivative 2-pyrenyl aldehyde through the formylation and aromatization using 4,5,9,10-tetrahydropyrene as the starting material.

The single X-ray diffraction analysis agrees well with expected structure of the title compound. The functional group of aldehyde locates at the 2-position of pyrene. The C–O bond length is 1.198(3) Å, which is the typical double bond distance of aldehyde group. The C2–C17 bond length is 1.476(3) Å, indicating the π–π conjugation effect between the pyrene π-ring system and the aldehyde functional group. All carbon and oxygen atoms are nearly in a strict plane with the largest deviation to be 0.031(3) Å from the mean plane based on all the atoms. There is relatively strong intermolecular π–π interaction between adjacent molecules with the shortest interatomic distance is 3.366(3) Å, forming dimeric supramolecular structures. In addition, there exist weak intermolecular C–H⋯π and C–H⋯O interactions, which link the units of the title compounds into three-dimensional structure.

Acknowledgements

This work was supported by the Fundamental Research Funds for the Central Universities (2017BSCXA05).

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2012).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Spek, A. L.: Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 36 (2003) 7–13.10.1107/S0021889802022112Search in Google Scholar

Zhao, Z. J.; Chen, S. M.; Lam, J. W. Y.; Lu, P.; Zhong, Y. C.; Wong, K. S.; Kwok, H. S.; Tang, B. Z.: Creation of highly effcient solid emitter by decorating pyrene core with AIE-active tetraphenylethene peripheries. Chem. Commun. 46 (2010) 2221–2223.10.1039/b921451hSearch in Google Scholar PubMed

Mishra, A.; Uhrich, C.; Reinole, E.; Pfeiffer, M.; Bauerle, P.: Synthesis and characterization of acceptor-substituted oligothiophenes for solar cell applications. Adv. Enery Mater. 2 (2011) 265–273.10.1002/aenm.201100026Search in Google Scholar

Sasabe, H.; Kido, J.: Multifunctional materials in high-performance OLEDs: challenges for solid-state lighting. Chem. Mater. 23 (2010) 621–630.10.1021/cm1024052Search in Google Scholar

Nie, J.; Li, N.; Ni, Z. H.; Zhao, Y.; Zhang, L. F.: A sensitive teraphenylethene-based fluorescent probe for Zn2+ ion involving ESIPT and CHEF processes. Tetrahedron Lett. 58 (2017) 1980–1984.10.1016/j.tetlet.2017.04.027Search in Google Scholar

Indumathi, C.; Girisun, T. C. S.; Anitha, K.; Raj, S. A. C.: Structural, thermal, optical and optical properties of ethylenediaminium picrate single crystals. J. Phys. Chem. Solids. 106 (2017) 37–43.10.1016/j.jpcs.2017.03.003Search in Google Scholar

Zhang, R.; Zhao, Y.; Zhang, L. F.; Xu, L.; Ni, Z. H.: A series of short axially symmetrically 1,3,6,8-tetrasubstituted pyrene-based green and blue emitters with 4-tert-butylphenyl and aryamine attachments. Dyes Pigm. 130 (2016) 106–115.10.1016/j.dyepig.2016.03.020Search in Google Scholar

Figueira-Duarte, T. M.; Mullen, K.: Pyrene-based materials for organic electronics. Chem. Rev. 111 (2011) 7260–7314.10.1021/cr100428aSearch in Google Scholar PubMed

Zhang, R.; Zhang, T. F.; Xu, L.; Han, F. F.; Zhao, Y.; Ni, Z. H.: A new series of short axially symmetrically and asymmetrically 1,3,6,8-tetrasubtituted pyrenes with two types of substituents: syntheses, structures, photophysical properties and electroluminescence. J. Mol. Struct. 1127 (2017) 237–246.10.1016/j.molstruc.2016.07.105Search in Google Scholar

Xu, L. H.; Ni, Z. H.: Crystal structure of 1,3,6,8-tetrakis(p-tolylthio)pyrene, C44H34S4. Z. Kristallogr. NCS 229 (2016) 255–257.Search in Google Scholar

Zhang, X. M.; Wang, H. F.; Wang, S.; Shen, Y. T.; Yang, Y. L.; Deng, K.; Zhao, K. Q.; Zeng, Q. D.; Wang, C.: Triphenylene substituted pyrene derivative: synthesis and single molecule investigation. J. Phys. Chem. C 117 (2013) 307–312.10.1021/jp3095616Search in Google Scholar

Banerjee, M.; Vyas, V. S.; Lindeman, S. V.; Rathore, R.: Isolation and X-ray structural characterization of tetraisopropylpyrene cation radical. Chem. Commun. 16 (2008) 1889–1891.10.1039/b800168eSearch in Google Scholar PubMed

He, M. Q.; Pan, A. X.; Xie, J. M.; Li, H. M.; Yuan, X. H.; Cheng, X. N.; Chen, M.: Synthesis of 1-benzoylpyrene using silica-supported phosphotungstic heteropoly acid as an efficient and reusable catalyst. Korean J. Chem. Eng. 29 (2012) 1388–1392.10.1007/s11814-012-0039-7Search in Google Scholar

Zhang, R.; Han, F. F.; Zhang, L. F.: Crystal structure of 2-(4-methylbenzoyl)pyrene, C24H16O. Z. Kristallogr. NCS 231 (2016) 855–857.10.1515/ncrs-2015-0292Search in Google Scholar

Harvey, R. G.; Schmolka, S.; Cortez, C.; Lee, H.: Syntheses of 2-bromopyrene and 2-hydroxypyrene. Synth. Commun. 18 (1988) 2207–2209.10.1080/00397918808082362Search in Google Scholar

Krreyenschmidt, M.; Baumgarrten, M.; Tyutyulko, N.; Mullen, K.: 2,2′-Bipyrenyl and para-terpyrenyl-a new type of electronically decoupled oligoarylene. Angew. Chem. Int. Ed. Engl. 33 (1994) 1957–1959.10.1002/anie.199419571Search in Google Scholar

Suzuki, S.; Takeda, T.; Kuratsu, M.; Kozaki, M.; Sato, K.; Shiomi, D.; Takui, T.; Okada, K.: Pyrene-dihydrophenazine bis(radical cation) in a singlet ground state Org. Lett. 11 (2009) 2816–2818.Search in Google Scholar
