Crystal structure of 2-(8-bromo-2-phenylimidazo[1,2-α]pyridin-3-yl)-6,7-dimethyl-3-phenylquinoxaline, C29H21BrN4

  • Gui Ting Song , Jiang Ping Meng EMAIL logo and Jin Zhu EMAIL logo
Published/Copyright: April 12, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C29H21BrN4, orthorhombic, Pca21 (no. 29), a = 15.6577(5) Å, b = 9.6445(3) Å, c = 31.1869(10) Å, V = 4709.6(2) Å3, Z = 8, Rgt(F) = 0.0435, wRref(F2) = 0.0779, T = 293(2) K.

CCDC no.: 1815594

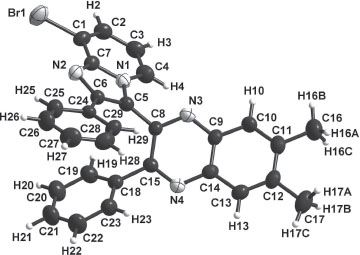

One of two crystallographically independent molecules of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.35 × 0.30 × 0.25 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.77 mm−1
Diffractometer, scan mode:Super-Nova, ω-scans
θmax, completeness:27.5°, >97%
N(hkl)measured, N(hkl)unique, Rint:25351, 9874, 0.031
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 7081
N(param)refined:618
Programs:CrysAlisPRO [1], OLEX2 [2], SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.94258(3)0.07417(5)0.193128(14)0.06155(13)
N10.7050(2)0.0126(3)0.24655(11)0.0377(8)
N20.78915(19)0.2021(3)0.24963(9)0.0389(7)
N30.5589(2)−0.0291(3)0.30477(11)0.0405(8)
N40.42874(19)0.1698(3)0.29460(10)0.0393(8)
C10.8395(2)−0.0082(5)0.21050(13)0.0435(11)
C20.8214(2)−0.1416(4)0.20045(13)0.0470(11)
H20.8595−0.19490.18460.056*
C30.7426(3)−0.1981(4)0.21468(13)0.0483(10)
H30.7303−0.29030.20850.058*
C40.6851(3)−0.1225(4)0.23681(13)0.0497(11)
H40.6333−0.16090.24530.060*
C50.6593(2)0.1146(4)0.26892(13)0.0379(9)
C60.7144(2)0.2269(4)0.27134(11)0.0350(8)
C70.7822(2)0.0742(4)0.23511(11)0.0373(9)
C80.5726(2)0.0893(4)0.28389(12)0.0355(9)
C90.4792(2)−0.0507(4)0.32094(12)0.0389(9)
C100.4620(3)−0.1733(4)0.34383(14)0.0493(11)
H100.5032−0.24270.34500.059*
C110.3855(3)−0.1920(4)0.36448(13)0.0475(10)
C120.3228(3)−0.0869(5)0.36254(14)0.0447(11)
C130.3377(2)0.0292(5)0.33936(14)0.0448(10)
H130.29520.09640.33740.054*
C140.4165(3)0.0510(4)0.31791(13)0.0374(10)
C150.5040(2)0.1865(4)0.27644(11)0.0360(9)
C160.3707(3)−0.3244(4)0.38919(15)0.0706(15)
H16A0.3538−0.30250.41800.106*
H16B0.4224−0.37790.38970.106*
H16C0.3264−0.37720.37550.106*
C170.2392(3)−0.1015(5)0.38657(15)0.0643(13)
H17A0.2506−0.11540.41650.097*
H17B0.2081−0.17940.37550.097*
H17C0.2059−0.01870.38290.097*
C180.5133(2)0.3123(4)0.24912(12)0.0402(9)
C190.5567(2)0.3095(4)0.21050(12)0.0496(10)
H190.58190.22750.20120.060*
C200.5629(3)0.4280(4)0.18564(15)0.0613(11)
H200.59290.42520.15990.074*
C210.5258(3)0.5481(5)0.19842(19)0.0675(13)
H210.53050.62720.18150.081*
C220.4805(3)0.5529(5)0.23693(18)0.0686(14)
H220.45450.63470.24580.082*
C230.4749(3)0.4352(4)0.26146(15)0.0524(11)
H230.44440.43810.28710.063*
C240.7030(2)0.3590(4)0.29456(13)0.0372(9)
C250.7548(3)0.4712(4)0.28450(14)0.0509(11)
H250.79420.46340.26230.061*
C260.7486(3)0.5940(4)0.30687(16)0.0574(12)
H260.78570.66660.30070.069*
C270.6880(3)0.6100(4)0.33819(16)0.0606(13)
H270.68250.69430.35240.073*
C280.6352(3)0.5003(5)0.34869(14)0.0530(12)
H280.59450.50990.37020.064*
C290.6434(3)0.3761(5)0.32683(13)0.0433(11)
H290.60790.30240.33400.052*
Br20.32555(3)0.06796(5)0.615630(14)0.06446(14)
N50.56557(18)0.0109(3)0.56477(12)0.0384(9)
N60.48072(19)0.1995(3)0.56079(10)0.0411(8)
N70.7113(2)−0.0274(3)0.50617(11)0.0423(8)
N80.84127(19)0.1704(3)0.51734(10)0.0389(8)
C300.4299(2)−0.0128(5)0.59881(13)0.0404(10)
C310.4497(2)−0.1440(5)0.60887(13)0.0479(11)
H310.4103−0.19880.62340.058*
C320.5292(3)−0.1988(5)0.59764(13)0.0533(11)
H320.5428−0.28940.60530.064*
C330.5866(2)−0.1219(4)0.57583(13)0.0440(9)
H330.6395−0.15860.56840.053*
C340.6104(2)0.1125(4)0.54250(12)0.0365(9)
C350.5562(2)0.2240(4)0.53963(12)0.0381(9)
C360.4872(2)0.0708(4)0.57549(12)0.0375(9)
C370.6989(2)0.0874(4)0.52765(13)0.0369(9)
C380.7914(3)−0.0499(4)0.48990(14)0.0417(10)
C390.8094(3)−0.1704(4)0.46677(14)0.0480(11)
H390.7682−0.23980.46530.058*
C400.8858(3)−0.1896(4)0.44625(13)0.0466(10)
C410.9490(2)−0.0827(5)0.44884(13)0.0441(11)
C420.9336(2)0.0340(5)0.47249(14)0.0422(10)
H420.97570.10160.47470.051*
C430.8547(2)0.0539(4)0.49363(12)0.0362(9)
C440.7659(2)0.1851(4)0.53599(12)0.0392(9)
C450.9024(3)−0.3200(5)0.42117(16)0.0705(14)
H45A0.9512−0.36680.43290.106*
H45B0.9131−0.29690.39170.106*
H45C0.8534−0.37960.42290.106*
C461.0322(3)−0.0975(5)0.42518(14)0.0594(13)
H46A1.0233−0.07930.39520.089*
H46B1.0536−0.19010.42870.089*
H46C1.0729−0.03260.43640.089*
C470.7561(2)0.3063(4)0.56494(13)0.0418(10)
C480.7147(2)0.2958(5)0.60423(13)0.0548(11)
H480.69220.21120.61300.066*
C490.7070(3)0.4111(6)0.63021(16)0.0767(16)
H490.67890.40470.65640.092*
C500.7415(3)0.5367(6)0.6170(2)0.0840(16)
H500.73570.61460.63430.101*
C510.7834(3)0.5468(5)0.5790(2)0.0761(15)
H510.80670.63120.57050.091*
C520.7914(3)0.4323(4)0.55321(15)0.0565(11)
H520.82100.43940.52750.068*
C530.5676(2)0.3579(4)0.51739(12)0.0387(9)
C540.5137(3)0.4682(4)0.52644(14)0.0521(11)
H540.47140.45730.54710.062*
C550.5212(3)0.5936(5)0.50559(18)0.0666(14)
H550.48510.66680.51260.080*
C560.5827(4)0.6100(5)0.47403(17)0.0646(14)
H560.58760.69370.45950.077*
C570.6362(3)0.5019(5)0.46447(15)0.0553(12)
H570.67860.51360.44390.066*
C580.6280(3)0.3766(5)0.48494(13)0.0483(11)
H580.66320.30320.47710.058*

Source of material

The solution of 2-oxo-2-phenylacetaldehyde (134 mg, 1 mmol) and tert-butyl-(2-amino-4,5-dimethylphenyl)carbamate (236 mg, 1 mmol) in isopropyl alcohol was added in a 20 mL microwave vial, then the 8-bromo-2-phenylimidazo[1,2-α]pyridine (273 mg, 1 mmol) was added. The reaction solution was stirred at 60 °C for 3 h, then evaporated. The residue was dissolved in 5% trifluoroacetic acid (TFA)/dichloroethane (DCE), which was sealed and heated under microwave irradiation at 60 °C for 10 min. The reaction mixture was washed with water and brine, and extracted with ethyl acetate. The organic solution was dried and concentrated, and purified by column chromatography over silica gel eluting with a gradient of ethyl acetate (EA)/hexane (Hex) (0–20%) to afford the yellow solid. Yield, 303 mg, 60%. The title compound (200 mg, 0.39 mmol) was dissolved in 20% EA/Hex, and the solvent slowly evaporated at room temperature. After 1 week, yellow crystals were obtained.

Experimental details

All of the hydrogen atoms were placed in the calculated positions and all the non-hydrogen atoms were refined anisotropically.

Discussion

Imidazo[1,2-α]pyridine and quinoxaline are important nitrogen-containing aromatic heterocyclic compounds, which posess a p-conjugated system, as well as desirable electronic and charge-transport properties [4]. These characteristics result in the extensive potential application in chemistry [5], materials chemistry and medicinal chemistry [6].

The asymmetric unit of the title compound contains two molecules. The bond lengths and angles in both crystallographically independent molecules are in the normal ranges. In conclusion, we have developed a facile microwave-assisted process for the synthesis of an imidazo[1,2-α]pyridine-quinoxaline compound using a one-pot procedure. This facile procedure can be readily used to synthesize a diverse range of compounds for high throughput screening in medicinal chemistry.

Acknowledgements

We acknowledge support for the publication fee by the Key Project of Chongqing Municipal Education Commission (KJ1501124, KJ1501128, and KJ1401114), Natural Science Foundation Project of Yongchuan CSTC (Ycstc, 2016nc5001) and Chongqing University of Arts and Sciences (Z2015CH03).

References

Agilent: CrysAlis PRO, version 1.171.37.35, Agilent Technologies UK Ldt, Yarnton, England (2014).Search in Google Scholar

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Meng, J. P.; Xu, Q.: Crystal structure of 3,6-di(1H-imidazol-1-yl)-9H-carbazole, C18H13N5. Z. Kristallogr. NCS 231 (2016) 561–563.10.1515/ncrs-2015-0191Search in Google Scholar

Li, Y.; Meng, J. P.; Lei, J.; Chen, Z. Z.; Tang, D. Y.; Zhu, J.; Zhang, J.; Xu, Z. G.: Efficient synthesis of fused oxazepino-isoquinoline scaffolds via an ugi, followed by an intramolecular cyclization. ACS Comb. Sci. 19 (2017) 324–330.10.1021/acscombsci.7b00002Search in Google Scholar PubMed

Song, G. T.; Li, S. Q.; Yang, Z. W.; Yuan, J. H.; Wang, M. S.; Zhu, J.; Chen, Z. Z.; Xu, Z. G.: Microwave-assisted synthesis of fused piperazine-benzimidazoles via a facile, one-pot procedure. Tetrahedron Lett. 56 (2015) 4616–4618.10.1016/j.tetlet.2015.06.035Search in Google Scholar

Received: 2018-01-04
Accepted: 2018-03-27
Published Online: 2018-04-12
Published in Print: 2018-07-26

©2018 Gui Ting Song et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
