Crystal structure of bis(hydroxylamido-κ2O,N)-oxido(1H-pyrazole-3-carboxylato-κ2O,N)vanadium(V), C4H7N4O5V

  • Heng-Qiang Zhang , Qiong Wu , Qi-Ying Zhang EMAIL logo , Xue Yang and Hong-Li Chen
Published/Copyright: May 18, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C4H7N4O5V, monoclinic, P21/c (no. 14), a = 9.6179(8) Å, b = 8.3133(7)(11) Å, c = 10.8235(9) Å, β = 102.253(2)°, V = 845.69(12) Å3, Z = 8, Rgt(F) = 0.0242, wRref(F2) = 0.0718, T = 296(2) K.

CCDC no.: 1840529

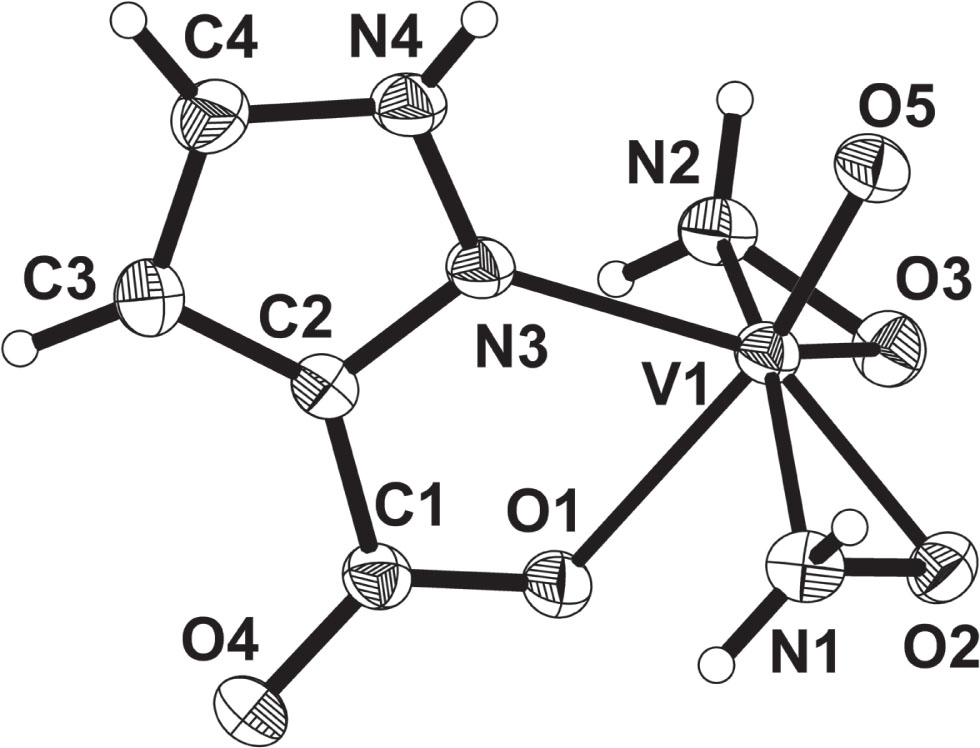

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.32 × 0.24 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.2 mm−1
Diffractometer, scan mode:Apex, φ and ω scans
θmax, completeness:28.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:11248, 2110, 0.021
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1840
N(param)refined:131
Programs:SHELX [1], Bruker [2], ORTEP-3 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.33313(16)0.44607(19)0.71427(14)0.0243(3)
C20.31387(17)0.50675(18)0.83855(14)0.0246(3)
C30.3600(2)0.6406(2)0.91405(16)0.0330(4)
H30.4161360.7253170.8968810.040*
C40.3034(2)0.6187(2)1.02010(16)0.0348(4)
H40.3146520.6872891.0894140.042*
N10.00287(15)0.29841(15)0.67257(13)0.0279(3)
H1A−0.0797020.3236960.6922540.034*
H1B0.0323320.3683120.6213370.034*
N20.33271(14)0.08232(16)0.88997(13)0.0280(3)
H2A0.4131300.1179770.8714480.034*
H2B0.3413160.0506610.9697840.034*
N30.23464(14)0.41155(15)0.89510(12)0.0243(3)
N40.22972(16)0.48119(17)1.00496(12)0.0288(3)
H4A0.180(2)0.448(3)1.050(2)0.051(7)*
O10.28642(13)0.30456(13)0.68889(10)0.0269(2)
O20.02976(12)0.13595(13)0.65586(10)0.0274(2)
O30.24172(12)−0.00614(13)0.79736(11)0.0286(2)
O40.38796(13)0.53382(15)0.64472(11)0.0332(3)
O50.06030(13)0.16037(14)0.91273(11)0.0301(3)
V10.15302(3)0.19529(3)0.80920(2)0.02037(10)

Source of material

All reagents were obtained from commercial sources and used without further purification. The compound was synthesized by aqueous reactions: NH4VO3 (1.72 mmol), pyrazole-3-carboxylic acid (5.00 mmol) and NaOH (6.61 mmol) was dissolved in 12 mL of aqueous solution at room temperature. The resulting yellow solution was cooled to 3 °C. NH2OH⋅HCl (4.31 mmol) was added slowly with constant stirring. The pH of the solution was about 6.9. The obtained yellow solution was filtered. Colorless block crystals suitable for single crystal X-ray diffraction were obtained by slow evaporation of the filtrate in anhydrous ethanol at 277 K. Anal. Calcd. for C4H7N4O5V (%): C, 19.85; H, 2.91; N, 23.15; V, 21.04. Found: C, 19.81; H, 2.96; N, 23.20; V, 21.02. The vanadium content was determined by spectrophotometry.

Experimental details

The structure was solved by Direct Methods with the SHELXS-2018 program [1]. The H atoms bonded to N4 atoms were located in difference maps and refined freely. Other H atoms were placed in calculated positions, with C—H = 0.93 Å for pyrazolyl and N—H = 0.90 Å, and refined as riding, with Uiso(H) values of 1.2 Ueq(carrier) for NH2 and pyrazolyl H groups.

Comment

Vanadium is a trace element in biochemical systems and can play an important role in metalloenzymes and impact insulin regulation [4]. In recent years, a number of vanadium compounds are known to exhibit insulin enhancing properties, including vanadium-picolinate complexes and vanadium peroxo compounds [5]. The coordination chemistry of vanadium hydroxylamine complexes has been rather less studied so far [6], [7], [8]. The structural chemistry of such vanadium complexes is very important for the understanding of vanadium biochemistry. Therefore, we have synthesized the title compound, and report its crystal structure here.

In the crystal structure of the title compound the vanadium(V) center is seven-coordinated in a pentagonal bipyramidal geometry containing two bidentate hydroxylamido ligands, one oxido ligand, and a bidentate ancillary ligand. The two deprotonted hydroxylamine molecules and the amine nitrogen atom of the organic ligand define a pentagonal equatorial plane approximately perpendicular to V—O bond, while the two oxygen atoms [O1, O3] occupy the axial position, and the distance of vanadium from the equatorial plane is 0.259 Å. The hydroxylamido ligands are coordinated with the nitrogen atoms oriented towards the pyrazole-3-carboxylate ligand. The carboxylate oxygen atom is coordinated trans to the oxido ligand in the complex. The V–N bond lengths are 2.018(2) and 2.004(2) Å, respectively, and the V—O bond lengths are 2.0253(14) and 1.9982(13) Å, respectively. The molecular structure of the compound is very similar to the other vanadium(V) hydroxylamido complexes with amino acid ligands that have been reported [9, 10] .

Acknowledgements

The authors thank the projects of the program for the Outstanding Young aged Innovative Talents of Higher Learning Institutions of Hebei Province (No. BJ201404), Department of Science and Technology of Hebei province (No. 17272610), Chengde Municipal Finance Bureau Foundation (No. CZ2013001) and municipal science and technology bureau of Chengde (No. 201701A146).

References

Sheldrick, G. M.: SHELXL2018. Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

Bruker. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, WI, USA (2008).Search in Google Scholar

Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

Crans, D. C.; Smee, J. J.; Gaidamauskas, E.; Yang, L. Q.: The chemistry and biochemistry of vanadium and the biological activities exerted by vanadium compounds. Chem. Rev. 104 (2004) 849–902.10.1021/cr020607tSearch in Google Scholar PubMed

Smee, J. J.; Epps, J. A.; Ooms, K.; Bolte, S. E.; Polenova, T.; Baruah, B.; Yang, L. Q.; Ding, W. J.; Li, M.; Willsky, G. R.; la Cour, A.; Anderson, O. P.; Crans, D. C.: Chloro-substituted dipicolinate vanadium complexes: synthesis, solution, solid-state, and insulin-enhancing properties. J. Inorg. Biochem. 103 (2009) 575–584.10.1016/j.jinorgbio.2008.12.015Search in Google Scholar PubMed

Arrambide, G.; Gambino, D.; Baran, E.: Synthesis and spectroscopic characterization of hydroxylamido/amino acid complexes of oxovanadium(V). J. Coord. Chem. 62 (2009) 63–74.10.1080/00958970802474821Search in Google Scholar

Crans, D. C.; Smee, J. J.; Gaidamauskiene, E. G.; Anderson, O. P.; Miller, S. M.; Jin, W. Z.; Gaidamauskas, E.; Crubellier, E.; Grainda, R.; Chi, L. H.; Willsky, G. R.: Inhibition of yeast growth by molybdenum-hydroxylamido complexes correlates with their presence in media at differing pH values. J. Inorg. Biochem. 98 (2004) 1837–1850.10.1016/j.jinorgbio.2004.08.010Search in Google Scholar PubMed

Keramidas, A. D.; Miller, S. M.; Anderson, O. P.; Crans, D. C.: Vanadium(V) hydroxylamido complexes: solid state and solution properties. J. Am. Chem. Soc. 119 (1997) 8901–8915.10.1021/ja970747ySearch in Google Scholar

Zhang, H.-Q.; Zhang, Q.-Y.; Li, J.; Liu, D.; Wu, X.-F.; Shan, Y. K.: Synthesis and characterization and PTP1B inhibitory activity of the vanadium complexes with amino-acids. Chem. J. Chin. U. 33 (2012) 243–250.Search in Google Scholar

Li, L.-Z.; Xu, T.; Wang, D.-Q.: Synthesis and crystal structure of two vanadium(V) hydroxylamido complexes with amino acid ligands. J. Chem. Crystallogr. 34 (2004) 585–590.10.1023/B:JOCC.0000044084.32526.8dSearch in Google Scholar

Received: 2018-03-17
Accepted: 2018-04-30
Published Online: 2018-05-18
Published in Print: 2018-07-26

©2018 Heng-Qiang Zhang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
