Crystal structure of poly[μ3-5-(4-(2,6-di(pyridine-2-yl)pyridine-4-yl)phenoxy)isophthalato-κ5O:O′,O′′:N,N′,N′′cobalt(II)], C29H17CoN3O5

  • Xue-Guo Liu EMAIL logo , Wei-Hong Yan , Xiao-Jing Xing and Hui-Tao Fan EMAIL logo
Published/Copyright: April 27, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C29H17CoN3O5, monoclinic, P21/c (no. 14), a = 11.1893(6) Å, b = 13.9922(10) Å, c = 14.1772(7) Å, β = 94.544(5)°, V = 2212.6(2) Å3, Z = 4, Rgt(F) = 0.0460, wRref(F2) = 0.0975, T = 293(2) K.

CCDC no.: 1588811

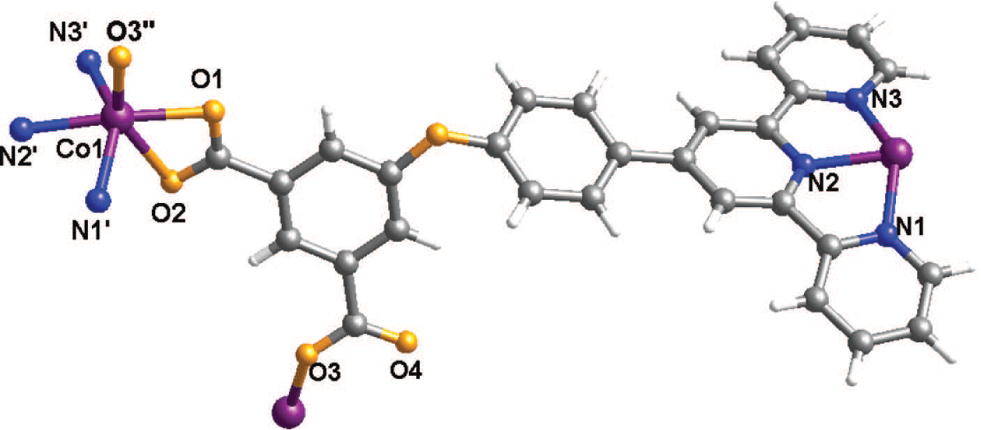

A part of the polymeric title crystal structure is shown in the figure (Symmetry code: ′ = x − 1, y, z − 1; ′′ = −x + 1, y − 0.5, −z − 0.5). Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red block
Size:0.20 × 0.18 × 0.16 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.83 mm−1
Diffractometer, scan mode:SuperNova, ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:12054, 3902, 0.033
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3200
N(param)refined:350
Programs:CrysAlisPRO [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
CO10.28562(4)0.33070(3)−0.32836(3)0.02661(14)
N11.4035(2)0.3541(2)0.56109(17)0.0305(6)
N21.1737(2)0.3647(2)0.55253(16)0.0269(6)
N31.1168(2)0.3674(2)0.72383(16)0.0293(6)
O10.3963(2)0.31607(18)−0.20589(16)0.0470(7)
O20.3778(2)0.46164(18)−0.25817(15)0.0402(6)
O30.71742(19)0.68681(16)−0.15884(14)0.0347(6)
O40.8374(2)0.6518(2)−0.03094(16)0.0542(8)
O50.6996(3)0.3196(2)0.06312(19)0.0757(11)
C10.5298(3)0.4316(2)−0.13351(19)0.0270(7)
C20.5858(3)0.5192(2)−0.13988(19)0.0269(7)
H20.5570320.563022−0.1854960.032*
C30.6849(3)0.5423(2)−0.07858(19)0.0257(7)
C40.7247(3)0.4772(2)−0.0087(2)0.0325(8)
H40.7896320.4923700.0337040.039*
C50.6686(3)0.3910(2)−0.0025(2)0.0371(9)
C60.5712(3)0.3670(3)−0.0650(2)0.0359(8)
H60.5341840.307777−0.0606250.043*
C70.7801(3)0.3366(3)0.1414(2)0.0477(10)
C8a0.7344(4)0.3213(4)0.2301(3)0.0441(13)
H8a0.6537760.3074900.2345060.053*
C9a0.8124(3)0.3275(4)0.3101(3)0.0406(13)
H9a0.7845780.3160070.3691380.049*
C8′b0.7425(19)0.377(2)0.2198(11)0.0441(13)
H8′b0.6628900.3947390.2229240.053*
C9′b0.8243(13)0.390(2)0.2943(16)0.0406(13)
H9′b0.8023750.4286560.3432520.049*
C100.9348(3)0.3512(3)0.3032(2)0.0372(9)
C110.9755(3)0.3584(3)0.2147(2)0.0416(9)
H111.0567330.3688440.2090870.050*
C120.8988(3)0.3505(3)0.1337(2)0.0529(11)
H120.9284140.3547270.0744220.063*
C131.0184(3)0.3581(3)0.3901(2)0.0324(8)
C140.9765(3)0.3671(3)0.4793(2)0.0338(8)
H140.8945010.3715070.4852430.041*
C151.0555(3)0.3697(2)0.5592(2)0.0283(7)
C161.2175(3)0.3601(2)0.4676(2)0.0269(7)
C171.1427(3)0.3555(3)0.3853(2)0.0334(8)
H171.1749750.3507420.3269800.040*
C181.0229(3)0.3783(2)0.6583(2)0.0286(7)
C190.9095(3)0.3980(3)0.6835(2)0.0386(9)
H190.8465900.4055230.6371370.046*
C200.8892(3)0.4067(3)0.7775(2)0.0455(10)
H200.8127030.4193330.7955560.055*
C210.9846(3)0.3963(3)0.8443(2)0.0434(9)
H210.9736230.4030460.9083440.052*
C221.0954(3)0.3760(3)0.8157(2)0.0342(8)
H221.1587840.3678220.8614520.041*
C231.3499(3)0.3631(2)0.4727(2)0.0283(7)
C241.4138(3)0.3817(3)0.3956(2)0.0363(8)
H241.3751100.3844680.3351670.044*
C251.5358(3)0.3961(3)0.4091(2)0.0427(9)
H251.5803070.4116590.3585900.051*
C261.5903(3)0.3868(3)0.4994(3)0.0422(9)
H261.6726200.3955760.5105660.051*
C271.5224(3)0.3645(3)0.5725(2)0.0371(9)
H271.5605880.3562040.6326220.045*
C280.4275(3)0.4021(3)−0.2026(2)0.0314(8)
C290.7521(3)0.6343(2)−0.0882(2)0.0289(7)

  1. Occupancies: a = 0.853(8), b = 0.147(8).

Source of materials

The title complex was synthesized solvothermally in a Teflon-lined stainless steel container by heating a mixture of 5-(4-(2,6-di(pyridine-2-yl)pyridine-4-yl)phenoxy)isophthalic acid (H2L, 0.0146 g, 0.03 mmol), Co(NO3)2⋅6H2O (0.0087 g, 0.03 mmol), and 1 mL ethanol and 1 mL DMF in 6 mL of distilled water at 130 °C for 3 days under autogenous pressure. Subsequent cooling to room temperature yielded red block crystals.

Experimental details

Absorption corrections were applied by using multi-scan program. The structure was refined based on F2 with the SHELXL [3] software package. Hydrogen atoms attached to C of the title complex located in difference electron density maps and treated as riding atoms. The Uiso values of the hydrogen atoms of water molecules were set to 1.5Ueq(O) and the Uiso values of all other hydrogen atoms were set to 1.2Ueq(C).

Comment

Design and synthesis of the metal-organic frameworks have rapidly developed owing not only to their intriguing architectures but also to their potential applications, such as gas storage, magnetism, nonlinear optical activity and catalysis [4], [5], [6]. Multicarboxylate ligands are often selected as multifunctional organic linkers to construct interesting structures, and various coordination polymers have been reported [7, 8] . To date, there is only one example based on pyridine carboxylate ligand [3]. H2L contains both carboxylate and pyridine donor moieties, which can enrich coordination modes. To our knowledge, coordination polymers based on this ligand have been not reported to date. X-ray crystallography analyses reveal that the title complex shows three-dimensional framework linked through hydrogen bonding interactions.

The asymmetric unit contains one Co(II) atom and one fully deprotonated L2− ligand. The geometry around the Co1 atom can be described as a distorted octahedral geometry, and is coordinated by three nitrogen atoms from one L2− ligand and three oxygen atoms form two different L2− ligands. O1, O2, O3 and N2 atoms comprise the equatorial plane, while N1 and N3 occupy the axial positions. The Co1—N bond lengths are from 2.076(2) to 2.152(2) Å, and the Co1—O bond lengths fall in the range 2.021(2)−2.292(2) Å, similarly to previous reports [9, 10] . The two carboxylate groups of the L2− ligand show chelating and monodentate coordination mode, respectively. The chelating carboxylate group and pyridyl nitrogen atoms of L2− ligand bridged adjacent Co1 atoms to give rise to an infinite one-dimensional chain. Adjacent chains are linked through another monodentate carboxylate group to generate two-dimensional layer. The neighboring layers are further linked by hydrogen bonds (C—H—O, H25—O3 2.344(2) Å) to form three-dimensional network.

Acknowledgements

We gratefully acknowledge the financial support by the Science and Technology Research Key Project Department of Education in Henan Province (Nos. 16A150018, 15A150066), the National Natural Science Foundation of China (No. 21505080), and the Scientific and Technological Project of Henan Province (No. 182102110089, 182102310645).

References

Agilent Technologies: CrysAlisPRO Software system, version 1.171.38.41r, Agilent Technologies UK Ltd., Oxford, UK (2011).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Cao, K. L.; Xia, Y.; Wang, G. X.; Feng, Y. L.: A robust luminescent Ba(II) metal-organic framework based on pyridine carboxylate ligand for sensing of small molecules. Inorg. Chem. Commun. 53 (2015) 42–45.10.1016/j.inoche.2015.01.021Search in Google Scholar

Chu, Q.; Su, Z.; Fan, J.; Okamura, T.; Lv, G. C.; Liu, G. X.; Sun, W. Y.; Ueyama, N.: Novel cobalt(II) coordination polymers constructed from 3,3′,4,4′-oxydiphthalic acid and N-donor ligands: syntheses, crystal structures, and magnetic properties. Cryst. Growth Des. 11 (2011) 3885–3894.10.1021/cg200416ySearch in Google Scholar

Zhao, Y.; Deng, D. S.; Ma, L. F.; Ji, B. M.; Wang, L. Y.: A new copper-based metal-corganic framework as a promising heterogeneous catalyst for chemo- and regio-selective enamination of α-ketoesters. Chem. Commun. 49 (2013) 10299–10301.10.1039/c3cc45310cSearch in Google Scholar PubMed

Ma, L. F.; Wang, X. N.; Deng, D. S.; Luo, F.; Ji, B. M.; Zhang, J.: Five porous zinc(II) coordination polymers functionalized with amide groups: cooperative and size-selective catalysis. J. Mater. Chem. A 3 (2015) 20210–20217.10.1039/C5TA06248ASearch in Google Scholar

Xue, L. P.; Chang, X. H.; Li, S. H.; Ma, L. F.; Wang, L. Y.: The structure diversity and photoluminescent properties of cadmium thiophenedicarboxylate coodination polymers. Dalton Trans. 43 (2014) 7219–7226.10.1039/C4DT00211CSearch in Google Scholar PubMed

Li, B.; Zang, S. Q.; Wang, L. Y.; Mak, T. C. W.: Halogen bonding: a powerful, emerging tool for constructing high-dimensional metal-containing supramolecular networks. Coord. Chem. Rev. 308 (2016) 1–21.10.1016/j.ccr.2015.09.005Search in Google Scholar

Li, B.; Dong, M. M.; Fan, H. T.; Feng, C. Q.; Zang, S. Q.; Wang, L. Y.: Halogen⋯halogen interactions in the assembly of high-dimensional supramolecular coordination polymers based on 3,5-diiodobenzoic acid. Cryst. Growth Des. 14 (2014) 6325–6336.10.1021/cg501073eSearch in Google Scholar

Li, B.; Fan, H. T.; Wang, Z. Q.; Feng, C. Q.: Syntheses, structure and thermal analysis of a cobalt coordination polymer with multiform helical features based on flexible iododicarboxylate ligand and N-donor ancillary ligand. Chinese J. Struct. Chem. 34 (2015) 735–740.Search in Google Scholar

Received: 2018-01-12
Accepted: 2018-04-12
Published Online: 2018-04-27
Published in Print: 2018-07-26

©2018 Xue-Guo Liu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
