Crystal structure of catena-poly[diaqua-(μ2-3,5-bis(pyridin-4-ylmethoxy)benzoate-κ2N:O) manganese(II)] tetrahydrate [(3,5-bis-(pyridin-4-ylmethoxy)-benzoic-κ1Oκ1N) manganese(II)] trihydrate, C38H42MnN4O14

  • Gui-Hua Zou , Yu-Long Zou and Guang-Zhi Shen EMAIL logo
Published/Copyright: April 18, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C38H42MnN4O14, monoclinic, C2/c (no. 15), a = 19.165(12) Å, b = 10.116(6) Å, c = 20.734(13) Å, β = 99.021(11)°, V = 3970(4) Å3, Z = 4, Rgt(F) = 0.0486, wRref(F2) = 0.1442, T = 293(2) K.

CCDC no.: 1814643

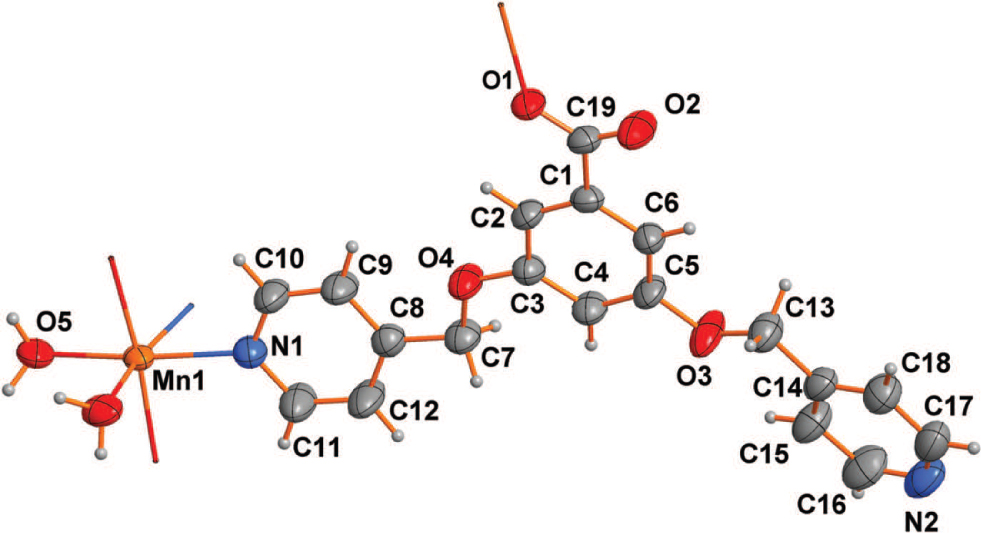

A part of the title crystal structure is shown in the figure. Uncoordinated water molecules are omitted for clarity. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:colorless block
Size:0.26 × 0.21 × 0.17 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.41 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:9384, 3482, 0.041
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2526
N(param)refined:258
Programs:Bruker programs [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.0000001.30976(5)0.2500000.0411(2)
N10.05752(11)1.1418(2)0.20742(12)0.0486(6)
N20.48982(14)0.1499(3)0.13329(17)0.0703(8)
O10.07693(10)0.67927(18)−0.16487(9)0.0510(5)
O20.15575(11)0.5292(2)−0.18336(10)0.0675(6)
O30.29231(12)0.4464(2)0.04587(10)0.0743(7)
O40.13381(10)0.80026(19)0.06455(9)0.0545(5)
O5−0.06622(10)1.4533(2)0.29504(10)0.0600(6)
H5A−0.0991341.4778550.2675090.090*
H5B−0.0438241.5243150.3098790.090*
O60.22150(19)0.3070(4)0.7754(2)0.1541(16)
H6A0.2457650.2384950.7874660.231*
H6B0.1802650.2984460.7851450.231*
O70.8295(3)0.3283(4)0.3665(2)0.1718(19)
H7C0.8371610.3892800.3948950.258*
H7D0.8641810.3232200.3455750.258*
C10.15904(12)0.6076(2)−0.07567(13)0.0403(6)
C20.13348(13)0.6975(3)−0.03549(13)0.0436(6)
H20.0971470.754524−0.0524920.052*
C30.16160(13)0.7035(3)0.03029(14)0.0430(6)
C40.21431(14)0.6176(3)0.05587(14)0.0490(7)
H40.2326740.6198970.1001170.059*
C50.23978(14)0.5273(3)0.01478(14)0.0483(7)
C60.21329(13)0.5212(3)−0.05036(14)0.0442(6)
H60.2310910.460540−0.0773110.053*
C70.15883(15)0.8114(3)0.13237(14)0.0502(7)
H7A0.2095380.8252840.1397950.060*
H7B0.1487120.7309450.1546330.060*
C80.12243(13)0.9259(3)0.15783(14)0.0454(7)
C90.06293(15)0.9831(3)0.12394(15)0.0596(8)
H90.0429320.9501550.0833490.072*
C100.03300(16)1.0898(3)0.15060(16)0.0609(8)
H10−0.0072461.1272220.1266460.073*
C110.11511(18)1.0853(3)0.24000(17)0.0734(10)
H110.1339351.1198140.2805810.088*
C120.14830(18)0.9791(4)0.21715(17)0.0736(10)
H120.1884140.9433020.2421070.088*
C130.33187(16)0.3709(3)0.00755(15)0.0600(8)
H13A0.3544060.428378−0.0204670.072*
H13B0.3011320.310225−0.0198300.072*
C140.38720(14)0.2946(3)0.05280(16)0.0507(7)
C150.39267(16)0.3007(3)0.11860(18)0.0658(9)
H150.3621940.3538600.1379330.079*
C160.44384(19)0.2272(4)0.15650(19)0.0755(10)
H160.4463160.2321070.2015960.091*
C170.48430(17)0.1450(3)0.0700(2)0.0724(10)
H170.5159140.0916470.0521790.087*
C180.43406(17)0.2146(3)0.02699(18)0.0660(9)
H180.4322580.207224−0.0179530.079*
C190.12844(13)0.6046(3)−0.14677(14)0.0439(7)

Source of materials

The title complex was synthesized solvothermally in a Teflon-lined stainless steel container by heating a mixture of 3,5-bis(pyridin-4-ylmethoxy)benzoic acid (HL; 0.010 g, 0.03 mmol), Mn(NO3)2 (0.010 g, 0.06 mmol), and 6 mL of distilled water at 130 °C for 3 days under autogenous pressure. Subsequent cooling to room temperature yielded colorless block crystals.

Experimental details

Absorption corrections were applied by using multi-scan program. Hydrogen atoms attached to C of the title complex located in difference electron density maps, and treated as riding atoms. The Uiso values of the hydrogen atoms of water molecules were set to 1.5Ueq(O) and the Uiso values of all other hydrogen atoms were set to 1.2Ueq(C).

Comment

The design and construction of metal-organic coordination polymers have attracted great attention owing to their properties [4], [5], [6]. Although many metal-organic coordination polymers based on multicarboxylic acids have been reported [7], [8], [9], [10], those on pyridine carboxylate acids are relatively rare. With the aim to construct intruguing coordination architectures, we have engaged in the research of coordination polymer based on HL.

Single crystal structure analysis reveals that the asymmetric unit of the title structure consists of one Mn(II) atom, one L− ligand, one coordinated water molecule and two free water molecules. The central Mn1 cation coordinated to two nitrogen atoms from two L− ligand, two oxygen atoms from two different L− ligands and two oxygen atoms from two coordinated water molecules. L− ligands link adjacent metal centers to generate infinite one-dimensional chain, which further connected through weak π–π (3.667(2) Å) interactions to form a three-dimensional supramolecular network. The hydrogen bonding further consolidates the structure.

Acknowledgements

We gratefully acknowledge the support by Mudanjiang Medical University.

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2012).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Zhao, Y.; Deng, D. S.; Ma, L. F.; Ji, B. M.; Wang, L. Y.: A new copper-based metal-corganic framework as a promising heterogeneous catalyst for chemo- and regio-selective enamination of b-ketoesters. Chem. Commun. 49 (2013) 1504–1508.10.1039/c3cc45310cSearch in Google Scholar

Stephenson, A.; Ward, M. D.: A triple helix of double helicates: three hierarchical levels of self-assembly in a single structure. Chem. Commun. 48 (2012) 3605–3607.10.1039/c2cc30197kSearch in Google Scholar PubMed

Dong, X. Y.; Li, B.; Ma, B. B.; Li, S. J.; Dong, M. M.; Zhu, Y. Y.; Zang, S. Q.; Song, Y.; Hou, H. W.; Mak, T. C. W.: Ferroelectric switchable behavior through fast reversible de/adsorption of water spirals in a chiral 3D metal-organic framework. J. Am. Chem. Soc. 135 (2013) 10214–10217.10.1021/ja403449kSearch in Google Scholar PubMed

Qin, J. H.; Ma, B.; Liu, X. F.; Lu, H. L.; Dong, X. Y.; Zang, S. Q.; Hou, H. W.: Aqueous- and vapor-phase detection of nitroaromatic explosives by a water-stable fluorescent microporous MOF directed by an ionic liquid. J. Mater. Chem. A3 (2015) 12690–12697.10.1039/C5TA00322ASearch in Google Scholar

Cao, L. H.; Wei, Y. S.; Xu, H.; Zang, S. Q.; Mak, T. C. W.: Unveiling the mechanism of water-triggered diplex transformation and correlating the changes in structures and separation properties. Adv. Funct. Mater. 25 (2015) 6448–6457.10.1002/adfm.201503154Search in Google Scholar

Fan, H. T.; Zhong, Z. G.; Yang, Y. H.; Zhao, L.: Crystal structure of ([3,3′-bipyridine]-6,6′-dicarboxylato-κ2O:O′)-bis(1,2-bis(4-pyridyl)ethane-k2N:N′)disilver(I) dihydrate, C37H35Ag2N5O6. Z. Kristallogr. NCS 232 (2017) 587–589.10.1515/ncrs-2016-0355Search in Google Scholar

Sun, D.; Yan, Z. H.; Liu, M. J.; Xie, H. Y.; Yuan, S.; Lu, H. F.; Feng, S. Y.; Sun, D. F.: Three- and eight-fold interpenetrated ThSi2 metal–organic frameworks fine-tuned by the length of ligand. Cryst. Growth Des. 12 (2012) 2902–2907.10.1021/cg300085fSearch in Google Scholar

Received: 2018-01-04
Accepted: 2018-04-04
Published Online: 2018-04-18
Published in Print: 2018-07-26

©2018 Gui-Hua Zou et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
