Crystal structure of bis(acetonitrile)-diaqua-dichloridoiron(II), C4H10Cl2N2O2Fe

  • Jian Zuo EMAIL logo
Published/Copyright: May 29, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C4H10Cl2N2O2Fe, monoclinic, P21/c (no. 14), a = 7.8501(10) Å, b = 7.8289(10) Å, c = 8.2974(17) Å, β = 97.840(2), V = 505.17(14) Å3, Z = 2, Rgt(F) = 0.0447, wRref(F2) = 0.1237, T = 298(2) K.

CCDC no.: 1842056

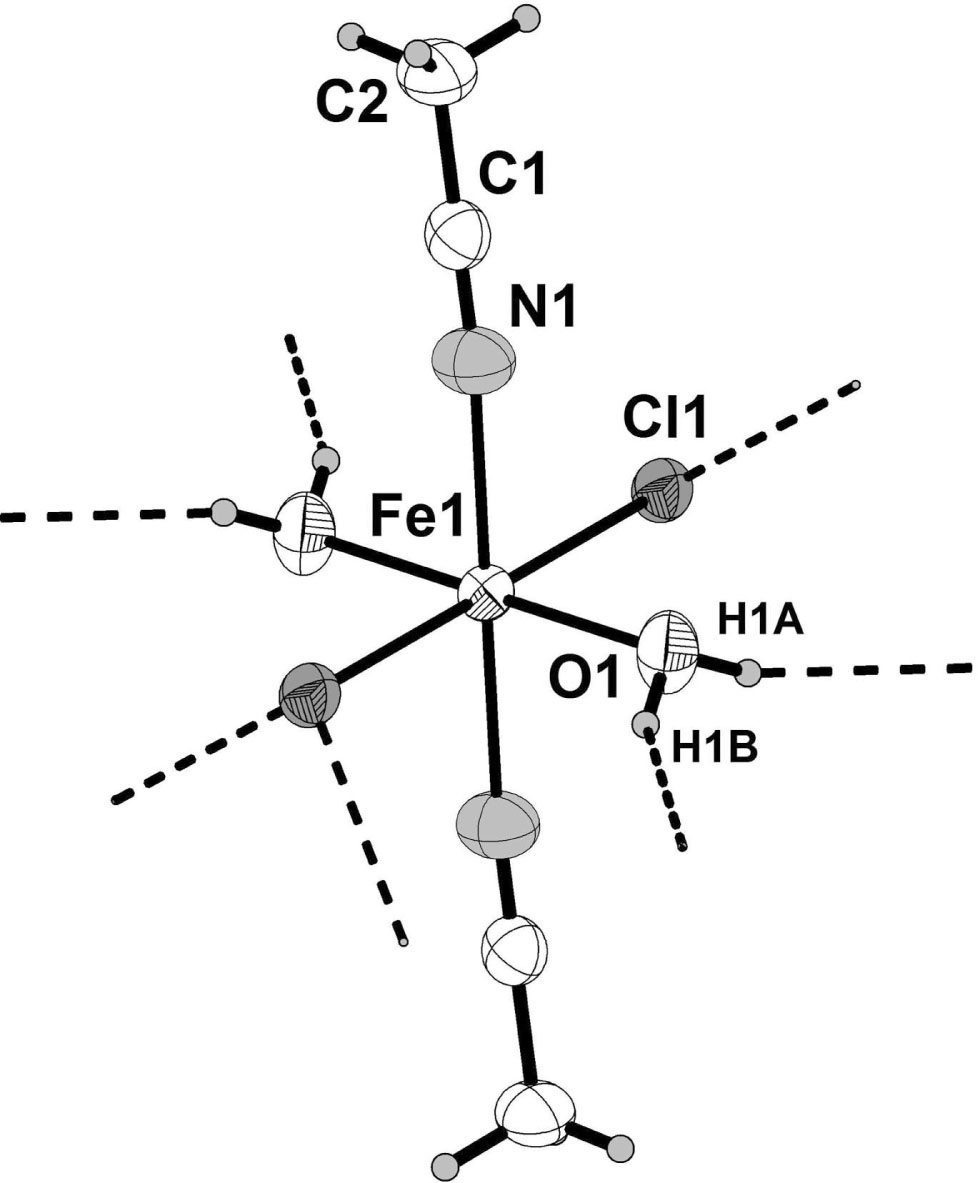

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

Iron(II) chloride tetrahydrate (1.447 g, 10 mmol) was added to acetonitrile (30 mL). The reaction was stirred at 343 K for 24 h. After cooling, the resulting green solution was allowed to evaporate slowly at room temperature for a week, yielding green block crystals.

Table 1:

Data collection and handling.

Crystal:Green block
Size:0.50 × 0.47 × 0.18 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.98 mm−1
Diffractometer, scan mode:CCD Area Detector, φ and ω
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:2290, 883, 0.104
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 702
N(param)refined:54
Programs:Bruker [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Fe10.00000.50000.00000.0281(4)
Cl1−0.18298(11)0.75902(11)−0.01789(11)0.0341(4)
O10.0246(5)0.5157(3)−0.2459(4)0.0438(8)
H1A−0.06210.5618−0.30170.053*
H1B0.04590.4196−0.28650.053*
N10.2287(4)0.6664(4)0.0660(5)0.0476(9)
C10.3235(5)0.7615(5)0.1265(5)0.0370(10)
C20.4467(5)0.8846(5)0.2044(6)0.0484(11)
H2A0.44590.88150.32000.073*
H2B0.41610.99700.16430.073*
H2C0.55960.85640.18050.073*

Experimental details

All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were assigned with common isotropic displacement factors Uiso(H) = 1.5 times Ueq (O, water), (C, methyl) and refined as riding on their parent atom.

Comment

The solvent ligands which contain N atom have a high binding affinity to a range of metal ions, and are ligands ubiquitous in coordination chemistry [4], [5]. It has been shown that these complexes have been used in the fields of magnetism, catalysis, enzymatic reactions and biological activities [6], [7].

In this paper, we report the synthesis and crystal structure of a iron complex with acetonitrile ligand. The title structure contains one iron ion, two chloride ions, two acetonitrile ligands and two coordinated water molecules located at a center of inversion. The iron atom is six-coordinated by two chlorido ligands, two N atoms from two acetonitrile ligands and two coordinated water O atoms. Among them, the Fe–O bond lengths are 2.079(3) Å, Fe–N bond lengths are 2.225(4) Å and the Fe–Cl ones are 2.4777(9) Å, respectively. Bond lengths are in the expected ranges [8], [9], [10]. Adjacent complexes are connected by OH⋯Cl hydrogen bonds (cf. the figure).

Acknowledgements

This work was supported by the Promotive Research Fund for Excellent Young and Middle-aged Scientists of Shandong Province (No. BS2015YY045), the Science and Technology Development Plan Project of Taian City (No. 2016NS1181), and the Introduction of Talent Research Startup Fund Project of Taishan University (No. Y-01-2014006).

References

Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2004).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Kitagawa, S.; Uemura, K.: Dynamic porous properties of coordination polymers inspired by hydrogen bonds. Chem. Soc. Rev. 34 (2005) 109–119.10.1039/b313997mSearch in Google Scholar PubMed

Wang, X. Y.; Wang, Z. M.; Gao, S.: Constructing molecular magnetic solids by employing three-atom ligands as bridges. Chem. Commun. 3 (2008) 281–294.10.1002/9780470467336.ch8Search in Google Scholar

Eugene, Y.; Chen, X.: Coordination polymerization of polar vinyl monomers by single-site metal catalysts. Chem. Rev. 41 (2010) 5157–5214.10.1021/cr9000258Search in Google Scholar

Codd, R.: Traversing the coordination chemistry and chemical biology of hydroxamic acids. Coord. Chem. Rev. 252 (2008) 1387–1408.10.1016/j.ccr.2007.08.001Search in Google Scholar

Liu, B.; Xia, Q. Q.; Chen, W. Z.: Direct synthesis of iron, cobalt, nickel, and copper complexes of N-heterocyclics carbenes by using commercially available metal powders. Angew. Chem. Int. Ed. 48 (2009) 5513–5516.10.1002/anie.200901850Search in Google Scholar PubMed

Saha, P. K.; Dutta, B.; Jana, S.; Bera, R.; Saha, S.; Okamoto, K.; Koner, S.: Immobilization of a copper-Schiff base complex in a Y-zeolite matrix: preparation, chromogenic behavior and catalytic oxidation. Polyhedron 26 (2007) 563–571.10.1016/j.poly.2006.08.018Search in Google Scholar

Ross, T. M.; Neville, S. M.; Innes, D. S.; Turner, D. R.; Moubaraki, B.; Murray, K. S.: Spin crossover in iron(III) Schiff-base 1-D chain complexes. Dalton Trans. 39 (2010) 149–159.10.1039/B913234ASearch in Google Scholar

Received: 2018-03-16
Accepted: 2018-05-08
Published Online: 2018-05-29
Published in Print: 2018-07-26

©2018 Jian Zuo, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
