Home The crystal structure of chlorido(2-(1H-pyrazol-3-yl)phenolato-κ2N,O)(2-(1H-pyrazol-3-yl)phenol-κN)copper(II), C18H15ClCuN4O2
Article Open Access

The crystal structure of chlorido(2-(1H-pyrazol-3-yl)phenolato-κ2N,O)(2-(1H-pyrazol-3-yl)phenol-κN)copper(II), C18H15ClCuN4O2

  • Wu-Wu Li EMAIL logo , Min-Yan Zheng and Zun-Ting Zhang
Published/Copyright: May 22, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C18H15ClCuN4O2, triclinic, P1̄ (no. 2), a = 8.938(3) Å, b = 9.228(3) Å, c = 12.127(6) Å, α = 105.478(7)°, β = 110.358(8)°, γ = 99.727(6)°, V = 865.0(6) Å3, Z = 2, Rgt(F) = 0.0504, wRref(F2) = 0.1447, T = 296(2) K.

CCDC no.: 1842062

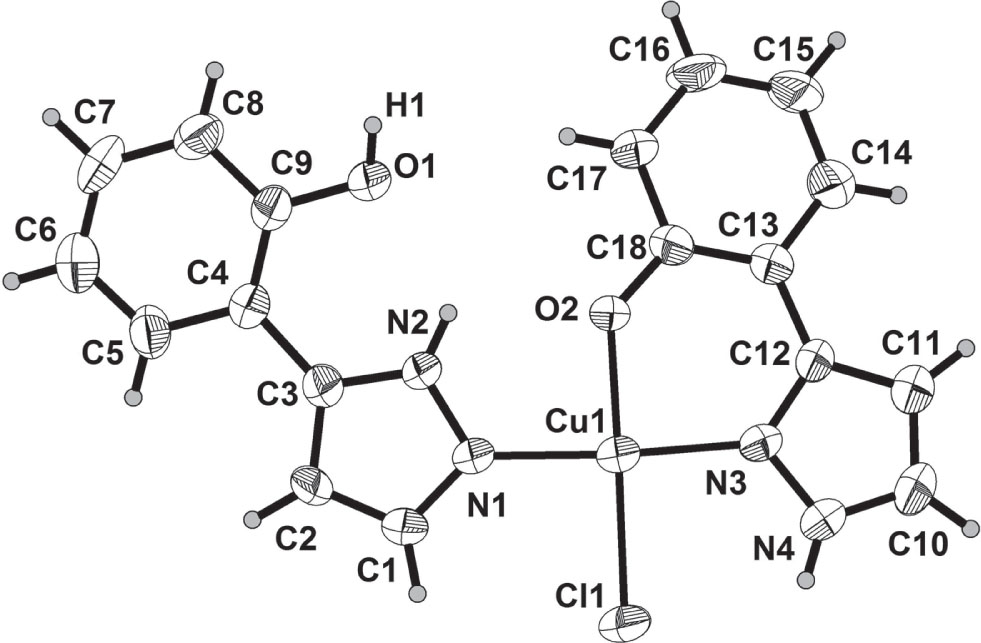

The molecular structure of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Columnar, blue
Size:0.37 × 0.28 × 0.18 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.44 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:25.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:4350, 3053, 0.031
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2287
N(param)refined:236
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cu10.10737(6)0.63634(6)0.46792(5)0.0392(2)
Cl10.17004(15)0.90584(13)0.54930(12)0.0528(3)
N10.3223(4)0.6418(4)0.5929(3)0.0425(9)
N20.3697(4)0.5088(4)0.5869(3)0.0396(9)
H2B0.3112820.4187040.5295770.048*
N3−0.0830(4)0.6232(4)0.3207(3)0.0409(9)
N4−0.1404(5)0.7453(4)0.3053(4)0.0524(10)
H4−0.1016340.8384290.3607960.063*
O10.3649(4)0.2070(3)0.5347(3)0.0531(9)
H10.3189640.1139340.5168380.080*
O20.0568(4)0.4110(3)0.4046(3)0.0444(7)
C10.4448(6)0.7518(5)0.6943(5)0.0576(14)
H1A0.4467020.8563470.7240760.069*
C20.5688(6)0.6901(5)0.7494(5)0.0562(14)
H20.6680220.7448850.8200220.067*
C30.5188(5)0.5336(5)0.6808(4)0.0419(11)
C40.5973(5)0.4099(5)0.7002(4)0.0413(11)
C50.7562(6)0.4533(6)0.7970(5)0.0522(12)
H50.8118450.5591750.8428120.063*
C60.8310(6)0.3433(7)0.8254(5)0.0620(15)
H60.9369690.3745580.8899740.074*
C70.7501(6)0.1853(6)0.7586(5)0.0601(14)
H70.8007500.1103280.7792860.072*
C80.5944(6)0.1391(6)0.6614(5)0.0538(13)
H80.5401340.0329840.6153130.065*
C90.5194(5)0.2514(5)0.6330(4)0.0419(11)
C10−0.2658(7)0.7026(6)0.1923(5)0.0685(16)
H10−0.3258340.7666570.1611220.082*
C11−0.2894(6)0.5497(6)0.1317(5)0.0649(15)
H11−0.3674980.4887770.0505890.078*
C12−0.1743(5)0.5001(5)0.2137(4)0.0426(11)
C13−0.1416(5)0.3491(5)0.1922(4)0.0417(11)
C14−0.2283(7)0.2321(6)0.0715(5)0.0648(15)
H14−0.3082180.2530620.0093890.078*
C15−0.1993(8)0.0908(6)0.0431(5)0.0787(19)
H15−0.2588430.016411−0.0374000.094*
C16−0.0811(7)0.0565(6)0.1338(5)0.0658(16)
H16−0.060458−0.0405350.1139840.079*
C170.0064(6)0.1665(5)0.2539(5)0.0492(12)
H170.0863650.1432660.3143790.059*
C18−0.0247(5)0.3134(5)0.2854(4)0.0418(11)

Source of material

Synthesis of the ligand: To a DMF solution (15 mL) of 2-hydroxy acetophenone (204 mg, 1.5 mmol) was added DMF-DMA (179 mg, 1.5 mmol). The solution was stirred under reflux at 353 K for 1 h. Hydrazine hydrate (80%, 125 mg, 2 mmol) was added to the reaction solution. After completion of the reaction, monitored by TLC, the mixture was quenched with saturated aqueous sodium chloride (20 mL). A yellow precipitate appeared, which was filtered and washed with water and hexane. The product was dried under vacuum and a yellow solid was obtained (yield 88.5%). Synthesis of the copper(II) complex: To a stirred solution of 2-(1H-pyrazol-3-yl)phenol (480 mg, 3.0 mmol) in ethanol (8 mL) was added CuCl2⋅2H2O (256 mg, 1.5 mmol) in ethanol (4 mL) at room temperature. The resultant blue solution was allowed to evaporate at room temperature in the dark for about 5 days. Blue columnar crystals were obtained.

Experimental details

Absorption corrections were applied using a multi-scan program. The hydrogen atoms were placed at calculated positions and refined as riding atoms with fixed isotropic displacement parameters.

Discussion

Many pyrazole derivatives are known to exhibit a wide range of biological properties such as inhibitor of CDK2 (cyclin dependent kinase 2), good activity against a rang of human tumor cell lines [3], HIV-1 integrase inhibitors [4] and CB1 (cannabinoid type 1) receptor-ligand [5]. Meanwhile, pyrazole and its derivatives exhibits the ability to coordinate to metals and participate in hydrogen bonding [6], [7], [8]. Coordination compound of pyrazole-based ligands have potentially beneficial biological activities, viz. antimicrobial, anticancer, ACE (angiotensin-converting-enzyme) inhibition, and anti-inflammatory agents [9], [10], [11].

The crystal structure of the title compound comprises of a neutral 2-(1H-pyrazol-3-yl)phenol ligand, a chloride and a 2-(1H-pyrazol-3-yl)phenolate ligand, and Cu(II). As shown in the figure, each Cu(II) is coordinated by two N atoms and one oxygen atom (O2) from two ligands and one chlorine atom, displaying a distorted square planar coordination geometry. Bond angle sum of coordination bonds around Cu(II) (O2—Cu1—N3 = 89.53°, Cl1—Cu1—N3 = 91.73°, Cl1—Cu1—N1 = 91.19° and O2—Cu1—N1 = 87.75°) is 360.2°. In title compound, π–π stacking links adjacent molecules. There are some hydrogen bonds: O1—H1⋯Cl1i and N4—H4⋯Cl1ii. symmetry code: (i) x, −1 + y, z; (ii) −x, 2 − y, 1 − z.

Acknowledgements

This research was supported by Youth Backbone Teachers Project funded by Xianyang Normal University (XSYGG201606), Scientific Research Program funded by Shaanxi Provincial Education Department (16JK1822), Natural Science Basic Research Plan funded by Shaanxi Province of China (2016JM5024), Science and Technology Projects of Xianyang City (2017k02–19), University Students Research and Innovation Training Program of Xianyang Normal University (2017060 and 201710722003) and University Students Research and Innovation Training Program of Shaanxi Province (2490).

References

Bruker. APEX2 and SAINT. Bruker AXS Inc., Madison, WI, USA (2012).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Wyatt, P. G.; Woodhead, A. J.; Berdini, V.; Boulstridge, J. A.; Carr, M. G.; Cross, D. M.; Davis, D. J.; Devine, L. A.; Early, T. R.; Feltell, R. E.; Lewis, E. J.; Mcmenamin, R. L.; Navarro, E. F.; O’Brien, M. A.; O’Reilly, M.; Reule, M.; Saxty, G.; Seavers, L. C.; Smith, D. M.; Squires, M. S.; Trewartha, G.; Walker, M. T.; Woolford, A. J.: Identification of N-(4-piperidinyl)-4-(2,6-dichlorobenzoylamino)-1H-pyrazole-3-carboxamide (AT7519); a novel cyclin dependent kinase inhibitor using fragment-based X-ray crystallography and structure based drug design. J. Med. Chem. 51 (2008) 4986–4999.10.1021/jm800382hSearch in Google Scholar PubMed

Langford, H. M.; Williams, P. D.; Homnick, C. F.; Acca, J. P.; Felock, P. J.; Stillmock, K. A.; Witmer, M. V.; Hazuda, D. J.; Gabryelski, L. J.; Schleif, W. A.: Design and synthesis of substituted 4-oxo-4,5,6,7-tetrahydropyrazolo[1,5-a]pyrazine-2-carboxamides, novel HIV-1 integrase inhibitors. Bioorg. Med. Chem. Lett. 18 (2008) 721–725.10.1016/j.bmcl.2007.11.049Search in Google Scholar PubMed

Donohue, S. R.; Dannals, R. F.; Halldin, C.; Pike, V. W.: N-(4-cyanotetrahydro-2H-pyran-4-yl) and N-(1-cyanocyclohexyl) derivatives of 1,5-diarylpyrazole-3-carboxamides showing high affinity for 18 kDa translocator protein and/or cannabinoid receptors. J. Med. Chem. 54 (2011) 2961–2970.10.1021/jm2000536Search in Google Scholar PubMed PubMed Central

Foces-Foces, C.; Echevarria, A.; Jagerovic, N.; Alkorta, I.; Elguero, J.; Langer, U.; Klein, O.; Minguet-Bonvehí, M.; Limbach, H. H.: A solid-state NMR, X-ray diffraction, and ab initio computational study of hydrogen-bond structure and dynamics of pyrazole-4-carboxylic acid chains. J. Am. Chem. Soc. 123 (2001) 7898–7906.10.1021/ja002688lSearch in Google Scholar PubMed

García-Pacios, V.; Arroyo, M.; Antón, N.; Miguel, D.; Villafañe, F.: Non-covalent interactions at bis(pyrazole)silver(i) or -gold(i) cations. Dalton Trans. 38 (2009) 2135–2141.10.1039/b820084jSearch in Google Scholar PubMed

Han, W.; Cheng, M. L.; Liu, Q.; Wang, L. D.; Wu, Y. J.: Syntheses, crystal structures and electrochemical properties of cobalt and nickel complexes based on 5-methyl-1H-pyrazole-3-carboxylic acid ligand. Chin. J. Inorg. Chem. 28 (2012) 1997–2004.Search in Google Scholar

Saha, N. C.; Biswas, C.; Ghorai, A.; Ghosh, U.; Seth, S. K.; Kar, T.: Synthesis, structural characterisation and cytotoxicity of new iron(III) complexes with pyrazolyl thiosemicabazones. Polyhedron 34 (2012) 1–12.10.1016/j.poly.2011.10.033Search in Google Scholar

Sobiesiak, M.; Lorenz, I. P.; Mayer, P.; Woźniczka, M.; Kufelnicki, A.; Krajewska, U.; Rozalski, M.; Budzisz, E.: Synthesis, X-ray structure and cytotoxic effect of nickel(II) complexes with pyrazole ligands. Eur. J. Med. Chem. 46 (2011) 5917–5926.10.1016/j.ejmech.2011.10.001Search in Google Scholar PubMed

Mandal, S.; Sadhukhan, R.; Ghosh, U.; Mandal, S.; Saha, M.; Butcher, R. J.; Saha, N. C.: Synthesis and characterization of two Cu(II) complexes with a new pyrazole-based schiff base ligand: crystallography, DNA interaction and antimicrobial activity of Ni(II) and Cu(II) complexes. J. Coord. Chem. 69 (2016) 1618–1634.10.1080/00958972.2016.1174773Search in Google Scholar

Received: 2018-02-27
Accepted: 2018-05-08
Published Online: 2018-05-22
Published in Print: 2018-07-26

©2018 Wu-Wu Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
