The crystal structure of 3-((phenylamino)methylene)-1,5-dioxaspiro[5.5]undecane-2,4-dione, C16H17N1O4

  • Jiang Jin-He , Zeng Wu-Lan EMAIL logo and Yang Yong-Mei
Published/Copyright: May 18, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C16H17N1O4, triclinic, P1̅ (no. 2), a = 7.0971(3) Å, b = 7.6638(4) Å, c = 13.2375(6) Å, α = 92.116(10)°, β = 99.690(10)°, γ = 95.196(10)° V = 705.81(6) Å3, Z = 2, Rgt(F) = 0.0529, wRref(F2) = 0.1489, T = 296(2) K.

CCDC no.: 1839526

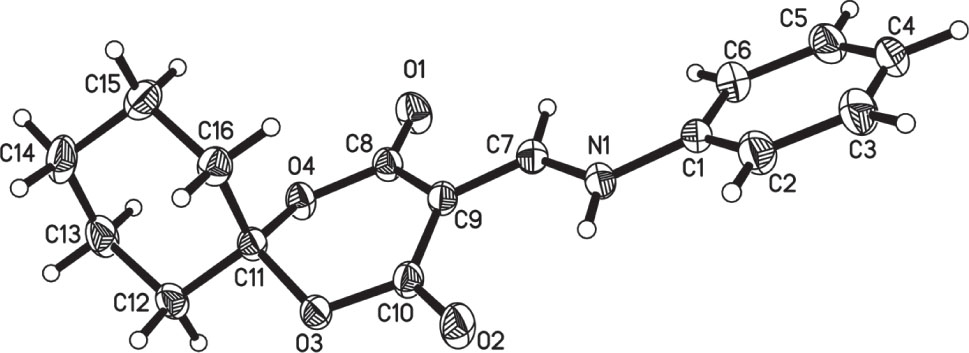

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.18 × 0.15 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.10 mm−1
Diffractometer, scan mode:Spider Rapid, ω-scans
θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:6856, 3191, 0.021
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2643
N(param)refined:190
Programs:Rigaku programs [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.74295(16)0.16606(12)0.83953(7)0.0538(3)
C10.76574(16)0.05436(16)0.46396(9)0.0379(3)
N10.80971(15)0.19937(13)0.53700(8)0.0401(3)
H10.8595760.2957520.5169990.048*
O20.96798(17)0.53505(12)0.60193(7)0.0554(3)
C20.7607(2)0.0895(2)0.36175(10)0.0521(4)
H20.7806030.2044630.3428340.063*
O30.93942(13)0.63526(11)0.75679(6)0.0411(2)
C30.7260(2)−0.0474(2)0.28795(12)0.0603(4)
H30.723439−0.0239640.2193280.072*
C40.6954(2)−0.2172(2)0.31481(12)0.0558(4)
H40.672404−0.3085560.2647480.067*
O40.81958(13)0.44966(10)0.87456(6)0.0389(2)
C50.6988(2)−0.25159(19)0.41596(12)0.0545(4)
H50.676929−0.3667490.4341970.065*
C60.7348(2)−0.11615(17)0.49161(11)0.0477(3)
H60.737828−0.1403820.5601640.057*
C70.78058(17)0.19856(16)0.63249(9)0.0384(3)
H70.7255580.0942620.6534670.046*
C80.78890(18)0.30582(15)0.80787(9)0.0369(3)
C90.82376(17)0.33767(15)0.70481(9)0.0358(3)
C100.91197(18)0.50421(15)0.68202(9)0.0379(3)
C110.81943(17)0.62078(14)0.83454(8)0.0349(3)
C120.9101(2)0.74955(17)0.92194(10)0.0463(3)
H12A0.9262950.8659480.8963130.056*
H12B1.0360770.7169740.9509050.056*
C130.7855(3)0.75228(19)1.00524(11)0.0568(4)
H13A0.7841300.6404541.0372590.068*
H13B0.8407500.8429301.0576250.068*
C140.5807(3)0.78667(19)0.96191(13)0.0621(5)
H14A0.5804320.9048920.9381660.074*
H14B0.5036580.7782521.0158070.074*
C150.4914(2)0.65639(19)0.87318(12)0.0527(4)
H15A0.3644390.6868680.8443880.063*
H15B0.4779310.5393990.8983040.063*
C160.61681(19)0.65818(16)0.78979(10)0.0427(3)
H16A0.5620220.5701900.7357530.051*
H16B0.6201110.7719310.7600010.051*

Source of materials

The title compound was available according to our earlier report [4]. An amount of 0.635 g (6 mmol) trimethoxymethane and 0.92 g (5 mmol) 1,5-dioxaspiro[5.5]undecane-2,4-dione were stirred in ethanol (15 mL) for 2.5 h at reflux temperature. Then 0.47 g (5 mmol) of benzenamine was added. The mixture was heated under reflux for another 5 h. The yellow precipitate was filtered off and dried. (M.p. 395.9–396.6 K). The crystals were collected by evaporation for ethanol after two days.

Experimental details

All H atoms were refined with riding coordinates. The H atoms of phenylamino ring were refined with the C—H distance restrained to 0.93 Å, N—H distance restrained to 0.86 Å, (AFIX 43 option of the SHELXL program [2, 3] ). However, the H atoms of CH2-groups in the cyclohexane ring were refined with the C—H distance restrained to 0.97 Å, (AFIX 23 option of the SHELXL program [2, 3] ). The Uiso(H) values of all hydrogen atoms were set to 1.2Ueq.

Discussion

Many spiro compounds possessing high biological activities have been synthesized over the past decades. Recently, spiro compounds containing oxygen are increasingly being studied due to their biological activities such as antitumor [5, 6] , antibiotic [7, 8] , insecticidal [9], anti-breast cancer activities [10], anisochronic properties etc.

Crystallographic studies show that the title compound belongs to triclinic crystal system, with space group P1̅. As can be seen from the crystal structure of the title compound (cf. the figure), the title molecule consists of a 1,5-dioxaspiro[5.5]undecane-2,4-dione group and phenylamino ring in the asymmetric unit, which are connected with the central C(7) atom. The C7—C9 bond length of 1.3833(15) Å has double-bond character. The N1—C7—C9 bond angle is 126.38(11)°, which resembles to an earlier reported structure [4]. The C1—N1—C7—C9 torsion angles of 179.44(11)° documents the planarity of this moiety. The 1,3-dioxane ring is in an envelope conformation. The cyclohexane ring adopts a chair conformation. The molecules are connected via one type of a N—H⋯O hydrogen bond. The N⋯O distance of 2.7581(14) Å indicates the hydrogen bond to be medium strong.

Acknowledgements

We thank the financial support of the National Natural Science Foundation of China (No. 51541205), Foundation of State Key Laboratory of High-efficiency Utilization of Coal and Green (No. 2017-K29) and the Natural Science Foundation of Shandong Province (No. ZR2017BEE038).

References

Rigaku/MSC. CrystalClear. Rigaku/MSC Inc., The Woodlands, TX, USA (2006).Search in Google Scholar

Sheldrick, G.-M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

Sheldrick, G.-M.: Crystal structure refinement with SHELXL. Acta Cryst. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Zeng, W.-L.; Jiang, J.-H.: Syntheses and crystal structures of two novel O, N-containing spiro compounds. Crystals 6 (2016) 134.10.3390/cryst6100134Search in Google Scholar

El-Desoky, S.-I.; Badria, F.-A.; Abozeid, M.-A.; Kandeel, E.-A.; Abdel-Rahman, A.-H.: Synthesis and antitumor studies of novel benzopyrano-1,2,3-selenadiazole and spiro[benzopyrano]-1,3,4-thiadiazoline derivatives. Med. Chem. Res. 22 (2013) 2105–2114.10.1007/s00044-012-0201-0Search in Google Scholar

Gupta, A.-K.; Bharadwaj, M.; Kumar, A.; Mehrotra, R.: Spiro-oxindoles as a promising class of small molecule inhibitors of p53-CMDM2 interaction useful in targeted cancer therapy. Top. Curr. Chem. 375 (2017) 3.10.1007/s41061-016-0089-0Search in Google Scholar PubMed

Arasakumar, T.; Mathusalini, S.; Ata, A.; Shankar, R.; Gopalan, S.; Lakshmi, K.; Sakthivel, P.; Mohan, P.-S.: Synthesis of first ever 4-quinolone-3-carboxylic acid-appended spirooxindole-pyrrolidine derivatives and their biological applications. Mol. Divers. 21 (2017) 37–52.10.1007/s11030-016-9695-6Search in Google Scholar PubMed

Kita, Y.-Y.; Higuchi, K.; Yoshida, Y.; Iio, K.; Kitagaki, S.; Ueda, K.; Akai, S.; Fujioka, H.: Enantioselective total synthesis of a potent antitumor antibiotic, fredericamycin A. J. Am. Chem. Soc. 123 (2001) 3214–3222.10.1021/ja0035699Search in Google Scholar PubMed

Chen, N.-Y.; Ren, L.-P.; Zou, M.-M.; Xu, Z.-P.; Shao, X.-S.; Xu, X.-Y.; Li, Z.: Design, synthesis and insecticidal activity of spiro heterocycle containing neonicotinoid analogs. Chin. Chem. Lett. 25 (2014) 197–200.10.1016/j.cclet.2013.12.004Search in Google Scholar

Berberoglu, I.; Asmafiliz, N.; Kilic, E.; Hokelek, T.; Koc, Y.; Acik, L.; Türk, M.; Soltanzade, H.; Dal, S.: Phosphorus nitrogen compounds: Part 34. Syntheses, structural investigations, cytotoxic and biological activities of spiro-ansa-spiro and spiro-bino-spiro tetrameric phosphazene derivatives. Inorganica Chim. Acta. 446 (2016) 75–86.10.1016/j.ica.2016.02.060Search in Google Scholar

Received: 2018-01-24
Accepted: 2018-04-25
Published Online: 2018-05-18
Published in Print: 2018-07-26

©2018 Jiang Jin-He et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
