Crystal structure of 2-isopropyl-8-methyl-phenanthrene-3,4-dione, C18H16O2

  • Jichun Wu , Guoyong Luo , Yuchen Liu and Wude Yang EMAIL logo
Published/Copyright: May 16, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C18H16O2, orthorhombic, Pnma (no. 62), a = 14.474(6) Å, b = 6.815(3) Å, c = 13.738(6) Å, V = 1355.1(10) Å3, Z = 4, Rgt(F) = 0.0583, wRref(F2) = 0.1759, T = 173 K.

CCDC no.: 1839493

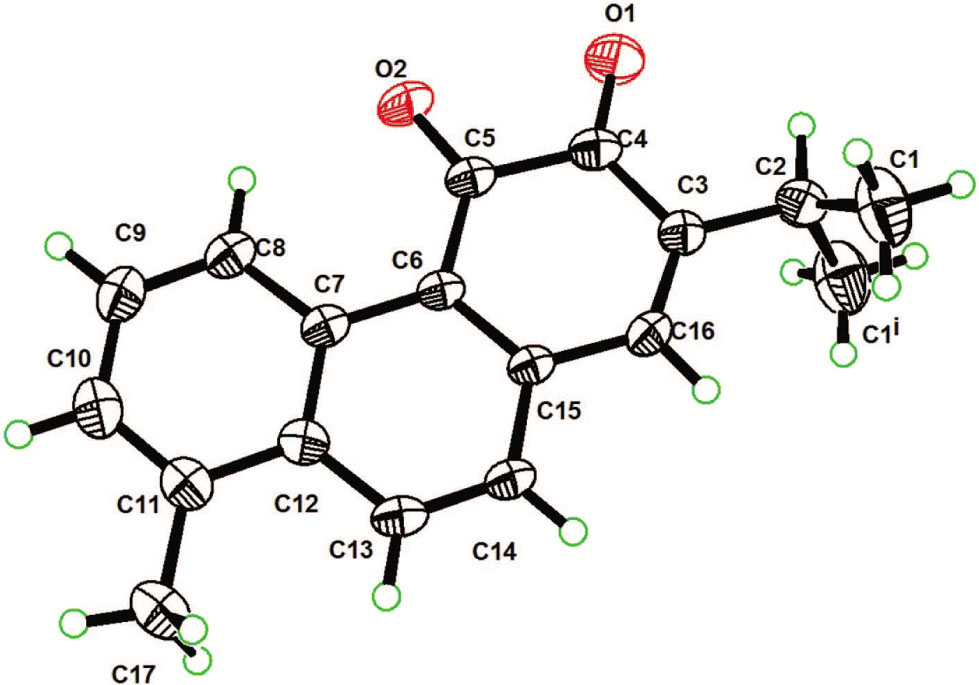

The crystal structure is shown in the figure (i = x, 0.5 − y, z). Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red block
Size:0.25 × 0.15 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.08 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:27.4°, >98%
N(hkl)measured, N(hkl)unique, Rint:5354, 1633, 0.044
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1148
N(param)refined:120
Programs:Bruker programs [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.39634(12)0.25000.16579(14)0.0641(7)
O20.35548(10)0.25000.35240(13)0.0450(5)
C10.63162(16)0.4334(3)0.05250(15)0.0622(7)
H1A0.59590.55040.07000.093*
H1B0.64220.4320−0.01790.093*
H1C0.69110.43570.08650.093*
C20.57806(16)0.25000.08192(19)0.0412(7)
H20.51790.25000.04610.049*
C30.55741(15)0.25000.19054(17)0.0314(6)
C40.46070(14)0.25000.22194(19)0.0343(6)
C50.43752(14)0.25000.33278(17)0.0284(6)
C60.51392(13)0.25000.40390(17)0.0243(5)
C70.50008(14)0.25000.50772(18)0.0255(5)
C80.41131(14)0.25000.55209(19)0.0320(6)
H80.35730.25000.51280.038*
C90.40365(16)0.25000.6513(2)0.0392(7)
H90.34390.25000.67990.047*
C100.48182(17)0.25000.7119(2)0.0399(6)
H100.47390.25000.78060.048*
C110.56924(16)0.25000.67383(18)0.0330(6)
C120.57954(14)0.25000.57007(17)0.0274(5)
C130.66844(14)0.25000.52706(19)0.0321(6)
H130.72140.25000.56800.039*
C140.68025(14)0.25000.42872(17)0.0313(6)
H140.74090.25000.40230.038*
C150.60340(13)0.25000.36562(17)0.0261(5)
C160.62199(14)0.25000.26074(17)0.0317(6)
H160.68480.25000.24080.038*
C170.65239(19)0.25000.74001(19)0.0468(7)
H17Aa0.63190.24660.80800.070*
H17Ba0.68880.36910.72870.070*
H17Ca0.69050.13430.72640.070*

  1. aOccupancy: 0.5.

Source of material

The roots of Salvia miltiorrhiza Bunge (5.0 kg) were extracted with MeOH (×3) and filtered. The filtrate was concentrated and partitioned with EtOAc, then subjected to silica gel column (petroleum ether/EtOAc, 20:1) to provide five fractions (Fr. A—E). Fr. B was further purified on silica gel column and recrystallized with dichloromethane to obtain the title compound (120 mg).

Experimental details

Hydrogen atoms were positioned geometrically and constrained to ride on their parent atoms.

Discussion

Diterpenoid quinones are the main lipid-soluble components in the traditional medicinal plant Salvia miltiorrhiza Bunge that has been applied to treat coronary heart diseases and cerebrovascular diseases. The structure of diterpenoid quinones are classified into two series, the phenanthro [1, 2 – b] furan-10,11-dione series and the phenanthro[3, 2 – b] furan-7,11-dione series [4]. The title compound belongs to the former series and contains three six-membered rings, which geometric parameters are in the normal ranges (cf. the figure). The asymmetric unit contains one half of a molecule which is located on a mirror plane. The bond distances of C4—O1 and C5—O2 are 1.209(3) Å and 1.218(3) Å, which are typical for C=O groups.

Acknowledgements

The authors gratefully acknowledge support from the specific scientific and technical subject of traditional Chinese medicine and ethnic minority medicine from Guizhou Administration of Traditional Chinese Medicine [No. QZYY-2015-074].

References

Bruker: APEX3, SAINT-Plus, XPREP. Bruker AXS Inc., Madison, WI, USA (2016).Search in Google Scholar

Sheldrick, G. M.: SHELXT–Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

Su, C. Y.; Ming, Q. L.; Rahman, K.; Han, T.; Qin, L. P.: Salvia miltiorrhiza: traditional medicinal uses, chemistry, and pharmacology. Chin. J. Nat. Med. 13 (2015) 163–182.10.1016/S1875-5364(15)30002-9Search in Google Scholar

Received: 2018-02-01
Accepted: 2018-04-25
Published Online: 2018-05-16
Published in Print: 2018-07-26
