Crystal structure of a new polymorph of bis[μ-1,3-bis(diphenylphosphino)propane-κ2P:P′-disilver(I)] bis(tetrafluoroborate), [Ag(dppp)]2(BF4)2, C54H52Ag2B2F8P4

  • Xiao-Nan Kuang , Sen Lin , Si-Fan Li , Yue Li , Xiu-Lan Xin and Qiong-Hua Jin EMAIL logo
Published/Copyright: May 29, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 4

Abstract

C54H52Ag2B2F8P4, triclinic, P1̄ a = 11.4869(4) Å, b = 12.9118(5) Å, c = 19.6858(6) Å, α = 100.8240(10)°, β = 102.185(2)°, γ = 110.470(3)°, V = 2562.31(15) Å3, Z = 2, Rgt(F) = 0.0263, wRref(F2) = 0.0666, T = 293(2) K.

CCDC no.: 1842037

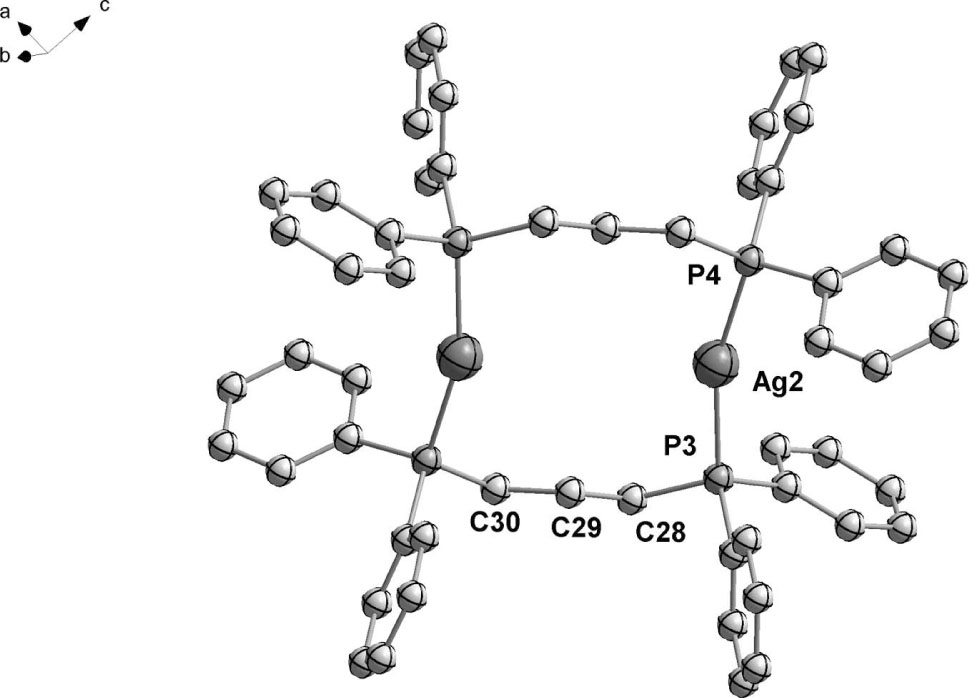

Only one of the two crystallographically independent dinuclear complexes of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.43 × 0.40 × 0.38 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.96 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:16198, 9051, 0.019
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 7937
N(param)refined:631
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag10.38326(2)−0.14484(2)0.05264(2)0.01712(6)
Ag20.37532(2)0.34918(2)0.54432(2)0.01759(6)
F10.61249(15)0.95548(13)0.01256(8)0.0292(4)
F20.75579(17)0.95568(18)0.11149(9)0.0496(5)
F30.76073(18)0.88128(17)−0.00083(9)0.0478(5)
F40.59187(17)0.78949(15)0.03978(11)0.0503(5)
F50.42260(16)0.74094(14)0.49485(10)0.0411(4)
F60.38281(17)0.55591(14)0.49048(9)0.0394(4)
F70.21642(16)0.60629(16)0.44633(10)0.0489(5)
F80.31553(19)0.65901(19)0.56727(10)0.0554(6)
P10.42184(6)−0.01546(5)0.16703(3)0.01442(13)
P20.73604(6)0.29339(5)0.05995(3)0.01371(13)
P30.24449(6)0.21244(5)0.42887(3)0.01350(13)
P40.55174(6)0.54181(5)0.33084(3)0.01443(13)
B10.6826(3)0.8955(3)0.04083(16)0.0238(7)
B20.3316(3)0.6396(3)0.49932(16)0.0238(6)
C10.4879(2)0.1364(2)0.16801(13)0.0170(5)
H1A0.42120.15160.13750.020*
H1B0.51140.18480.21700.020*
C20.6071(2)0.1674(2)0.14119(13)0.0171(5)
H2A0.58930.10880.09700.021*
H2B0.67980.16840.17730.021*
C30.6449(2)0.2855(2)0.12630(13)0.0175(5)
H3A0.69800.34600.17110.021*
H3B0.56690.29760.10790.021*
C40.2655(2)−0.0368(2)0.18321(12)0.0154(5)
C50.2296(2)−0.0793(2)0.23894(12)0.0177(5)
H50.2894−0.09200.27260.021*
C60.1052(2)−0.1028(2)0.24456(13)0.0203(5)
H60.0821−0.13120.28200.024*
C70.0157(2)−0.0844(2)0.19508(13)0.0210(5)
H7−0.0680−0.10140.19870.025*
C80.0507(2)−0.0403(2)0.13950(14)0.0223(6)
H8−0.0089−0.02600.10670.027*
C90.1739(2)−0.0178(2)0.13314(13)0.0202(5)
H90.19640.01010.09540.024*
C100.5254(2)−0.0234(2)0.24735(12)0.0168(5)
C110.5841(2)−0.1017(2)0.24111(14)0.0224(6)
H110.5700−0.14950.19580.027*
C120.6634(3)−0.1079(2)0.30258(15)0.0284(6)
H120.7030−0.15950.29830.034*
C130.6840(3)−0.0377(2)0.37047(14)0.0290(6)
H130.7358−0.04350.41160.035*
C140.6277(3)0.0406(3)0.37694(14)0.0291(6)
H140.64230.08830.42240.035*
C150.5495(2)0.0482(2)0.31591(13)0.0231(6)
H150.51250.10180.32060.028*
C160.7784(2)0.4398(2)0.05292(12)0.0171(5)
C170.9053(2)0.5151(2)0.06265(13)0.0202(5)
H170.97330.49210.07450.024*
C180.9309(3)0.6245(2)0.05468(13)0.0235(6)
H181.01610.67450.06120.028*
C190.8313(3)0.6600(2)0.03716(14)0.0265(6)
H190.84920.73380.03220.032*
C200.7051(3)0.5856(2)0.02699(17)0.0352(7)
H200.63770.60930.01510.042*
C210.6781(3)0.4760(2)0.03427(16)0.0314(7)
H210.59240.42600.02670.038*
C220.8882(2)0.2873(2)0.10408(13)0.0163(5)
C230.9350(2)0.2182(2)0.06524(14)0.0214(6)
H230.88830.17500.01740.026*
C241.0522(3)0.2135(2)0.09802(16)0.0298(7)
H241.08470.16840.07180.036*
C251.1199(3)0.2752(2)0.16885(16)0.0325(7)
H251.19770.27110.19060.039*
C261.0735(3)0.3436(2)0.20832(16)0.0342(7)
H261.11970.38500.25650.041*
C270.9586(3)0.3501(2)0.17610(14)0.0249(6)
H270.92770.39650.20250.030*
C280.3278(2)0.2303(2)0.35919(12)0.0160(5)
H28A0.40230.21050.37040.019*
H28B0.26890.17900.31230.019*
C290.3733(2)0.3556(2)0.35626(13)0.0161(5)
H29A0.41140.40680.40530.019*
H29B0.29840.36870.33320.019*
C300.4737(2)0.3855(2)0.31466(12)0.0162(5)
H30A0.43080.34850.26320.019*
H30B0.53930.35680.33020.019*
C310.1989(2)0.0616(2)0.42733(12)0.0152(5)
C320.2952(3)0.0181(2)0.43240(12)0.0200(5)
H320.37950.06510.43490.024*
C330.2648(3)−0.0954(2)0.43374(13)0.0244(6)
H330.3283−0.12480.43580.029*
C340.1411(3)−0.1649(2)0.43210(13)0.0284(6)
H340.1217−0.24040.43380.034*
C350.0456(3)−0.1220(2)0.42792(14)0.0291(6)
H35−0.0380−0.16880.42660.035*
C360.0749(3)−0.0086(2)0.42577(13)0.0219(6)
H360.01070.02010.42330.026*
C370.0937(2)0.2266(2)0.39349(13)0.0164(5)
C380.0089(2)0.1593(2)0.32467(14)0.0234(6)
H380.02940.10570.29660.028*
C39−0.1052(3)0.1718(2)0.29788(16)0.0309(7)
H39−0.16140.12670.25200.037*
C40−0.1354(3)0.2514(3)0.33947(17)0.0335(7)
H40−0.21210.25980.32150.040*
C41−0.0527(3)0.3185(3)0.40751(17)0.0351(7)
H41−0.07400.37180.43530.042*
C420.0620(3)0.3067(2)0.43446(15)0.0258(6)
H420.11810.35260.48020.031*
C430.6915(2)0.5632(2)0.29675(12)0.0175(5)
C440.7877(2)0.5332(2)0.33311(14)0.0237(6)
H440.77440.49840.36970.028*
C450.9021(3)0.5547(2)0.31525(15)0.0290(6)
H450.96540.53400.33940.035*
C460.9219(3)0.6075(2)0.26094(16)0.0334(7)
H460.99950.62350.24930.040*
C470.8280(3)0.6364(2)0.22436(15)0.0299(6)
H470.84150.67030.18740.036*
C480.7127(3)0.6152(2)0.24211(13)0.0221(6)
H480.64970.63580.21740.027*
C490.4351(2)0.5789(2)0.27357(13)0.0192(5)
C500.3919(3)0.5376(2)0.19812(14)0.0263(6)
H500.42330.48890.17430.032*
C510.3007(3)0.5700(3)0.15848(15)0.0365(7)
H510.27280.54410.10810.044*
C520.2522(3)0.6404(3)0.19427(17)0.0360(7)
H520.19230.66240.16780.043*
C530.2919(3)0.6780(2)0.26855(16)0.0312(7)
H530.25690.72340.29220.037*
C540.3838(2)0.6487(2)0.30852(14)0.0239(6)
H540.41150.67580.35890.029*

Source of material

The title compound was obtained by the reaction of silver(I) tetrafluoroborate (0.0584 g, 0.3 mmol) and 1,3-bis(diphenylphosphino)propane (0.1237 g, 0.3 mmol) in the mixed solution of CH3OH (5 mL) and CH2Cl2 (5 mL) for 6 h at room temperature. The insoluble residues were removed by filtration, and the filtrate was evaporated slowly for about 1 week to yield transparent and colorless crystals. Crystals suitable for single-crystal X-ray diffraction were selected directly.

Experimental details

Semi-empirical absorption corrections were applied using SABABS program [1]. All the structures were solved by Direct Methods using SHELXS program of the SHELXTL-2014/6 package and refined with SHELXL-2014/6 [2]. The hydrogen atoms were generated geometrically and refined with fixed displacement parameters riding on the concerned atoms. The crystallization solvent was lost from the crystal and could not be resolved unambiguously.

Discussion

In the past years, studies have been concerned with the metal silver(I) complexes with nitrogen-heterocycle and diphosphine ligands for their various structures and their potential applications [3], [4]. The diphosphine groups adopt different coordination modes, such as monodentate, chelating and bridging. The 1,3-bis(diphenylphosphino)propane (dppp) ligand which contains diphosphonic groups is widely noticed because of its variety of coordination modes [5]. Many model complexes have been synthesized and characterized by X-ray crystallography to establish the diphosphine chelating behavior [6]. Also, the diphosphine ligands can be used to control the formation of ring or polymeric structures in gold(I) complexes [7].

As know to all, silver(I), a kind of soft acid, is easy to coordinate with P-donor ligands according to the Hard-Soft-Acid-Base (HSAB) theory. In this study, a silver(I) complex C54H52Ag2B2F8P4 with dppp ligand has been synthesized and characterized. The most interesting thing in the title crystal structure is a polymorph of a structure reported in the literature [8], which has similar molecular structure.

This compound crystallizes in the triclinic system with space group P1̄. The asymmetric unit of the crystal structure is comprised of two Ag(I) atoms and two 1,3-bis(diphenylphosphino)propane ligands. Each Ag(I) is bridged by two dppp ligands to form a dinuclear structure. The Ag–P distances are in the range of 2.3887(6)–2.3984(6) Å, which are similar to those in its polymorph [Ag2(C27H26P2)2](BF4)2. The two Ag–P distances in the second crystallographically independent complex are in the range of 2.3935(7)−2.4016(7) Å. The two angles of Ag—P—Ag in the title crystal structure are 158.75(2)° and 162.77(2)° respectively, while the two identical Ag—P—Ag angles in its polymorph are 159.66(3)°, which is between the two corresponding angles in the title crystal structure. Symmetry codes: 1 − x, 1 − y, 1 − z; 1 − x, −y, −z respectively.

It’s a very interesting phenonmenon that polymorphisms may be synthesized because of the different molar ratio, different solvent and different crystallization condition. And we will pay more attention to the different physical properties of the polymorphisms.

Acknowledgements

This work has been supported by the National Natural Science Foundation of China (grant Nos. 21171119 & 21376008), Beijing Natural Science Foundation (grant No. 2172017).

References

Bruker: APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Brandys, M. C.; Puddephatt, R. J.: Ring, polymer and net work structures in silver(I) complexes with dipyridyl and diphosphine ligands. Chem. Commun. 16 (2001) 1508–1509.10.1039/b104857kSearch in Google Scholar

Jin, Q. H.; Hu, K. Y.; Chen, L. M.; Sun, J. J.; Yang, L.; Li, P. Z.: Crystal structure of tetrakis(μ-(bis(diphenylphosphino)methane-P,P′))tetrasilver(I), Ag4(SCN)4(C25H22P2)2. Z. Kristallogr. NCS 223 (2008) 79–81.10.1524/ncrs.2008.0035Search in Google Scholar

Li, C. G.; Xue, F.; Cui, M. J.; Shang, J. Y.: Phenyl-functionalized diiron propanedithiolate complexes with 1,3-bis(diphenylphosphine)propane ligand: chelated and bridged isomers as protonreducton catalysts. J. Clust. Sci. 25 (2014) 1641–1656.10.1007/s10876-014-0763-8Search in Google Scholar

Fournier, E.; Sicard, S.; Decken, A.; Harvey, P. D.: Organometallic oligomers based on 1,8-diisocyano-p-menthane(dmb): syntheses and characterization of the {[M(diphos)(dmb)]BF4}n and {[pd2(diphos)2(dmb)](ClO4)2}n materials (M = Cu, Ag; diphos = dppe, dppp). Inorg. Chem. 43 (2004) 1491–1501.10.1021/ic034780zSearch in Google Scholar PubMed

Brandys, M.-C.; Puddephatt, R. J.: Polymers and rings in gold(I) diphosphine complexes: linking gold rings through aurophilic interactions. Chem. Commun. 14 (2001) 1280–1281.10.1039/b103020pSearch in Google Scholar

Michele, L. S.; Philip, M. A.; Thomas, E. A.; William, E. H.: Bis[μ-1,3-bis(diphenylphosphino)propane]-disilver(I)bis(tetrafluoroborate). Acta Crystallogr. E59 (2003) m1013–m1014.10.1107/S1600536803022554Search in Google Scholar
