Startseite Crystal structure of catena-poly[octaaqua-bis(μ2-4,6-dicarboxyisophthalate-κ2O:O′)cadmium(II)disodium(I)] dihydrate, C20H28CdNa2O26
Artikel Open Access

Crystal structure of catena-poly[octaaqua-bis(μ2-4,6-dicarboxyisophthalate-κ2O:O′)cadmium(II)disodium(I)] dihydrate, C20H28CdNa2O26

  • Ya-Li Xue , Ai-Yun Zhang EMAIL logo und Dan Zhao
Veröffentlicht/Copyright: 30. Mai 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 4

Abstract

C20H28CdNa2O26, monoclinic, C2/m (no. 12), a = 7.4169(8) Å, b = 20.183(2) Å, c = 10.5403(11) Å, β = 103.5520(10)°, V = 1533.9(3) Å3, Z = 2, Rgt(F) = 0.0434, wRref(F2) = 0.1271, T = 296(2) K.

CCDC no.: 1584515

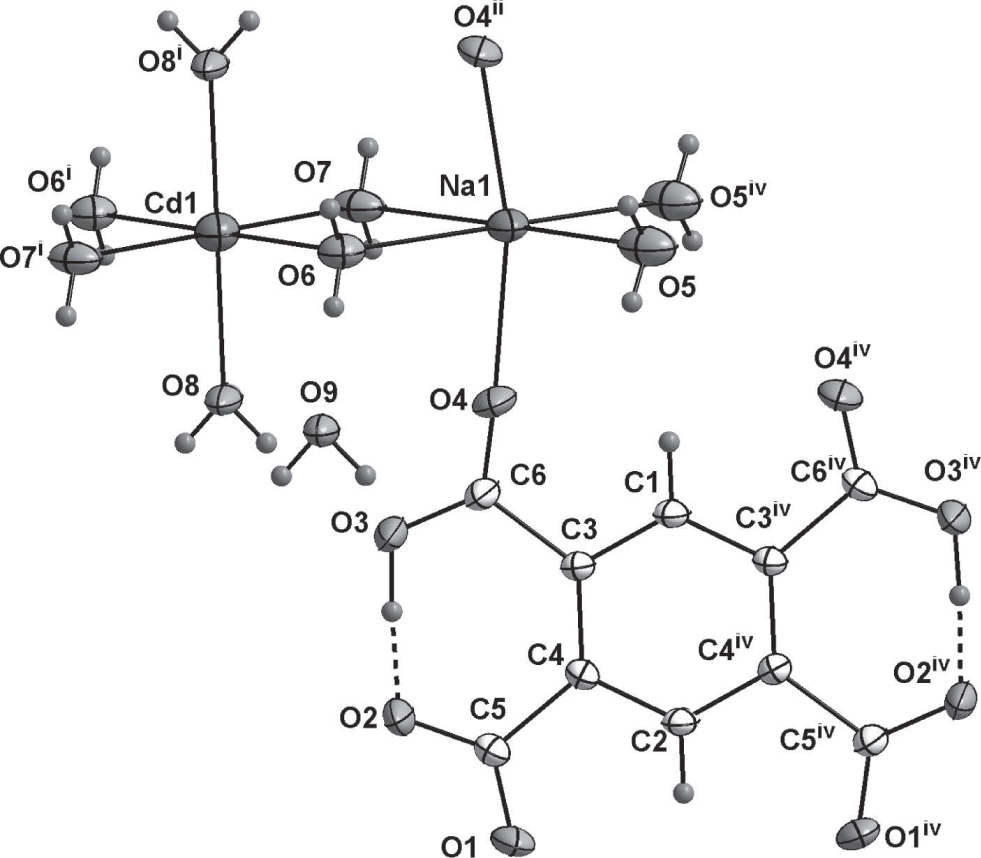

A part of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Prism, colorless
Size:0.20 × 0.05 × 0.05 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.85 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
θmax, completeness:28.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:9620, 1988, 0.044
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1714
N(param)refined:121
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cd10.00000.00000.00000.03157(19)
Na10.3202(3)0.00000.33009(18)0.0328(4)
C10.50000.1870(2)0.50000.0212(8)
H10.50000.14090.50000.025*
C20.50000.3211(2)0.50000.0202(8)
H20.50000.36720.50000.024*
C30.3971(4)0.21918(13)0.3901(3)0.0187(6)
C40.3970(4)0.28891(14)0.3900(3)0.0182(5)
C50.2960(4)0.33625(15)0.2837(3)0.0230(6)
C60.2959(4)0.17132(15)0.2848(3)0.0263(6)
O10.3071(3)0.39580(11)0.3048(2)0.0324(5)
O20.2042(4)0.31277(13)0.1771(2)0.0483(8)
O30.2040(5)0.19466(12)0.1763(3)0.0523(9)
O40.3040(4)0.11283(12)0.3051(3)0.0443(7)
O50.6633(6)0.00000.4355(4)0.0433(9)
O60.3102(5)0.00000.0920(3)0.0302(7)
O7−0.0239(5)0.00000.2123(3)0.0339(8)
O80.00000.10786(16)0.00000.0470(11)
O90.50000.09711(15)0.00000.0294(7)
H80.05150.13610.04430.035*
H50.7021−0.03100.39840.035*
H90.44770.1264−0.04610.035*
H60.34980.03170.06650.035*
H7−0.0671−0.03260.24100.035*
H30.19810.24500.17450.035*

Source of material

A mixture of benzene-1,2,4,5-tetracarboxylic acid (H4Btec; 0.05 g), CdSO4 (0.05 g), NaOH (0.03 g) and deionized water (10 mL) was placed in a 25-mL Teflon-lined stainless steel autoclave. Then the autoclave was heated to 160 °C under autogenous pressure for 120 h. After being slowly cooled to room temperature at a rate of 5 °C/h, colorless prismatic crystals were recovered by filtration, washed with distilled water and air dried.

Experimental details

The C-bound H atom was positioned geometrically and refined with a riding model: C—H = 0.93 Å with Uiso(H) = 1.2. The water H atoms were located in the difference fourier maps, and then refined with Uiso(H) = 1.2 Ueq(O).

Discussion

A considerable amount of experimental data has been accumulated for the purpose of developing new coordination polymers with fascinating topology and interesting physical properties [3], [4]. Crystal engineering provides a powerful tool for the design and synthesis of novel compounds, and the advances in theory and practice of molecular crystallography have increased the speed and scope of structure determination enormously. Organic aromatic polycarboxylate ligands, as one kind of multi-dentate O-donor ligands have been extensively employed in the preparation of coordination polymer in possession of multi-dimensional networks and interesting properties [5], [6]. Taking these advantages into account, recently we have begun to assemble H4btec, sodium ions and cadmium ions into polymeric complexes under hydrothermal conditions.

Single crystal X-ray analysis shows that the title compound exhibits a one-dimensional chain. This structure is isostructural to other reported compounds that the Cd2+ ions were substitued by Co2+ [7], Zn2+ [8], Mn2+, Ni2+ [9], Cu2+ [10] and Mg2+ [11]. There is one quarter of a CdII atom, one half of a NaI atom, one half H2Btec ligand, four halfs coordinating aqua and one half of a lattice water in the asymmetric unit. Each Na atom is hexa-coordinated by O atoms including two carboxylate O atoms and four water O atoms for a distorted NaO6 octahedron with the Na—O bond distances ranging from 2.292(2) to 2.563(4) Å. The Cd atom also resides in a CdO6 octahedron with the Cd—O bond distances ranging from 2.177(3) to 2.286(3) Å. The CdO6 octahedra connect NaO6 octahedra via edge-sharing O atoms to from a chain of [—NaO6—CdO6—NaO6—]∞, whose two sides are occupied by half deprotonated H2Btec ligands. There exists two intramolecular hydrogen bonds in each H2Btec ligand with the two O—H distances, O2—H3 = 1.37 Å and O3—H3 = 1.02 Å.

Acknowledgements

This work was supported by the Science and Technology Research Project of Henan Province (No. 172102310678), the Key research project of Henan Province Office of Education (No. 17 A150013), the Fundamental Research Funds for the Universities of Henan Province (NSFRF170301), and the Program for Innovative Research Team of Henan Polytechnic University (T2018-3).

References

Bruker: APEX3 , SAINT-Plus, XPREP. Bruker AXS Inc., Madison, WI, USA (2016).Suche in Google Scholar

Sheldrick, G. M.: SHELXT – Integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

Yan, D.; Mao, F.-F.; Ruan, T.-T.; Mao, J.-G.: Two tartratoborates with hybrid anionic groups from unusual condensation reactions. Dalton Trans. 46 (2017) 7361–7368.10.1039/C7DT01360DSuche in Google Scholar

Huang, S.-X.; Zhang, L.-H.; Ma, M.-J.; Dan, Z.: Crystal structure of diaqua-bis(5′-(pyridin-1-ium4-yl)-1H-[3,3′-bi(1,2,4-triazol)]-2′-ide-κ2N-N′) cobalt(II)–bis(5-(pyridin-4-yl-κN)-1H,1′H-3,3′-bi(1,2,4-triazole)) octamolybdate–water (2/1/8), C27H33CoMo4N21O19. Z. Kristallogr. NCS 232 (2017) 769–771.10.1515/ncrs-2017-0026Suche in Google Scholar

Ma, F.-X.; Zhao, D.; Zhang, R.-J.: Crystal structure of poly-[diaqua-bis(μ2-hydroxy)-bis(μ4-3,4,5,6-tetrachlorophthalato-κ3O,O′:O′; κ2O′′:O′′′) dilanthanum(III)], C8H3Cl4LaO6. Z. Kristallogr. NCS 232 (2017) 165–166.10.1515/ncrs-2016-0154Suche in Google Scholar

Zhang, Y. Y.; Zhao, H.; Yang, E. C.; Liu, Z. Y.; Shang, Q.; Zhao, X. J.: Triazolate-based 3D frameworks and a 2D layer with centrosymmetric Cu-7(II), Cu-5(II), Cu-4(II) clusters and tunable interlayer/interchain compactness: hydrothermal syntheses, crystal structures and magnetic properties. Dalton Trans. 44 (2015) 5826–5836.10.1039/C4DT04013ASuche in Google Scholar

Karanović, L.; Poleti, D.; Bogdanović, G. A.; Spasojević-de Biré, A.: Disodium hexaaquacobalt(II) bis[dihydrogen 1,2,4,5-benzenetetracarboxylate(2–)] tetrahydrate, Acta Crystallogr. C55 (1999) 911–913.10.1107/S0108270199002498Suche in Google Scholar

Wu, C. D.; Wu, D. M.; Lu, C. Z.; Huang, J. S.: Octaaquabis[dihydrogen 1,2,4,5-benzenetetracarboxylate(2–)] disodium(I) zinc(II) dihydrate, Acta Crystallogr. E57 (2001) m253–m255.10.1107/S1600536801008261Suche in Google Scholar

Fabelo, O.; Canadillas-Delgado, L.; Pasan, J.; Ruiz-Perez, C.; Julve, M.: Influence of the presence of divalent first-row transition metal ions on the structure of sodium(i) salts of 1,2,3,4-benzenetetracarboxylic acid (H4bta). CrystEngComm 8 (2006) 338–345.10.1039/B516806FSuche in Google Scholar

Du, Z.-X.; Li, J.-X.; Qin, J.-H.: Crystal structure of catena-(hexakis(μ2-aqua)-diaqua-disodium(I)copper(II) bis(μ2-dihydrogen-1,2,4,5-benzenetetracarboxylate-O,O)) dihydrate, Na2Cu(H2O)8(C10H4O8)2 ⋅ 2H2O. Z. Kristallogr. NCS 223 (2008) 105–106.10.1524/ncrs.2008.0044Suche in Google Scholar

Zhao, D.; Liang, P.; Li, Y. F.; Qiu, S.; Ren, J. R. Poly[[hexa-μ-aqua-diaquabis(μ4-dihydrogen benzene-1,2,4,5-tetracarboxylato) magnesium disodium] dihydrate]. Acta Crystallogr. E68 (2012) m902.10.1107/S1600536812024634Suche in Google Scholar PubMed PubMed Central

Received: 2018-02-04
Accepted: 2018-05-08
Published Online: 2018-05-30
Published in Print: 2018-07-26

©2018 Ya-Li Xue et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
