Crystal structure of (dimethylformamide-κO)(perchlorato-κ2O,O′){μ2-6,6′-((1,2-phenylenebis(azanylylidene))bis(methanylylidene))bis(4-bromo-2-methoxyphenolate)-κ8N,N′,O:O,O′:O′,O′′,O′′′}sodium(I)nickel(II), C25H23Br2ClN3NaNiO9

  • Qingguo Meng , Chen Yue , Jiangkun Yu , Qingyun Liu und Jitao Lu EMAIL logo
Veröffentlicht/Copyright: 10. März 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 3

Abstract

C25H23Br2ClN3NaNiO9, monoclinic, P21/n (no. 14), a = 15.595(4) Å, b = 10.993(3) Å, c = 18.660(5) Å, β = 114.536(4), V = 2910.2(14) Å3, Z = 4, Rgt(F) = 0.0390, wRref(F2) = 0.0998, T = 293 K.

CCDC no.: 1825595

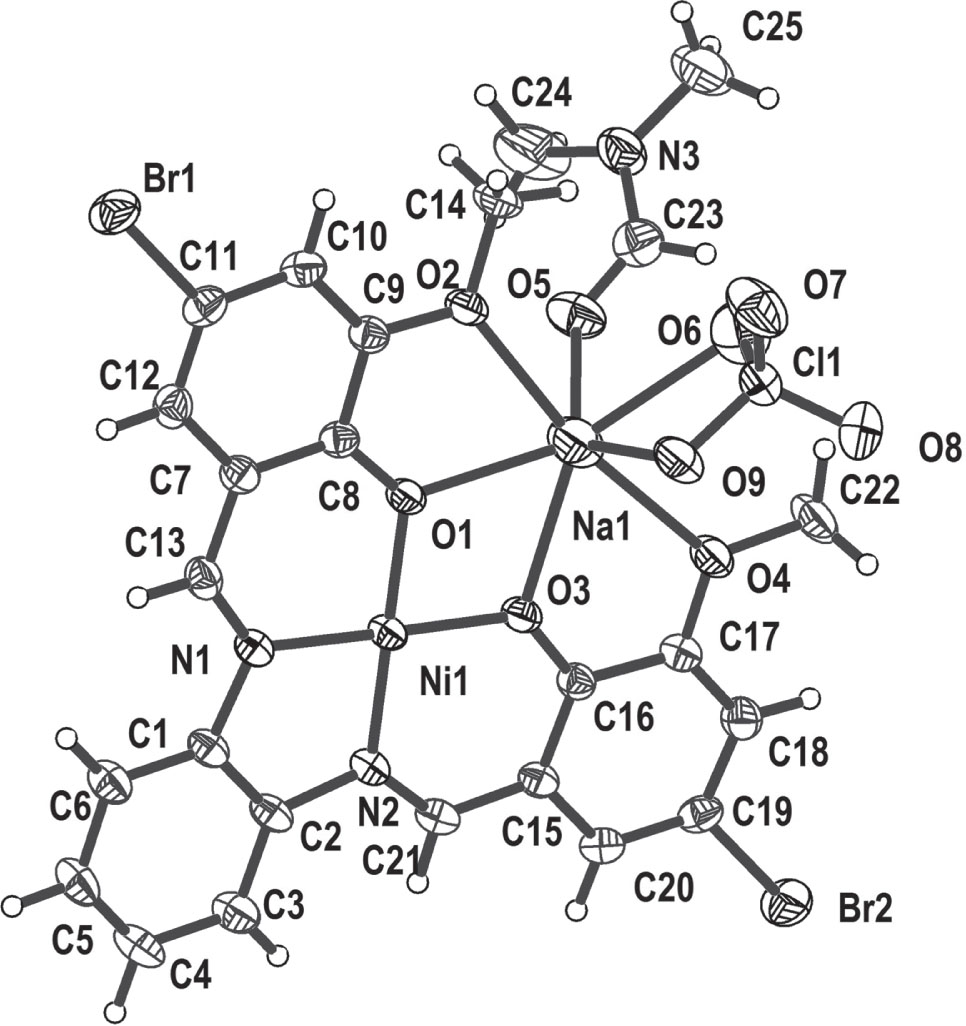

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.21 × 0.15 × 0.11 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:3.58 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω-scans
θmax, completeness:27.7°, >99%
N(hkl)measured, N(hkl)unique, Rint:16821, 6678, 0.035
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3992
N(param)refined:393
Programs:Bruker programs [1], SHELX [2], OLEX2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ni10.02437(3)0.22736(4)0.99954(2)0.03812(12)
Na10.10600(10)0.26663(12)0.85809(8)0.0530(4)
Br1−0.26624(3)0.74480(4)0.78779(2)0.06748(15)
Br20.35619(3)−0.28026(4)1.09436(3)0.07031(15)
Cl10.26998(7)0.43203(9)0.85196(6)0.0574(3)
O10.00350(16)0.3294(2)0.91574(12)0.0438(5)
O2−0.00289(17)0.4422(2)0.79237(13)0.0530(6)
O30.11197(16)0.1584(2)0.96945(12)0.0458(6)
O40.23071(18)0.1020(2)0.91047(14)0.0569(7)
O50.0323(2)0.1807(3)0.73615(16)0.0753(8)
O60.2134(2)0.3506(3)0.79185(18)0.0982(11)
O70.2606(3)0.5497(3)0.8201(2)0.0994(11)
O80.3643(2)0.3931(4)0.88111(19)0.1063(12)
O90.2350(2)0.4291(3)0.91208(15)0.0778(9)
N1−0.06207(19)0.3021(2)1.02925(15)0.0389(6)
N20.04339(19)0.1175(2)1.08009(14)0.0399(6)
N30.0000(2)0.1853(3)0.60707(19)0.0711(10)
C1−0.0691(2)0.2457(3)1.09520(19)0.0403(8)
C2−0.0118(2)0.1446(3)1.12281(18)0.0439(8)
C3−0.0127(3)0.0792(3)1.1860(2)0.0558(10)
H30.0250650.0106441.2043270.067*
C4−0.0696(3)0.1164(4)1.2211(2)0.0616(11)
H4−0.0702550.0730491.2636710.074*
C5−0.1255(3)0.2170(4)1.1941(2)0.0588(10)
H5−0.1631910.2415381.2192150.071*
C6−0.1274(3)0.2826(3)1.1306(2)0.0513(9)
H6−0.1665770.3498851.1119530.062*
C7−0.1143(2)0.4569(3)0.92802(18)0.0405(8)
C8−0.0560(2)0.4193(3)0.89152(18)0.0387(8)
C9−0.0624(2)0.4836(3)0.82363(18)0.0401(8)
C10−0.1235(2)0.5788(3)0.79397(19)0.0465(9)
H10−0.1269270.6200740.7493310.056*
C11−0.1806(2)0.6133(3)0.8317(2)0.0482(9)
C12−0.1767(2)0.5562(3)0.8973(2)0.0476(9)
H12−0.2146220.5818710.9219180.057*
C13−0.1128(2)0.3965(3)0.99617(19)0.0446(8)
H13−0.1514550.4274351.0187060.053*
C14−0.0123(3)0.4925(4)0.7190(2)0.0643(11)
H14A−0.0748270.4773030.6797570.096*
H14B0.0328260.4553330.7032600.096*
H14C−0.0013630.5785730.7247240.096*
C150.1602(2)−0.0068(3)1.06129(18)0.0394(8)
C160.1648(2)0.0645(3)1.00023(18)0.0384(7)
C170.2304(2)0.0283(3)0.96927(19)0.0446(8)
C180.2862(2)−0.0717(3)0.9976(2)0.0483(9)
H180.329241−0.0937230.9772460.058*
C190.2781(2)−0.1406(3)1.05700(19)0.0454(8)
C200.2178(2)−0.1105(3)1.08900(19)0.0455(8)
H200.214185−0.1576601.1290210.055*
C210.0999(2)0.0252(3)1.09780(18)0.0442(8)
H210.100945−0.0249691.1383070.053*
C220.2917(3)0.0701(4)0.8731(2)0.0736(13)
H22A0.3561650.0736140.9110920.110*
H22B0.2824840.1263020.8311470.110*
H22C0.277343−0.0107740.8521890.110*
C230.0547(3)0.1919(4)0.6815(3)0.0648(11)
H230.1180890.2068220.6944590.078*
C24a−0.0876(10)0.123(2)0.5919(11)0.148(11)
H24Aa−0.0884890.0462180.5667430.222*
H24Ba−0.1396290.1716950.5580370.222*
H24Ca−0.0926930.1087350.6407240.222*
C250.0348(4)0.2003(5)0.5464(3)0.1039(18)
H25A0.0093780.2736960.5174600.156*
H25B0.0156780.1320480.5112170.156*
H25C0.1023660.2052340.5705490.156*
C24Aa−0.1020(8)0.195(3)0.5768(12)0.142(11)
H24Da−0.1302860.1216210.5486960.212*
H24Ea−0.1233180.2630700.5418640.212*
H24Fa−0.1198080.2053670.6198620.212*

  1. aOccupancy: 0.5.

Source of materials

The Schiff-base ligand was synthesized by condensation of 1,2-diaminobenzene and 5-bromo-3-methoxyl-2-hydroxybenzaldehyde with the molar ratio 1:2 in ethanol. The synthesis of the title complex was carried out by reacting Ni(ClO4)2⋅6H2O, CH3COONa and the schiff-base ligand (1:2:1, molar ratio) in DMF. Stirring was continued for half an hour at room temperature. The mixture was filtered and the filtrate was evaporated in air without disturbed. After 1 month, block red-brown crystals suitable were obtained with a yield about 55%.

Experimental details

A terminal methyl group was refined with disorder model and SADI and RIGU restrains to get better models. Uiso values of hydrogen atoms were set to 1.2Ueq or 1.5Ueq of the parent atoms.

Comment

Because not only of their interesting structures, but also more important of the great potential applications in many fields, the Schiff-base ligand based complexes have all along attracted much attention [4], [5], [6]. Among which, the complexes containing paramagnetic transition ion(s) based-on the salen types of quasi-planar chelate ligands have been widely studied in the molecular magnetism field owing to their interesting magnetic properties [7], [8], [9]. For example new sandwich-type heterometallic ZnII—LnIII clusters based on a methoxy substituted salicylamide salen-like ligand [Zn2Er3(HL)2(H2L)2(OH)2(NO3)3] (NO3)2.2CH3OH(Zn2Er3), [Zn2Yb3(HL)2(H2L)2(OH)2(NO3)3] (NO3)2.2CH3OH (Zn2Yb3), H3L = 1-(2-hydroxy-4-methoxy-benzamido)-2-(2-hydroxy-3-methoxybenzylideneamino)-ethane were reported. The magnetic susceptibility measurements shows that Zn2Er3 displays antiferromagnetic interactions with zero field slow magnetization relaxation diagnostic of single-molecule-magnet [10]. The Ghosh group reported three trinuclear hetero-metallic complexes with a reduced salen type Schiff base ligand and further investigated their maganetic properties [11].

Herein, we report the synthesis and crystal structure of a heterometallic NiNa complex, which can maybe act as a suitable assemble segment to prepare multimetallic molecule-based magnetic material.

The Ni ion is four-coordinated by a N2O2 unit from the Schiff-base ligand, forming a square planar geometry. The Ni—O and Ni—N bond lengths are almost equal to each other with the average value of 1.841 Å and 1.852 Å, respectively. The mean deviation of the plane formed by NiN2O2 is only 0.01(2) Å, indicating that these five atoms are in a perfect plane. The coordination sphere of the Na ion is a distorted pentagonal bipyramid, in which the five equatorial positions are from a O4 unit of the Schiff-base ligand and one O atom of ClO4− ion and the axial ones occupied by one O atom of the coordinated DMF molecule and one O atom of ClO4− ion. The distances between the Na atom and the seven O atoms are with slight difference within a narrow range from 2.287(4) to 2.627(4) Å. Additionally, this complex forms a supramolecular three-dimensional structure based on weak intermolecular C—H⋯O and C—H⋯Cl interactions.

Acknowledgements

We gratefully thank the financial support of the Shandong Provincial Natural Science Foundation (ZR2015BM005), Science and Technology Program of Weifang (2017GX014).

References

Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2012).Suche in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

Dasa, P.; Linertb, W.: Schiff base-derived homogeneous and heterogeneous palladium catalysts for the Suzuki-Miyaura reaction. Coord. Chem. Rev. 311 (2016) 1–23.10.1016/j.ccr.2015.11.010Suche in Google Scholar

Khan, M. I.; Khan, A.; Hussain, I.; Khan, M.; Gul, S.; Iqbal, M.; Rahman, I.; Khuda, F.: Spectral, XRD, SEM and biological properties of new mononuclear Schiff base transition metal complexes. Inorg. Chem. Commun. 35 (2013) 104–109.10.1016/j.inoche.2013.06.014Suche in Google Scholar

Zhu, W.; Zhang, S.; Cui, C.; Bi, F.; Ke, H.; Xie, G.; Chen, S.: New dinuclear cobalt (II, III) and tetranuclear manganese (III) complexes assembled by a polydentate Schiff-base ligand: synthesis, structure and magnetic properties. Inorg. Chem. Commun. 46 (2014) 315–319.10.1016/j.inoche.2014.06.019Suche in Google Scholar

Miyasaka, H.; Saitoh, A.; Abe, S.: Magnetic assemblies based on Mn(III) salen analogues. Coord. Chem. Rev. 251 (2007) 2622–2664.10.1016/j.ccr.2007.07.028Suche in Google Scholar

Andruh, M.: Compartmental Schiff-base ligands-a rich library of tectons in designing magnetic and luminescent materials. Chem. Commun. 47 (2011) 3025–3042.10.1039/c0cc04506cSuche in Google Scholar PubMed

Biswas, A.; Ghosh, M.; Lemoine, P.; Sarkar, S.; Hazra, S.; Mohanta, S.: Syntheses, structures and magnetic properties of trinuclear CuIIMIICuII (M = Cu, Ni, Co and Fe) and tetranuclear [2*1 + 1*2] CuIIMnII-2CuII complexes derived from a compartmental ligand: the schiff base 3-methoxysalicylaldehyde diamine can also stabilize a cocrystal. Eur. J. Inorg. Chem. 20 (2010) 3125–3134.10.1002/ejic.201000050Suche in Google Scholar

Liu, P.; Wang, C.; Zhang, M.; Song, X.: Pentanuclear sandwich-type ZnII-LnIII clusters based on a new Salen-like salicylamide ligand: structure, near-infrared emission and magnetic properties. Polyhedron 129 (2017) 133–140.10.1016/j.poly.2017.03.019Suche in Google Scholar

Hazari, A.; Gmeiz-Garcia, C.; Drew, M.; Ghosh, A.: Rare examples of diphenoxido-bridged trinuclear NiII2FeIII complexes with a reduced salen type Schiff base ligand: Structures and magnetic properties. Polyhedron 138 (2017) 145–153.10.1016/j.poly.2017.09.012Suche in Google Scholar

Received: 2017-12-2
Accepted: 2018-2-24
Published Online: 2018-3-10
Published in Print: 2018-5-24
