Crystal structure of bis{5-methoxy-2-(((2-oxo-2H-chromen-6-yl)imino)methyl)phenolato-κ2N,O}zinc(II), C34H24N2O8Zn

  • Ping Zhang EMAIL logo , Yan-Bin Wang and Qiong Su
Published/Copyright: March 5, 2018
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 233 Issue 3

Abstract

C34H24N2O8Zn, triclinic, P1̅ (no. 2), a = 9.1202(6) Å, b = 12.2985(8) Å, c = 12.9973(9) Å, α = 83.799(2)°, β = 76.063(2)°, γ = 81.385(2)°, Z = 2, V = 1395.02(16) Å3, Rgt(F) = 0.0292, wRref(F2) = 0.0691, T = 296(2) K.

CCDC no.: 1576171

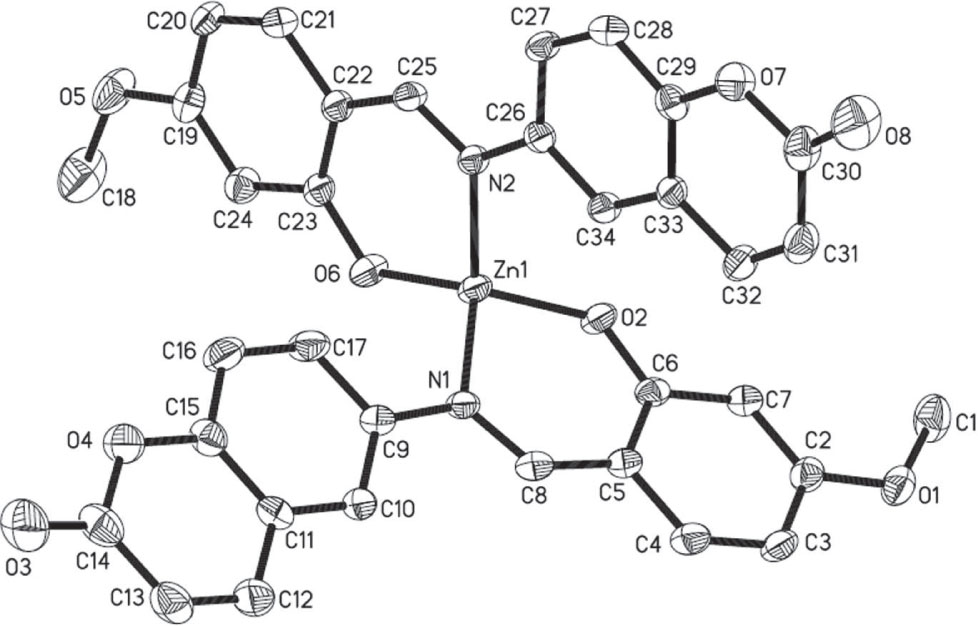

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.27 × 0.26 × 0.22 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.94 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:9489, 4876, 0.020
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4335
N(param)refined:408
Programs:Bruker programs [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.6028(3)0.7541(2)1.01772(19)0.0364(6)
H1A0.70350.73230.97660.055*
H1B0.60650.75761.09050.055*
H1C0.56400.82530.99010.055*
C20.4813(2)0.66082(17)0.91538(17)0.0246(5)
C30.3867(3)0.57961(17)0.91688(17)0.0273(5)
H30.34900.53900.97980.033*
C40.3517(3)0.56173(17)0.82474(17)0.0273(5)
H40.28980.50780.82600.033*
C50.4057(2)0.62196(16)0.72643(16)0.0220(4)
C60.5039(2)0.70298(16)0.72507(16)0.0208(4)
C70.5407(2)0.71963(16)0.82147(16)0.0222(4)
H70.60580.77090.82170.027*
C80.3577(2)0.59388(16)0.63712(17)0.0236(5)
H80.29770.53690.65030.028*
C90.3271(2)0.59785(16)0.46024(17)0.0221(4)
C100.2537(2)0.50454(17)0.47601(17)0.0243(5)
H100.24220.46310.54100.029*
C110.1970(2)0.47220(17)0.39504(17)0.0246(5)
C120.1176(3)0.37721(19)0.40816(19)0.0337(5)
H120.10190.33510.47280.040*
C130.0662(3)0.3492(2)0.3279(2)0.0362(6)
H130.01420.28790.33820.043*
C140.0890(3)0.41137(19)0.2254(2)0.0359(6)
C150.2175(3)0.53310(18)0.29715(18)0.0272(5)
C160.2930(3)0.62487(19)0.27887(19)0.0349(6)
H160.30790.66450.21290.042*
C170.3462(3)0.65701(18)0.36056(18)0.0307(5)
H170.39590.71950.34900.037*
C181.0854(3)0.7387(2)0.0437(2)0.0518(8)
H18A1.13550.72870.10170.078*
H18B1.16040.7354−0.02240.078*
H18C1.02220.68140.05000.078*
C190.8720(2)0.86096(18)0.12963(17)0.0262(5)
C200.7800(3)0.96232(18)0.11907(17)0.0270(5)
H200.80491.01170.06010.032*
C210.6541(3)0.98597(17)0.19725(17)0.0258(5)
H210.59221.05240.19000.031*
C220.6119(2)0.91430(16)0.28961(16)0.0216(4)
C230.7082(2)0.81277(16)0.30090(16)0.0208(4)
C240.8373(2)0.78804(18)0.21780(17)0.0253(5)
H240.90000.72160.22260.030*
C250.4762(2)0.95360(16)0.36321(16)0.0224(4)
H250.42721.02180.34360.027*
C260.2727(2)0.95897(16)0.51655(16)0.0203(4)
C270.1978(2)1.06238(16)0.48689(17)0.0228(4)
H270.23971.10120.42380.027*
C280.0630(2)1.10620(17)0.55088(17)0.0252(5)
H280.01371.17390.53040.030*
C290.0009(2)1.04997(17)0.64517(17)0.0231(5)
C30−0.2049(3)1.0495(2)0.80146(18)0.0322(5)
C31−0.1330(3)0.94277(19)0.83469(18)0.0316(5)
H31−0.17990.90590.89750.038*
C32−0.0010(3)0.89561(18)0.77756(17)0.0283(5)
H320.04410.82820.80240.034*
C330.0719(2)0.94833(17)0.67799(16)0.0221(4)
C340.2082(2)0.90448(17)0.61194(16)0.0226(4)
H340.25700.83660.63270.027*
N10.38670(19)0.63737(13)0.53957(13)0.0206(4)
N20.41149(19)0.90674(13)0.45446(13)0.0194(4)
O10.50513(18)0.67521(13)1.01177(12)0.0318(4)
O20.56026(16)0.76425(11)0.64012(11)0.0240(3)
O30.0491(2)0.39023(16)0.14867(15)0.0521(5)
O40.16316(19)0.50358(13)0.21484(13)0.0354(4)
O50.99336(19)0.84369(14)0.04619(13)0.0394(4)
O60.68377(16)0.74078(11)0.38353(11)0.0256(3)
O7−0.13397(17)1.09851(12)0.70506(12)0.0297(4)
O8−0.3203(2)1.09966(16)0.84904(15)0.0510(5)
Zn10.51481(3)0.76140(2)0.50334(2)0.02154(8)

Source of material

The ligand was synthesized according to a method reported previously [3, 4] . A solution of 2-hydroxy-5-methoxy-benzaldehyde (168.2 mg, 1 mmol) in ethanol (5 ml) was added to a solution of 6-amino-chromen-2-one (161.2 mg, 1 mmol) in ethanol (10 ml). The mixture was stirred at 373 K for 6 h. After cooling to room temperature, the precipitates were collected. The product was dried in vacuo (yield 72.7%, m.p. 467–468 K). Anal. calcd. for C17H13NO4 (%): C, 65.15; H, 4.44; N, 4.74. Found (%): C, 66.11; H, 4.33; N, 4.92.

A methanol solution (3 ml) of zinc(II) acetate dihydrate (2.2 mg, 0.01 mmol) was added dropwise to a ethyl acetate solution (4 ml) of 6-[(2-hydroxy-4-methoxy-benzylidene)-amino]-chromen-2-one (5.9 mg, 0.02 mmol) at room temperature. The color of the mixed solution turned to yellow immediately. After stirring for 10 min at room temperature, the mixture was filtered and the filtrate was allowed to stand at room temperature for a week. The solvent partially evaporated and yellow block crystals suitable for X-ray crystallographic analysis were obtained. Elemental analysis-Anal. calcd. for C34H24N2O8Zn (%): C, 62.45; H, 3.70; N, 4.28. Found (%): C, 62.53; H, 3.58; N, 4.35.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

Metal complexes containing O, S, and N Schiff bases have been the subject of current interest because of their application in many fields, such as biological activity reagents [5], [6], [7], magnetic materials [8], [9], [10], [11], luminescent materials [12], [13], [14], and supramolecular building [15], [16], [17].

X-ray crystallographic analysis of the Zn(II) complex reveals a mononuclear structure (cf. the figure). It crystallizes in the triclinic system, space group P1̅, and consists of one Zn(II) ion, and two bidentate deprotonated ligands. The coordination geometry of the Zn(II) center can be described as distorted tetrahedron. In addition, there are intermolecular non-classical hydrogen bond interactions which link the title complex to form a stable structure.

Acknowledgements

The authors are grateful for financial aid from the National Natural Science Foundation of China (51563022), the Fundamental Research Funds for the Central Universities (31920170022), and the Scientific Research Foundation of Northwest Minzu University (xbmuyjrc2016035), Key Research and Development Project of Gansu Province (17YF1GA014).

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Xu, L.; Li, N.; Zhao, L.: Crystal structure of 4-chloro-4′,6′-dichloro-2,2′-[propane-1,3-diyldioxybis(nitrilomethylidyne)]diphenol, C17H14Cl3N2O4. Z. Kristallogr. NCS 231 (2016) 967–968.10.1515/ncrs-2016-0025Search in Google Scholar

Zhao, L.; Wang, F.; An, Q. Q.; Zhao, J. X.: Crystal structure of (E)-1-(4-(((E)-3,5-dichloro-2-hydroxybenzylidene)amino) phenyl)ethan-1-one O-ethyl oxime, C17H16Cl2N2O2. Z. Kristallogr. NCS 231 (2016) 1045–1046.10.1515/ncrs-2016-0044Search in Google Scholar

Zhang, H.; Wu, H. L.; Chen, C. Y.; Zhang, J. W.; Yang, Z. H.; Peng, H. P.; Wang, F.: Syntheses, crystal structures, and DNA-binding properties of two nickel(II) complexes with 1,3-bis(benzimidazol-2-yl)-2-oxapropane derivatives, J. Coord. Chem. 69 (2016) 1577–1586.10.1080/00958972.2016.1185518Search in Google Scholar

Chai, L. Q.; Zhang, K. Y.; Tang, L. J.; Zhang, J. Y.; Zhang, H. S.: Two mono- and dinuclear Ni(II) complexes constructed from quinazoline-type ligands: synthesis, X-ray structures, spectroscopic, electrochemical, thermal, and antimicrobial studies. Polyhedron. 130 (2017) 100–107.10.1016/j.poly.2017.04.010Search in Google Scholar

Wu, H. L.; Pan, G. L.; Bai, Y. C.; Zhang, Y. H.; Wang, H.; Shi, F. R.; Wang, X. L.; Kong, J.: Study on synthesis, crystal structure, antioxidant and DNA-binding of mono-, di- and poly nuclear lanthanides complexes with bis(N-salicylidene)-3-oxapentane-1,5-diamine. J. Photochem. Photobio. B 135 (2014) 33–43.10.1016/j.jphotobiol.2014.04.005Search in Google Scholar PubMed

Song, X. Q.; Liu, P. P.; Liu, Y. A.; Zhou, J. J.; Wang, X. L.: Two dodecanuclear heterometallic [Zn6Ln6] clusters constructed by a multidentate salicylamide salen-like ligand: synthesis, structure, luminescence and magnetic properties. Dalton Trans. 45 (2016) 8154–8163.10.1039/C6DT00212ASearch in Google Scholar

Liu, Y. A.; Wang, C. Y.; Zhang, M.; Song, X. Q.: Structures and magnetic properties of cyclic heterometallic tetranuclear clusters. Polyhedron 127 (2017) 278–286.10.1016/j.poly.2017.02.007Search in Google Scholar

Dong, W. K.; Ma, J. C.; Zhu, L. C.; Zhang, Y.: Nine self-assembled nickel(II)-lanthanide(III) heterometallic complexes constructed from a Salamo-type bisoxime and bearing a N- or O-donor auxiliary ligand: Syntheses, structures and magnetic properties. New J. Chem. 40 (2016) 6698–7010.10.1039/C6NJ00855KSearch in Google Scholar

Song, X. Q.; Liu, P. P.; Xiao, Z. R.; Li, X.; Liu, Y. A.: Four polynuclear complexes based on a versatile salicylamide salen-like ligand: Synthesis, structural variations and magnetic properties. Inorg. Chim. Acta 438 (2015) 232–244.10.1016/j.ica.2015.09.022Search in Google Scholar

Nishal, V.; Singh, D.; Kumar, A.; Tanwar, V.; Singh, I.; Srivastava, R.; Kadyan, P. S.: A new zinc-Schiff base complex as an electroluminescent material. J. Org. Semicond. 2 (2014) 15–20.10.1080/21606099.2014.942767Search in Google Scholar

Ma, J. C.; Dong, X. Y.; Dong, W. K.; Zhang, Y.; Zhu, L. C.; Zhang, J. T.: An unexpected dinuclear Cu(II) complex with a bis(Salamo) chelating ligand: synthesis, crystal structure, and photophysical properties, J. Coord. Chem. 69 (2016) 149–159.10.1080/00958972.2015.1108410Search in Google Scholar

Liu, P. P.; Wang, C. Y.; Zhang, M.; Song, X. Q.: Pentanuclear sandwich-type ZnII–LnIII clusters based on a new salen-like salicylamide ligand: structure, near-infrared emission and magnetic properties. Polyhedron 129 (2017) 133–140.10.1016/j.poly.2017.03.019Search in Google Scholar

Guo, J. Q.; Sun, Y. X.; Yu, B.; Li, J.; Jia, H. R.: Syntheses, crystal structures and spectroscopic properties of copper(II) and nickel(II) complexes with oxime-type Schiff base ligands. Chinese J. Inorg. Chem. 33 (2017) 1481–1488.Search in Google Scholar

Zhao, L.; Dang, X. T.; Chen, Q.; Zhao, J. X.; Wang, L.: Synthesis, crystal structure and spectral properties of a 2D supramolecular copper(II) complex with 1-(4-{[(E)-3-ethoxyl-2-hydroxybenzylidene]amino}phenyl)ethanone oxime. Synth. React. Inorg. Met. -Org. Nano-Met. Chem. 43 (2013) 1241–1246.10.1080/15533174.2012.757236Search in Google Scholar

Chai, L. Q.; Tang, L. J.; Chen, L. C.; Huang, J. J.: Structural, spectral, electrochemical and DFT studies of two mononuclear manganese(II) and zinc(II) complexes. Polyhedron 122 (2017) 228–240.10.1016/j.poly.2016.11.032Search in Google Scholar

Received: 2017-11-8
Accepted: 2018-2-20
Published Online: 2018-3-5
Published in Print: 2018-5-24
