Crystal structure of 4-methoxy-6-phenyl-2H-pyran-2-one, C12H10O3

  • Grace Obi , Sizwe J. Zamisa und Fanie R. Heerden
Veröffentlicht/Copyright: 8. März 2018
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 233 Heft 3

Abstract

C12H10O3, triclinic, P1̄ (no. 2), a = 7.2709(5) Å, b = 7.3228(5) Å, c = 9.4670(7) Å, α = 82.241(4)°, β = 88.161(3)°, γ = 70.192(5)°, V = 469.84(6) Å3, Z = 2, Rgt(F) = 0.0370, wRref(F2) = 0.1082, T = 100(2) K.

CCDC no.:: 1825503

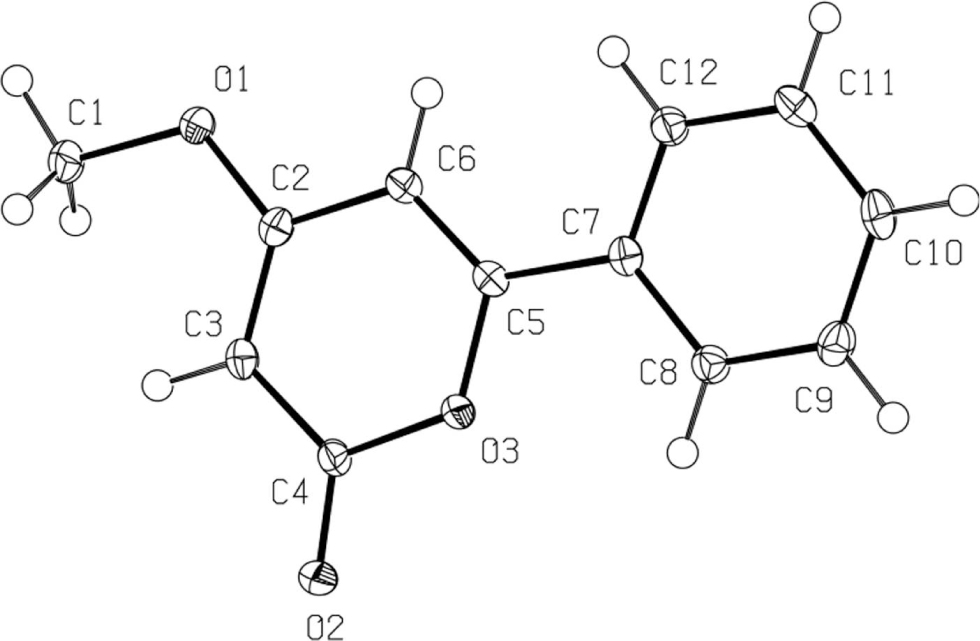

The structure of the title compound is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, colourless
Size:0.31 × 0.19 × 0.13 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.1 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:27.4°, >97%
N(hkl)measured, N(hkl)unique, Rint:7509, 2090, 0.019
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1871
N(param)refined:137
Programs:Bruker programs [1], SHELX [2], WinGX and ORTEP [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.17895(13)0.94151(12)0.22094(9)0.0166(2)
O20.51240(14)0.26790(12)0.37978(9)0.0200(2)
O30.37392(12)0.36424(12)0.16552(9)0.0147(2)
C10.22024(19)1.00221(18)0.35143(13)0.0183(3)
H1A0.1617560.9428090.4315160.027*
H1B0.1649891.1451650.3450660.027*
H1C0.3620450.9599300.3664650.027*
C20.24864(16)0.74773(16)0.21294(12)0.0132(2)
C30.34992(17)0.60870(17)0.31902(12)0.0140(2)
H30.3749110.6451650.4071080.017*
C40.41842(17)0.40752(17)0.29707(12)0.0142(2)
C50.27170(16)0.50579(17)0.06034(12)0.0126(2)
C60.20801(17)0.69565(17)0.07999(12)0.0138(2)
H60.1370290.7937840.0065910.017*
C70.24591(16)0.42345(16)−0.06846(12)0.0130(2)
C80.29998(17)0.22085(17)−0.06696(13)0.0153(2)
H80.3496200.1359280.0185170.018*
C90.28166(18)0.14262(17)−0.18960(13)0.0179(3)
H90.3194470.004744−0.1876400.021*
C100.20837(18)0.26540(19)−0.31475(13)0.0183(3)
H100.1970450.211842−0.3987020.022*
C110.15155(18)0.46725(19)−0.31682(13)0.0183(3)
H110.0997730.551521−0.4021460.022*
C120.17006(17)0.54647(17)−0.19471(13)0.0158(3)
H120.1311090.684477−0.1970160.019*

Source of materials

The dianion of ethyl acetoacetate (1.83 g, 14.04 mmol) was formed by successive treatment of the substrate in THF (60 mL) with NaH (60% dispersion in mineral oil, 1.12 g, 28.0 mmol) and n-butyllithium (2.5 M in hexane, 9.2 mL, 23.20 mmol). Addition of ethyl benzoate (2.11 g, 14.04 mmol) to the reaction mixture yielded ethyl 3,5-dioxo-5-phenylpentanoate (3.15 g, 74% yield). Refluxing of ethyl 3,5-dioxo-5-phenylpentanoate (0.21 g, 0.9 mmol) and 1,8-diazobicyclo[5.4.0]undecan-7-ene (DBU, 0.16 g, 1.0 mmol) in benzene (5 mL) overnight, according to the method described by Cervello et al. [4], led to base-mediated cyclization to yield 4-hydroxy-6-phenyl-2H-pyran-2-one (98 mg, 74% yield). Methylation of the product (0.38 g, 2.0 mmol) with dimethyl sulfate (0.38 g, 3.0 mmol) in the presence of potassium carbonate (0.8 g, 6.0 mmol) afforded the product as a white solid. Colourless, block-shaped crystals were obtained by recrystallization from ethyl acetate. Yield: 98%; m.p. 223–225 °C; 1H NMR (CDCl3, 400 MHz): δ (ppm) = 3.85 (s, 3H), 5.54 (d, 1H, J = 1.9 Hz), 6.42 (d, 1H, J = 1.9 Hz), 7.43–7.45 (m, 3H), 7.79–7.81 (m, 2H); 13C NMR (CDCl3, 100 MHz): δ (ppm) = 56.1, 88.6, 98.1, 125.8, 129.0, 131.1, 131.3, 160.3, 164.3, 171.4; Selected IR (neat) νmax (cm−1): 1706, 1631, 1557, 1271, 1219, 1009; HR-MS (ESI+) calcd. for C12H10O3 (M + Na)+ 202.0528 m/z, found 202.0532 m/z.

Experimental details

Molecular graphics were done using ORTEP-3 [3]. All hydrogen atoms were positioned geometrically, allowed to ride on their parent atoms and refined isotropically. The C—Haromatic and C—Hmethyl bond distances were restrained to 0.95 Å and 0.98 Å with Uiso(Haromatic) = 1.2Ueq and Uiso(Hmethyl) = 1.5Ueq of parent atom, respectively.

Comment

2-Pyrones (α-pyrones) form an important class of natural products [5]. These compounds and their synthetic analogues are associated with a range of biological activities such as antiviral [6], antimalarial and antituberculosis [7] activities. The range of biological activities displayed by these compounds have stimulated investigations in the synthesis and structures of 2-pyrones.

There is one molecule present in the asymmetric unit of the title crystal structure. The molecular unit consists of phenyl and pyranonyl moieties, which confirms the synthesis of the title compound. The two moieties are not co-planar and have a C6—C5—C7—C12 torsion angle of 8.80(18)°. At least one non-classical intermolecular C3—H3⋯O2 hydrogen bond exists between two pyranonyl moieties of neighbouring molecules with C—H⋯O angle of 172° and H3⋯O2 distance of 2.44 Å (symmetry code: −x + 1, −y + 1, −z + 1). This hydrogen bonding pattern forms an eight-membered ring with two donor and acceptor atoms. Offset π⋯π interactions between phenyl and pyranonyl moieties of neighboring molecules were also observed with a πphenyl⋯πpyranonyl distances of 3.677 Å. All geometric parameters are in the expected ranges.

Acknowledgements

This work was supported by the University of KwaZulu-Natal and the National Research Foundation of South Africa (NRF) (Grant No: 98345, 2017).

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2012).Suche in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar

Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Cryst. 45 (2012) 849–854.10.1107/S0021889812029111Suche in Google Scholar

Cervello, J.; Marquet, J.; Moreno-Manas, M.: Copper and cobalt mediated regioselective alkylation of polyketide models: methyl 3, 5-dioxohexanoate and triacetic acid lactone. Tetrahedron 46 (1990) 2035–2046.10.1016/S0040-4020(01)89770-2Suche in Google Scholar

McGlacken, G. P.; Fairlamb, I. J.: S. 2-Pyrone natural products and mimetics: isolation, characterization and biological activity. Nat. Prod. Rep. 22 (2005) 369–385.10.1039/b416651pSuche in Google Scholar PubMed

Defant, A.; Mancini, I.; Tomazzolli, R.; Balzarini, J.: Design, synthesis, and biological evaluation of novel 2H-pyran-2-one derivatives as potential HIV-1 reverse transcriptase inhibitors. Arch. Pharm. Chem. Life Sci. 348 (2015) 23–33.10.1002/ardp.201400235Suche in Google Scholar PubMed

McCracken, S. T.; Kaiser, M.; Boshoff, H. I.; Boyd, P. D. W.; Copp, B. R.: Synthesis and antimalarial and antituberculosis activities of a series of natural and unnatural 4-methoxy-6-styryl-pyran-2-ones, dihydro analogues and photo-dimers. Bioorg. Med. Chem. 20 (2012) 1482–1493.10.1016/j.bmc.2011.12.053Suche in Google Scholar PubMed PubMed Central

Received: 2017-11-27
Accepted: 2018-2-23
Published Online: 2018-3-8
Published in Print: 2018-5-24

©2018 Grace Obi et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 License.
