Crystal structure of 5,6-Dihydro-9,10-dimethoxybenzo[g]-1,3-benzodioxolo[5,6-a]chinolizinium 3-(4-hydroxyphenyl)-4-oxo-4H-chromen-7-olate - methanol - water (1/1/1), C36H33NO10

  • Benyong Lou EMAIL logo , Yali Huang , Guocai Zheng and Qi Lin
Published/Copyright: September 13, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 6

Abstract

C36H33NO10, monoclinic, P21/c (no. 14), a = 14.113(7) Å, b = 17.883(9) Å, c = 12.724(7) Å, β = 108.218(9)°, V = 3050(3) Å3, Z = 4, Rgt(F) = 0.0788, wRref(F2) = 0.1967, T = 293 K.

CCDC no.:: 1511905

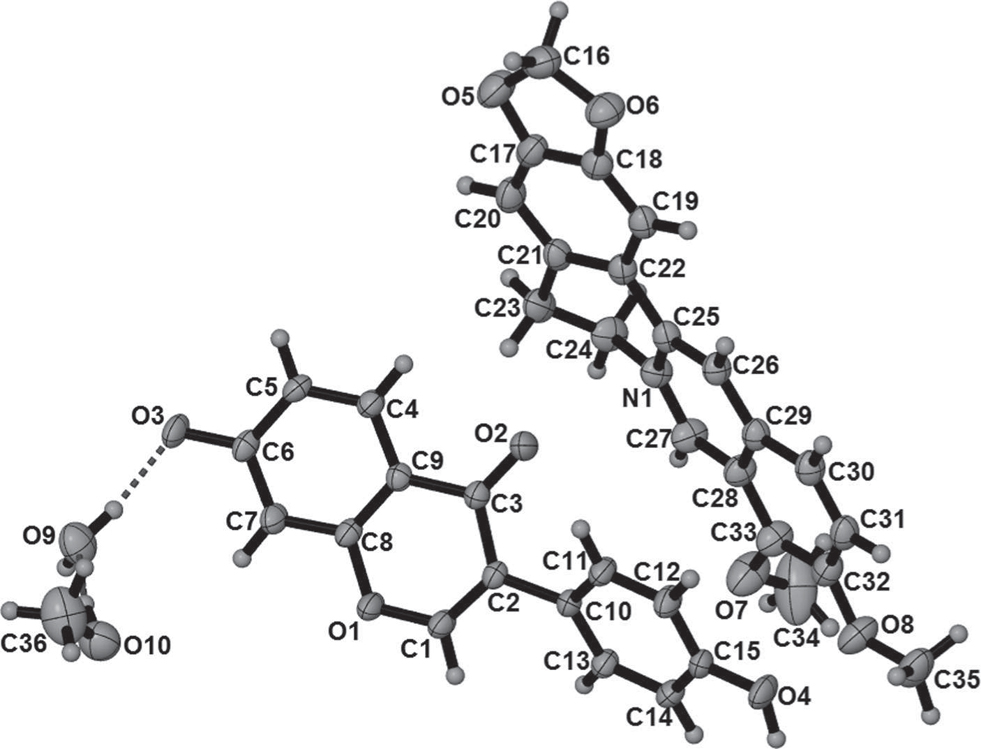

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow needle
Size:0.25 × 0.10 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.0 cm−1
Diffractometer, scan mode:Rigaku CCD, φ and ω
2θmax, completeness:55°, >99%
N(hkl)measured, N(hkl)unique, Rint:23917, 6962, 0.071
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4866
N(param)refined:431
Programs:SHELXL [1], SHELXS [2], CrystalClear [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.42164(12)0.24512(12)0.20957(14)0.0518(5)
O20.30277(13)0.17352(12)0.44727(15)0.0570(5)
O30.75058(12)0.23520(12)0.45429(16)0.0564(5)
O4−0.13952(12)0.26680(13)0.15280(17)0.0621(6)
H4A−0.17560.26960.08100.092(12)*
C10.32108(17)0.24258(16)0.1913(2)0.0454(6)
H10.27910.25790.12060.055*
C20.27671(16)0.22034(14)0.2648(2)0.0385(5)
C30.33839(17)0.19745(14)0.3758(2)0.0403(6)
C40.51573(17)0.19190(14)0.5023(2)0.0417(6)
H40.49270.17550.56100.050*
C50.61596(17)0.20205(15)0.5215(2)0.0427(6)
H50.66080.19300.59350.051*
C60.65442(17)0.22584(15)0.4359(2)0.0442(6)
C70.58559(18)0.23823(16)0.3308(2)0.0487(7)
H70.60820.25310.27110.058*
C80.48414(17)0.22872(15)0.3143(2)0.0419(6)
C90.44612(17)0.20522(14)0.3973(2)0.0384(5)
C100.16589(16)0.22497(14)0.2352(2)0.0389(5)
C110.12332(18)0.25365(17)0.3116(2)0.0488(7)
H110.16450.26500.38450.059*
C120.02116(18)0.26590(18)0.2825(2)0.0534(7)
H12−0.00650.28510.33610.064*
C130.10216(17)0.20658(15)0.1306(2)0.0437(6)
H130.12930.18520.07790.052*
C14−0.00044(18)0.21871(15)0.1013(2)0.0467(6)
H14−0.04240.20510.02970.056*
C15−0.04115(17)0.25072(16)0.1767(2)0.0447(6)
O50.50105(17)0.09294(15)0.9663(2)0.0802(7)
O60.33972(16)0.11788(14)0.96651(18)0.0722(6)
O70.01155(19)0.01491(17)0.1700(2)0.0910(8)
O8−0.17746(16)0.07326(14)0.12883(19)0.0785(7)
N10.20919(16)0.01588(13)0.48295(19)0.0487(6)
C160.4423(3)0.1162(2)1.0327(3)0.0743(9)
H16A0.46350.16661.06330.089*
H16B0.45140.08111.09520.089*
C170.4351(2)0.07959(17)0.8632(3)0.0584(8)
C180.3385(2)0.09456(16)0.8629(2)0.0530(7)
C190.2587(2)0.08551(15)0.7707(2)0.0500(7)
H190.19290.09560.77150.060*
C200.4557(2)0.05488(18)0.7716(3)0.0606(8)
H200.52220.04530.77280.073*
C210.37492(19)0.04414(16)0.6754(2)0.0497(7)
C220.27708(18)0.06057(14)0.6739(2)0.0453(6)
C250.19456(18)0.05670(14)0.5696(2)0.0441(6)
C230.3903(2)0.01558(19)0.5707(3)0.0604(8)
H23A0.39990.05830.52560.073*
H23B0.4511−0.01580.58930.073*
C240.3019(2)−0.02963(17)0.5053(3)0.0588(8)
H24A0.3110−0.04540.43450.071*
H24B0.2963−0.07510.54730.071*
C270.1423(2)0.01343(18)0.3836(2)0.0581(8)
H270.1577−0.01340.32650.070*
C280.0496(2)0.04898(16)0.3595(2)0.0520(7)
C290.02849(18)0.08746(14)0.4468(2)0.0457(6)
C260.10367(18)0.09205(15)0.5499(2)0.0465(6)
H260.09150.12030.60750.056*
C30−0.06731(19)0.12009(16)0.4241(3)0.0525(7)
H30−0.08420.14590.48100.063*
C31−0.13543(19)0.11472(16)0.3212(2)0.0537(7)
H31−0.19940.13660.30810.064*
C32−0.1137(2)0.07769(17)0.2339(3)0.0568(7)
C33−0.0209(2)0.04545(19)0.2525(3)0.0625(8)
C34−0.0362(4)−0.0445(3)0.1151(6)0.150(3)
H34A−0.0443−0.08190.16790.225*
H34B0.0024−0.06590.07050.225*
H34C−0.1020−0.02920.06650.225*
C35−0.2759(2)0.1020(2)0.1055(3)0.0816(11)
H35A−0.31080.07470.14910.122*
H35B−0.31190.09580.02650.122*
H35C−0.27270.15520.12470.122*
O100.6935(2)0.46124(16)0.2547(2)0.0876(8)
H10A0.74120.42020.28380.124(17)*
C360.7298(4)0.5193(3)0.3286(5)0.1184(17)
H36A0.79970.52890.33460.178*
H36B0.72500.50560.40130.178*
H36C0.69020.56450.30190.178*
O90.80292(17)0.33679(14)0.3239(2)0.0793(7)
H9A0.78060.30060.36010.129(18)*
H9B0.81710.31670.26980.096(14)*

Source of materials

A mixture of berberine chloride (370 mg, 1 mmol), NaOH (40 mg, 1 mmol) and daidzein (254 mg, 1 mmol) with 0.1 mL methanol added, was ground with a LAB WIZZ 320 ball mill in a 25 mL steel vessel for 15 min with a 15 mm steel ball at 30 Hz. The resulting powder was washed with water to remove the by-product NaCl and then re-crystallized in MeOH to give rise to yellow needle crystals.

Experimental details

The structure was solved by direct methods and refined on F2 by full-matrix least-squares methods using SHELXL [2]. H atoms on C atoms were located geometrically with Uiso(H) = 1.2 Ueq(C) or 1.5 Ueq(C). H atoms bonded to O were located by difference Fourier maps and the displacement factors were refined freely. Difference Fourier maps indicate disorder for one of the two methoxy groups, which could not be modelled satisfactorily against the available room-temperature data.

Comment

Flavonoids are a class of natural products with various pharmacological activities such as antioxidant and antitumor properties [4]. Multi-component crystals of flavonoids have been exploited recently [5]. Flavonoids have been also explored as cocrystal formers with other drug molecules [6].

Daidzein, 7-hydroxy-3-(4-hydroxyphenyl)-4H-1-benzo-pyran-4-one, is an isoflavone compound exhibiting a range of medicinal properties [7]. With two hydroxyl groups at opposite ends of the molecular structure it is a weak acid [8] capable of forming molecular salts and extended hydrogen-bonded structures. In this paper, we choose a basic natural product, berberine, as drug model. Daidzein crystallized in methanol with berberine to give rise to a 1:1:1 molecular salt hydrate, [C20H18NO4]+[C15H9O4]−⋅H2O⋅CH4O.

Difference Fourier maps show deprotonation of the 7-substituted hydroxyl group in the daidzein molecule. Hydrogen-bonded interactions between the resulting anion and 4′-substituted hydroxyl group [O4⋯O3], give rise to a 1D hydrogen-bonded chain along the [2 0 1] direction. The dihedral angle between the phenyl ring (C10—C15) and pyran ring (O1/C1—C2—C3/C8—C9) of daidzein is 41.14(7)°. The water molecule is hydrogen bonded to methanol and to O3 and O4 of the daidzein anion, thereby connecting the 1D chain into a 2D hydrogen-bonded layer. Berberine cations are located in between the 2D layers to give the host-guest arrays .

Acknowledgement

The authors are grateful to the grants from the Natural Science Foundation of Fujian Province (2015J01599; 2017J01584) and Research Project of Minjiang University (MYK16004).

References

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Rigaku. CrystalClear. Rigaku, Tokyo, Japan (2000).Search in Google Scholar

Crozier, A.; Jaganath, I. B.; Clifford, M. N.: Dietaryphenolics: chemistry, bioavailability and effects on health. Nat. Prod. Rep. 26 (2009) 1001–1043.10.1039/b802662aSearch in Google Scholar PubMed

Sinha, A. S.; Maguire, A. R.; Lawrence, S. E.: Cocrystallization of nutraceuticals. Cryst. Growth Des. 15 (2015) 984–1009.10.1021/cg501009cSearch in Google Scholar

Sowa, M.; Ślepokura, K.; Matczak-Jon, E.: Cocrystals of fisetin, luteolin and genistein with pyridinecarboxamide coformers: crystal structures, analysis of intermolecular interactions, spectral and thermal characterization. CrystEngComm 15 (2013) 7696–7708.10.1039/c3ce41285gSearch in Google Scholar

Siegelin, M. D.; Gaiser, T.; Habel, A.; Siegelin, Y.: Daidzein overcomes TRAIL-resistance in malignant glioma cells by modulating the expression of the intrinsic apoptotic inhibitor, bcl-2. Neurosci. Lett. 454 (2009) 223–228.10.1016/j.neulet.2009.03.031Search in Google Scholar PubMed

Nan, G.; Shi, J.; Huang, Y.; Sun, J.; Lv, J.; Wang, G.; Li, Y.: Dissociation constants and solubilities of daidzein and genistein in different solvents. J. Chem. Eng. Data 59 (2014) 1304–1311.10.1021/je4010905Search in Google Scholar

Received: 2017-3-22
Accepted: 2017-8-15
Published Online: 2017-9-13
Published in Print: 2017-11-27

©2017 Benyong Lou et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
