Building effective core/shell polymer nanoparticles for epoxy composite toughening based on Hansen solubility parameters

2.1 Materials

Butyl acrylate (BA, 99%), methyl methacrylate (MMA, 99.5%), styrene (ST, 99%), acrylonitrile (AN, 99%), glycidyl methacrylate (GMA, 97%) and ethylene glycol dimethacrylate (EGDMA, 98%) were purchased from Sigma Aldrich and used without further purification. Sodium 4-dodecylbenzenesulfonate (SDBS, 88%) and sodium formaldehyde sulfoxylate solution (SFS, 98%) were supplied by Adamas and Macklin, respectively. Ammonium persulfate (APS, 98%) and 2-butanone (MEK, 99%) were purchased from Sinopharm. E828, a type of diglycidyl ether of bisphenol-A epoxy (DGEBA) with an epoxy equivalent weight (EEW) of 185 was supplied by Sanmu Group Co, Ltd. Neopentyl glycol diglycidyl ether (NGDGE, EEW 137) was supplied by Huite Chemical, Ltd. 2-Ethyl-4-methylimidazole (2E4MI) and methyl hexahydrophthalic anhydride (MHHPA, 98%) were purchased from Yuancheng Sichuang Technology Co. Ltd. and J&K Chemicals Inc, respectively.

2.2 Preparation of core/shell nanoparticles

Formulations for nanoparticle synthesis are given in Table S1 (Supplementary Information ). A particle with a soft polymer core and a hard polymer shell was selected as the core/shell configuration because it provided the largest toughness improvement, based on the published work [26]. For the precise control of the particle composition, all core/shell particles were synthesized with the same soft core and different rigid shells via a two-stage polymerization. Furthermore, to minimize the effect of varying T _g of the shell composition, three polymers having almost the same T _g while exhibiting significant differences in polarity were selected to construct the shell, namely polymethyl methacrylate (PMMA, designated as M), polystyrene (PST, designated as S) and polyacrylonitrile (PAN, designated as A). The resulting core/shell structures were denoted B/M, B/A, B/S, wherein B was the poly(butyl acrylate) core and M was the poly(methyl methacrylate) shell, and so on. The B/S particles that were surface-modified with GMA at different loading levels were named B/S-5, B/S-10 and B/S-15, wherein the number denoted the percentage of the functional monomer GMA in the shell polymer composition. The synthesis method and procedure were the same as reported in a previous study [26].

2.3 Epoxy composites fabrication

In order to maintain the particle morphology, the core/shell nanoparticles were re-dispersed in the epoxy resin using a phase-transfer method, described in an earlier publication [26]. The epoxy resins were mixed with the anhydride hardener, with a 1:1 stoichiometric ratio of epoxy groups/anhydride groups. For all samples, the loadings of core/shell particles and cure accelerator (2E4MI) were kept at 10 and 0.5 wt%, respectively. The resin mixture was poured into aluminum molds with specific dimensions and degassed for 1 h at 60°C. All the particles were incorporated into the same resin formula and cured under the same profile, which was 120°C for 1 h, plus 140°C for 2 h and finally 170°C for 1 h.

2.4 Determination of HSP

HSP of core/shell particles and epoxy matrix were determined based on the observation of the interaction between the material and solvents [32,34]. In the case of formulated epoxy resins, 0.5 g of the resin was added into 18 different solvents with known HSP and dwelled for 24 h. The mixture was rated either as “1” or “0”, based on the observation of the dispersion state of epoxy resins in the solvent. A rating of “1” represented a resin being fully dissolved in that particular solvent, while a rating of “0” denoting a resin that was insoluble. Due to the crosslinked structure and particulate form of the core/shell particles, they were dried into films and the film’s degree of swelling was used for the rating. For higher precisions, the degree of swelling was rated according to six grades. A rating of “5” designated the highest degree of swelling in a particular solvent. A rating of “0” denoted no swelling or minimal degree of swelling. It was important that the particles be completely dried at a temperature higher than their minimum film formation temperature (MFFT), so that a film, instead of powder, could be obtained. However, by experimentally determining the degree of swelling for core/shell particles, two assumptions were made: (1) the synthesized core/shell particle had a perfect core/shell structure, that is, the core layer polymer was completely wrapped in the shell layer polymer, and (2) the swelling of core/shell particles was only related to the shell polymer and the contribution of the core layer polymer was neglected. The ratings for the resin and the core/shell particle film in the selected solvents were processed by HSPiP Software (Hansen Solubility Parameters in Practice, 5th Edition), and the HSP components (δ _D, δ _P, and δ _H), and the radius value (R _o) of the sphere of interaction were calculated and fitted.

2.5 Characterization

The particle size and size distribution of the core/shell particles in their original aqueous medium were characterized by dynamic light scattering (DLS) on a Malvern Nano-ZS analyzer. Particle morphology was observed using a JEOL JEM-2100transmission electron microscope (TEM), in which the particles were first stained with phosphotungstic acid (PTA) before subjecting to TEM. Fourier transform infrared (FTIR) spectra were recorded on a Nicolet 6700 FTIR spectrometer using the attenuated total reflection (ATR) mode. The rheological properties of epoxy resins containing core/shell particles were investigated on a TA DHR Rheometer with frequency ramping from 0.1 to 1,000 s⁻¹. The degree of dispersion of core/shell particles in the epoxy matrix was qualitatively characterized by TEM on a thin composite section with the thickness ranging from 30 to 50 nm, which were prepared by freezing-ultramicrotome. Tests on tensile properties and fracture toughness were performed on a Wance ETM104B-EX electronic universal testing machine with a 2 kN load cell, using appropriate fixtures. The dog-bone-shaped tensile samples were prepared according to ASTM D638 and an extensometer was used to measure the strain. Fracture toughness was conducted according to ASTM D5045 using a single-edge-notch bending geometry. A pre-crack was initiated by tapping a sharp chilled blade in the notch. The critical stress intensity factor (K _IC) and critical strain energy release rate (G _IC) were calculated according to the equations given in ASTM D5045. Each reported value for the tensile and fracture toughness test was the average of at least six specimens. The morphologies of fracture surfaces from tensile tests were coated with gold and inspected on a Hitachi S4800 scanning electron microscope (SEM).

3.1 Core/shell nanoparticle characterization

Three types of nanoparticles with the same core but different shell compositions were prepared via emulsion polymerization. The DLS analysis on the particle size and distribution are shown in Figure 1a–c. The Z-average intensity particle diameters (d) and polydispersion index (PDI) are presented in Table S2 (Supplementary Information). The particle size distribution curves all had a single peak, indicating that the particles were of monomodal distribution. Moreover, the increase in particle sizes relative to the core composition indicated that the shell monomers were polymerized on top of the cores without new particle nucleation during the second polymerization stage, namely the shell-forming stage.

Figure 1

Core/shell nanoparticle characterization. Size distributions: (a) B/M, (b) B/S, (c) B/M. TEM images: (d) B/M, (e) B/S, (f) B/M, and FTIR spectra (h).

The synthesized nanoparticles were subjected to TEM to observe their morphologies. The PTA negative staining technique was employed to improve the weak contrast between different polymer phases in the nanoparticles. Figure 1 presents images of B/M (d), B/S (e), and B/A (f) nanoparticles, wherein the light and dark domains corresponded to the core and shell phases, respectively. It is evident from Figure 1(d–f) that the nanoparticles synthesized were spherical with relatively uniform sizes, showing no signs of undesirable secondary particle nucleation.

The particle compositions were verified by FTIR. As shown in Figure 1(h), all three particles exhibited a significant peak at 1,730 cm⁻¹, ascribed to the –C═O stretching vibration ester groups. As expected, the peak in B/A particles at 2,242 cm⁻¹ represented the characteristic absorption of –C≡N from PAN. The B/S particles had strong absorptions at 3,027, 1,602, 1,494, 761, and 700 cm⁻¹, which could be attributed to the characteristic bands of –CH and C═C bonds on the benzene ring in PST.

3.2 Dispersion of nanoparticles in epoxy resin

To obtain a uniform epoxy–nanoparticle mixture without compromising its morphology and particle size distribution, the aqueous medium was replaced by an epoxy resin via a phase-transfer process, which was a proven technique described in an earlier study [26]. It is worth noting that due to the large difference in the shell polymer polarity of the three types of particles, the actual phase transfer processes might be slightly altered in terms of solvent water ratios. Therefore, it was also necessary to verify whether the particle morphology and degree of dispersion were preserved after the phase transfer.

The TEM images of the epoxy resins containing various core/shell nanoparticles are shown in Figure 2. As can be seen the three types of shell polymers, which were significantly different in polarities led to three significantly different particle dispersibility in epoxy resin. The B/M particles in Figure 2(a), having moderate polarity PMMA as the shell polymer, were well dispersed. In contrast, both particles having shell polymers of lower polarity (B/S) and higher polarity (B/A), as shown in Figure 2(b) and (c), exhibited aggregations, with the aggregation of B/A particles to be the most significant.

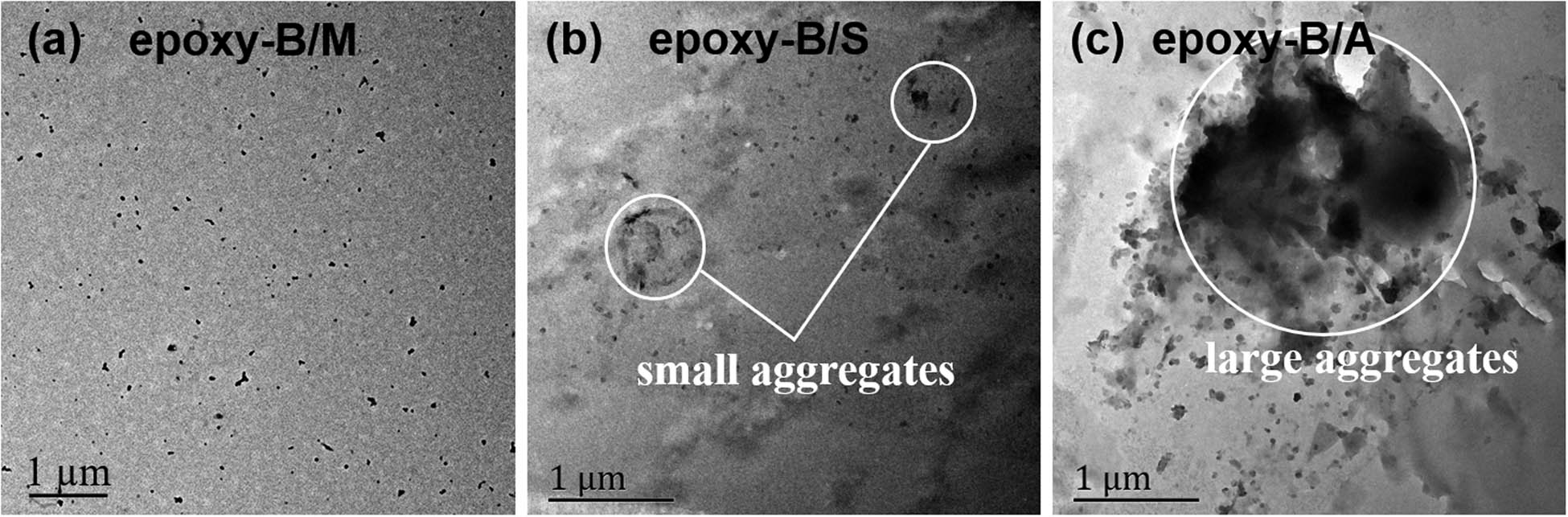

Figure 2

TEM images showing the dispersed nanoparticles in epoxy resin: B/M (a), B/S (b) and B/A (c).

The degree of nanoparticle dispersion in a resin depends on their mutual compatibility. Since the shell polymer is in contact with the resin, it determines the particles’ compatibility with and the degree of dispersion in the epoxy resin. In order to quantitatively characterize, describe and predict the particle compatibility with the epoxy resin, the authors adopted the theory of solubility parameter. According to the principle of “like dissolves like”, the solubility of a given polymer in various solvents is largely determined by its chemical structure [35]. Therefore, the HSP are extensively used as a method to quantitatively characterize the structure–property relationship of polymer materials. In addition, HSP are used to predict the compatibility of polymers and to characterize the surfaces of fillers to improve their dispersion and adhesion [32,36,37,38]. Based on a similar principle of “like seeks like,” materials with similar HSP values would exhibit high mutual physical affinity or rather compatibility [37]. Thus, a comparison of HSP of the core/shell nanoparticles and the epoxy resin potentially provides insights into the compatibility between them as well as a quantitative view of nanoparticles’ degree of dispersion.

The solubility or degree of swelling of a polymer can be measured using a series of solvents with known HSP, and its HSP can be calculated, accordingly, and conveniently by HSPiP. The results are summarized in Table 1, together with the relative energy difference (RED, calculated by HSPiP) values of materials in various solvents. The RED value provides an estimate on whether two materials will be miscible or not, i.e., miscible when RED <1, partially miscible when RED = 1, and immiscible when RED >1 [39,40].

Figure 3 presents the HSP spheres of neat epoxy resin and various core/shell nanoparticles, with each color representing one composition. The HSP values are presented in Table 2. The solubility parameter components, δ _D, δ _P and δ _H, correspond to the three types of interactions, namely dispersion, polar and hydrogen bond [37,40,41]. The radius R _o of the sphere is the interaction radius. Solvents that fall within R _o are expected to dissolve or swell the corresponding polymer [42]. As shown in Table 2, the δ _D, δ _P and δ _H values for B/S particles were the smallest among the three types of particles, suggesting a weak particle–particle interaction, while the highest values of δ _D and δ _P for B/A particles indicated a strong particle–particle interaction.

Figure 3

HSP spheres of neat epoxy and core/shell nanoparticles.

Good compatibility generally requires that the respective HSP values for the two polymers are close to each other, thus their R _a, corresponding to the distance between the center of the two polymer spheres, is considered to be a good measure of their compatibility [32,43]. The HSP distance R _a was calculated by the following equation:

where subscripts 1 and 2 represent the two different polymers, respectively. In addition, the extent of the overlapping of HSP spheres is an intuitive way to represent compatibility [32]. Therefore, the HSP distance R _a and the overlapping of the spheres were combined to estimate the compatibility between two polymers (Figure 4).

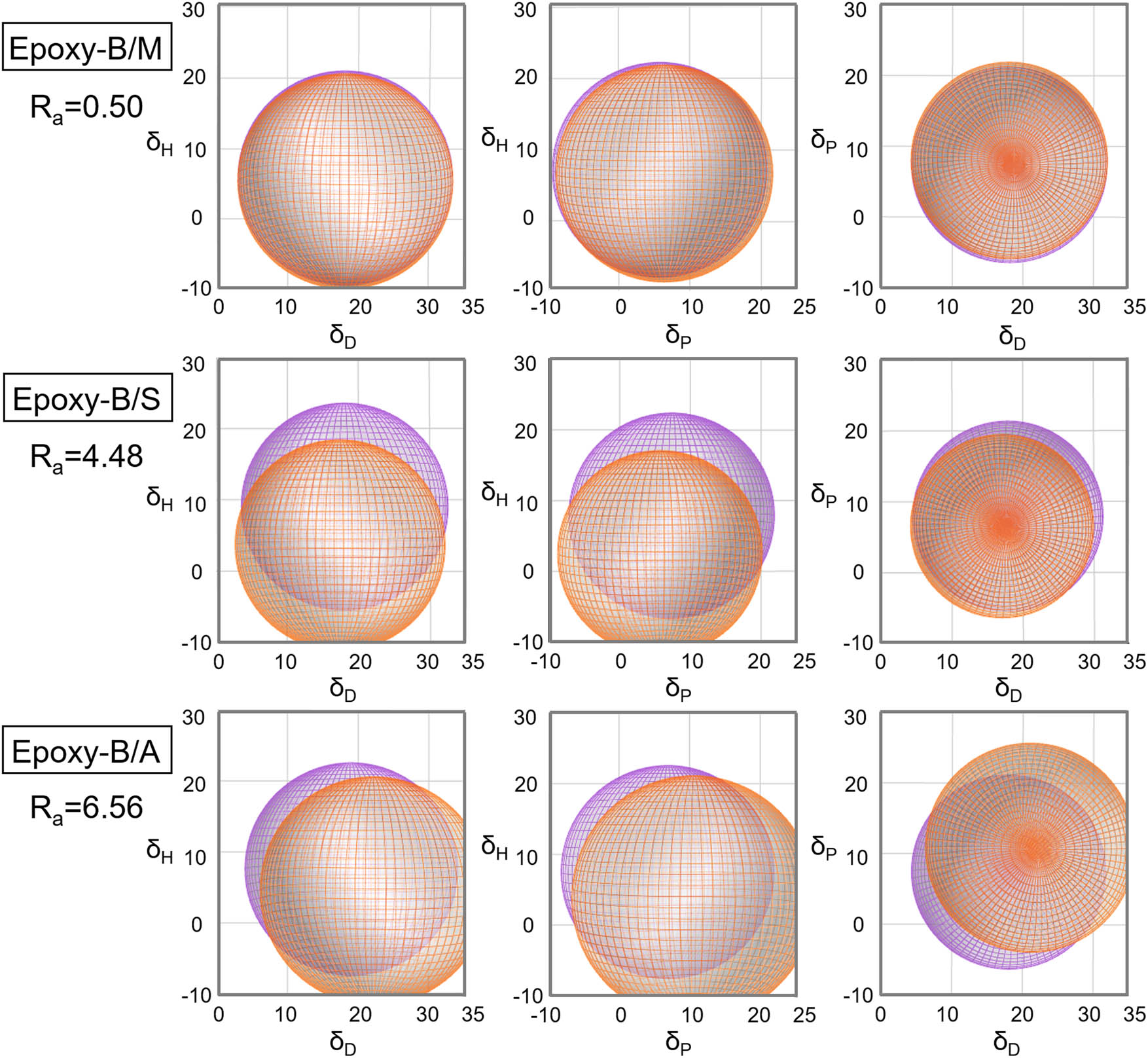

Figure 4

HSP graphs from three-plane projections (front, top and left views). The purple color sphere represents the neat epoxy resin, and the orange color represents core/shell nanoparticles. The R _a values are shown to the left of the HSP graphs.

It is evident from Figure 4 that the distance R _a between B/M and the epoxy matrix resin was the smallest (0.50), and the overlapping was the largest. As a matter of fact, the HSP sphere of B/M was completely included in the HSP sphere of the epoxy resin, indicating that the B/M particles had excellent compatibility with the epoxy resin. Differently, the overlap between B/S and the epoxy resin was smaller and the R _a was larger (4.48), so the B/S particles and epoxy resin were less compatible. The R _a of the B/A particles was the largest (6.56), giving the lowest compatibility between B/A and the epoxy resin.

The above analysis demonstrated that the HSP method satisfactorily described and predicted the compatibility and the degree of dispersion of the core/shell particles in the epoxy matrix resin, which agreed with the experimental observations in this study.

3.3 Rheological behaviors

The influence of nanofillers on the rheological properties is essentially important for the processing of nanocomposites. Rheology studies provide a convenient way to evaluate the resin–filler interactions, filler–filler interactions, as well as the dispersion of fillers in the resin matrix [44,45]. The shear response is one of the most important characteristics to evaluate the rheological properties. Figure 5 shows the viscosity as a function of shear rate for neat epoxy and epoxy resins containing core/shell nanoparticles. The neat epoxy resin had the lowest viscosity and was mostly Newtonian. As expected, adding nanoparticles increased the viscosity. More specifically, the viscosity of epoxy-B/M and epoxy-B/A increased by about 14 and 17 times, respectively, compared to the neat epoxy. Moreover, adding the B/A particles also made the blend significantly pseudoplastic, i.e., shearing thinning.

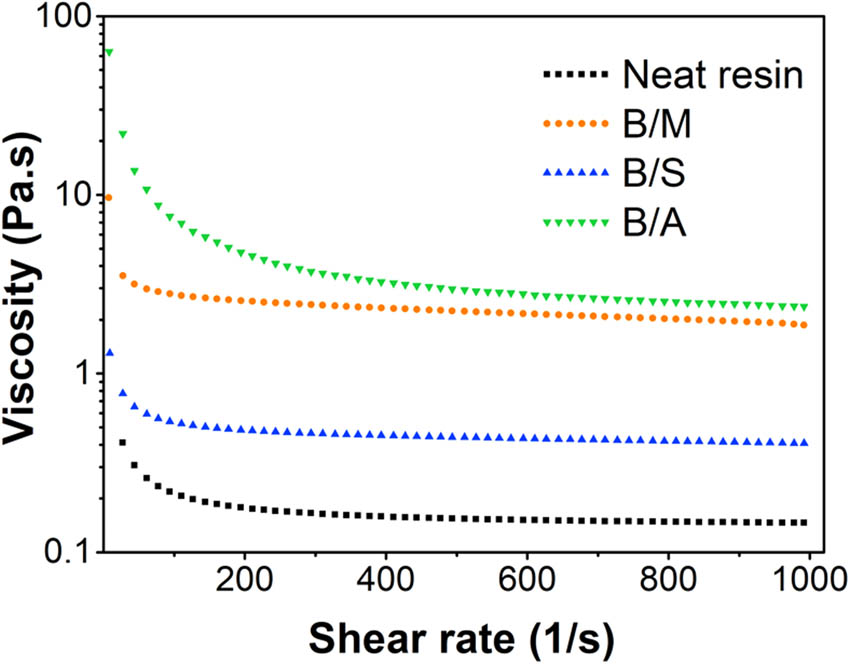

Figure 5

Viscosity versus the shear rate of the neat epoxy resin and epoxy resins containing various core/shell nanoparticles.

Changes in rheological properties when nanoparticles are added to a matrix resin are determined by known factors such as particle morphology and the degree of dispersion, particle–resin and particle–particle interactions. The effect of these factors, however, may not contribute in the same direction or equally. For example, according to the above conclusions, the B/A particles had moderate interaction with the epoxy resin but strong particle–particle attraction due to their high polarity, which formed large aggregates and associative networks between particles, leading to high flow resistance, i.e., viscosity. Moreover, these networks of physical association would break apart under high shear, decreasing the viscosity and producing the effect of shear thinning. As for the B/M particles, their good compatibility with epoxy resin meant strong interfacial interaction, consequently inducing a significant increase in the viscosity of the resin mixture. The B/S particles had the least increase in the resin viscosity due to the relatively weak polar force and hydrogen bond in its shell polymer, which led to low particle–particle and epoxy–particle interactions.

3.4 Mechanical properties

Literature studies have shown, similarly to the physical properties discussed above, that the nanoparticles’ degree of dispersion and their interfacial interaction with resins significantly influence the mechanical performance of composite materials via load distribution and interfacial stress transfer [30,46]. Based on the above understanding of effects of the shell polymer polarity on the core/shell nanoparticles’ dispersion and interfacial interaction, it was expected that the composite mechanical properties would also be a function of the shell composition.

The results of tensile and fracture toughness tests are shown in Figure 6 and the data are summarized in Table S3 (Supplementary Information). Compared to the neat epoxy resin, the tensile strength and Young’s modulus of the nanoparticle-containing resins were lower (Figure 6a). More specifically, when B/M, B/S and B/A nanoparticles were incorporated, the tensile strengths decreased by 14.6, 40.0, and 51.4%, respectively. However, their Young’s modulus had little changes (Figure 6b). Since tensile strengths are normally controlled by the type and number of defects in the materials and considering that the incorporation of particles introduces a different phase that may act as defects, it would be expected that the tensile strength of the epoxy resin containing particles would decrease. As demonstrated in previous sections, the particle aggregations, both in sizes and severity, were minimal for B/M, but were significant for B/S and the largest for B/A; therefore, the cured resin having the B/A particles would contain the most significant defects and exhibit the highest tensile strength drop, while the resin having B/M particles would show the least strength reduction. Different from the tensile strengths, Young’s modulus is determined by the rigidity of the material. With the T _g and the modulus of the shell polymers close to that of the cured epoxy resin, no significant change in the modulus was expected.

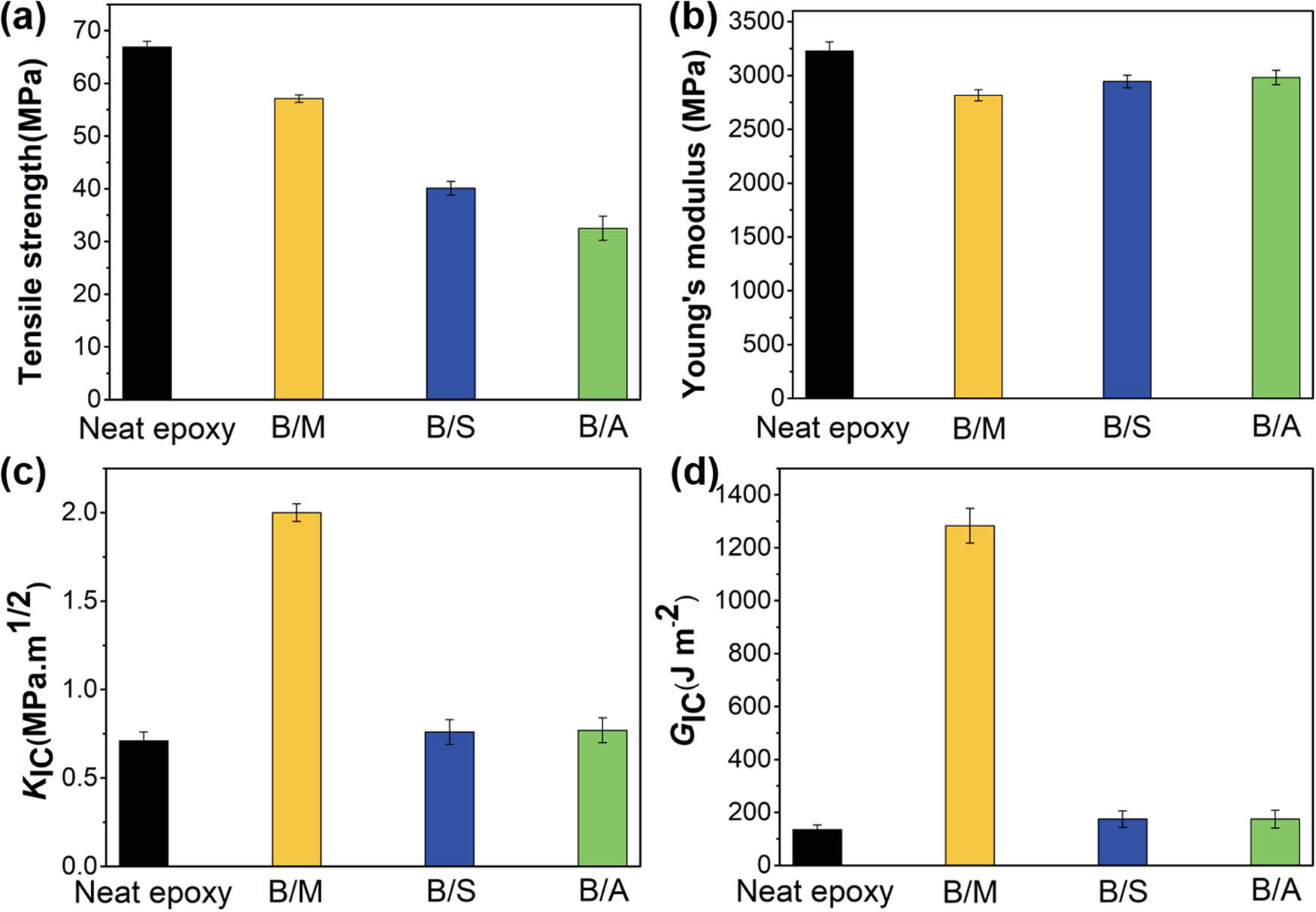

Figure 6

Mechanical properties of neat and nanoparticle-containing epoxy resins: (a) tensile strength, (b) Young’s modulus and (c and d) fracture toughness.

As for the effect of core/shell nanoparticles on fracture toughness, which is the main focus of this study, interesting but unsurprising results were observed. It was apparent from Figure 6c and d that only the nanoparticles B/M significantly improved the fracture toughness, with K _IC and G _IC increasing by 182 and 852%, respectively, compared to the control epoxy resin. This is a higher improvement in toughness than that reported for leading commercial products, i.e., MX125 from Kaneka Corp. gave 127 and 674% gain for K _IC and G _IC, respectively [47]. Not surprisingly, nanoparticles B/S and B/A showed a little toughening effect.

Again, the root cause for the mechanical property discrepancies was the degree of dispersion of the nanoparticles as observed in the aforementioned TEM, and their compatibility with the epoxy resin as demonstrated by the theory of HSP. In order to further evaluate the effect of the shell polymer polarity on compatibility and interfacial bonding, the fracture surface morphologies were observed by SEM, as shown in Figure 7.

Figure 7

SEM micrographs of fracture surfaces of cured epoxy resins containing particles: (a–c) B/M, (d–f) B/S and (h–j) B/A with the particle-rich region in the focus area.

The observation of the fracture surface morphology confirmed the earlier conclusions by TEM. The nanoparticle B/M was uniformly dispersed in the cured epoxy resin, and the fracture surfaces exhibited multiplane features with numerous microcracks, indicating high-energy absorption that was favorable for high fracture toughness. Higher magnification images (Figure 7b–c) revealed that B/M particles were uniformly embedded in the epoxy matrix and no particle pull-out was observed, denoting strong interactions between B/M particles and the resin. In contrast, nanoparticles B/S and B/A both showed aggregations, with a higher level of aggregation for B/A particles than that of B/S particles. The aggregated particles could not effectively block or diffract the crack propagation and absorbed the energy, resulting in no improvement in the toughness. Moreover, it can be observed from Figure 7f and j that a large number of B/S and B/A particles were pulled out from the resin and left empty holes behind them, indicating weak interfacial bonding between particles and the epoxy matrix. These aggregations would readily act as defects that lead to decrease tensile strengths, as observed earlier.

3.5 Modifying nanoparticles under the guidance of HSP theory

The above results demonstrated that the degree of dispersions of the nanoparticles and their interaction with epoxy matrix resin could be well described and predicted by the HSP theory, from which fundamental and reasonable explanations can be derived to describe the physical mechanical behaviors of the particle containing resins. To take this argument further, if the HSP theory truly holds for these nanoparticle-containing epoxy resin systems, it shall yield predictions on what constitutes the most favorable conditions, as well as points to the direction, toward which modifications could be made to a “bad” particle to turn it into a “good” one. For example, if a particle has a much lower HSP than the resin it intends to toughen, the HSP theory should not only forecast its poor toughening effect but also predict that if the particle’s HSP can be increased to match that of the resin’s, resulting in higher toughness.

To test the hypothesis, the B/S nanoparticle was selected even though the B/A particle was the lowest performer because the emulsion copolymerization of styrene with a number of co-monomers could be better controlled than that of acrylonitrile. The idea was to use a co-monomer to modify the polarity of the polystyrene shell composition so that it would fall into the solubility parameter ranges calculated from the HSP theory. The degree of dispersion, interfacial interaction and mechanical properties were subsequently studied.

In this study, GMA was selected as the co-monomer, for it carried the more polar epoxy functional groups which happened to be the same as in epoxy resins, and it copolymerized well with styrene. Three levels of GMA were used to copolymerize with styrene and the copolymer became the new shell on the PBA core, producing the modified B/S nanoparticles. The solubility results are presented in Table S4 (Supplementary Information). Table 3 presents the HSP of the modified-B/S nanoparticles. It can be seen from Table 3 that, for the modified B/S particles, their HSP values increases while their HSP distance R _a decreases, with increasing GMA levels, indicating their compatibility with the epoxy resin would become better.

Tensile and fracture toughness tests were performed and the results are shown in Figure 8 and Table S3 (Supplementary Information). Compared to the pristine B/S particles, the modified particles produced over 70% increase in tensile strength, reaching the same strength as the neat epoxy resin. More importantly, the modified particles showed significant 46 and 114% increases in K _IC and G _IC, respectively.

Figure 8

Mechanical properties of cured epoxy resins containing modified particles. Tensile strengths (a), Young’s modulus (b) and fracture toughness (c and d).

The effect of incorporating GMA on the dispersion state of B/S particles in the epoxy matrix was inspected under a TEM, as shown in Figure 9. It is noted that due to the very close performances of these three modified particles, only the middle-level GMA-modified particle (i.e. B/S-10) was selected for the TEM observation. As expected, the GMA-modified-B/S particles showed a much more uniform dispersion in the epoxy matrix, compared to the unmodified particles. To further study the effect of GMA modification on epoxy-particle interaction, the fracture microstructure from the tensile test was examined using an SEM. In the case of unmodified B/S particles (Figure 10a and b), evident particle agglomerates were present and were pulled out of the resin. However, the modified particles in the cured epoxy resin not only exhibited a much more uniform distribution but also showed a much stronger bonding to the resin matrix, as illustrated by Figure 10c and d, which displayed no particle pull-outs.

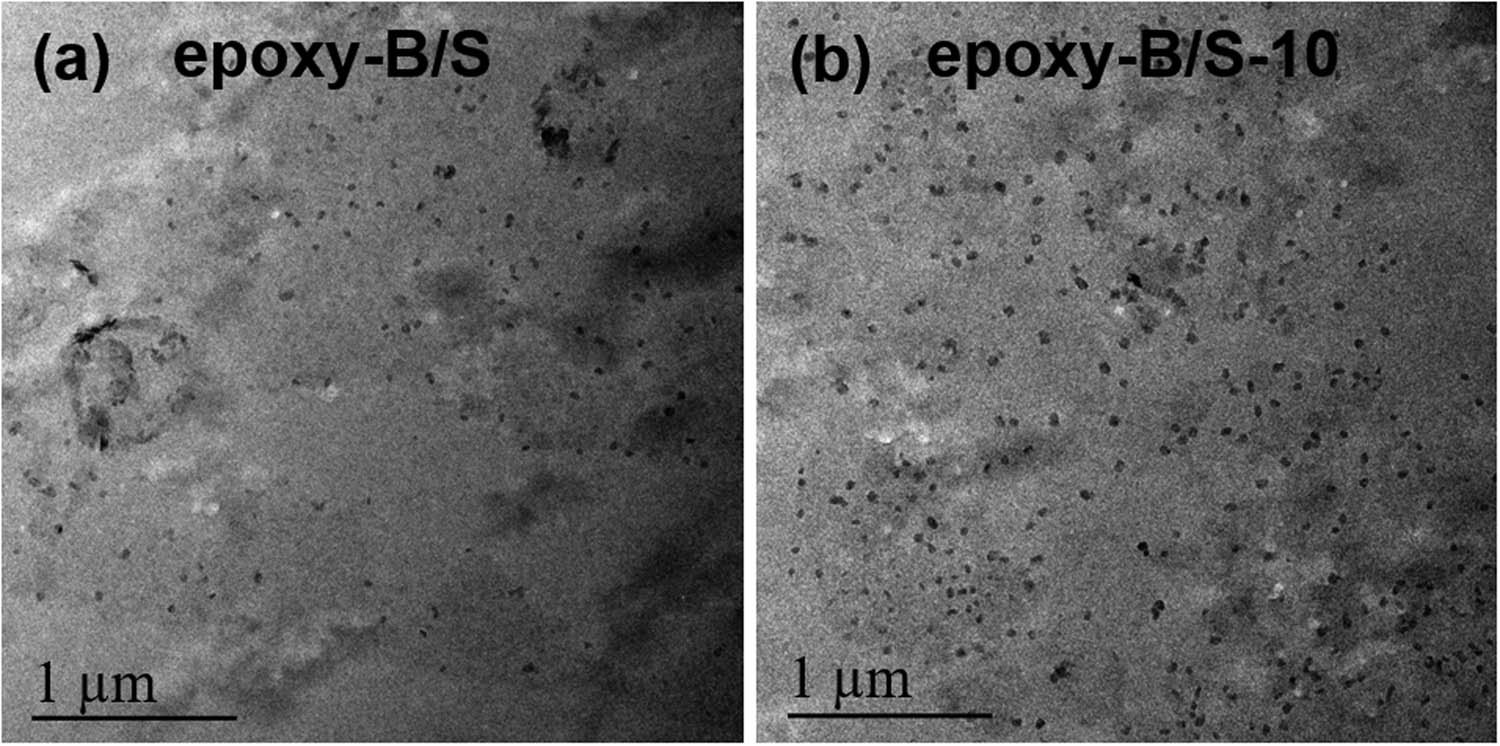

Figure 9

TEM observation of unmodified and GMA-modified B/S particles dispersed in the cured epoxy resin. (a) epoxy-B/S and (b) epoxy-B/S-10.

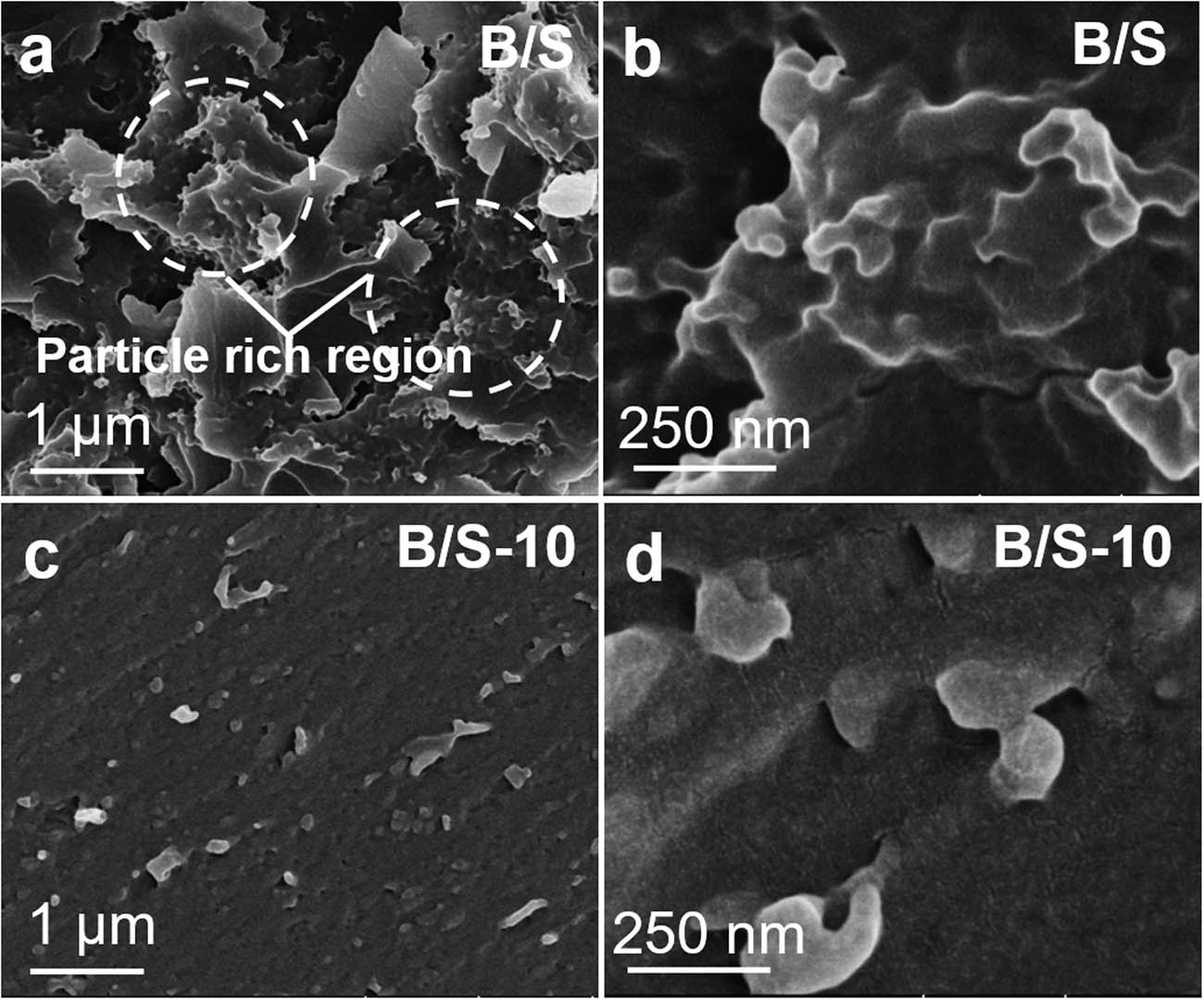

Figure 10

SEM micrographs of fracture surfaces of cured epoxy-B/S (a and b) and epoxy-B/S-10 (c and d) composites after tensile tests.

The above results demonstrated that the HSP theory provides a fundamental understanding and explanation of the physical mechanical performances of polymer composites containing nanoparticles. It further confirms the validity and application of HSP theory as a guide for designing and/or modifying polymer compositions, from which high-performance particles, including but not limited to core/shell nanoparticles, can be synthesized or constructed.
